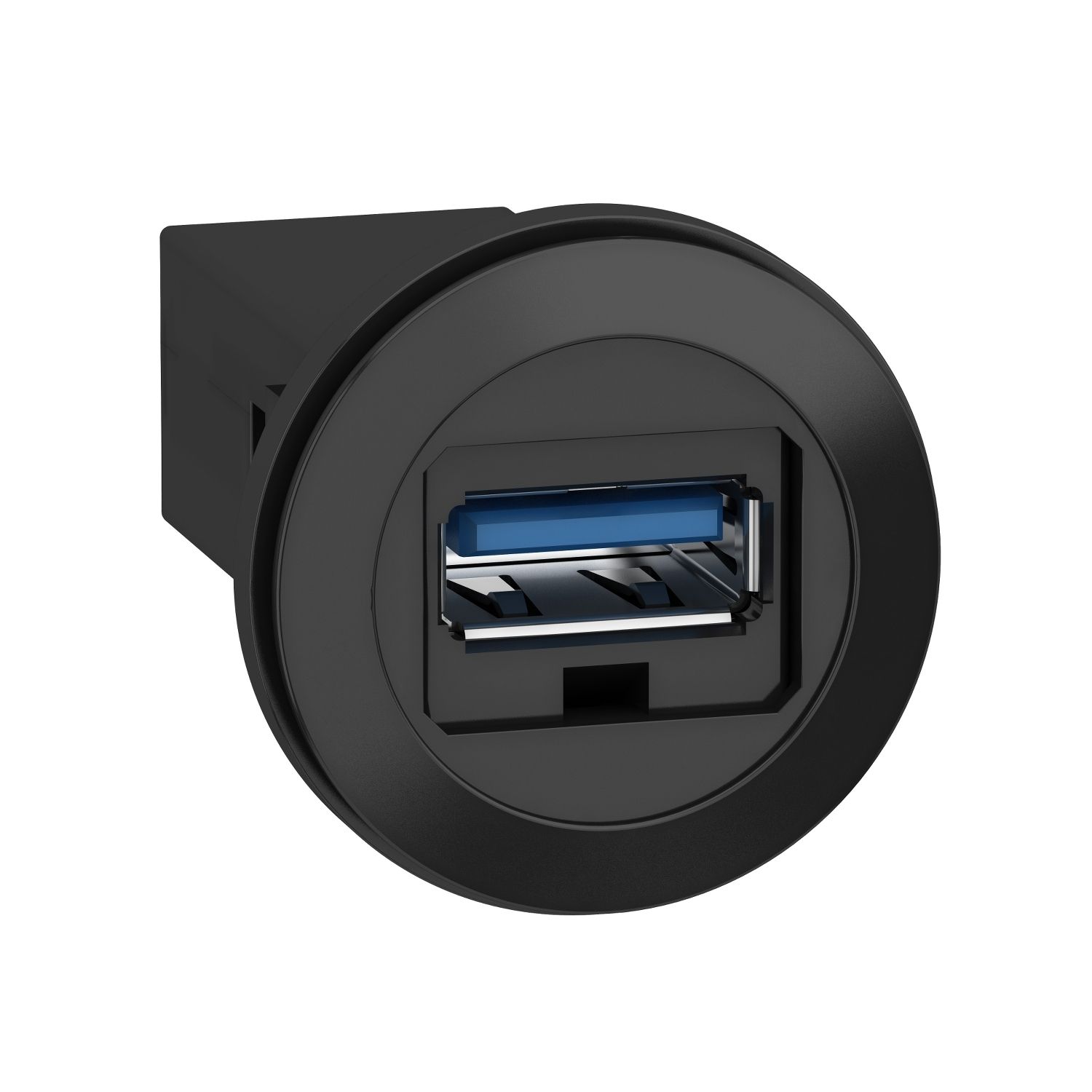

This Harmony XB5, panel mounted USB port enables connection to your machine of USB devices. This panel mounted USB port provides a simple way to connect to your machine through standardized connectors, without opening the control cabinet doorIt is easily installed into standard 22mm diameter cut-outs. It provides an easily and safely access to your machine automation and controllers via a port on the door of the control cabinet. It is easily installed into standard 22mm diameter cut-outs.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XB5P |
| Range of product | Harmony XB5 |
| Product or component type | panel mounted USB port |
| Complementary | |
| IP degree of protection | IP20 back: conforming to IEC 60529, IP20 front: conforming to IEC 60529 |
| Tightening torque | 1.5 N.m |
| Ambient air temperature for storage | -40-70 °C |
| Sale per indivisible quantity | 1 |
| Fixing collar material | plastic |
| Ambient air temperature for operation | -40-70 °C |
| Height | 28 mm |
| Depth | 44 mm |
| Width | 28 mm |
| Minimum number of matings | 1500 cycles |
| Bezel material | plastic |
| Integrated connection type | USB 3.0 type A |
| Net weight | 0.0169 kg |
| Vibration resistance | 5.35 gn15 min per axis |
| Shock resistance | 30 gn 11 ms 3 chocks in each direction X, Y and Z |
| Thickness | 1.5-2.5 mm with protection cover metal, 1.5-5 mm with protection cover rigid plastic, 1.5-5 mm with protection cover plastic, 6-6 mm without protection cover |
| Mounting diameter | 22 mm |
| Standards | USB 3.0 |
| Product certifications | UL listed, CSA |
