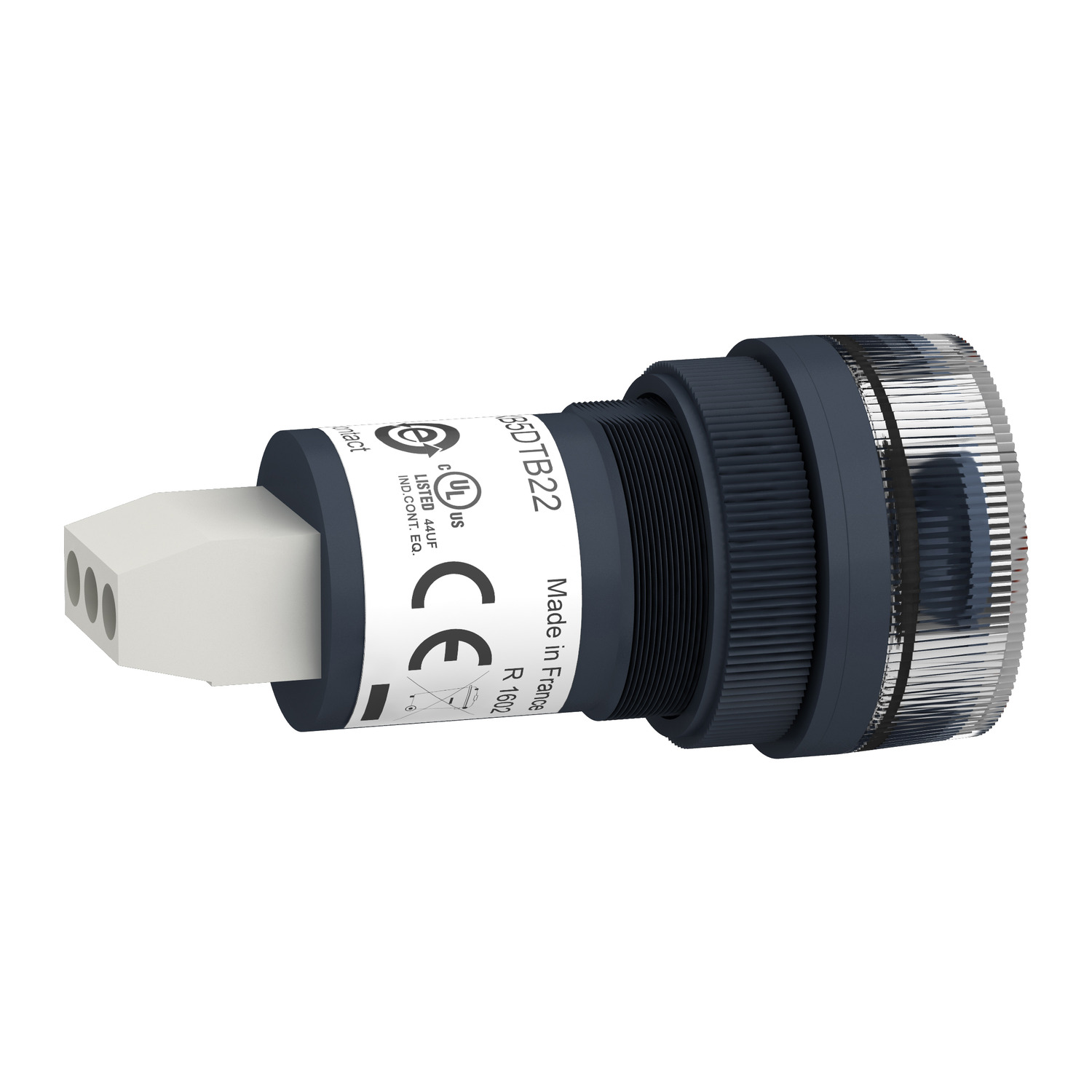

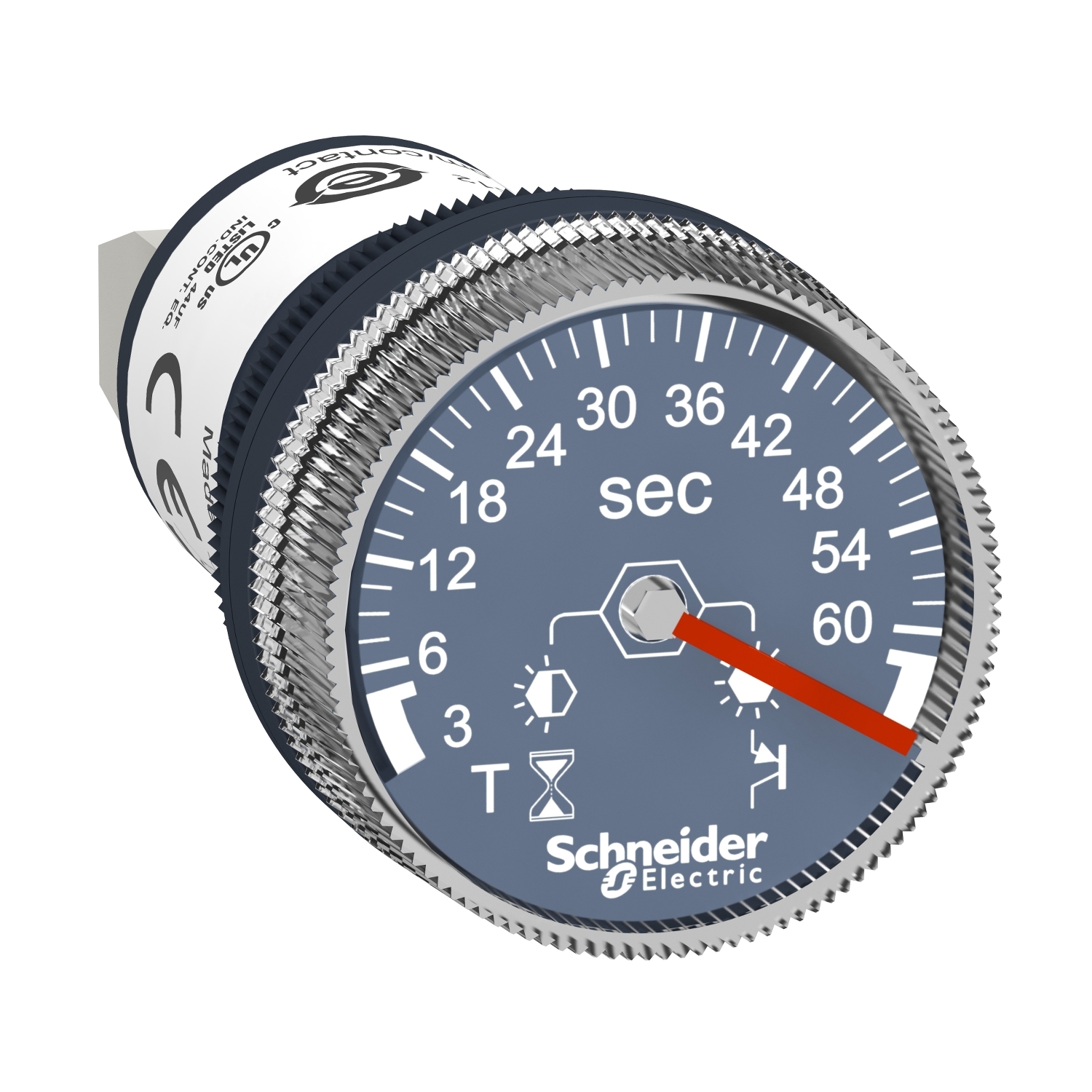

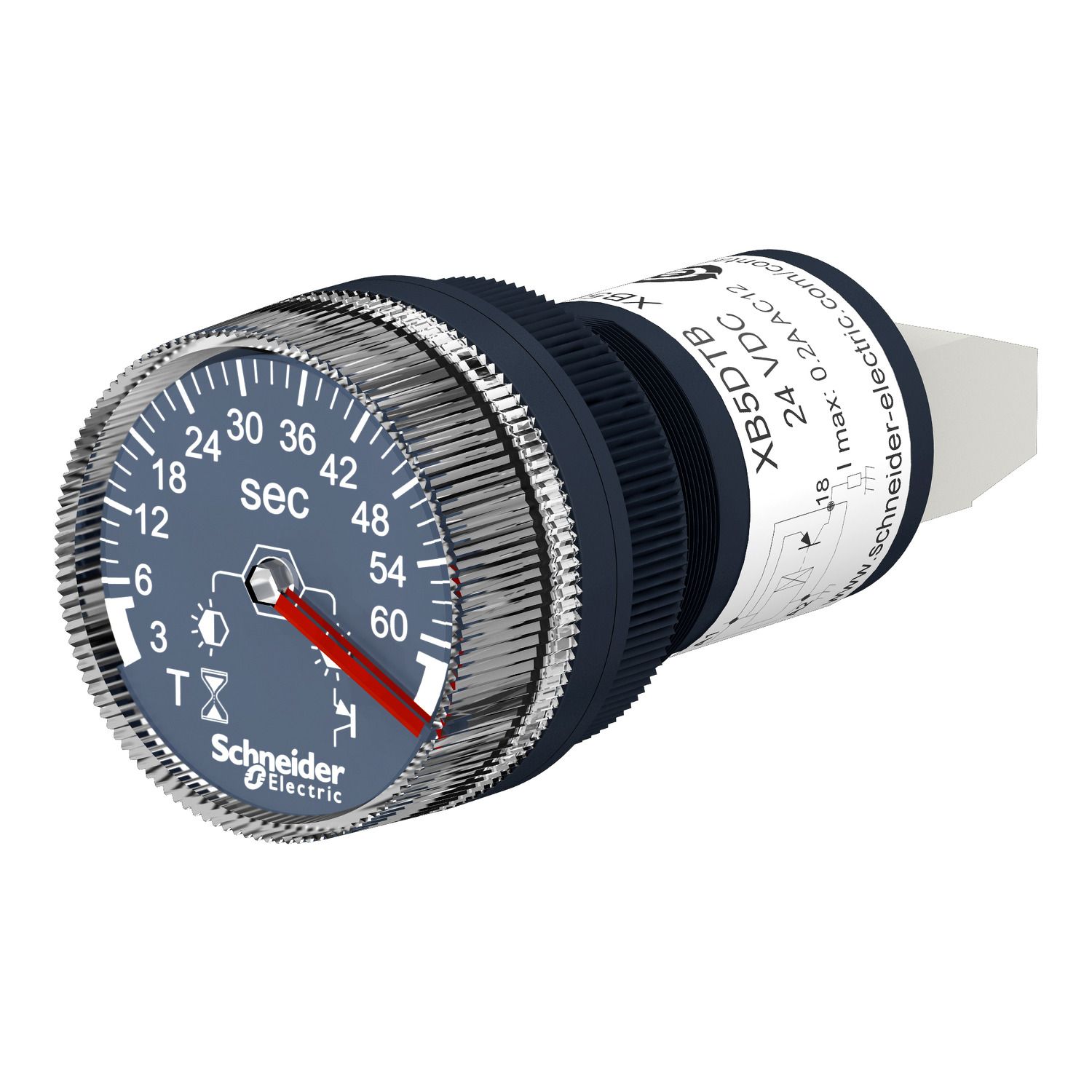

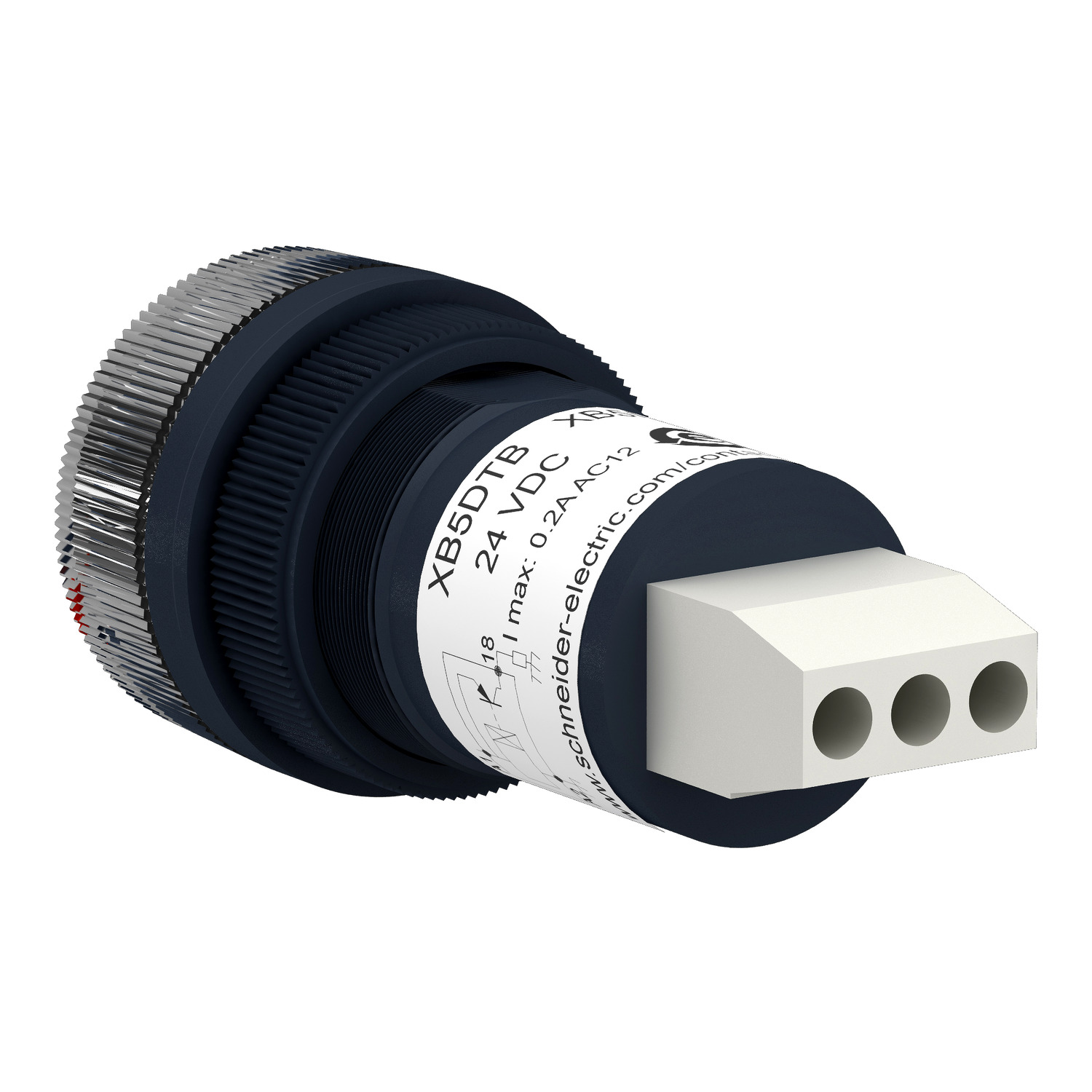

This Harmony XB5, monolithic analog timer can be set for timing intervals between 3 to 60 seconds and is supplied with a 24V DC input. This analog timer provides visual timing of your processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It provides highly visible timing of machine processes, ensuring accuracy and consistency of operation.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Sale per indivisible quantity | 1 |
| Product or component type | timer |
| Range of product | Harmony XB5 |
| Complementary | |
| Nominal output current | 200 mA at 20 °C( derating 1.5 mA per °C) |
| Resistance to fast transients | 2 kV class level 3 conforming to IEC 61000-4-4 |
| Immunity to radioelectric fields | 10 V level 3 conforming to IEC 61000-4-6 |
| Time delay type | A |
| Output type | open collector PNP |
| Protection type | overvoltage protection, reverse polarity protection |
| Maximum residual current | 0.1 mA |
| IP degree of protection | IP20 back: conforming to IEC 60529, IP65 front: conforming to IEC 60529 |
| Temporary permissible current | 10 A for 0.01 s |
| Supply voltage limits | 16.8-31.2 V DC |
| Minimum switching current | 10 mA |
| Connections - terminals | screw terminals 1 x 2.5 mm² conforming to IEC 60947-1, screw terminals 1 x 4 mm² conforming to IEC 60947-1 |
| Output short-circuit protection | yes |
| Tightening torque | 0.5 N.m |
| Bezel material | plastic |
| Overvoltage category | class 3 conforming to IEC 60664-1, class 3 conforming to IEC 60536 |
| Surge withstand | 1 kV, level 2 conforming to IEC 61000-4-5 |
| Ambient air temperature for storage | -20-80 °C |
| [Ui] rated insulation voltage | 50 V conforming to IEC 60664-1, 50 V conforming to IEC 60947-1 |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Local signalling | LED, steady for no timing in progress and output relay energised, LED green, flashing for timing in progress |
| Time delay range | 3...60 s |
| Temperature drift | +/- 0.05 %/°C |
| Electromagnetic compatibility | electromagnetic emission class B conforming to IEC 55011, electrostatic discharge 6 kV level 3 conforming to IEC 61000-4-2 |
| Thickness | 1-6 mm |
| Device presentation | monolithic product |
| Voltage drift | +/- 0.2 %/V |
| Fixing collar material | plastic |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60664-1, 4 kV conforming to IEC 60947-1 |
| Net weight | 0.027 kg |
| Reset time | 7 ms during time delay on de-energisation, 5 ms after time delay on de-energisation |
| Shock resistance | +/- 15 gn for 11 ms (6 shocks on each axis) conforming to IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 60-150 Hz) conforming to IEC 60068-2-6, 0.15 mm (f= 10-60 Hz) conforming to IEC 60068-2-6 |
| Dielectric strength | 1500 V conforming to IEC 61812-1 |
| Shape of signaling unit head | round |
| Power consumption in W | 1 W |
| Mounting diameter | 22 mm |
| Repeat accuracy | +/- 0.5 % |
| Disturbance radiated/conducted | class B conforming to EN 50022 |
| Standards | UL 508, IEC 61812-1 |
| Maximum voltage drop | 3 V |
| Diameter | 29 mm |
| Resistance to electromagnetic fields | 1 V/m 2...2.7 GHz level 1 conforming to IEC 61000-4-3, 3 V/m 1.4...2 GHz level 2 conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz level 3 conforming to IEC 61000-4-3 |
| Ambient air temperature for operation | -20-60 °C |
| Height | 62 mm |
| Setting accuracy of time delay | +/- 10 % of full scale at 25 °C conforming to IEC 61812-1 |
| [Us] rated supply voltage | 24 V DC, 24 V |
| Product certifications | CE, UL listed |
