TeSys Vario add-on module, main pole 63A 690V, for Vario switch-disconnectors. To be used with V3 switch bodies. A maximum of 3 additional VZ3 modules can be attached to the switch body. Multi standards certified (IEC, UL, CSA, CCC, EAC),environmental compliant (RoHS/REACh). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | VZ |
| Product compatibility | V3 |
| Poles description | 1P |
| Suitability for isolation | yes |
| Contacts type and composition | 1 NO |
| Range | TeSys |
| Performance level | high performance |
| Product or component type | additional pole |
| Range compatibility | TeSys TeSys VARIO switch disconnector |
| Network type | DC, AC |
| Network frequency | 50/60 Hz |
| Complementary | |
| Depth | 46 mm |
| Tightening torque | power circuit: 4-4 N.m - on screw clamp terminals |
| Width | 20 mm |
| Compatibility code | main pole module |
| Mechanical durability | 30000 cycles |
| Electrical durability | 30000 cycles DC-1...5, 100000 cycles AC-21 |
| Connections - terminals | power circuit: screw clamp terminals25-25 mm² - solid, power circuit: screw clamp terminals16-16 mm² - flexible - with cable end |
| Mounting location | right, left |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Net weight | 0.1 kg |
| [Ithe] conventional enclosed thermal current | 50 A |
| [Ith] conventional free air thermal current | 63 A |
| Height | 83 mm |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Environment | |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
| Mechanical robustness | shocks 11 ms (30 Gn) conforming to IEC 60068-2-27, vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6 |
| Protective treatment | TC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Standards | IEC 60947-3 |
| Ambient air temperature for operation | -20-50 °C |
| Product certifications | UKCA, UL, GL, CSA |
Only registered users can write reviews
Related products

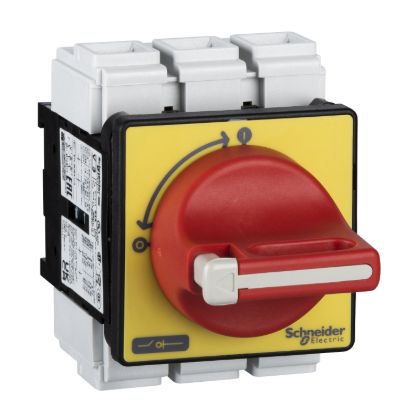

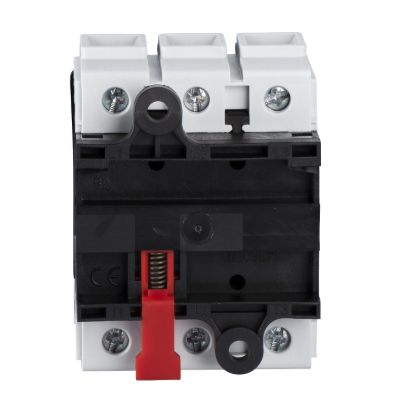

Emergency stop switch disconnector, TeSys Mini-Vario, 63A, on door
VCF3
Emergency stop switch disconnector, TeSys Mini-Vario, 63A, on door
$313.50 inc GST
$124.43 inc GST

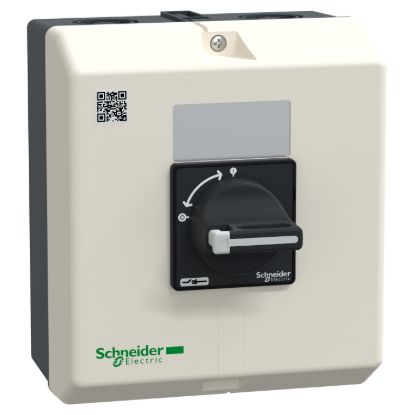

Enclosed switch disconnector,TeSys Control,for ON/OFF,50A,IP65
VBF3GE
Enclosed switch disconnector,TeSys Control,for ON/OFF,50A,IP65
$384.89 inc GST
$152.76 inc GST
Switch disconnector, TeSys Mini-Vario, 63A, on door
VBF3
Switch disconnector, TeSys Mini-Vario, 63A, on door
$339.35 inc GST
$134.69 inc GST

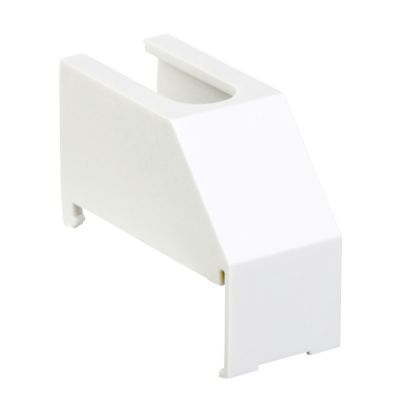

Terminal shrouds,TeSys Control,for VZ12 / VZ15 / VZ3 / VZ4
