Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range compatibility | Altivar Process ATV900 |

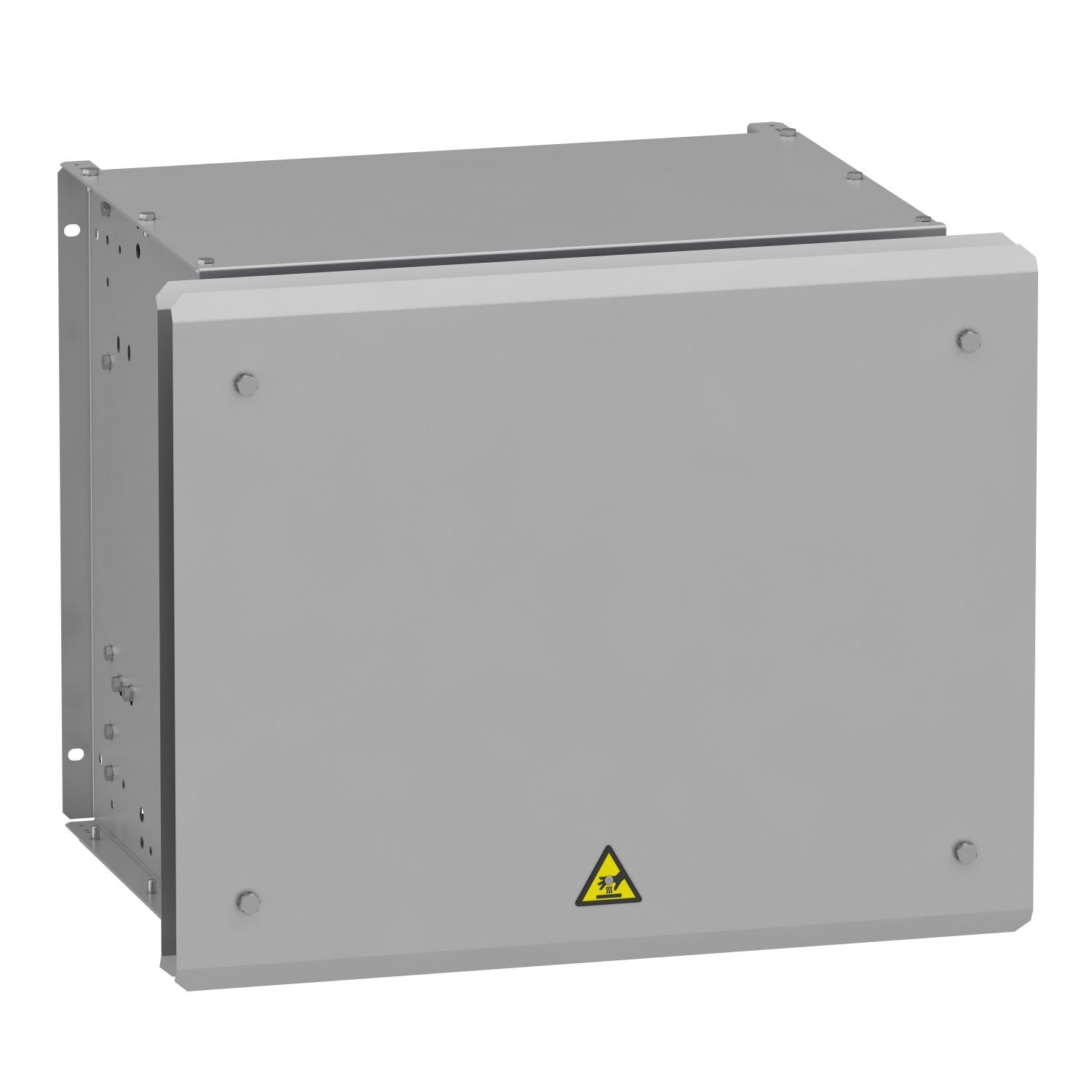

| Product or component type | braking resistor |
| [Ue] rated operational voltage | 250 V AC, 24 V DC |
| Ohmic value | 1.4 Ohm |
| Complementary | |
| Average power available | 5.1 kW at 50 °C |
| Depth | 650 mm |
| Width | 540 mm |
| Duty cycle | medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle , medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle |
| Product compatibility | variable speed drive ATV930 wall mount 250 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 220 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 75 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 55 kW 200...240 V medium cycle |
| Electrical connection | M12 bar wire for drive, terminal, connection capacity: <= 2.5 mm² / AWG 12 for temperature control switch |
| Net weight | 29 kg |
| Protection type | thermal protection via drive or temperature control switch at 120 °C |
| Height | 485 mm |
| Environment | |
| IP degree of protection | IP23 |
| Ambient air temperature for storage | -25-70 °C |
| Ambient air temperature for operation | 0-50 °C |
