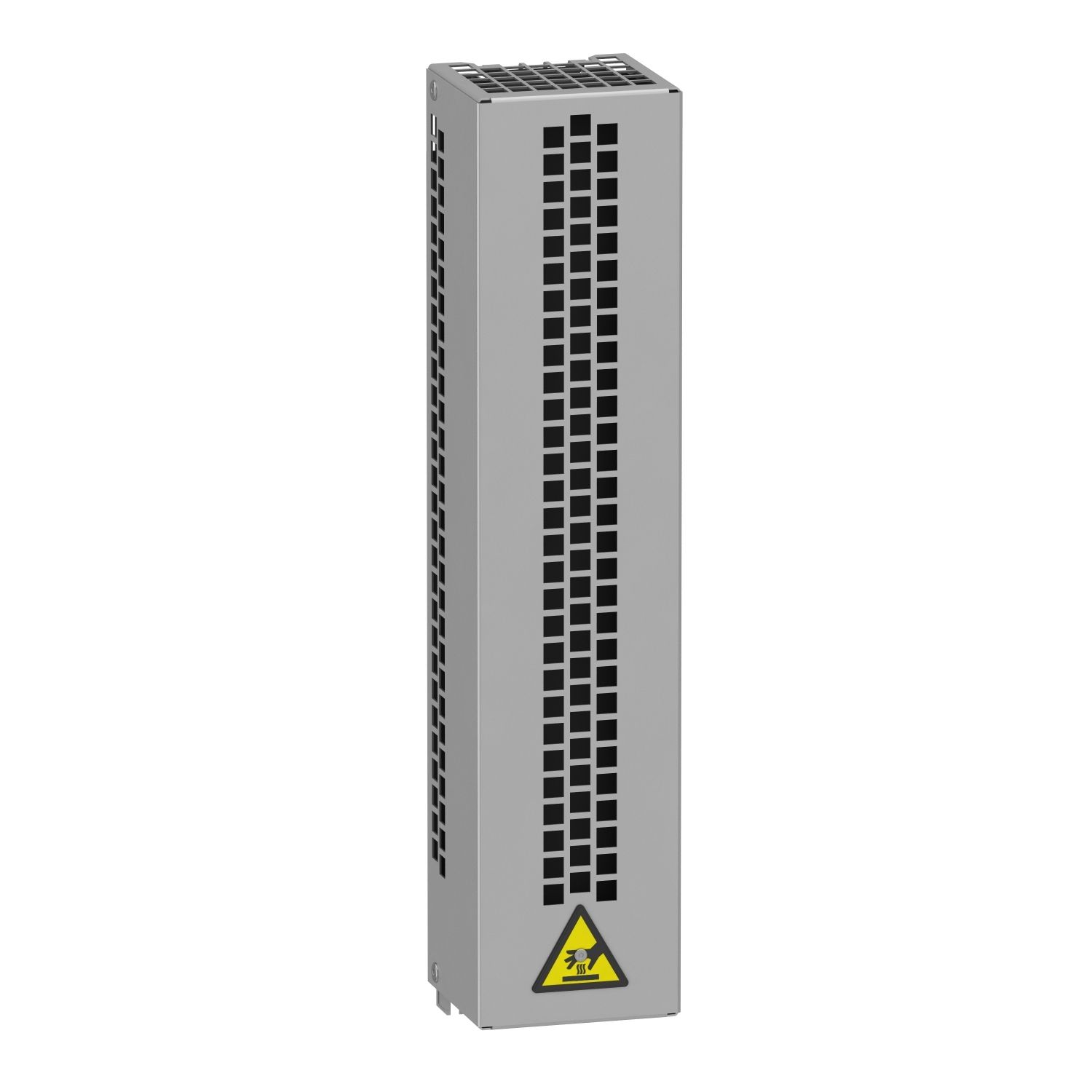

This braking resistor is an option for variable speed drives of the Altivar range. It has an Ohmic value of 100Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill by dissipating the braking energy and enabling maximum transient braking torque. Its protection index is IP20. It weighs 2.5kg. This resistor is designed to be mounted on the outside of the enclosure but should not inhibit natural cooling; air inlets and outlets must not be obstructed in any way.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range compatibility | Altivar Machine ATV340, Altivar Process ATV900 |
| Product or component type | braking resistor |
| Ohmic value | 100 Ohm |
| Complementary | |
| Average power available | 0.26 kW at 50 °C |
| Depth | 100 mm |
| Width | 105 mm |
| Duty cycle | severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle , medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle , medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle , severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle |
| Product compatibility | variable speed drive ATV930 7.5 hp 600 V medium cycle, variable speed drive ATV930 5 hp 600 V medium cycle, variable speed drive ATV930 5.5 kW 500...690 V medium cycle, variable speed drive ATV930 4 kW 500...690 V medium cycle, variable speed drive ATV340 3 kW 380...480 V medium cycle, variable speed drive ATV340 2.2 kW 380...480 V medium cycle, variable speed drive ATV340 1.5 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 0.75 kW 200...240 V severe cycle, variable speed drive ATV950 wall mount 4 kW 380...480 V medium cycle, variable speed drive ATV950 wall mount 3 kW 380...480 V medium cycle, variable speed drive ATV950 wall mount 2.2 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 4 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 3 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 2.2 kW 380...480 V medium cycle |
| Electrical connection | terminal, connection capacity: <= 10 mm² / AWG 8 for drive |
| Net weight | 2.5 kg |
| Protection type | thermal protection via drive |
| Height | 465 mm |
| Environment | |
| IP degree of protection | IP20 |
| Ambient air temperature for storage | -25-70 °C |
| Ambient air temperature for operation | 0-50 °C |
