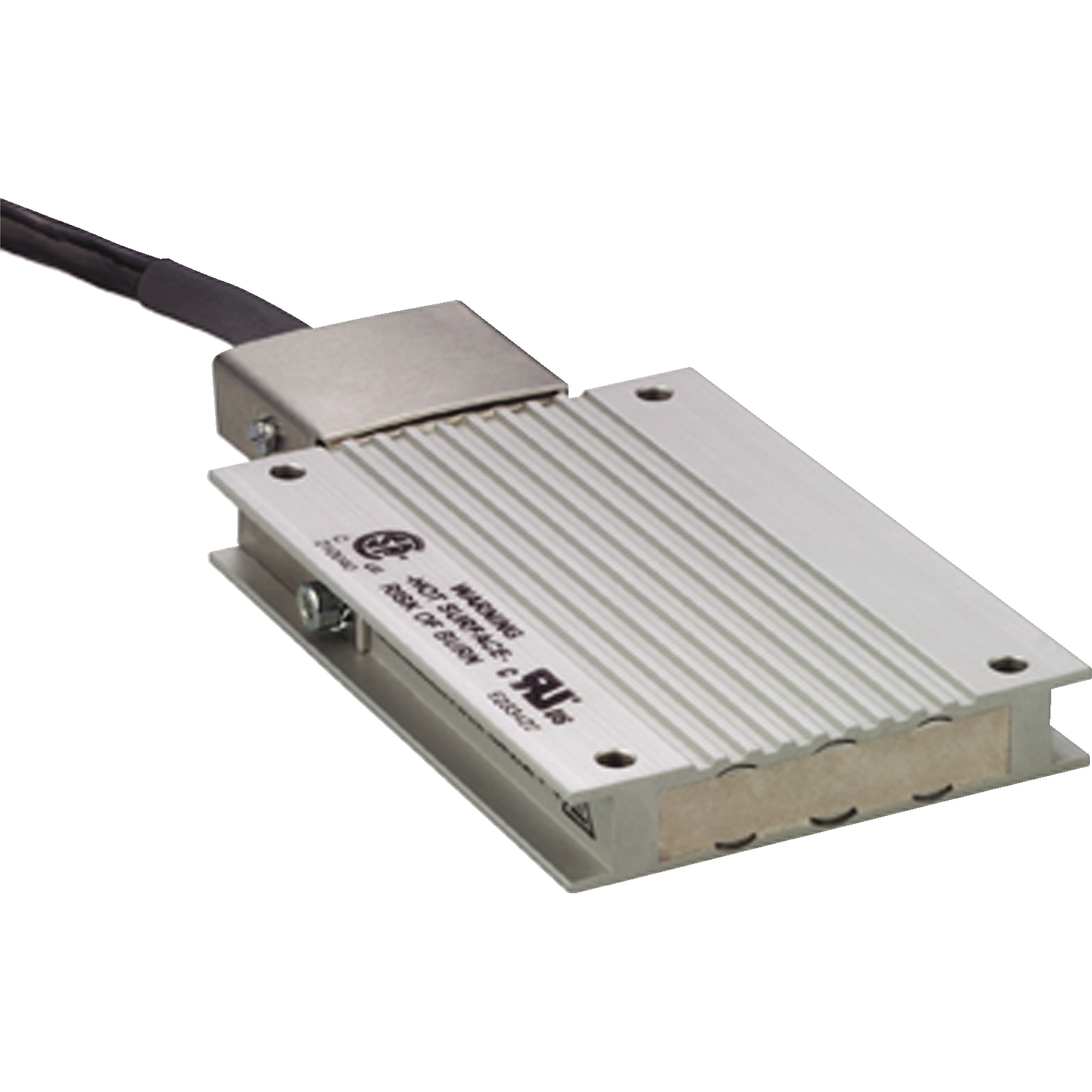

braking resistor - 100 Ohm - 100 W - cable 3 m - IP65

Manufacturer: Schneider Electric

SKU: VW3A7608R30

GTIN: 3389119210713

PDF

Image of product

Instruction sheet

Declaration of conformity

Catalog

Full Description

This braking resistor allows your drive to operate while braking to a standstill or during slowdown braking. It dissipates the braking energy, and enables maximum transient braking torque. It has an Ohmic value of 72Ohms and a cable length of 3m. Its protection index is IP65. It is compatible with Altivar Machine ATV320. It weighs 0.76kg. This resistor is designed to be mounted on the outside of the enclosure.

Availability: Out of stock

Old price: $724.90 inc GST

Price: $561.36 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Ohmic value	100 Ohm
Range of product	Lexium, Altivar
Product compatibility	ATV32H018M2, ATV32H037M2, ATV32H037N4, ATV32H055M2, ATV32H055N4, ATV32H075M2, ATV32H075N4, ATV32HU11N4, ATV32HU15N4, ATV32HU22N4, variable speed drive ATV320 at 0.18 kW, 200...240 V, single phase, variable speed drive ATV320 at 0.37 kW, 200...240 V, single phase, variable speed drive ATV320 at 0.55 kW, 200...240 V, single phase, variable speed drive ATV320 at 0.75 kW, 200...240 V, single phase, variable speed drive ATV320 at 0.37 kW, 380...500 V, three phase, variable speed drive ATV320 at 0.55 kW, 380...500 V, three phase, variable speed drive ATV320 at 0.75 kW, 380...500 V, three phase, variable speed drive ATV320 at 1.1 kW, 380...500 V, three phase, variable speed drive ATV320 at 1.5 kW, 380...500 V, three phase, variable speed drive ATV320 at 2.2 kW, 380...500 V, three phase, variable speed drive ATV320 at 0.75 kW, 525...600 V, three phase, variable speed drive ATV320 at 1.5 kW, 525...600 V, three phase, variable speed drive ATV320 at 2.2 kW, 525...600 V, three phase, variable speed drive ATV310L at 0.75 kW, variable speed drive ATV310L at 1.5 kW, variable speed drive ATV310L at 2.2 kW, variable speed drive ATV310L at 3.0 kW, variable speed drive ATV310L at 4.0 kW, variable speed drive ATV310L at 5.5 kW, motion servo drive LXM16D at 0.1 kW, 200...230 V, single phase, motion servo drive LXM16D at 0.2 kW, 200...230 V, single phase, motion servo drive LXM16D at 0.4 kW, 200...230 V, single phase, motion servo drive LXM16D at 0.75 kW, 200...230 V, single phase, motion servo drive LXM16D at 1 kW, 200...230 V, single phase, motion servo drive LXM16D at 1.5 kW, 200...230 V, single phase
Accessory / separate part category	protection accessories
Product or component type	braking resistor
Range compatibility	Lexium 52, Lexium 15, Altivar Machine ATV320, Lexium 32i, Lexium 32, Altivar 32, Easy Altivar 310L, Easy Lexium 16
Complementary
Energy peak	4400 J at 115 V, 2700 J at 480 V, 3000 J at 400 V, 4500 J at 230 V
Average power available	25 W at 50 °C
Continuous power	100 W
Cable length	3 m
Net weight	0.76 kg
Protection type	thermal protection via the servo drive
Environment
IP degree of protection	IP65
Ambient air temperature for operation	0-50 °C
Ambient air temperature for storage	-25-85 °C
Contractual warranty
Warranty	18
