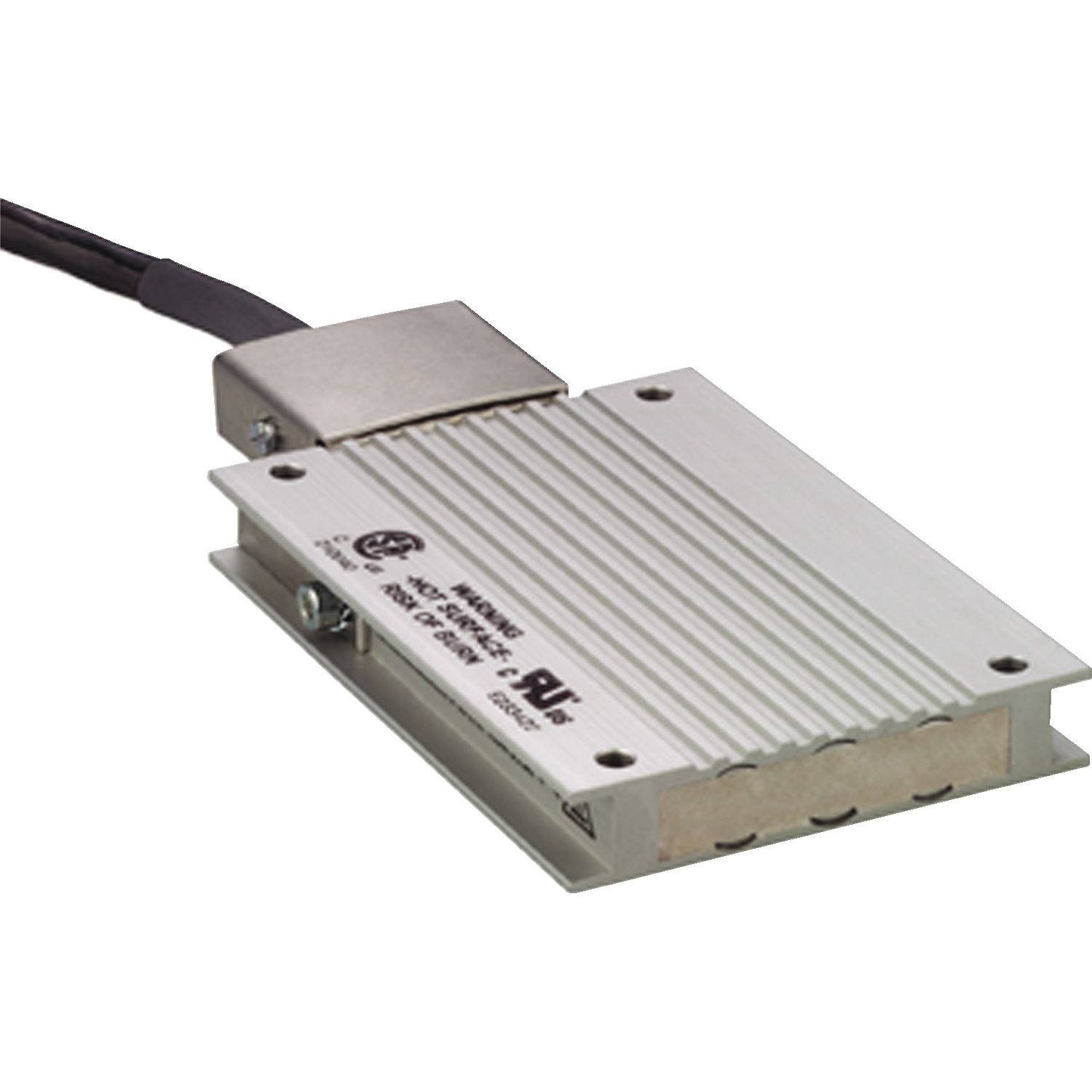

braking resistor - 100 Ohm - 100 W - cable 0.75 m - IP65

Manufacturer: Schneider Electric

SKU: VW3A7608R07

GTIN: 3389119210690

PDF

Image of product

Instruction sheet

Declaration of conformity

Catalog

Full Description

This braking resistor is an option for variable speed drives of Altivar range and Lexium motion servio drives. It dissipates the braking energy, and enables maximum transient braking torque. It has an Ohmic value of 100Ohms and a cable length of 0.75m. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP65. It weighs 0.41kg. This resistor is designed to be mounted on the outside of the enclosure.

Availability: Out of stock

Old price: $535.70 inc GST

Price: $414.85 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Ohmic value	100 Ohm
Range of product	Altivar, Lexium
Product compatibility	ATV32H018M2, ATV32H037M2, ATV32H037N4, ATV32H055M2, ATV32H055N4, ATV32H075M2, ATV32H075N4, ATV32HU11N4, ATV32HU15N4, ATV32HU22N4, variable speed drive ATV320 at 0.18 kW, 200...240 V, single phase, variable speed drive ATV320 at 0.37 kW, 200...240 V, single phase, variable speed drive ATV320 at 0.55 kW, 200...240 V, single phase, variable speed drive ATV320 at 0.75 kW, 200...240 V, single phase, variable speed drive ATV320 at 0.37 kW, 380...500 V, three phase, variable speed drive ATV320 at 0.55 kW, 380...500 V, three phase, variable speed drive ATV320 at 0.75 kW, 380...500 V, three phase, variable speed drive ATV320 at 1.1 kW, 380...500 V, three phase, variable speed drive ATV320 at 1.5 kW, 380...500 V, three phase, variable speed drive ATV320 at 2.2 kW, 380...500 V, three phase, variable speed drive ATV320 at 0.75 kW, 525...600 V, three phase, variable speed drive ATV320 at 1.5 kW, 525...600 V, three phase, variable speed drive ATV320 at 2.2 kW, 525...600 V, three phase, variable speed drive ATV310L at 0.75 kW, variable speed drive ATV310L at 1.5 kW, variable speed drive ATV310L at 2.2 kW, variable speed drive ATV310L at 3.0 kW, variable speed drive ATV310L at 4.0 kW, variable speed drive ATV310L at 5.5 kW, motion servo drive LXM16D at 0.1 kW, 200...230 V, single phase, motion servo drive LXM16D at 0.2 kW, 200...230 V, single phase, motion servo drive LXM16D at 0.4 kW, 200...230 V, single phase, motion servo drive LXM16D at 0.75 kW, 200...230 V, single phase, motion servo drive LXM16D at 1 kW, 200...230 V, single phase, motion servo drive LXM16D at 1.5 kW, 200...230 V, single phase
Accessory / separate part category	protection accessories
Product or component type	braking resistor
Range compatibility	Altivar 32, Lexium 15, Lexium 32, Lexium 32i, Altivar Machine ATV320, Lexium 52, Easy Altivar 310L, Easy Lexium 16
Complementary
Continuous power	100 W
Cable length	0.75 m
Net weight	0.41 kg
Protection type	thermal protection via the servo drive
Energy peak	2700 J at 480 V, 3000 J at 400 V, 4500 J at 230 V, 4400 J at 115 V
Average power available	25 W at 50 °C
Environment
Ambient air temperature for operation	0-50 °C
Ambient air temperature for storage	-25-85 °C
IP degree of protection	IP65
Contractual warranty
Warranty	18
