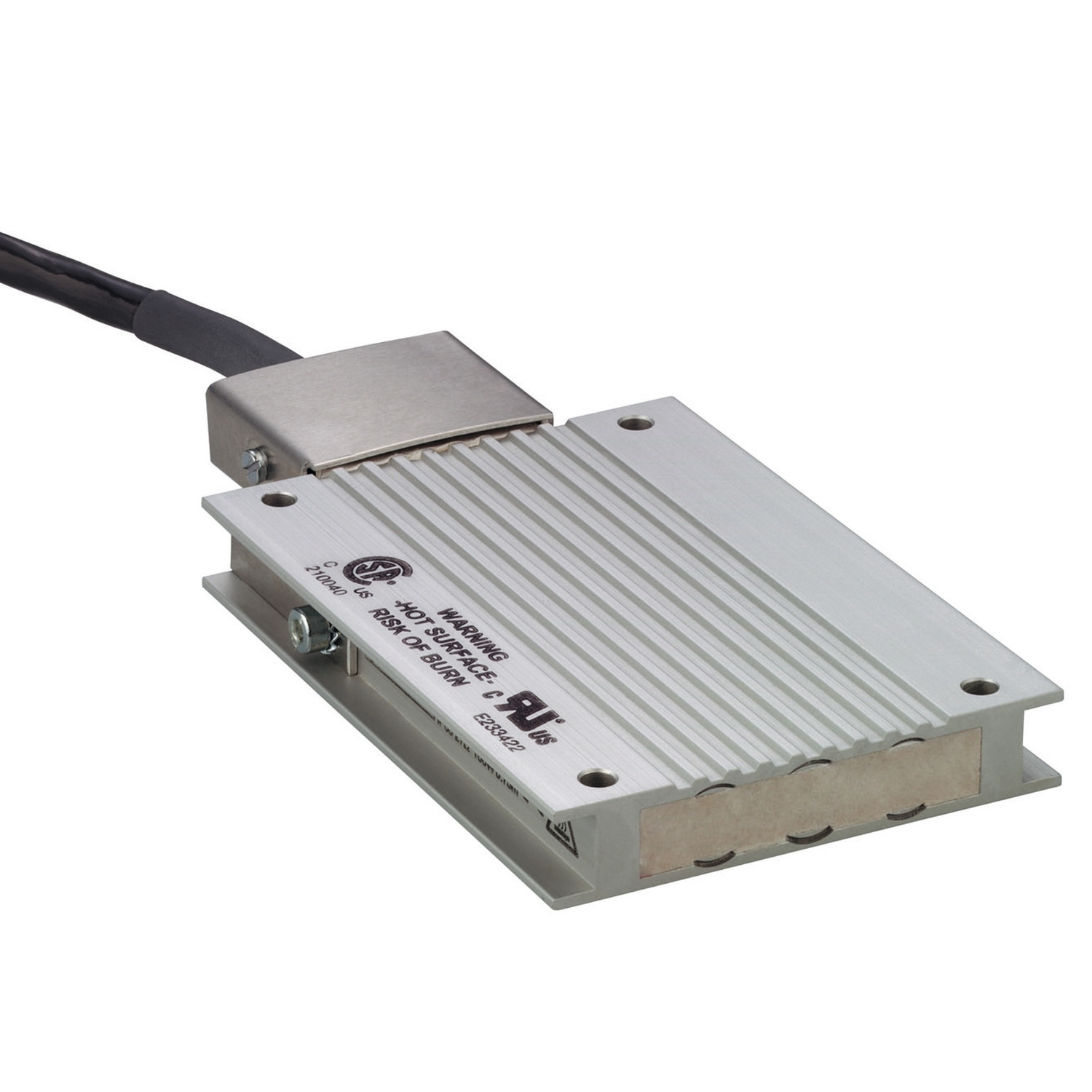

braking resistor - 27 ohm - 400 W - cable 0.75 m - IP65

Manufacturer: Schneider Electric

SKU: VW3A7604R07

GTIN: 3389119207171

PDF

Image of product

Instruction sheet

Catalog

Full Description

This braking resistor is an option for servo drives of Lexium range and variable speed drives of Altivar range when used with synchronous motors. It has an Ohmic value of 27Ohms. This external braking resistor is required to dissipate the excess braking energy when the servo motor has to be braked frequently. In this case, the internal braking resistor must be deactivated Its protection index is IP65. It is equipped with a 0.75m connection cable. It weighs 1.42kg.

Availability: Out of stock

Old price: $872.30 inc GST

Price: $675.51 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Ohmic value	27 Ohm
Range of product	Altivar, Lexium
Product compatibility	ATV32HU55N4, ATV32HU75N4, variable speed drive ATV320 at 5.5 kW, 380...500 V, three phase, variable speed drive ATV320 at 7.5 kW, 380...500 V, three phase, variable speed drive ATV320 at 5.5 kW, 525...600 V, three phase, variable speed drive ATV320 at 7.5 kW, 525...600 V, three phase, motion servo drive LXM16D at 0.75 kW, 200...230 V, single phase, motion servo drive LXM16D at 1 kW, 200...230 V, single phase, motion servo drive LXM16D at 1.5 kW, 200...230 V, single phase
Accessory / separate part category	protection accessories
Product or component type	braking resistor
Range compatibility	Lexium 28, Lexium 52, Lexium 05, Lexium 32, Altivar Machine ATV320, Lexium 15, Altivar 32, Lexium 32i, Easy Lexium 16
Complementary
Continuous power	400 W
Cable length	0.75 m
Net weight	1.42 kg
Protection type	thermal protection via the servo drive
Energy peak	10500 J at 480 V, 11400 J at 400 V, 18100 J at 230 V, 25500 J at 115 V
Average power available	100 W at 50 °C
Environment
Ambient air temperature for operation	0-50 °C
Ambient air temperature for storage	-25-85 °C
IP degree of protection	IP65
Contractual warranty
Warranty	18
