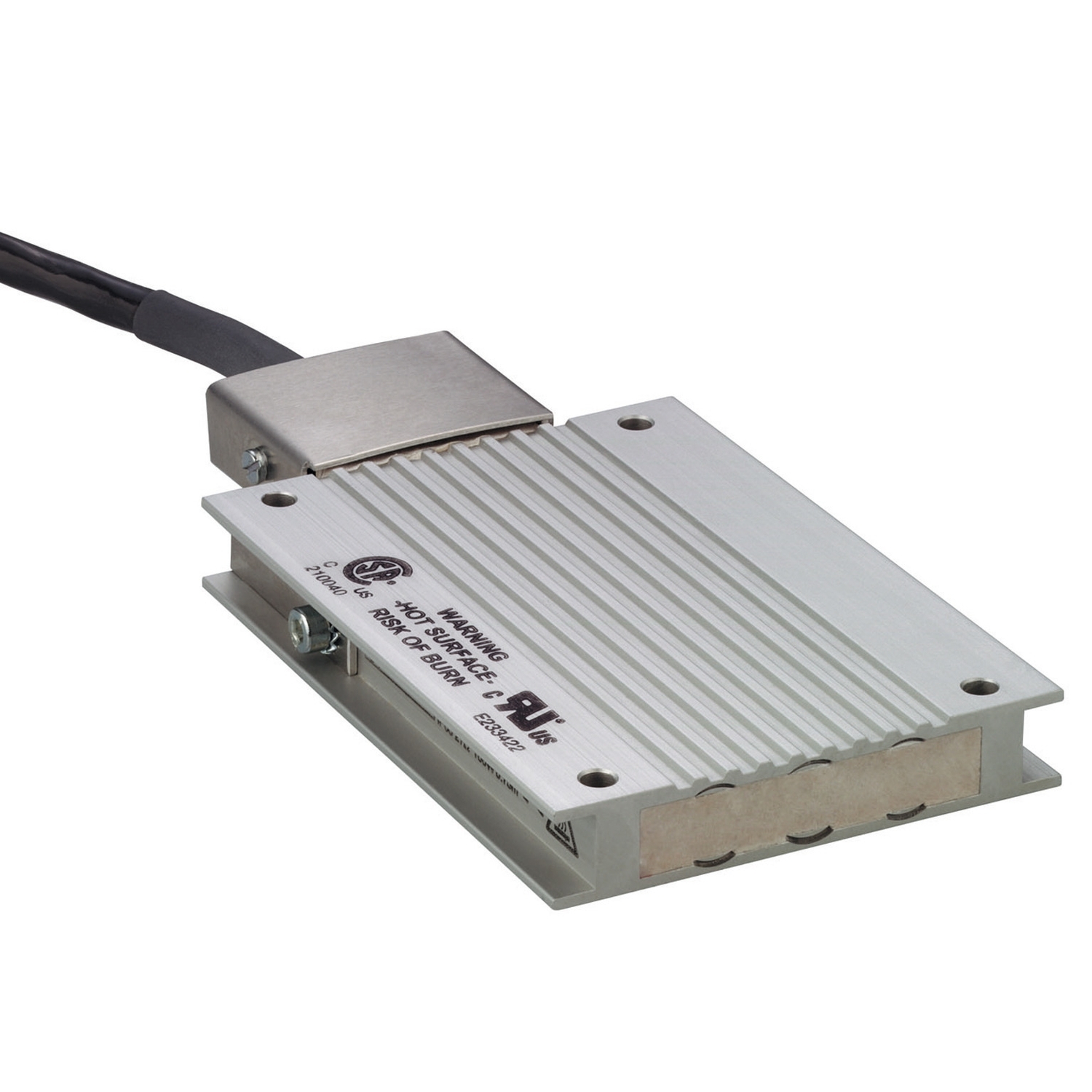

This braking resistor is an accessory for variable speed drives of the Lexium and Altivar ranges. It allows your drive to operate while braking to a standstill or during slowdown braking. It has an Ohmic value of 10Ohms at 20°C and its protection index is IP65. The length of its cable is equal to 3m. It weighs 1.62kg. The Altivar Process Modular offer is designed for easy and cost-effective integration of power-intensive drives into cabinets.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range compatibility | Lexium 32i, Lexium 52, Lexium 05, Lexium 32, Lexium 28, Lexium 15 |
| Product or component type | braking resistor |
| Range of product | Lexium, Altivar |
| Ohmic value | 10 Ohm |
| Complementary | |
| Energy peak | 18800 J at 115 V, 13300 J at 230 V, 7300 J at 480 V, 7300 J at 400 V |
| Protection type | thermal protection via the servo drive |
| Net weight | 1.62 kg |
| Cable length | 3 m |
| Continuous power | 400 W |
| Environment | |
| IP degree of protection | IP65 |
| Ambient air temperature for storage | -25-85 °C |
| Ambient air temperature for operation | 0-50 °C |
