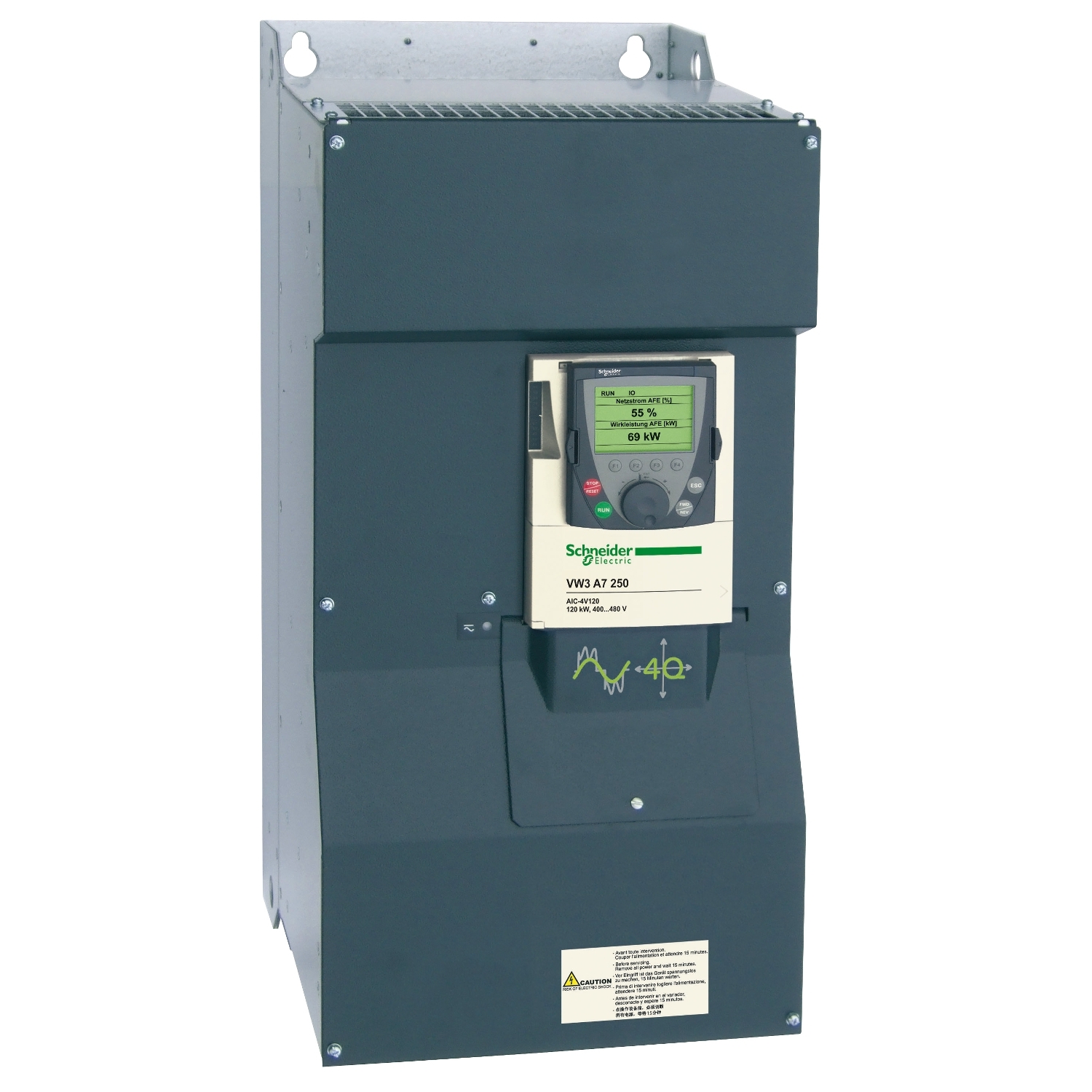

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | AIC |
| Range compatibility | Altivar 71, Altivar 61 |
| Assembly style | built-in unit |
| Product specific application | component of the Active Front End, energy regeneration, low harmonics |
| Rated power in W | 120 kW |
| Type of cooling | forced convection |
| Product compatibility | ATV71H075N4...C20N4D DC with several variable speed drive on a common DC bus, ATV61H075N4...C25N4D DC with several variable speed drive on a common DC bus, ATV71HD90N4D 480 V AC with one variable speed drive, ATV61HC11N4D 480 V AC with one variable speed drive, ATV71HD90N4D 380...440 V AC with one variable speed drive, ATV61HC11N4D 380...440 V AC with one variable speed drive |
| Network number of phases | 3 phases |
| [Us] rated supply voltage | 380...480 V +/- 10 % |
| Network frequency | 50/60 Hz |
| Complementary | |
| Continuous output current | 163 A at 480 V, 185 A at 400 V |
| Depth | 377 mm |
| Width | 310 mm |
| Operating position | vertical +/- 10 degree |
| Max current | 1.35 x nominal current (duration = 2 s), 1.20 x nominal current (duration = 60 s) |
| Compatibility code | AIC |
| Maximum voltage drop at rated load | <40 % at 480 V, <= 60 s, <40 % at 440 V, <= 60 s, <30 % at 380...400 V, <= 60 s |
| Communication port protocol | Modbus, CANopen |
| Line current | 160 A at 480 V, 177 A at 400 V |
| Input power | 133 kW at 480 V, 123 kW at 400 V |
| Connector type | male SUB-D 9 on RJ45 for CANopen, 1 RJ45 for Modbus |
| Net weight | 60 kg |
| Option card | communication bridge |
| Output voltage | 770 V DC - supply: 480 V AC, 720 V DC - supply: 440 V AC, 650 V DC - supply: 380...400 V AC |
| Thermal losses | 2250 W |
| Height | 680 mm |
| Environment | |
| Operating altitude | 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without derating |
| IP degree of protection | IP00 |
| Ambient air temperature for storage | -25-70 °C |
| Pollution degree | 2 conforming to EN 61800-5-1 |
| Relative humidity | 0-95 % |
| Volume of cooling air | 115 m3/h for control circuit, 400 m3/h for power circuit |
| Vibration resistance | 0.6 gn (f= 10-200 Hz) conforming to EN/IEC 60068-2-6, 1.5 mm (f= 3-10 Hz) conforming to EN/IEC 60068-2-6 |
| Environmental characteristic | 3S2 conforming to EN 60721-3-3, 3C2 conforming to EN 60721-3-3, 3K3 conforming to EN/IEC 60721-3-3 |
| Shock resistance | 7 gn for 11 ms conforming to EN/IEC 60721-3-3 |
| Ambient air temperature for operation | -10-45 °C, 45-60 °C (with current derating of 2 % per °C) |
| Standards | EN/IEC 61800-5-1 |
| Air flow surface | 500 cm² |
| Product certifications | CSA (pending), UL (pending), CE |
