Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range compatibility | Altivar Process ATV600, Altivar Process ATV900 |
| Product compatibility | variable speed drive ATV930 wall mount, 0.75-5.5 kW, 200...240 V, variable speed drive ATV630 wall mount, 0.75-5.5 kW, 200...240 V, variable speed drive ATV950 wall mount, 0.75-11 kW, 380...480 V, variable speed drive ATV930 wall mount, 0.75-11 kW, 380...480 V, variable speed drive ATV650 wall mount, 0.75-11 kW, 380...480 V, variable speed drive ATV630 wall mount, 0.75-11 kW, 380...480 V |
| Value of inductance | 146.4 µH |

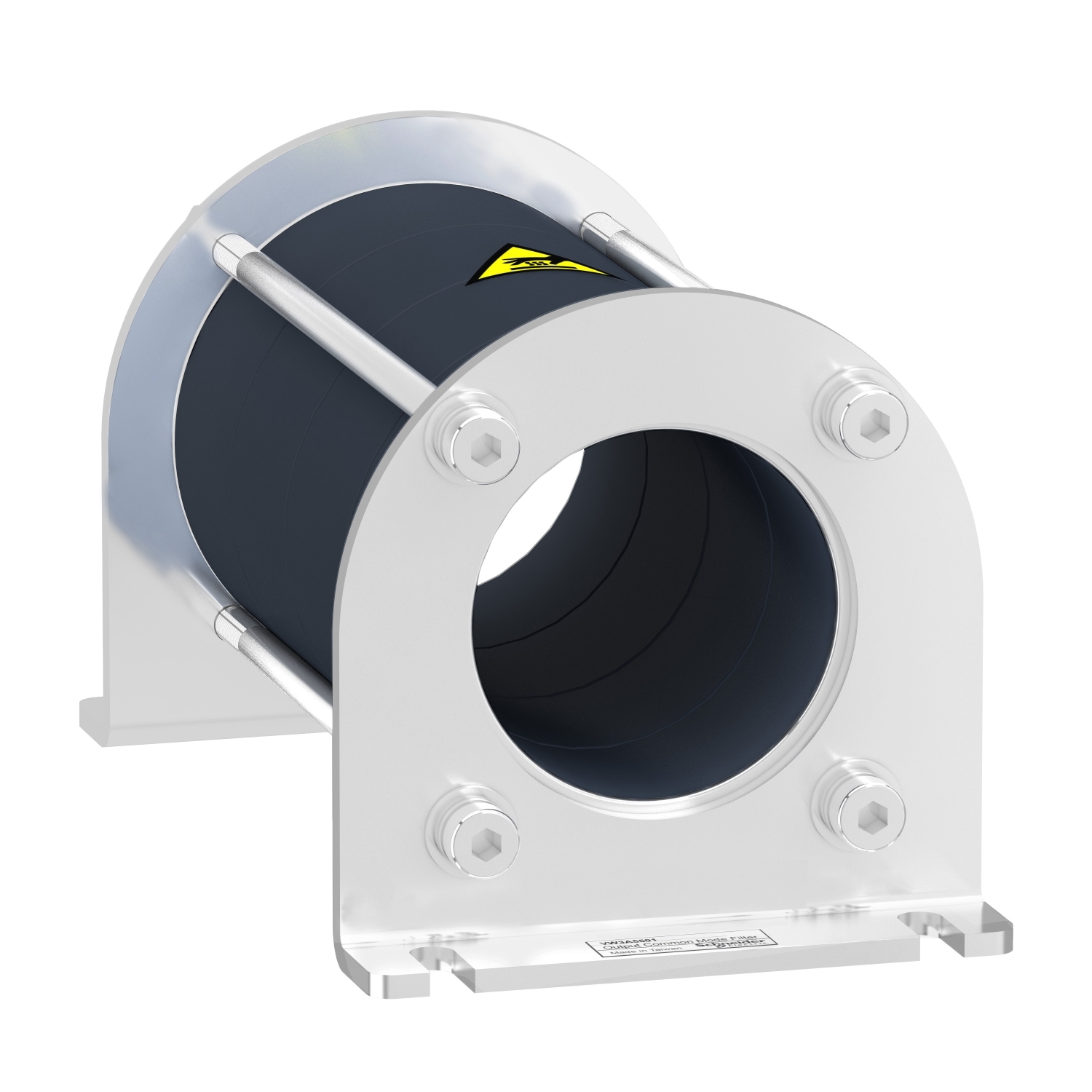

| Product or component type | common mode output filter |
| Complementary | |
| Diameter | 37.1 mm for PE cable outside, 37.1 mm for 3-phase cable inside |
| Depth | 66 mm |
| Width | 66 mm |
| Saturation current | 1.1 A |
| Electrical insulation class | class I |
| Net weight | 0.44 kg |
| Maximum motor cable length | 150 m(shielded cable) motor: 0.75-4 kW 200...240 V, with 1 filter, 150 m(unshielded cable) motor: 0.75-5.5 kW 200...240 V, with 1 filter, 1000 m(unshielded cable) motor: 0.75-5.5 kW 380...480 V, with 1 filter + VW3A5502, 500 m(shielded cable) motor: 0.75-4 kW 380...480 V, with 2 filter, 500 m(unshielded cable) motor: 5.5-11 kW 380...480 V, with 1 filter + VW3A5502, 500 m(unshielded cable) motor: 0.75-4 kW 380...480 V, with 2 filter, 300 m(shielded cable) motor: 5.5-11 kW 380...480 V, with 2 filter, 150 m(shielded cable) motor: 0.75-4 kW 380...480 V, with 1 filter, 1000 m(unshielded cable) motor: 0.75-4 kW 200...240 V, with 1 filter + VW3A5502, 500 m(shielded cable) motor: 0.75-4 kW 200...240 V, with 2 filter, 500 m(unshielded cable) motor: 5.5-5.5 kW 200...240 V, with 1 filter + VW3A5502, 500 m(unshielded cable) motor: 0.75-4 kW 200...240 V, with 2 filter, 300 m(shielded cable) motor: 5.5-5.5 kW 200...240 V, with 2 filter, 150 m(unshielded cable) motor: 0.75-11 kW 380...480 V, with 1 filter |
| Switching frequency | <= 10 kHz |
| Height | 119.2 mm |
| Maximum output frequency | 100 Hz |
| Mechanical robustness | vibrations class 3M4 conforming to IEC 60721-3-3, shocks class 3M4 conforming to IEC 60721-3-3 |
| Environment | |
| Relative humidity | 5-95 % without condensation |
| Ambient air temperature for storage | -40-70 °C |
| Ambient air temperature for operation | -15-60 °C |
