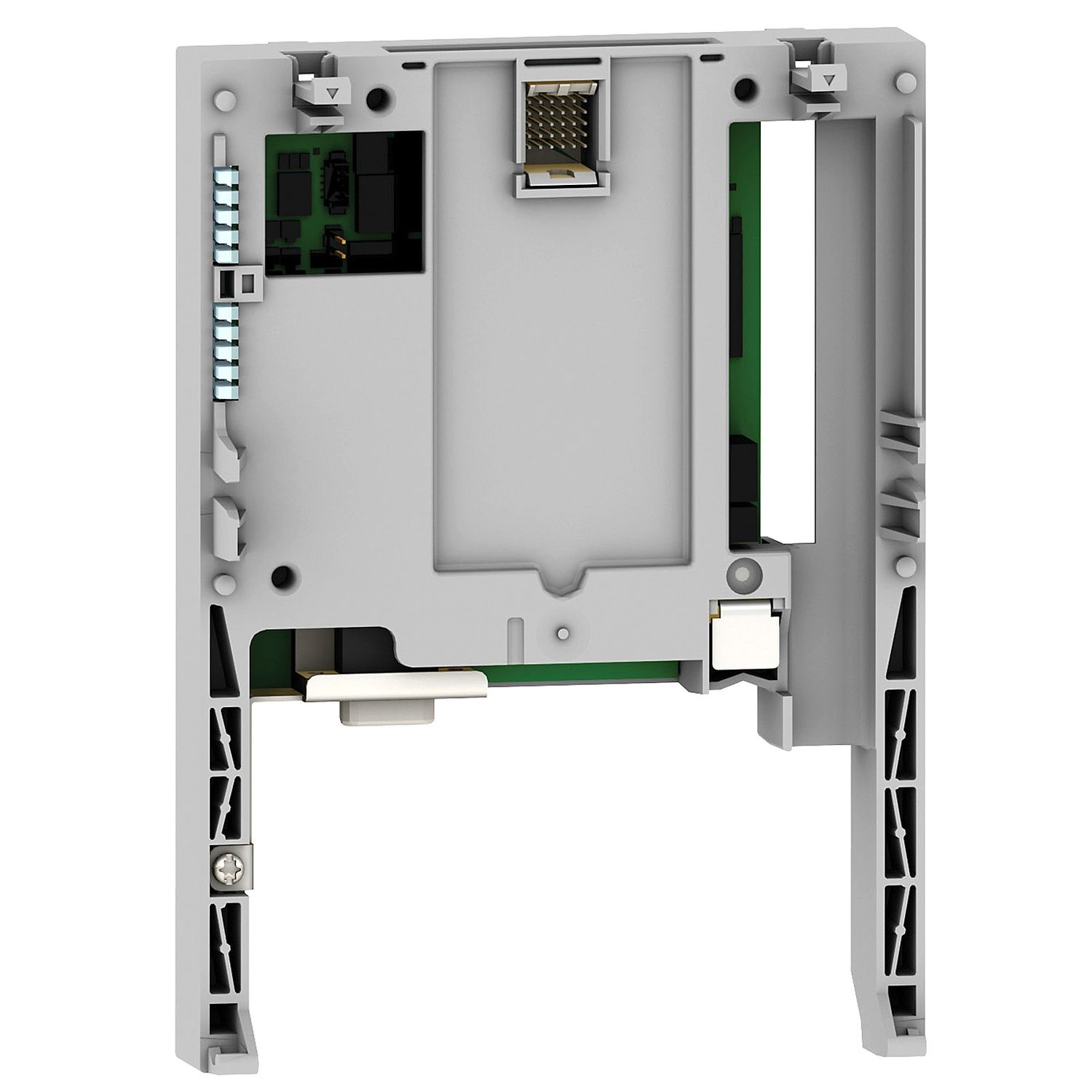

This EtherNet/IP communication card is an option for variable speed drives of Altivar range. It is equipped with 2 RJ45 connectors. It is compatible with Altivar 61 and Altivar 71. It enables integration of your variable speed drive in your process control network. It weighs 300g.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Web services | message statistics, Ethernet statistics, drive recorder, Ethernet/IP setup, drive monitor, Altivar chart, Modbus TCP scanner setup, security, e-mail, data editor, FDR Agent, Ethernet/IP scanner setup, drive parameters, Altivar viewer |
| Connector type | 2 RJ45 connectors |
| Transmission rate | 10/100 Mbps |
| Range compatibility | Altivar 61, Altivar 71 |
| Communication port protocol | Modbus TCP, EtherNet/IP |
| Product or component type | communication card |
| Physical interface | IEEE 802.3 for Ethernet IP/Modbus TCP |
| Complementary | |
| Web server | embedded |
| Display type | graphic display terminal for reference received, graphic display terminal for number of frames received, graphic display terminal for control word received, 1 LED for TX/RX (Transmit/Receive port 2), 1 LED for TX/RX (Transmit/Receive port 1), 1 LED for NS (Network Status), 1 LED for MS (Module Status), 1 LED for Link (Link Status) |
| Communication network type | ICMP, IP conforming to RFC791 |
| Exchange mode | half duplex and full duplex |
| Addressing | IP addressing manual, BOOTP or DHCP |
| Communication transport type | TCP conforming to RFC793, UDP |
| Communication data link | LLC : IEEE 802.2, MAC : IEEE 802.3 |
| Communication service | SNMP, read/write multiple registers (23), read input registers (04), read holding registers (03), FTP, diagnostics (08), CIP AC Drive (02) profile, I/O profile, read device identification (43/14), Ethernet/IP adapter, write single register (06), write multiple registers (16), TFTP, CiA 402 profile |
| Net weight | 0.3 kg |
