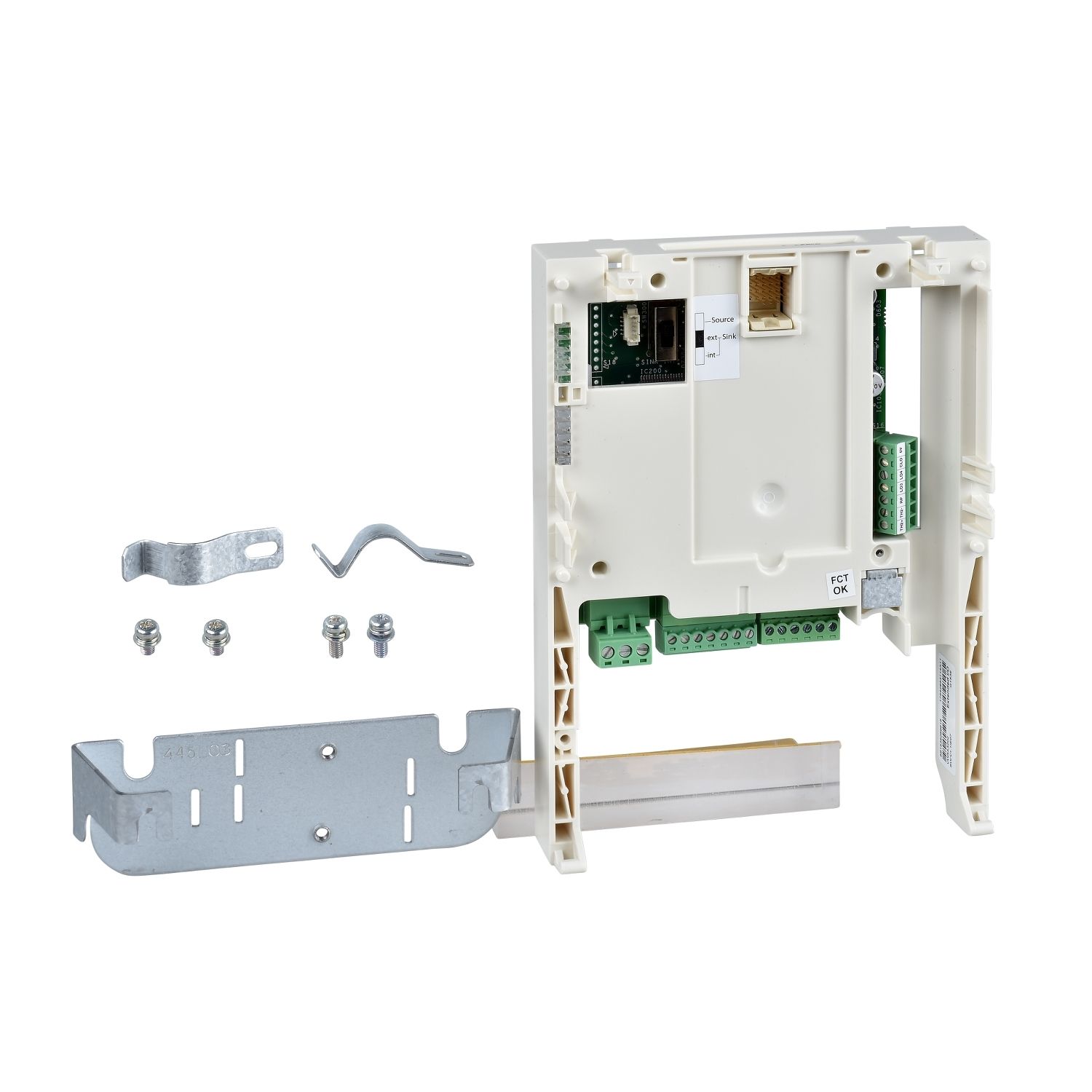

This extended I/O card enables your drive to meet the needs of more complex or extensive applications. It comprises four logic inputs, two analog inputs, one input for PTC probe and one frequency control input. It also comprises three logic outputs and two analog outputs. It is compatible with Altivar 61 and Altivar 71.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Supply | internal supply, 24 V DC (21-27 V) , <0.2 A for overload and short-circuit protection, internal supply for reference potentiometer, 10.5 V DC (10-11 V) , <0.01 A, impedance: 1-10 kOhm for overload and short-circuit protection |
| Analogue output number | 2 |
| Discrete input type | (LI11...LI14) programmable, compatible with level 1 PLC, impedance: 3.5 kOhm, sampling time: 4-6 ms, (RP) frequency control, sampling time: 4-6 ms |
| Analogue input type | AI4 software-configurable voltage: 0...10 V DC, 24 V max, impedance: 30000 Ohm, sampling time: 4-6 ms, resolution: 11 bits, AI4 software-configurable current: 0...20 mA, impedance: 250 Ohm, sampling time: 4-6 ms, resolution: 11 bits, AI3-/Al3+ differential current programmable: 0...20 mA, impedance: 250 Ohm, sampling time: 4-6 ms, resolution: 11 bits + sign |
| Range compatibility | Altivar 61, Altivar 71, Altivar 71Q, Altivar Lift, Altivar 61Q |
| Discrete input number | 6 |
| Discrete output logic | (LO3, LO4) positive, (LO3, LO4) negative |
| Discrete output number | 5 |
| Analogue input number | 2 |
| Product or component type | extended I/O card |
| Discrete output type | (R4A, R4B, R4C) configurable relay logic, (LO3, LO4) assignable logic, sampling time: 4-6 ms, compatible with level 1 PLC |
| Analogue output type | AO3 software-configurable voltage: +/- 10 V DC, impedance: 470 Ohm, sampling time: 4-6 ms, resolution: 10 bits, AO3 software-configurable current: 0...20 mA, impedance: 500 Ohm, sampling time: 4-6 ms, resolution: 10 bits, AO2 software-configurable voltage: +/- 10 V DC, impedance: 470 Ohm, sampling time: 4-6 ms, resolution: 10 bits, AO2 software-configurable current: 0...20 mA, impedance: 500 Ohm, sampling time: 4-6 ms, resolution: 10 bits |
| Discrete input logic | positive (RP), < 1.2 V (state 0), >= 3.5 V (state 1), positive (LI11...LI14), <= 5 V (state 0), >= 11 V (state 1), negative (LI11...LI14), >= 16 V (state 0), <= 10 V (state 1) |
| Complementary | |
| Discrete input frequency | 0...30 kHz frequency control |
| Electrical connection | terminal, 1.5 mm² / AWG 16, 0.25 N.m |
| PTC probe input | TH2+, TH2- for 6 PTC probe, impedance: <= 1.5 Ohm, TH2+, TH2- short circuit protection, impedance: < 0.05 Ohm, TH2+, TH2- reset resistance, impedance: 1.8 Ohm, TH2+, TH2- trip resistance, impedance: 3 kOhm |
| Minimum switching current | 3 mA at 24 V DC for configurable relay logic |
| Maximum output current | 0.2 A, assignable logic |
| Discrete output voltage | 24 V DC (voltage limits: <= 30 V) assignable logic |
| Discrete input voltage | 24 V DC (voltage limits: <= 30 V) for programmable |
| Electrical durability | 100000 cycles for configurable relay logic |
| Net weight | 0.3 kg |
| Maximum switching current | configurable relay logic 1.5 A at 30 V DC on inductive load, cos phi = 0.4 and L/R = 7 ms, configurable relay logic 1.5 A at 250 V AC on inductive load, cos phi = 0.4 and L/R = 7 ms, configurable relay logic 5 A at 30 V DC on resistive load, cos phi = 1 , configurable relay logic 5 A at 250 V AC on resistive load, cos phi = 1 |
