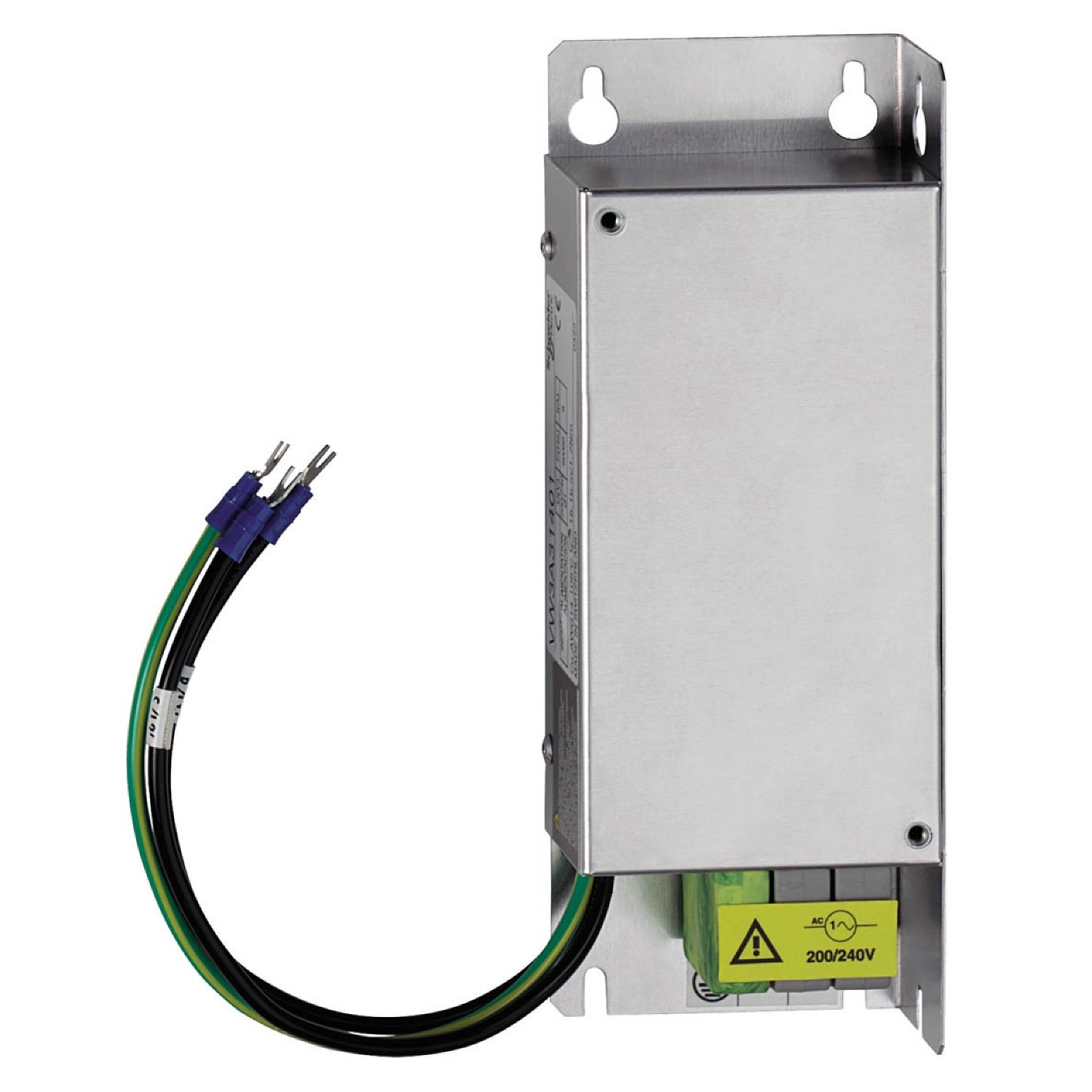

This EMC filter is an option for variable speed drives of the Altivar range and servo drives of the Lexium range. The additional EMC input filters enable the drives to meet more stringent requirements. Its rated current is equal to 9A. It is used to reduce conducted emissions on the line supply below the limits of standards IEC/EN 61800-3 category C1 or C2 and enlarge the maximum motor cable length for category C3. Its protection index is IP20. It weighs 0.6kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems. It can be mounted beside or under the drive. The drive's power supply is then connected directly via the filter output cable.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Thermal losses | 3.7 W for ATV31C018M2 |
| Range compatibility | Lexium 05, Altivar 31C, Altivar 312, Altivar Machine ATV320, Lexium 23 Plus, Altivar 312 Solar, Lexium SD3 |
| [In] rated current | 9 A |
| Product specific application | radio interference input filter |
| Network number of phases | single phase |
| Product or component type | EMC input filter |

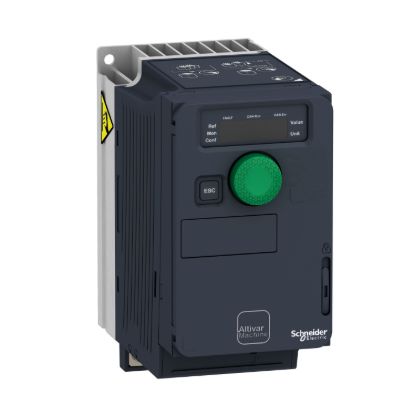

| Product compatibility | variable speed drive ATV320...W/ATV320...WS motor: 0.75 kW, 200...240 V single phase, variable speed drive ATV320...W/ATV320...WS motor: 0.55 kW, 200...240 V single phase, variable speed drive ATV320...W/ATV320...WS motor: 0.37 kW, 200...240 V single phase, variable speed drive ATV320...W/ATV320...WS motor: 0.18 kW, 200...240 V single phase, variable speed drive ATV320...C motor: 0.75 kW, 200...240 V single phase, variable speed drive ATV320...C motor: 0.55 kW, 200...240 V single phase, variable speed drive ATV320...C motor: 0.37 kW, 200...240 V single phase, variable speed drive ATV320...C motor: 0.18 kW, 200...240 V single phase, LXM05CD10M2, LXM05BD10M2, LXM05BD10F1, LXM05AD10M2, LXM05AD10F1, ATV31C075M2, ATV31C055M2, ATV31C037M2, ATV31C018M2, ATV312H075M2, ATV312H055M2, ATV312H037M2, ATV312H018M2, servo drive LXM23 motor: 0.4 kW, servo drive LXM23 motor: 0.2 kW, servo drive LXM23 motor: 0.1 kW |
| Range of product | Altivar |
| Complementary | |
| Compatibility code | LXM23 |
| Network rated voltage | 200-240 V |
| Earth leakage current | 100 mA 50 Hz |
| Net weight | 0.6 kg |
| Tolerance | 10 % |
| Environment | |
| Operating altitude | 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without current derating |
| IP degree of protection | IP41 (upper part), IP20 |
| Relative humidity | 0-93 % conforming to IEC 68-2-3 |
| Ambient air temperature for storage | -25-70 °C |
| Vibration resistance | 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -10-50 °C |
| Standards | IEC 61800-3 |
