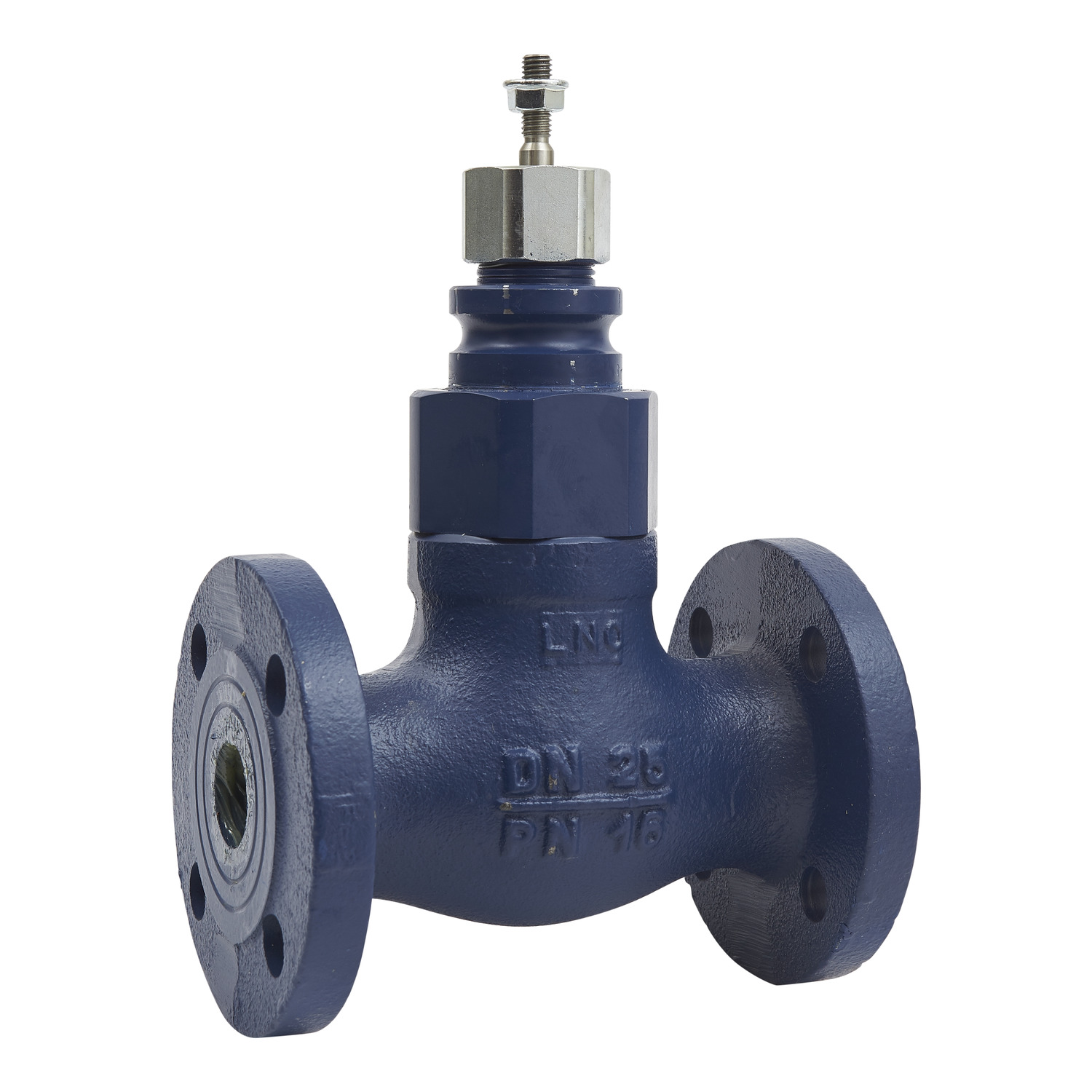

The globe valve VGS211F-CS is a 2-way globe valve designed for steam applications such as heating, cooling and air handling applications. The valve uses a stainless steel plug for steam up, hot water, chill water, and water with antifreeze additives Stainless Steel plug and seat provides a high pressure differential capability and a low leakage.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Operating fluid temperature | -10-200 °C |
| Body material | grey cast iron GG-25 |
| Saturated steam temperature | -10-200 °C |
| Seating seal material | Port A:metal to metal |
| Seat leakage | Port A: Less than 0.02 % of kvs |
| Product or component type | valve |
| Targeted region | Australia., Asia Pacific., Europe |
| Valve connection size | DN20 (ISO 7005-2) |
| Seat material | Port A: stainless steel AISI 303 |
| Medium compatibility | Glycol 50 %, Glycol 30 %, Glycol 25 %, Water, Steam |
| Control valve rangeability | greater than 50:1 |
| Plug material | stainless steel AISI 303 |
| Valve product series | VGS211F |
| Flow coefficient | 6.3 kvs, 7.28 cv |
| Stem flow action | Stem up closed |
| Valve configuration | 2-Way |
| Stem movement | linear |
| Pressure fluid max delta P normal life | 87 psi |
| Valve type | globe |
| Valve model | VGS211F-20CS 6.3M SD00 |
| Packing material | PTFE (polytetrafluoroethylene) |
| Valve connection type | flanged |
| Stem seal material | PTFE (polytetrafluoroethylene) |
| Flow characteristic | equal percentage |
| Trim material | stainless steel |
| Stroke length | 16.5 mm |
| Stem material | stainless steel AISI 303 |
| Pipe size | 20 mm |
| Pressure class | PN16 |
| Body size | 20 mm (3/4 in) |
