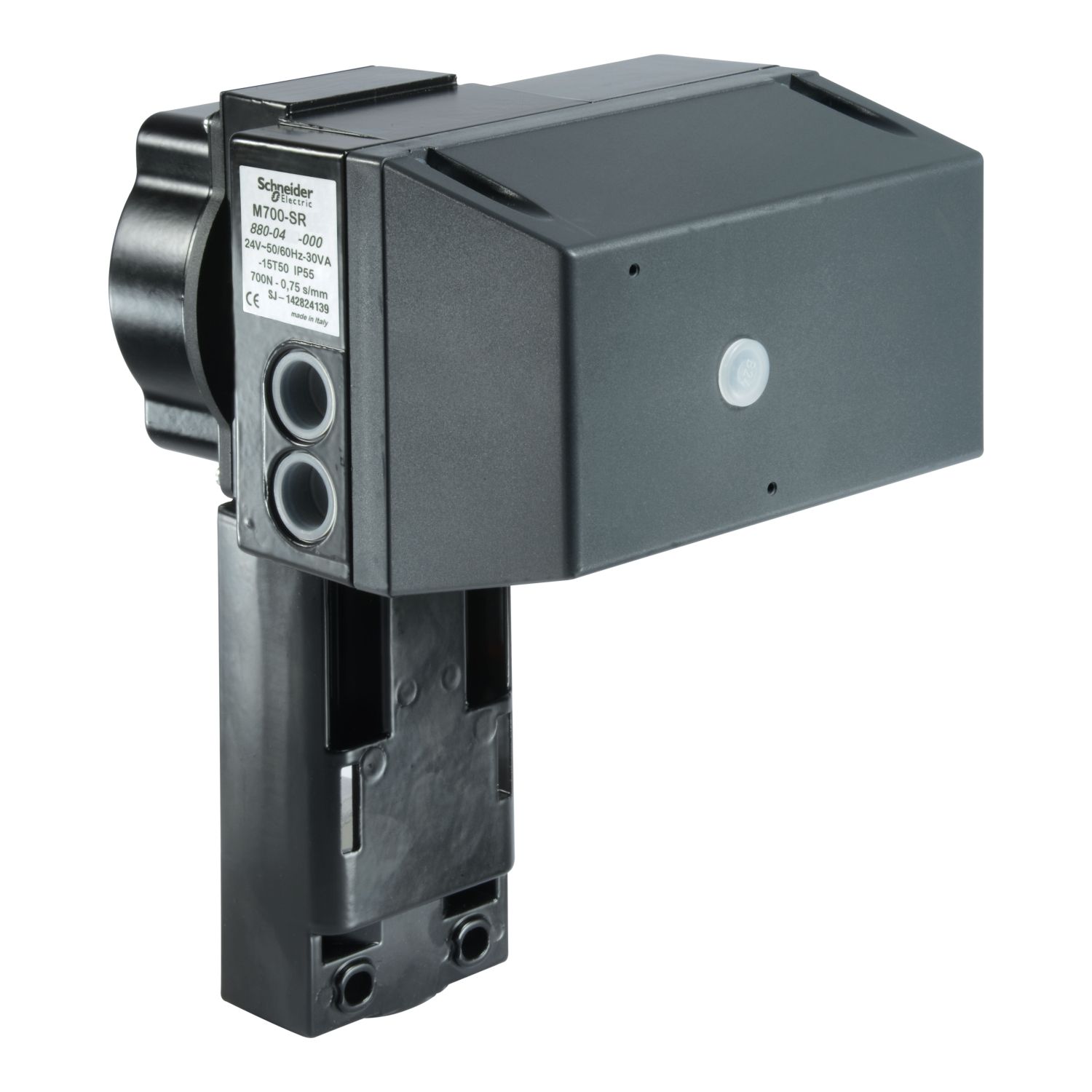

The SpaceLogic M700 is a spring return electromechanical actuator for the control of two-way and three-way globe valves in. The electronic circuitry of the actuator ensures that the running time is the same, regardless of the stroke of the valve in question. The actuators is easy to mount and connect. Modulating control signal or increase/decrease signal, Stem Down spring action (the stem is pulled up when power off) and end point switches. Supply voltage: 24 Vac +25%/-35%. Analog Control Input selectable Voltages: 0…10 V, 2…10 V, 0…5 V, 5…10 V, 2…6 V, 6…10 V. Force: 700 N, IP 54 Protection class. Stroke: 9-52 mm. EMC 2014/30/EU, LVD 2014/35/EU. When an end position adjustment is made, The actuator closes the valve and then opens it fully before responding to the control signal.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Force N | 700 N |
| Switch function | 2 SPDT |
| IP degree of protection | IP54 |
| Relative humidity | 0-90 % |
| Ambient air temperature for storage | -10-50 °C |
| [Us] rated supply voltage | 24 V AC/DC |
| Electrical insulation class | class II |
| Product destination | globe valve |
| Stroke running time noload retract | 95 s |
| Control type | automatic reset |
| Transformer rated power in VA | 50 VA |
| Stroke length | 9-52 mm |
| Analogue input range | 0...10 V DC |
| Ambient air temperature for operation | -10-50 °C |
| Hold-in power consumption in VA | 30-30 VA AC |
| Stroke running time | 15 s |
| Motor type | brushless DC motor |
| Duty cycle | 20 % |
| Product or component type | actuator |
| Power consumption in VA | 30 VA AC |
| Targeted region | Australia., Asia Pacific., Europe |
| Force lbf | 157 lbf |
| Actuator | linear |
| Actuator model | M700 |
| Control signal | proportional/modulating, floating |
| Conduit connection | 2 x 20 mm conduit hole |
| Leads and connections | terminal block |
| Actuator type | electric |
| Actuator product range | SpaceLogic |
| Actuator product series | M700 |
| Power loss return | spring return |
| Feedback signal | 2...10 V DC |
| Stroke auto calibration | True |
| Position indicator | Stroke indicator on yoke |
