Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

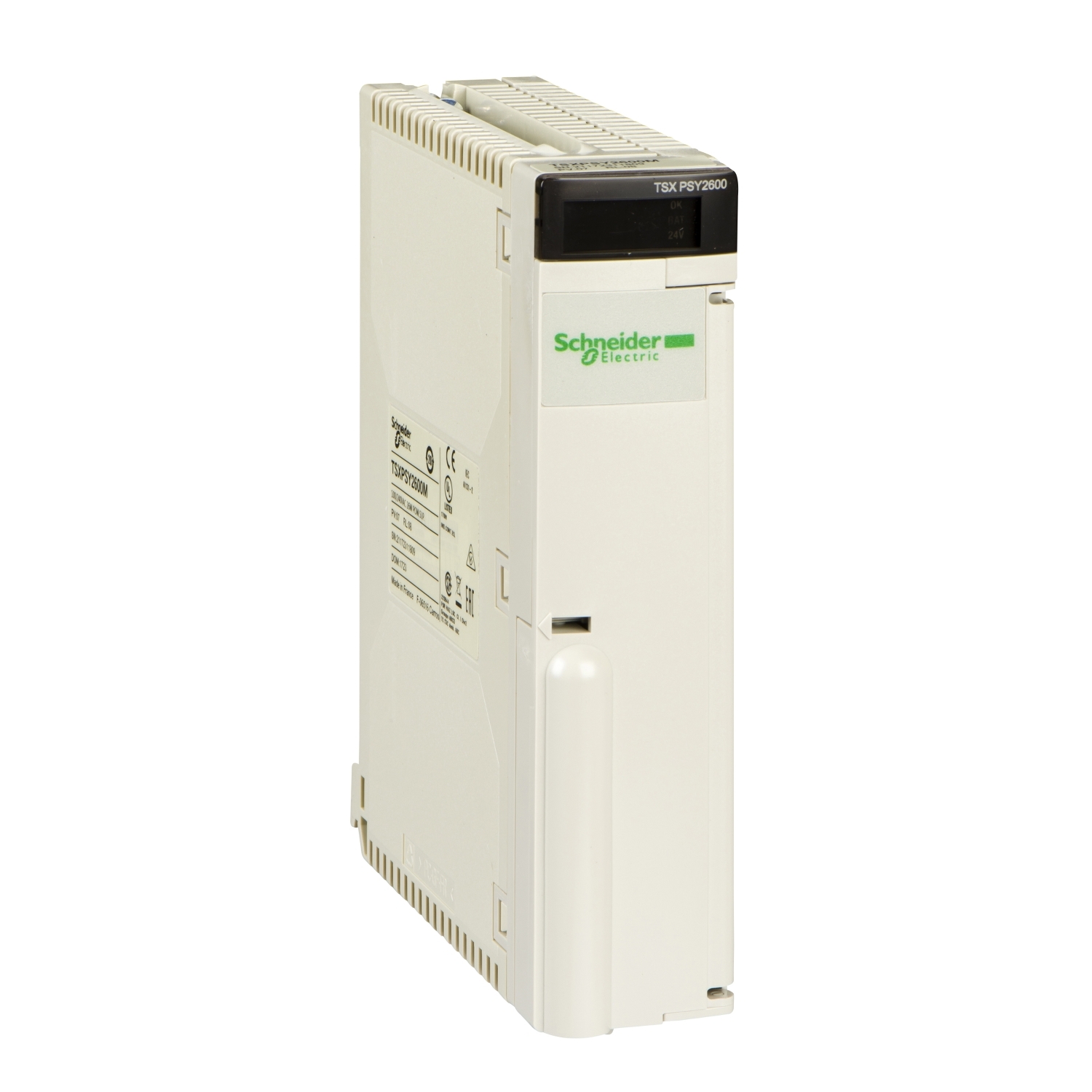

| Product or component type | power supply module |
| Range of product | Modicon Premium Automation platform |
| Complementary | |
| Primary voltage | 24...48 V DC 19.2...60 V |
| Inrush current | 15 A 48 V, 15 A 24 V |
| Module format | double |
| Local signalling | 1 LED (red) for battery fault (BAT), 1 LED (green) for presence of voltages (OK) |
| Input current | <= 3000 mA 24 V, <= 1500 mA 48 V |
| Secondary power | 35 W 5 V DC, 19 W 24 V DC |
| Net weight | 0.89 kg |
| Marking | CE |
| Insulation resistance | >= 10 MOhm primary/secondary, >= 10 MOhm primary/ground |
| Protection type | short-circuit protection secondary circuit, overvoltage protection secondary circuit, overload protection secondary circuit, internal fuse 5 A 5 x 20 mm time-delayed primary circuit |
| Current at secondary voltage | 7 A 5 V DC, 0.8 A 24 V DC relay power supply |
| I²t on activation | 55 A².s 48 V, 50 A².s 24 V |
| Total useful secondary power | 50 W |
| It on activation | 7 A.s 24 V, 6 A.s 48 V |
| Environment | |
| Dielectric strength | 2000 V primary/secondary, 2000 V primary/earth |
| Operating altitude | 0...2000 m |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Relative humidity | 5-95 % without condensation for storage, 10-95 % without condensation for operation |
| Ambient air temperature for storage | -25-70 °C |
| Pollution degree | 2 |
| Immunity to microbreaks | 1 ms |
| Standards | CSA C22.2 No 213 Class I Division 2 Group A, CSA C22.2 No 213 Class I Division 2 Group B, IEC 61131-2, CSA C22.2 No 142, 92/31/EEC, 73/23/EEC, UL 508, 89/336/EEC, CSA C22.2 No 213 Class I Division 2 Group C, 93/68/EEC, CSA C22.2 No 213 Class I Division 2 Group D |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | BV, GL, RINA, ABS, LR, DNV, RMRS |
