Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

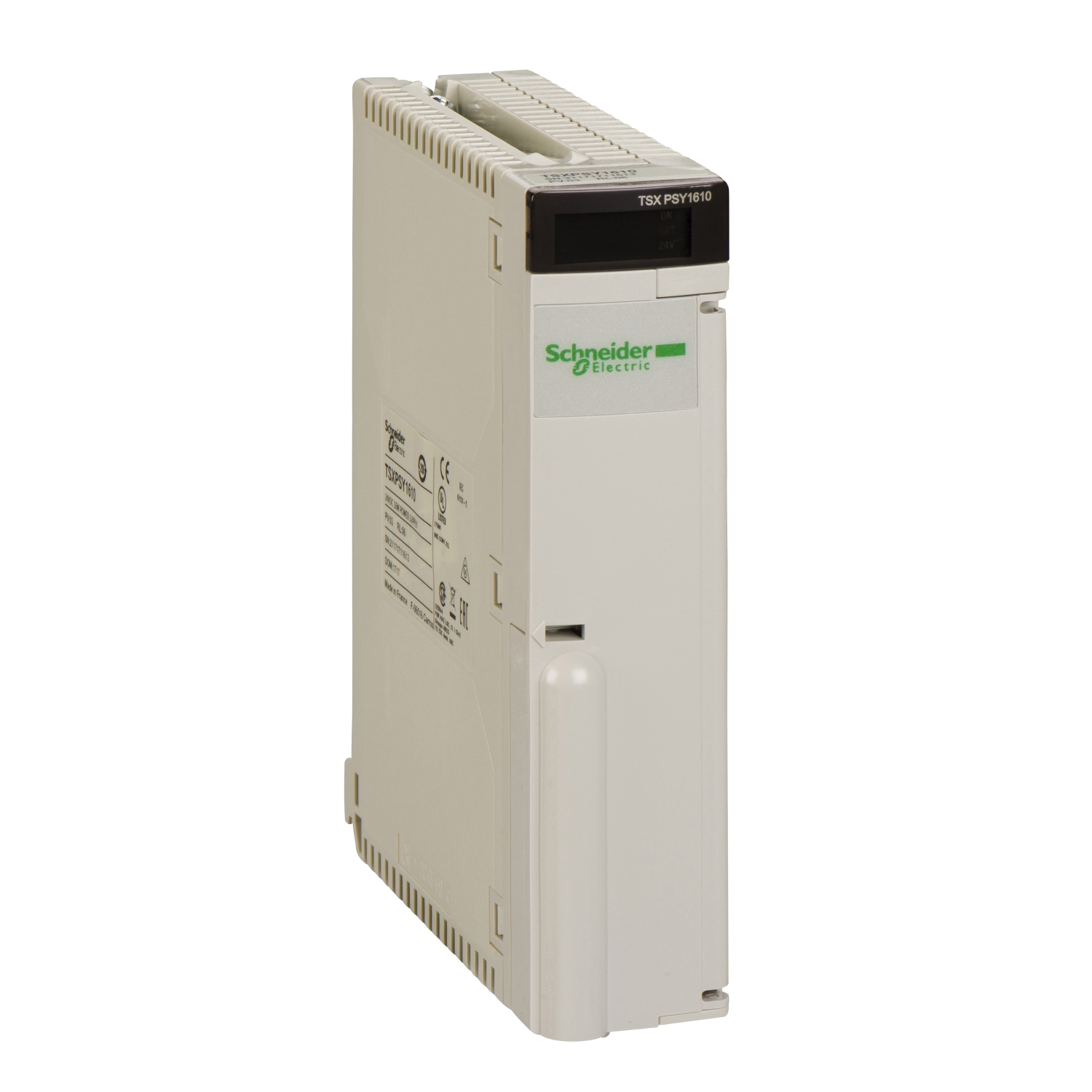

| Product or component type | power supply module |
| Range of product | Modicon Premium Automation platform |
| Complementary | |
| Primary voltage | 24 V DC 19.2...30 V |
| Inrush current | 100 A 24 V |
| Module format | standard |
| Local signalling | 1 LED (red) for battery fault (BAT), 1 LED (green) for presence of voltages (OK) |
| Input current | <= 1500 mA 24 V |
| Secondary power | 15 W 5 V DC, 15 W 24 V DC |
| Net weight | 0.54 kg |
| Marking | CE |
| Protection type | short-circuit protection secondary circuit, overvoltage protection secondary circuit, overload protection secondary circuit, internal fuse 3.5 A 5 x 20 mm time-delayed primary circuit |
| Current at secondary voltage | 3 A 5 V DC, 0.6 A 24 V DC relay power supply |
| I²t on activation | 12.5 A².s |
| Total useful secondary power | 30 W |
| It on activation | 0.2 A.s |
| Environment | |
| Dielectric strength | 2000 V primary/secondary, 2000 V primary/earth |
| Operating altitude | 0...2000 m |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Relative humidity | 5-95 % without condensation for storage, 10-95 % without condensation for operation |
| Ambient air temperature for storage | -25-70 °C |
| Pollution degree | 2 |
| Immunity to microbreaks | 1 ms |
| Standards | 89/336/EEC, CSA C22.2 No 213 Class I Division 2 Group D, 73/23/EEC, 92/31/EEC, CSA C22.2 No 213 Class I Division 2 Group A, UL 508, IEC 61131-2, CSA C22.2 No 213 Class I Division 2 Group C, CSA C22.2 No 142, CSA C22.2 No 213 Class I Division 2 Group B, 93/68/EEC |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | DNV, GL, BV, RINA, ABS, LR, RMRS |
