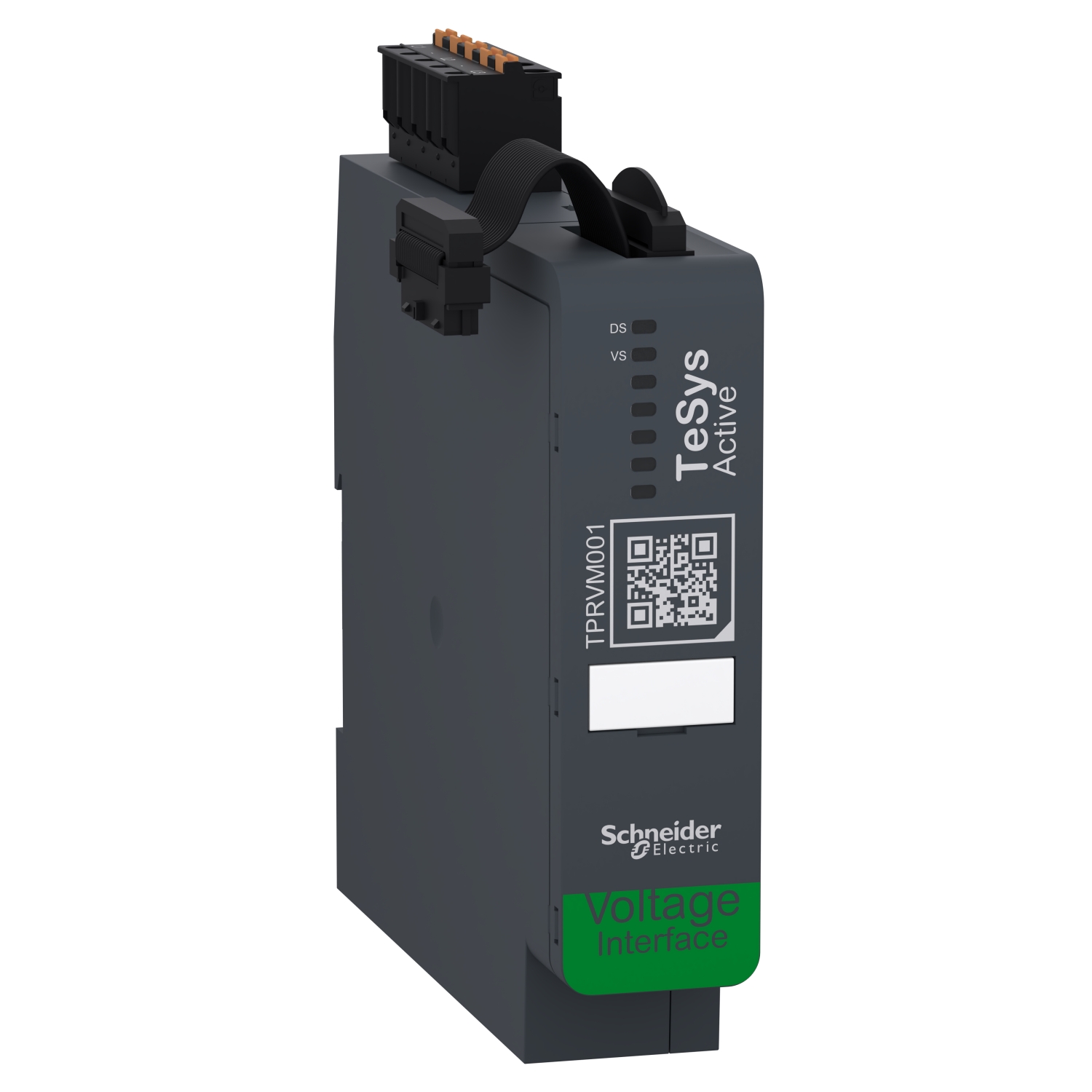

TeSys island voltage interface module, 100-690V / 47-63Hz. Connected to a TPRBC bus coupler it measures the mains voltages powering the loads. It provides the voltage values for power and energy calculation, calculates the RMS values and phase sequence. Voltage measurement range 100-690 V +/- 5 %, phase frequency measurement range 47-63 Hz +/- 1 Hz in single phase or 3-phase systems. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | TPRVM |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 61010-1 |
| Measurement accuracy | frequency: +/- 1 Hz, , voltage: +/- 5 %, |
| Metering type | phase sequence, phase frequency 47...63 Hz, phase voltage 100...690 V |
| Device presentation | reporting of the voltage to the bus coupler to enable power & energy monitoring, monitoring of the mains voltage powering the island |
| Range | TeSys |
| [Ui] rated insulation voltage | 690 V conforming to IEC 61010-1 |
| Overvoltage category | III |
| Function of module | identification of dip and swell events level and duration, calculation of RMS phase voltages, voltage phase sequence, fundamental frequency, monitoring of voltages in 3-phase systems without neutral N connection, monitoring of voltages in single phase systems L-N or L-L |
| Local signalling | 1 LED (green/red) for VS (voltage status), 1 LED (green/red) for DS (device status) |
| Product compatibility | TPRBC bus coupler |
| Product name | TeSys island |
| Product or component type | voltage interface module |
| [Ue] rated operational voltage | 690 V AC 47...63 Hz |
| Complementary | |
| Power dissipation in W | 0.5 W maximum |
| Connections - terminals | measuring input: removable spring terminal block 3 cable(s) 0.25-2.5 mm² (AWG 22...AWG 14) flexible with cable end, measuring input: removable spring terminal block 3 cable(s) 0.2-2.5 mm² (AWG 24...AWG 14) flexible without cable end, measuring input: removable spring terminal block 3 cable(s) 0.2-2.5 mm² (AWG 24...AWG 14) rigid |
| Standards | CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61010-2-201 |
| Product certifications | EAC (pending), CSA, UL |
| Height | 118 mm |
| [Us] rated supply voltage | 24 V DC supplied by the bus coupler |
| Depth | 114 mm |
| Width | 25 mm |
| Net weight | 0.159 kg |
| Current consumption | 2 mA |
| Mounting mode | horizontal and vertical (35 mm symmetrical rail) |
| Environment | |
| Fire resistance | 960 °C conforming to UL 94 |
| IP degree of protection | IP20 |
| Relative humidity | 5-95 % |
| Protective treatment | TC |
| Ambient air temperature for storage | -25-70 °C |
| Pollution degree | 2 |
| Electromagnetic compatibility | line voltage circuit: surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5, line voltage circuit: fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4, radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 |
| Ambient air temperature for operation | -10-60 °C |
| Operating altitude | 0...2000 m without derating |
| Vibration resistance | 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
