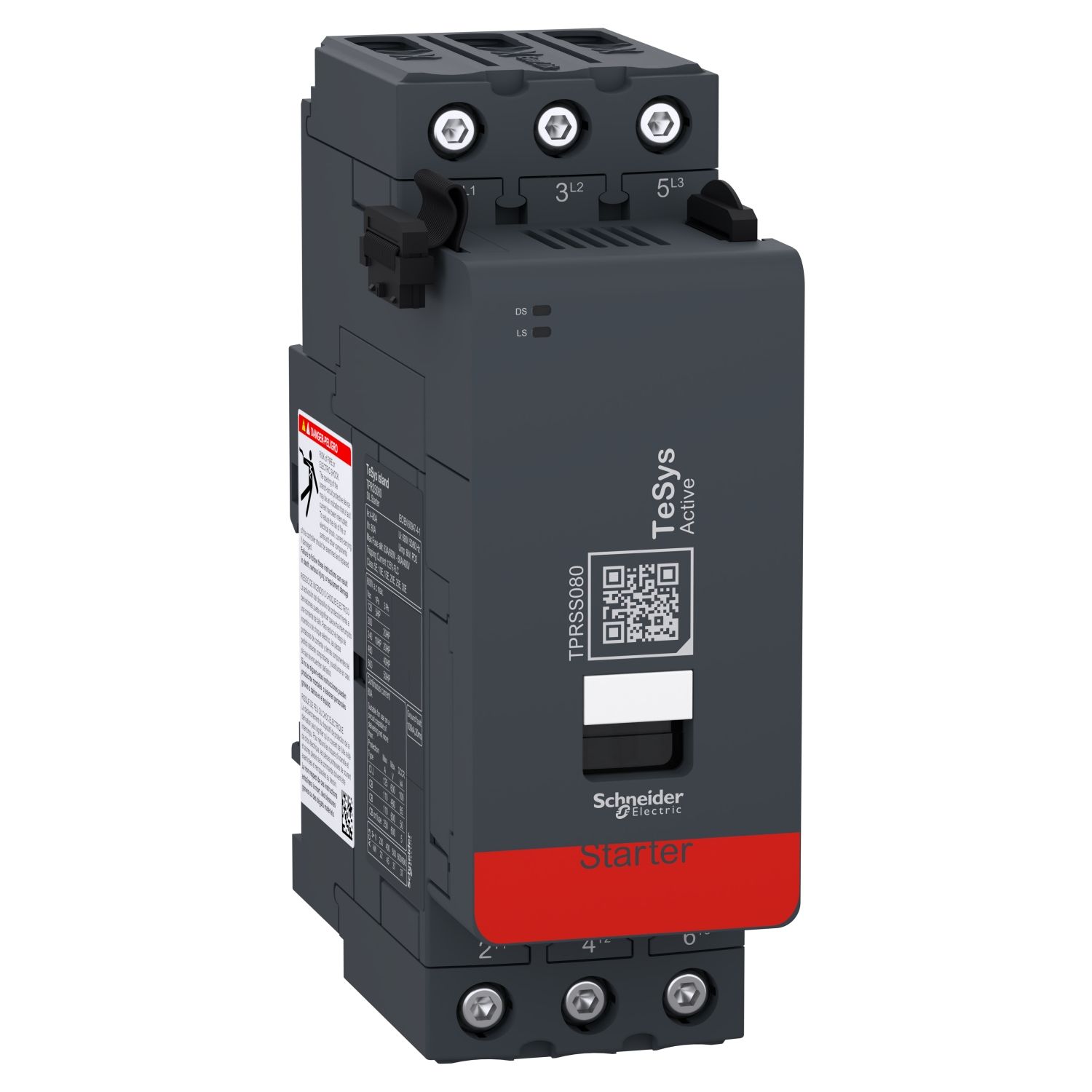

TeSys island direct SIL starter, 3 poles, 80A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 80A and motors up to 37kW@400V / 40hp@480V. In association with a TPRSM001 module and an external safety device, it can be used for safety related systems conforming to IEC 61508. It provides motor protection functions including thermal overload (setting 4-80A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Icw] rated short-time withstand current | 110 A 40 °C - 10 min, 260 A 40 °C - 1 min, 520 A 40 °C - 10 s, 900 A 40 °C - 1 s |
| Device short name | TPRSS |
| [Ue] rated operational voltage | <= 690 V AC 47...63 Hz |
| Function available | safe stop function available when connected with a TPRSM module, power and energy monitoring when connected with TPRVM voltage module, electrical line and load protection, upstream voltage presence detection |
| Motor starter type | direct on line |
| Device presentation | operational only when connected to a bus coupler, direct starter connected to an automation controller through a bus coupler |
| Range | TeSys |
| Thermal overload class | class 5…30 |
| Irms rated making capacity | 1000 A at 440 V conforming to IEC 60947 |
| Rated breaking capacity | 1000 A at 440 V conforming to IEC 60947 |
| [Ith] conventional free air thermal current | 80 A (at 50 °C) |
| Poles description | 3P (3 NO) |
| [Ui] rated insulation voltage | 600 V conforming to CSA C22.2 No 60947-4-1, 600 V conforming to UL 60947-4-1, 690 V conforming to IEC 60947-4-1 |
| Motor power hp | 50 hp at 600 V AC 60 Hz for 3 phases motors, 40 hp at 480 V AC 60 Hz for 3 phases motors, 20 hp at 240 V AC 60 Hz for 3 phases motors, 20 hp at 208 V AC 60 Hz for 3 phases motors, 10 hp at 240 V AC 60 Hz for 1 phase motors, 5 hp at 120 V AC 60 Hz for 1 phase motors |
| Motor power kW | 37 kW at 690 V 50 Hz (AC-3), 37 kW at 500 V 50 Hz (AC-3), 37 kW at 440 V 50 Hz (AC-3), 37 kW at 380...415 V 50 Hz (AC-3), 18.5 kW at 230 V 50 Hz (AC-3) |
| Product compatibility | TPRSM SIL interface module, TPRVM voltage interface module, TPRBC bus coupler |
| Thermal protection adjustment range | 4-80 A |
| Overvoltage category | III |
| [Ie] rated operational current | 80 A (at <50 °C) at <= 440 V AC-1, 66 A (at <50 °C) at <= 440 V AC-3 |
| Utilisation category | AC-4, AC-3, AC-2, AC-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Product name | TeSys island |
| Product or component type | SIL motor starter |
| [Uc] control circuit voltage | 24 V DC supplied by the bus coupler |
| Reset | remotely or automatically |
| Average impedance | 1.5 mOhm - Ith 80 A 50 Hz |
| Power dissipation per pole | 9.6 W AC-1, 6.5 W AC-3 |
| Power dissipation in W | 21.4 W at Ie AC-3 |
| Current consumption | 500 mA contactor closing, 80 mA contactor sealed |
| Complementary | |
| Protection type | ground current, phase unbalance, phase reversal, phase loss, rapid restart lockout, phase sequence, rapid cycle lockout, stall, long start, jam, undercurrent, overcurrent, motor overheat, thermal overload protection |
| Tightening torque | 8-8 N.m - cable 25-35 mm² hexagonal 4 mm, 5-5 N.m - cable 1-25 mm² hexagonal 4 mm |
| Mechanical durability | 6 Mcycles |
| Electrical durability | 0.5 Mcycles 80 A AC-1 at Ue 440 V, 0.75 Mcycles 66 A AC-3 at Ue 440 V |
| Metering type | true power factor with voltage module, active and reactive energy with voltage module, active and reactive power with voltage module, max voltage Vmax, max current Imax, average voltage Vavg, average current Iavg, number of device power cycles, number of switching cycles, number of faults, time device switch ON, time device ON |
| Connections - terminals | EverLink BTR screw connectors 2 cable(s) 1-25 mm² (AWG 16...AWG 4) flexible with cable end, EverLink BTR screw connectors 1 cable(s) 1-35 mm² (AWG 16...AWG 2) flexible with cable end, EverLink BTR screw connectors 2 cable(s) 1-25 mm² (AWG 16...AWG 4) flexible without cable end, EverLink BTR screw connectors 1 cable(s) 1-35 mm² (AWG 16...AWG 2) flexible without cable end, EverLink BTR screw connectors 2 cable(s) 1-25 mm² (AWG 16...AWG 4) rigid, EverLink BTR screw connectors 1 cable(s) 1-35 mm² (AWG 16...AWG 2) rigid |
| Standards | CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-1 |
| Safety reliability level | B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 |
| Product certifications | EAC, UL, CCC, CSA |
| Height | 167 mm |
| Safety level | PL = d category 2 conforming to ISO 13849-1 in single channel system architecture, SILCL 2 conforming to IEC 62061 in single channel system architecture, SIL 2 conforming to IEC 61508 in single channel system architecture |
| Depth | 125 mm |
| Width | 55 mm |
| Operating time | < 80 ms opening, < 80 ms closing |
| Safety function | safe stop: category 1 conforming to IEC 60204-1 when associated with a TPRSM module, safe stop: category 0 conforming to IEC 60204-1 when associated with a TPRSM module |
| Local signalling | 1 LED (green/red) for LS (load status), 1 LED (green/red) for DS (device status) |
| Maximum operating rate | 3600 cyc/mn AC-3 |
| Net weight | 1.248 kg |
| Mounting mode | horizontal and vertical (35 mm symmetrical DIN rail) |
| Environment | |
| Fire resistance | 650 °C conforming to IEC 60695-2-12, 850 °C conforming to IEC 60695-2-1, 960 °C conforming to UL 94 |
| IP degree of protection | IP20 |
| Relative humidity | 5-95 % |
| Protective treatment | TC |
| Ambient air temperature for storage | -25-70 °C |
| Pollution degree | 2 |
| Electromagnetic compatibility | conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6, surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5, surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5, fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4, radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 |
| Ambient air temperature for operation | 50-60 °C with current derating, -10-50 °C without derating |
| Operating altitude | 0...2000 m without derating |
| Vibration resistance | 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
