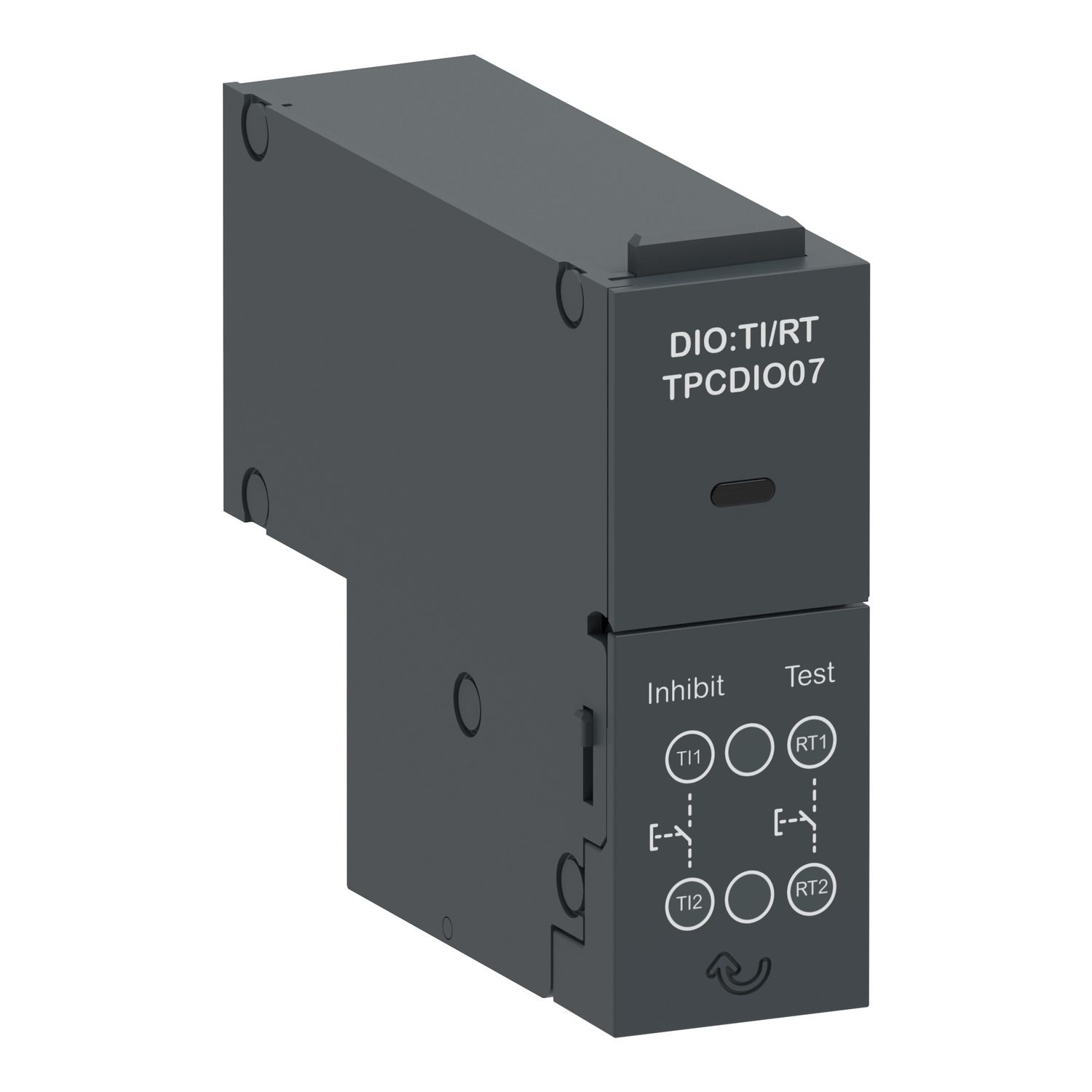

TPCDIO07 is input module as signalling accessory. This functional module has 2 dry contact input for transfer inhibit + Remote testing. The transfer inhibit signal can inhibit transfer. It also can be tailored by user to lock the controller or cooperation with different ATSE. The remote testing signal can start test procedure.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | signalling |
| Product or component type | Dry contact, I/O module |
| Range of product | TransferPacT |
| Complementary | |
| [Ui] rated insulation voltage | 30 V DC |
| Depth | 69 mm |
| Width | 20 mm |
| Mounting position | left-bottom |
| Mounting mode | plug-in |
| Accessory / separate part category | signalling accessory |
| Net weight | 40 g |
| Input current | 5 mA |
| Auxiliary connection terminal | screw clamp terminal 0.05-2.6 mm² |
| Tightening torque | 0.6 N.m +/- 0.1 N.m |
| Auxiliary contact composition | 2 NO |
| Height | 56.5 mm |
| Signalling function | remote testing, transfer inhibit |
| Environment | |
| IP degree of protection | IP20 |
| Pollution degree | 3 |
