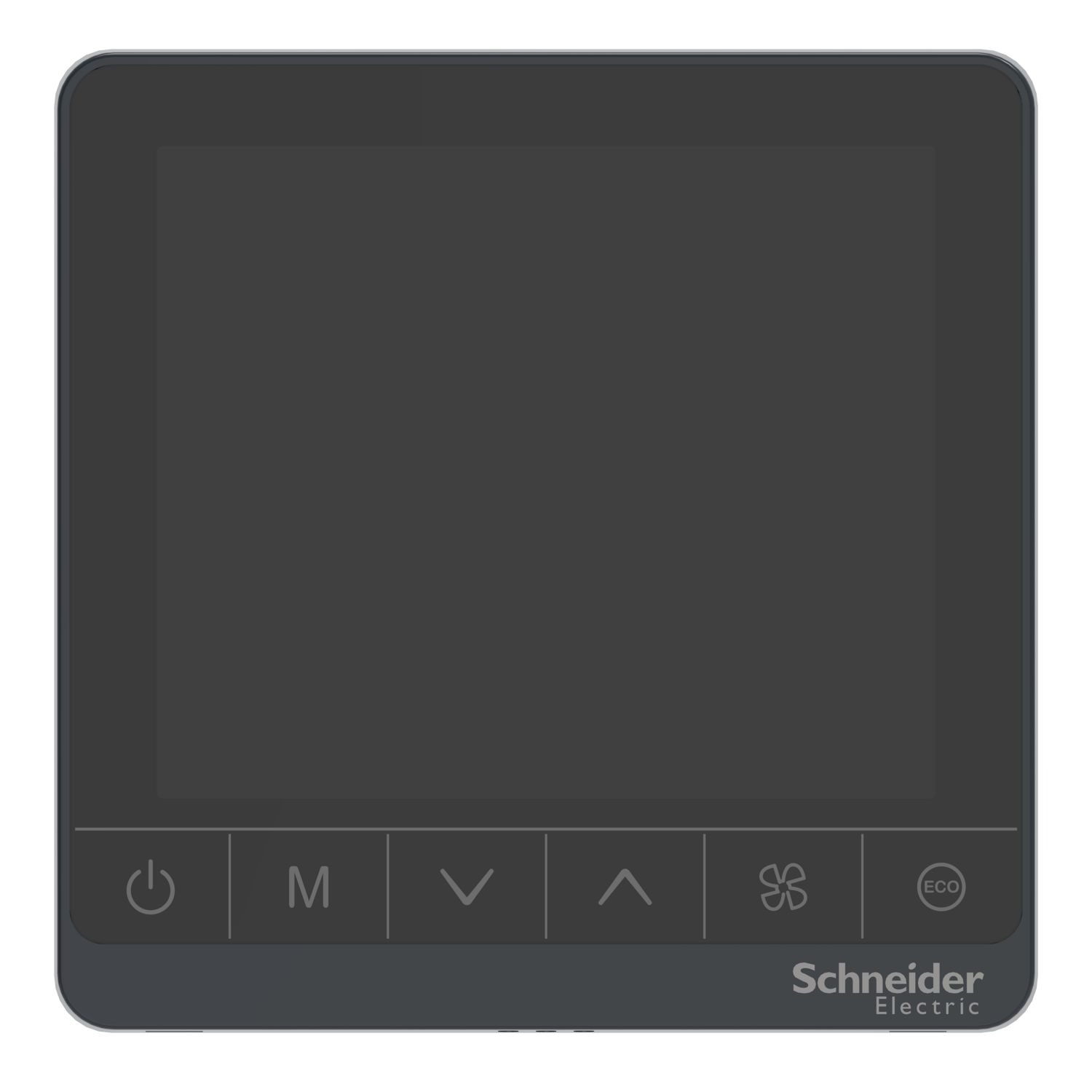

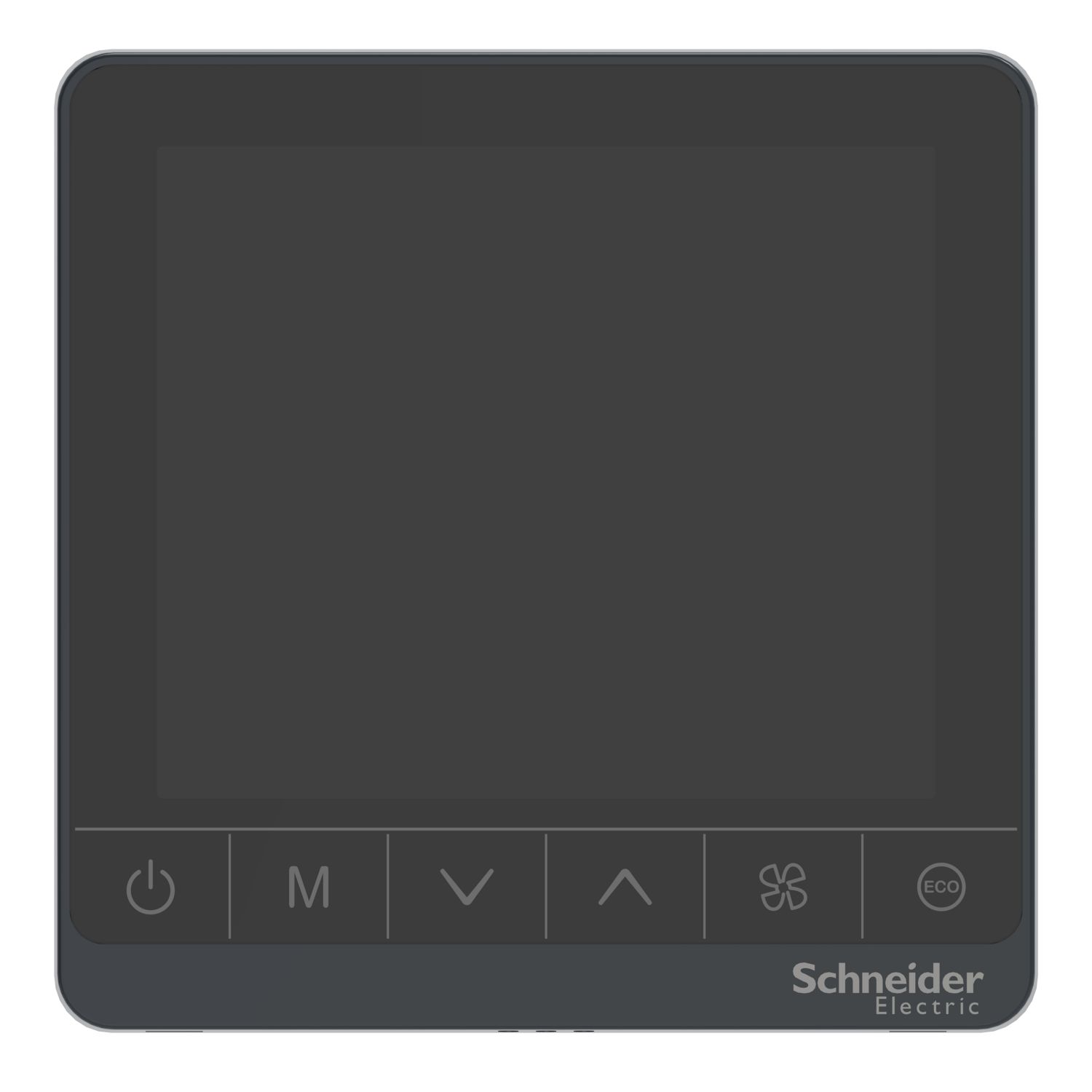

Thermostat, SpaceLogic, FCU, On/Off, Protocol, ECM,Deluxe, 240V, Capacitive, Bk
Manufacturer: Schneider Electric
SKU: TC907-EF4LDPSAB
GTIN: 3606486952122
SpaceLogic TC900 Thermostats are optimised for commercial buildings, hospitality, hospitals and residential applications The thermostats are both easy to operate and install The TC907 series thermostats are available in black glass housing with capacitive buttons Microprocessor-based control and large backlit LCD screens make the thermostat operation user-friendly. Eco button for energy-saving operations, contributing to cost savings and sustainability. The Thermostats are designed with snap on mounting for a quick and easy installation saving time and effort during project installation The TC900 series is CE, UKCA and certfied The SpaceLogic thermostats comes in brown box packaging using recycled material in line with Schneider Electrics's commitment towards sustainability. The Protocol version thermostats can be programmed to communicate with Building Management systems via Modbus and BACnet protocol Non-volatile memory (EEPROM) in the thermostat retains user settings during power loss Button lockout function in TC900 series prevents from unauthorized operation Thermostat Alert function facilitates temperature sensor maintenance Optional remote temperature integration is available for better HVAC performance Optional occupancy/key card input integration for occupancy based energy optimisation Sleep mode in TC900 deluxe models provide further energy savings
Availability: Out of stock
Old price: $387.39 inc GST
$512.32 inc GST
Supported cards
Supported cards

Products specifications

Attribute name Attribute value
Main
Product or component type thermostat
Range SpaceLogic
Device short name TC907
Sensor type 100 kOhm NTC thermistor, optional NTC external sensor
Complementary
Network frequency 50/60 Hz
Number of inputs 1 card reader
[In] rated current 5 A
Width 86 mm
Depth 14.5 mm
Housing colour black
Function available fan control, low temperature protection, sleep mode, mode selection
Colour black
Information displayed fan speed - in RPM, room temperature, temperature alarm, communication status ok, time, day
Control type touch screen, for fan
Max power consumption in W 2 W
Market segment small buildings, hotel, healthcare, residential
Height 86 mm
Communication port protocol Modbus - 2 wires, BACnet
[Us] rated supply voltage 90...240 V AC 50/60 Hz
Measurement accuracy temperature: +/- 1 °C, 0...50 °C temperature
Display type LCD screen
Device application fan coil unit
Environment
Standards EN/IEC 60730-1, EN/IEC 60730-2-9
Temperature setting range 5-35 °C
IP degree of protection IP20
Humidity setting range 5-95 %
Ambient air temperature for storage 0-50 °C
Contractual warranty
Warranty 18
