| Attribute name | Attribute value |
|---|---|
| Main | |

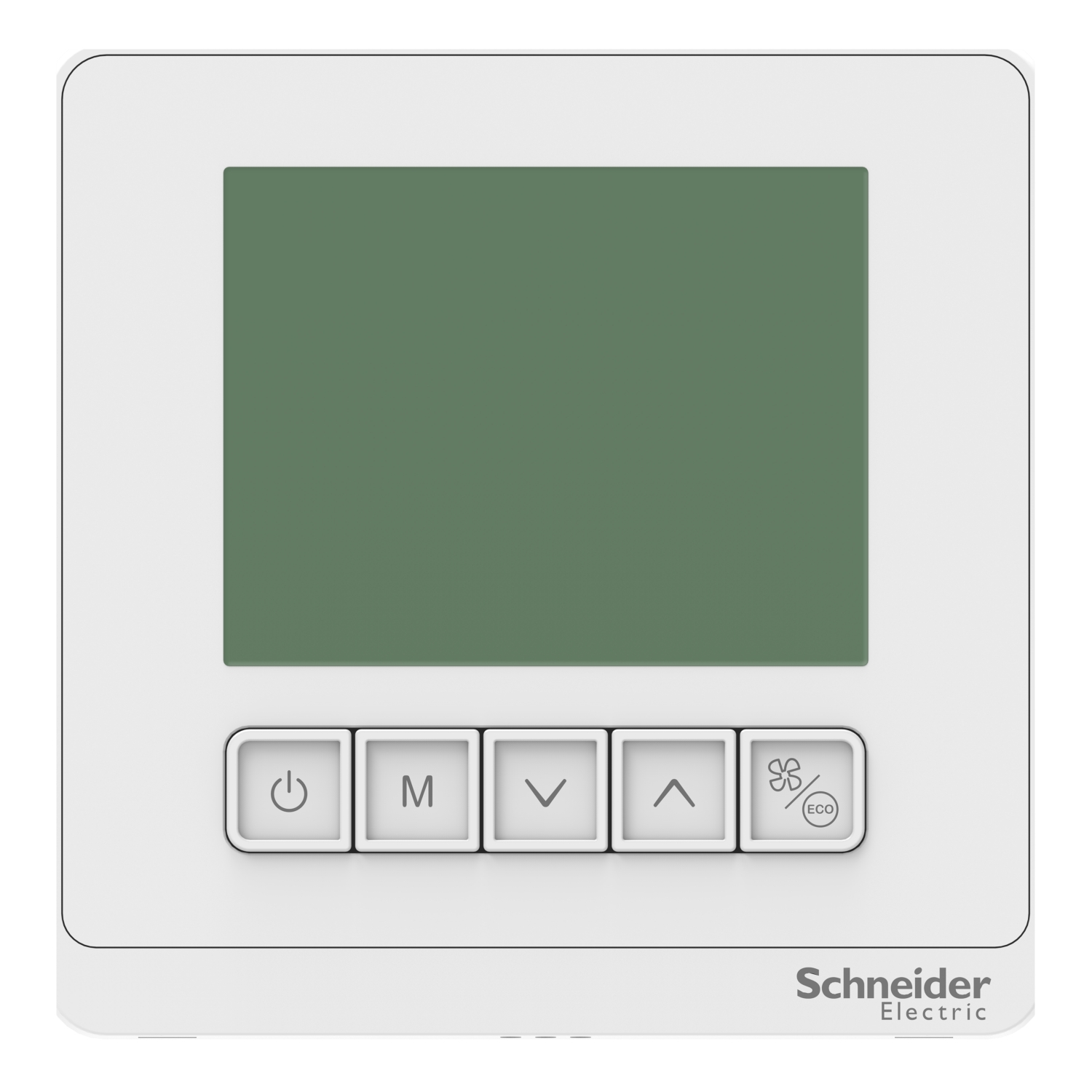

| Product or component type | thermostat |
| Range | SpaceLogic |
| Device short name | TC903 |
| Sensor type | 100 kOhm NTC thermistor, optional NTC external sensor |
| Complementary | |
| Network frequency | 50/60 Hz |
| Number of inputs | 1 card reader |
| [In] rated current | 5 A |
| Width | 86 mm |
| Depth | 14.5 mm |
| Housing colour | white |
| Function available | fan control, low temperature protection, sleep mode, mode selection |
| Colour | white |
| Information displayed | fan speed - in RPM, room temperature, temperature alarm, communication status ok, time, day |
| Control type | touch screen, for fan |
| Max power consumption in W | 2 W |
| Market segment | small buildings, hotel, healthcare, residential |
| Height | 86 mm |
| Communication port protocol | Modbus - 2 wires, BACnet |
| [Us] rated supply voltage | 90...240 V AC 50/60 Hz |
| Measurement accuracy | temperature: +/- 1 °C, 0...50 °C temperature |
| Display type | LCD screen |
| Device application | fan coil unit |
| Environment | |
| Standards | EN/IEC 60730-1, EN/IEC 60730-2-9 |
| Temperature setting range | 5-35 °C |
| IP degree of protection | IP20 |
| Humidity setting range | 5-95 % |
| Ambient air temperature for storage | 0-50 °C |
| Contractual warranty | |
| Warranty | 18 |
