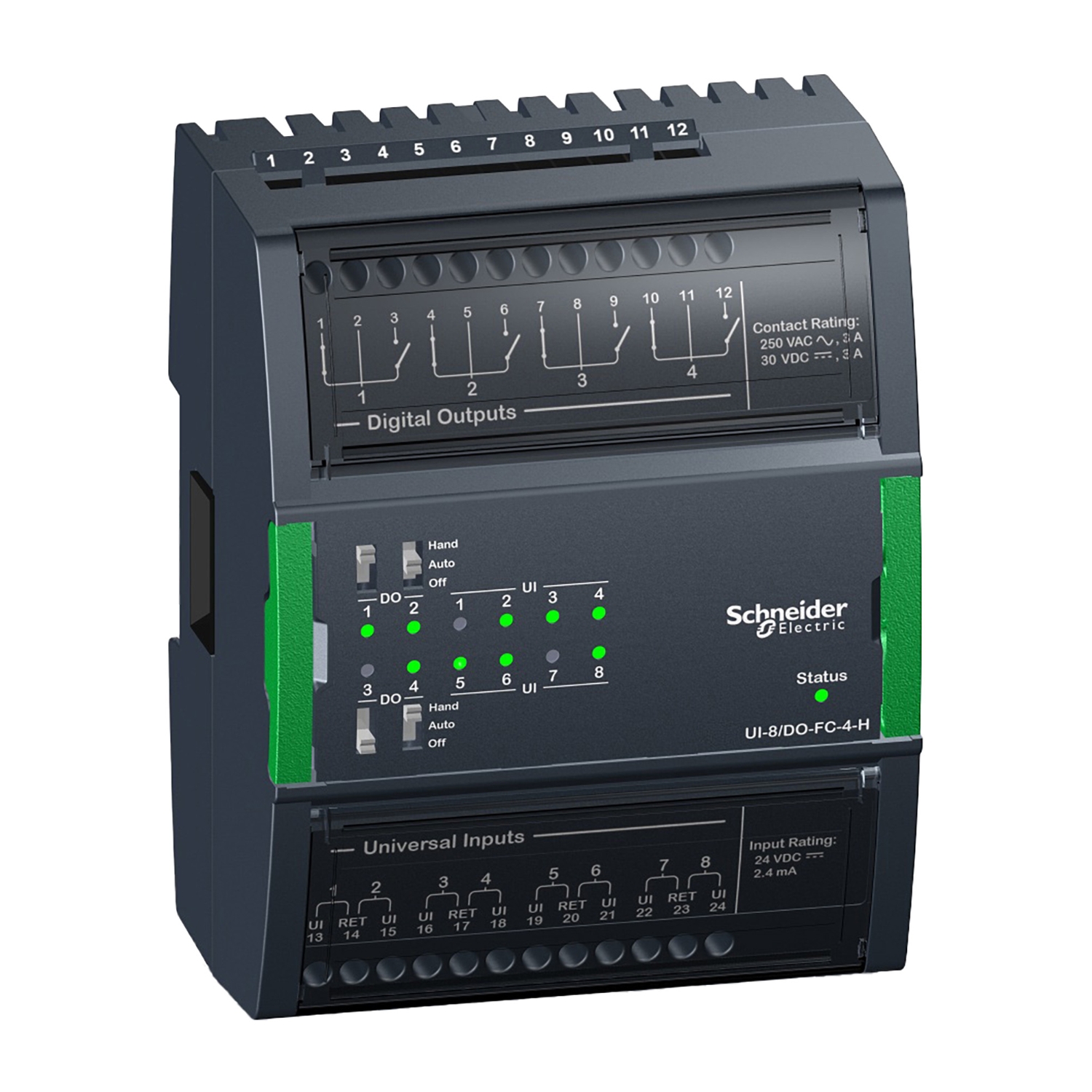

The SpaceLogic UI-8/DO-FC-4-H is a universal input, 8 channel and digital output, 4 channel I/O expansion module for the SpaceLogic AS-P Server. The universal inputs are ideal for any mix of temperature, pressure, flow, status points and similar point types in a building control system. The digital outputs support digital Form C point types designed for direct load applications. The UI-8/DO-FC-4-H I/O expansion module features 8 universal inputs and 4 digital Form C outputs with hand/off/auto override switches. Its dimensions are 114 mm (4.5 in.) in height, 90 mm (3.6 in.) in width and 64 mm (2.5 in.) in depth. This I/O module requires a SpaceLogic Central I/O Terminal Base (SXWTBIOW110001).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| IP degree of protection | IP20 |
| Device short name | UI-8/DO-FC-4-H |
| Depth | 64 mm |
| Width | 30 mm |
| Relative humidity | 0-95 % non-condensing |
| Power consumption in VA | 1.9 W |
| Ambient air temperature for storage | -20-70 °C |
| Flame retardance | UL94V0-5VB |
| Range | EcoStruxure Building Operation |
| Net weight | 181 g |
| Product name | I/O Modules |
| Input/output type | universal input |
| Product or component type | I/O module |
| Ambient air temperature for operation | 0-50 °C |
| Height | 114 mm |
| Product brand | Schneider Electric |
| Product certifications | RCM, CE, FCC part 15 class B, ICES-003 |
| Complementary | |
| Analogue input type | configurable voltage, current or probe 10 kOhm with shunt, configurable voltage, current or probe 1 kOhm connection of probes, configurable voltage, current or probe 1.8 kOhm connection of probes, configurable voltage, current or probe 2.2 kOhm connection of probes, configurable voltage, current or probe 10 kOhm connection of probes, configurable voltage, current or probe 20 kOhm connection of probes, configurable voltage, current or probe 0...10 V input voltage, configurable voltage, current or probe 0...20 mA |
| Product compatibility | Satchwell, Honeywell, Balco, I/NET, Johnson Control, Xenta, Continuum |
| Electrical connection | plug-in sub-base |
| Material | ABS + PC |
| Discrete input number | 8 |
| Discrete output number | 4 |
| Control type | with integrated switch for off/on/automatic |
| Local signalling | LED (green/red) for low signal level, LED (green/red) for high signal level |
| Range compatibility | EcoStruxure Building Operation TB-IO-W1 terminal base |
| Standards | FCC CFR 47 part 15, UL 916, UL 864 |
| Mounting support | wall, DIN rail |
| Discrete input voltage | 24 V |
| Switching frequency | 25 Hz |
| Discrete output type | relay |
