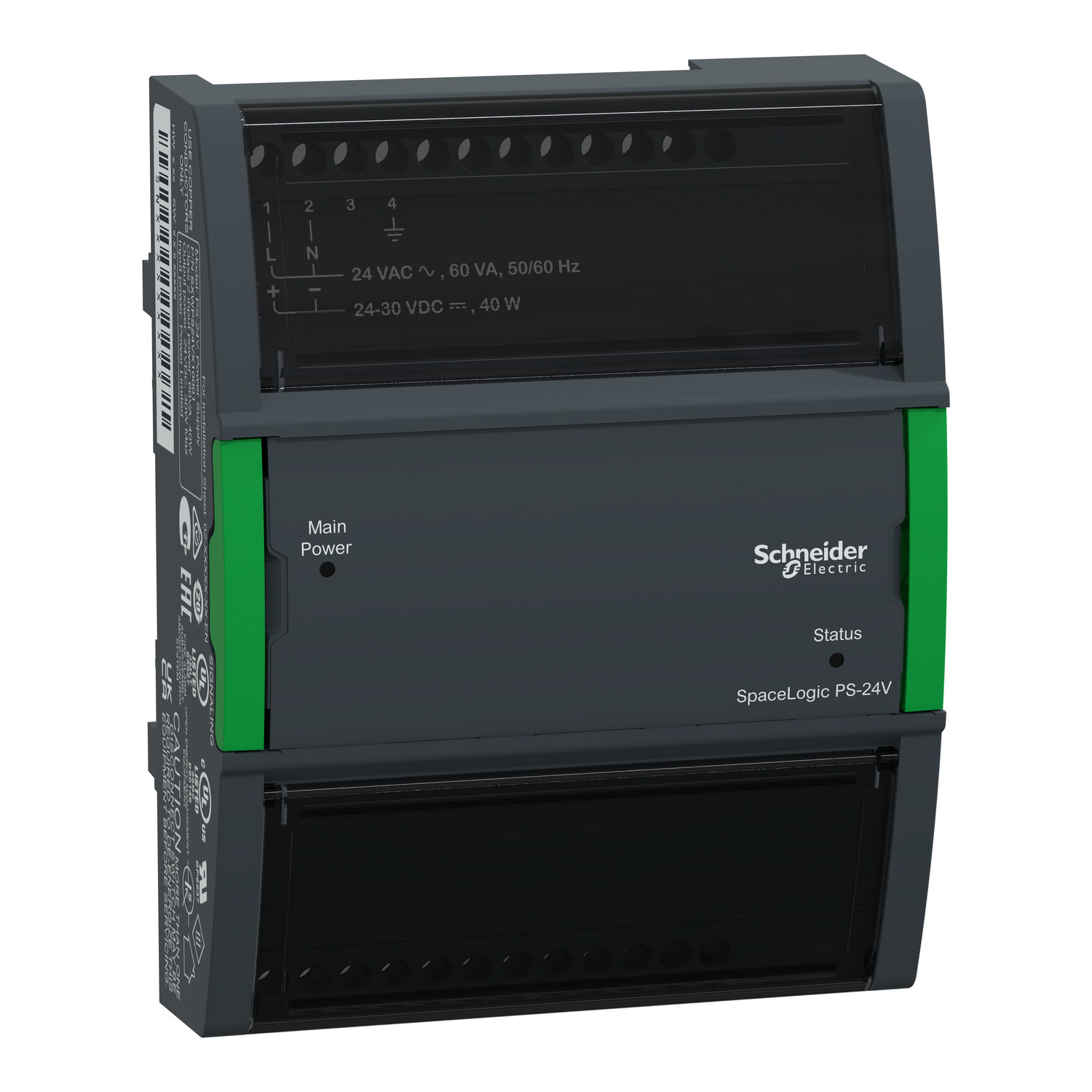

The SpaceLogic PS-24V power supply module is designed to accomodate the specific power requirements for the AS-P server and its connected I/O modules. The module accomodates 24 VAC or 24 VDC input power. The power supply module delivers output power of 24 VDC. Its dimensions are 114 mm (4.5 in.) in height, 90 mm (3.6 in.) in width and 64 mm (2.5 in.) in depth. Plastic flame rating is UL94-5VB and the ingress protecton rating is IP20. The module can deliver power to SpaceLogic AS-P and I/O modules. A terminal base TB-PS-W1 is required for each power supply module.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | PS-24V |
| Range | EcoStruxure Building Operation |
| Product or component type | power supply module |
| Product brand | Schneider Electric |
| Complementary | |
| Depth | 64 mm |
| Width | 90 mm |
| Quantity per set | 1 |
| Secondary power | 10 W 21...30 V DC, 10 W 24 V AC |

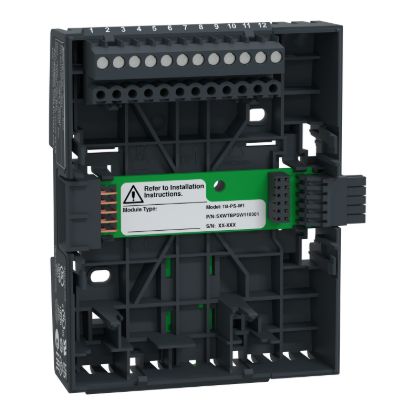

| Range compatibility | EcoStruxure Building Operation TB-PS-W1 terminal base, EcoStruxure Building Operation AS-P controller |
| Height | 114 mm |
