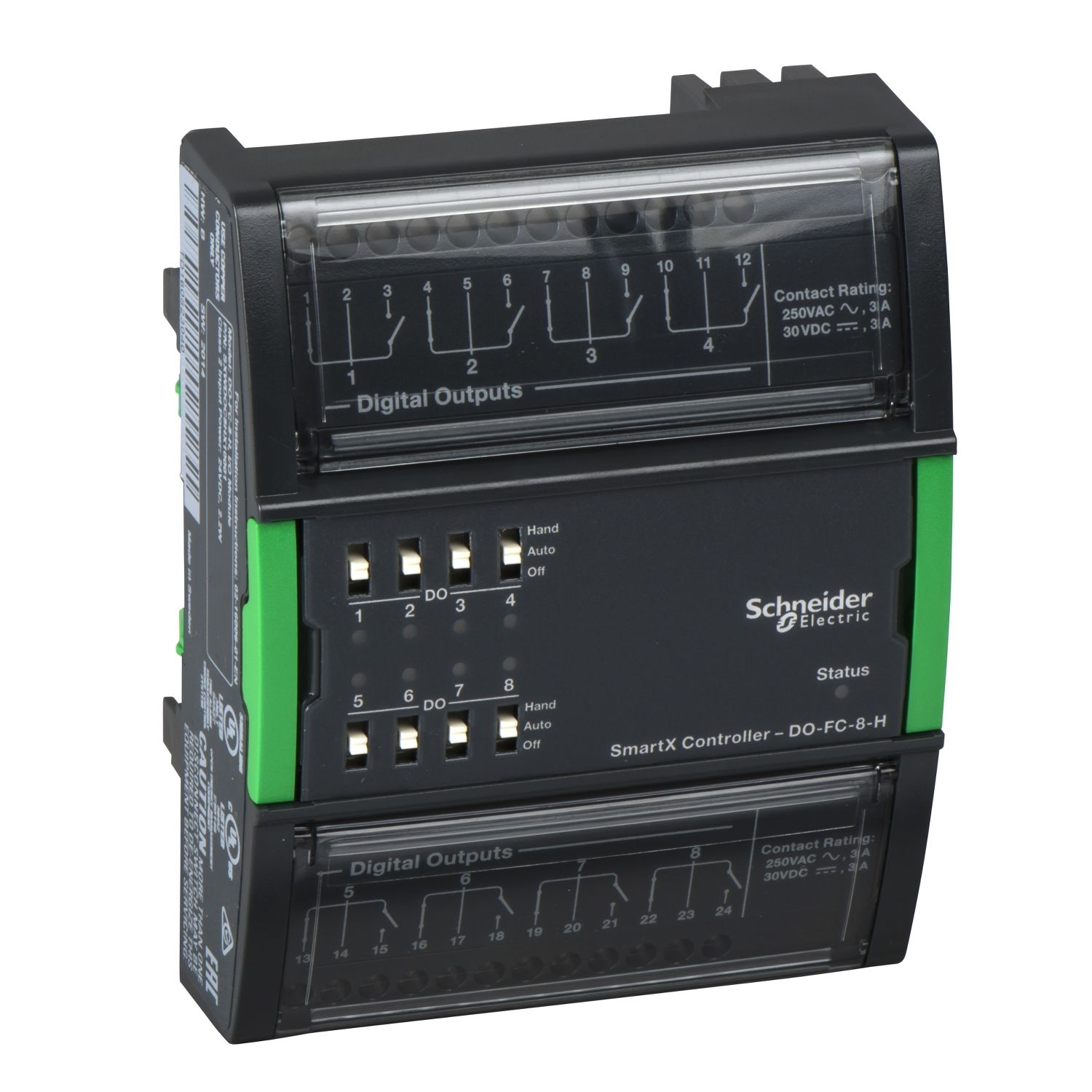

The SpaceLogic DO-FC-8-H is a digital output 8 channel I/O expansion module for the SpaceLogic AS-P Server. The digital outputs support digital Form C point types designed for direct load applications. The DO-FC-8-H I/O expansion module features 8 Form C digital outputs with hand/off/auto override switches. Its dimensions are 114 mm (4.5 in.) in height, 90 mm (3.6 in.) in width and 64 mm (2.5 in.) in depth. This I/O module requires a SpaceLogic Central I/O Terminal Base (SXWTBIOW110001).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| IP degree of protection | IP20 |
| Device short name | DO-FC-8-H |
| Depth | 64 mm |
| Width | 30 mm |
| Relative humidity | 0-95 % non-condensing |
| Power consumption in VA | 2.2 W |
| Ambient air temperature for storage | -20-70 °C |
| Flame retardance | UL94V0-5VB |
| Range | EcoStruxure Building Operation |
| Net weight | 209 g |
| Product name | I/O Modules |
| Product or component type | I/O module |
| Ambient air temperature for operation | 0-50 °C |
| Height | 114 mm |
| Product brand | Schneider Electric |
| Product certifications | RCM, CE, FCC part 15 class B, ICES-003 |
| Complementary | |
| Electrical connection | plug-in sub-base |
| Material | ABS + PC |
| Discrete output number | 8 |
| Control type | with integrated switch for off/on/automatic |
| Local signalling | LED (green) for relay energised |
| Range compatibility | EcoStruxure Building Operation TB-IO-W1 terminal base |
| Standards | FCC CFR 47 part 15, UL 916, UL 864 |
| Mounting support | wall, DIN rail |
| Discrete input voltage | 24 V |
| Discrete output type | relay |
