Automation Server V3 Premium, SpaceLogic, AS-P-3, BACnet IP, 1 10/100/1000 & 2 10/100 Ethernet Ports, 3 RS-485 Ports, 2 USB Host Ports

Combined Controller, Server and Router

BACnet B-BC with BACnet/SC node, hub and router over BACnet IP

Native EcoStruxure Building Operation software support

1no. 10/100/1000 & 2no. 10/100 MB ethernet ports with RSTP capability

3no. RS 485 ports to support Modbus RTU, BACnet MS/TP and legacy protocols

2no. USB host ports to support deices including Zigbee wireless

Support for central IO with up to 29 modules and 464 points

Webservices support

OPC UA client support

Manufacturer: Schneider Electric

SKU: SXWASP3XX10001

GTIN: 3606487040033

PDF

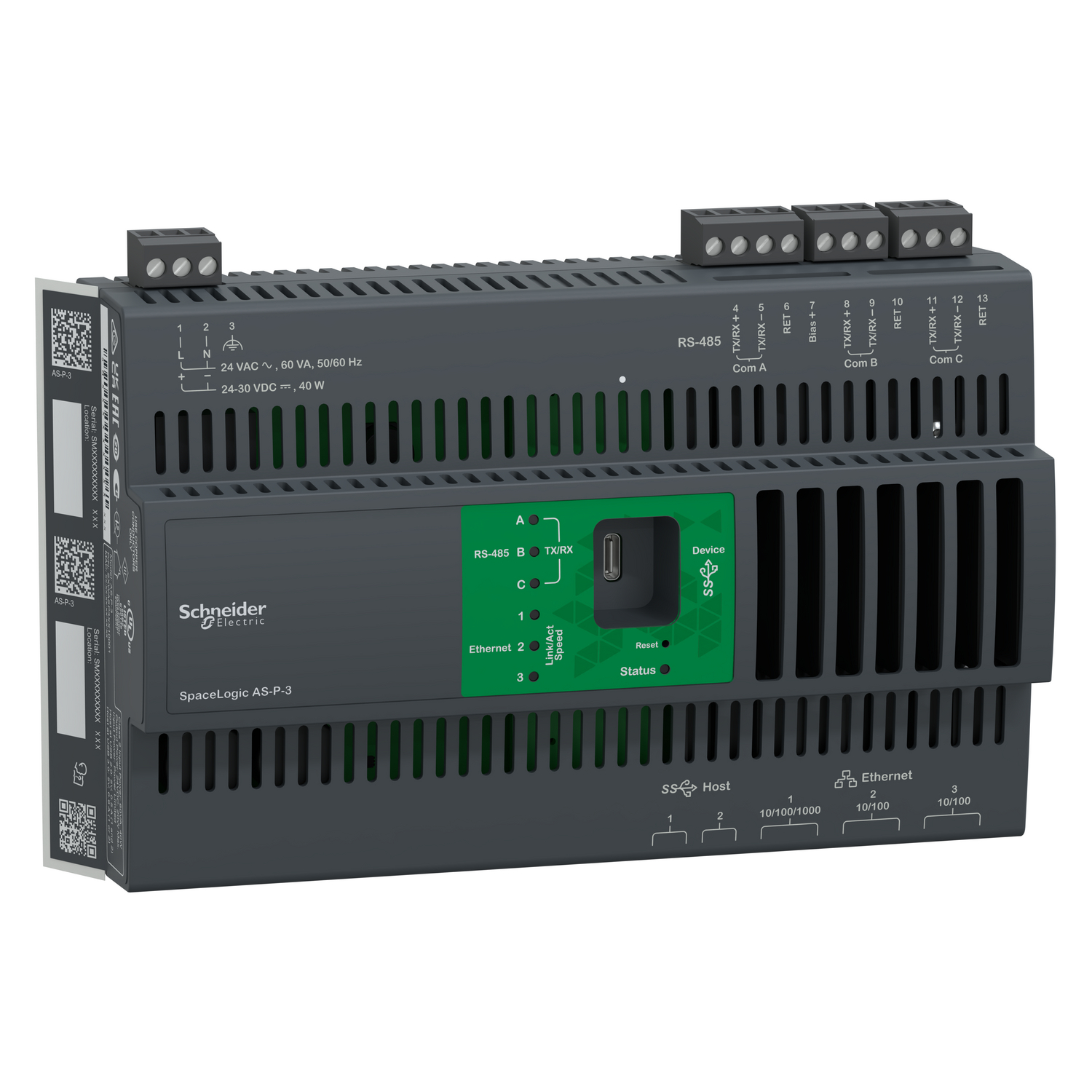

Image of product

Instruction sheet

Declaration of conformity

Full Description

SpaceLogic Automation Server V3 Premium AS-P-3 is a combined Controller, Server and Router acting as a communications hub. BACnet B-BC with BACnet/SC node, hub and router over BACnet IP. Native EcoStruxure Building Operation support through WorkStation & WebStation. 1 no. 10/100/1000 and 2 no. 10/100 MB ethernet ports with RSTP capability. 3 no. RS 485 ports to support Modbus RTU, BACnet MS/TP and legacy protocols. 2 no. USB host ports to support devices including Zigbee wireless. Support for central IO with up to 29 modules and 464 points. Webservices support including EcoStruxure Web Services. OPC UA client support. MQTT IoT protocol support to publish and subscribe to data. Built-in isolated power supply for 24 vac and 24-30 vdc. Advanced cyber security including Secure Boot and TLS support.

Availability: Out of stock

Old price: $2,908.88 inc GST

Price: $3,846.99 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Product or component type	controller
Product name	SpaceLogic Automation Svr AS-P-3
Memory type	2 GB RAM LPDDR4, 32 GB flash
Width	180 mm
Clock drift	+/- 52 s/month
Depth	64 mm
Ambient air temperature for operation	0-55 °C
Range of product	SpaceLogic
Range	SpaceLogic
Flame retardance	UL94 V-0
Mounting mode	DIN rail mount
Colour	black
Software version	>= V7.0
Device short name	AS-P-3
IP degree of protection	IP20
Product certifications	RCM, CE, FCC Class B, WEEE, UKCA, cULus, ICES-003, ACMA, UL/cUL 916
Product brand	Schneider Electric
Power consumption in W	40 W
Net weight	0.550 kg
Current consumption	< 2.5 A
Height	114 mm
Standards	FCC part 15 class B, ICES-003, CE, UL 916, RoHS
Communication service	SNMP network management, SMTP e-mail notification, SMTPS e-mail notification, Modbus TCP client, Modbus TCP server, DHCP, DNS client, NTP synchronization
Ambient air temperature for storage	-20-70 °C
Maximum number of I/O expansion module	29
Complementary
I/O limit processor capacity	464 I/O, 29 modules
Material	ABS/PC
Product mounting	DIN rail
Communication port protocol	BACnet IP RJ45, BACnet MS/TP RS485, BACnet SC RJ45, Modbus TCP RJ45, Modbus RTU RS485, HTTPS RJ45, HTTP RJ45, OPC UA client RJ45
Processor name	ARM Cortex-A72 dual-core
Web services	TLS1.3, HTTP server, HTTPS server
Environment
Relative humidity	0-95 %
Contractual warranty
Warranty	18
