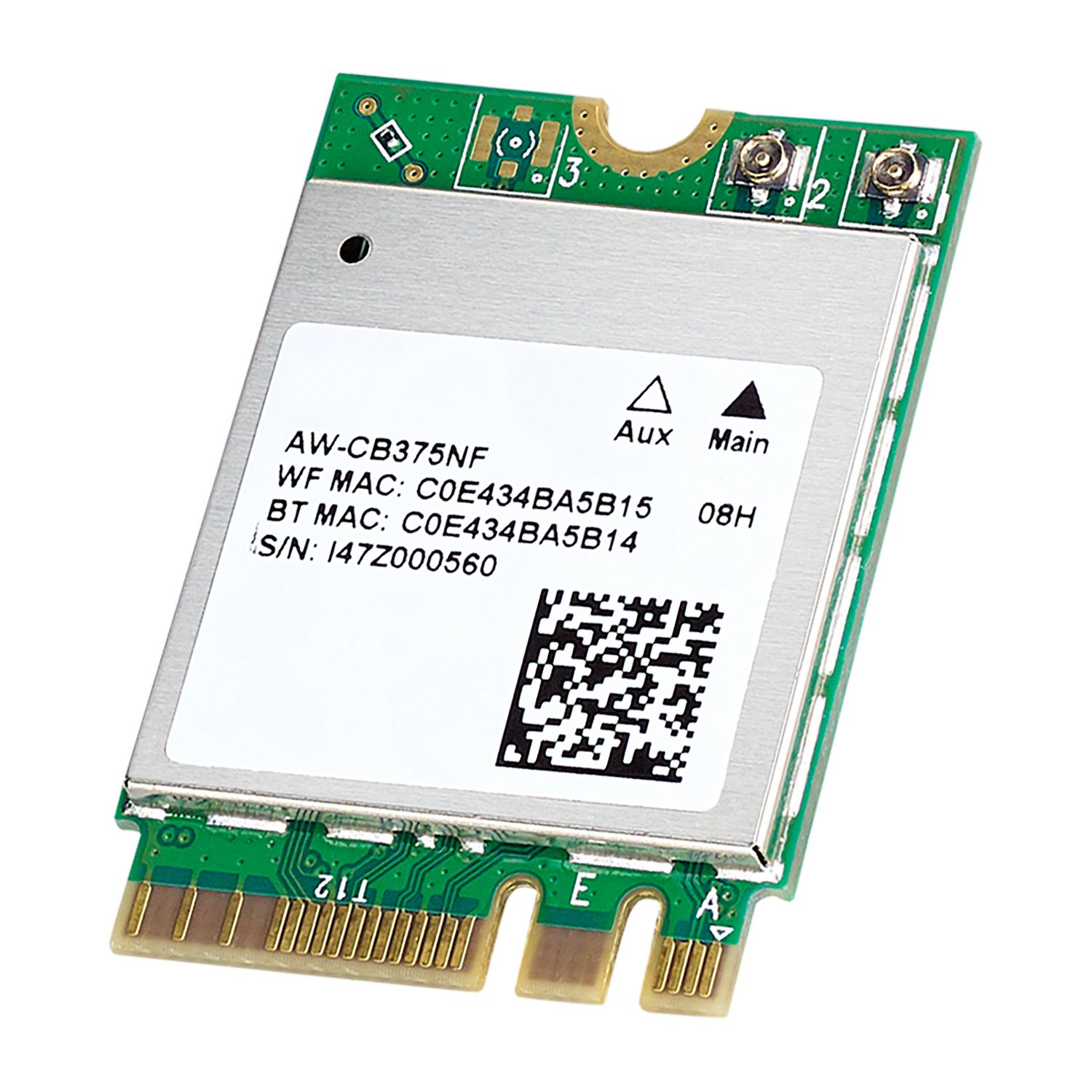

SpaceLogic Advanced Display V3 Wi-Fi Module

Support wireless connectivity of SpaceLogic Advanced Display V3 refresh with BMS Automation Servers

No need to use USB cable to connect to AS-P or AS-B

SpaceLogic Advanced Display V3 Refresh could be installed any where with Wireless coverage

Manufacturer: Schneider Electric

SKU: SXWADWIFI10002

GTIN: 3606487088493

PDF

Image of product

Instruction sheet

Declaration of conformity

Full Description

The SpaceLogic Advanced Display V3 Wi-Fi module is an optional accessory for Advanced Display V3. It allow Wireless communication between ADv3 and EcoStruxure BMS servers (such as AS-P & AS-B) connected to a wireless access point. It is an M.2 for factor card which is inserted into an expansion slot on the ADv3 main board. Wi-Fi module comes with an adhesive mount Wi-Fi antenna. Wi-Fi module is useful to utilize Wireless network at site allowing the installation of ADv3 far from the BMS servers.

Availability: Out of stock

Old price: $430.67 inc GST

Price: $569.56 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Ambient air temperature for operation	0-70 °C
Standards	EN 301-489-1:v1.9.2, EN 301-489-17:v2.2.1, FCC CFR 47 part 15 Subpart B class B, FCC Part 15 Subpart C 15.247, RSS 210:2010 Annexe 8, ETSI EN 300 328:v2.1.1
Fixing mode	adhesive tape, insertion into a M.2 connector
Product or component type	communication module
Ambient air temperature for storage	-40-85 °C
Relative humidity	15-95 % RH, non-condensing
Provided equipment	Wi-Fi module, Wi-Fi antenna
Communication network type	Wi-Fi IEEE 802.11 b/g/n at 2.4 GHz, Wi-Fi IEEE 802.11 a/b/g/n at 5 GHz
Width	22 mm
Complementary
Range compatibility	SpaceLogic SmartX HMI Advanced Display v3
Contractual warranty
Warranty	18
