Advanced display, SpaceLogic HMI, v3, for AS/AS-B/AS-P, 10.1" high-resolution display, IP54, 24VAC and DC

Provides an interface through which users can locally access EcoStruxure BMS servers from an HMI terminal installed

The HMI is based on an Android platform with high-resolution touchscreen display (1280 x 800 pixels)

Plastic flame rating is UL94 V-0 and the ingress protecton rating is IP54

The HMI can be installed on a control cabinet

Manufacturer: Schneider Electric

SKU: SXWADBUND10013

GTIN: 3606487191735

PDF

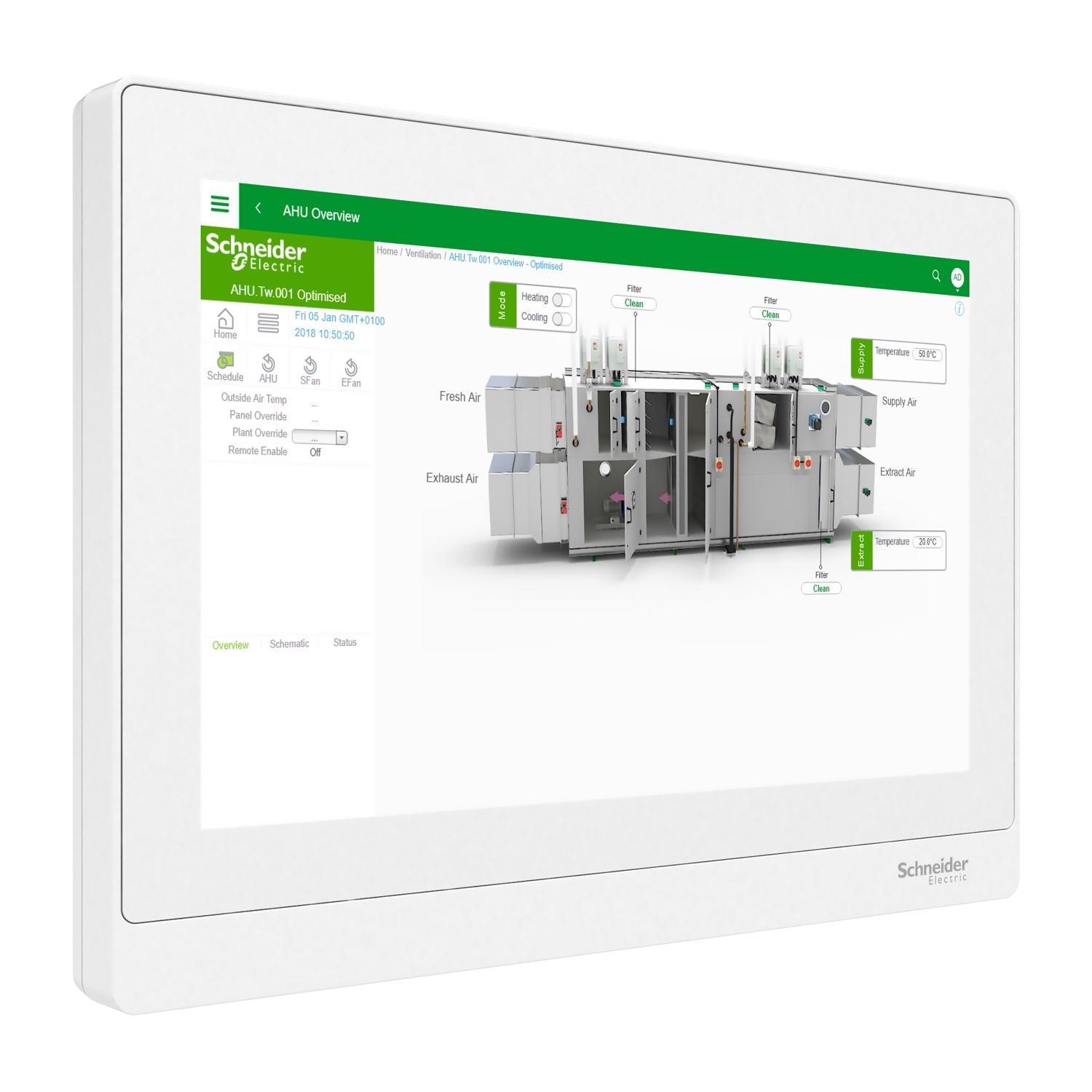

Image of product

Instruction sheet

Declaration of conformity

Full Description

The SpaceLogic Advanced Display V3 bundle includes HMI device, cable fitting with nut, and earth ground screw with washer. It can be locked to an application such as EcoStruxure Building Operation WebStation to create a tool for local operation of an EcoStruxure BMS. It provides an interface through which users can locally access EcoStruxure BMS servers from an HMI terminal installed on a control cabinet. The HMI is based on an Android platform with high-resolution touchscreen display (1280 x 800 pixels). Can be supplied with 24VAC input using isolated Y-cables. Its dimensions are 195.6 mm (7.7 in.) in height, 258 mm (10.2 in.) in width, 25 mm (1.0 in.) in depth and the display size is 255 mm (10.1 in.). Plastic flame rating is UL94 V-0 and the ingress protecton rating is IP54. The HMI can be installed on a control cabinet. The HMI can communicate with SpaceLogic servers with Y-shaped USB cables (SXWADUSBC10002 or SXWADUSBC10003).

Availability: Out of stock

Old price: $4,707.75 inc GST

Price: $6,226.00 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Display resolution	1280 x 800 pixels
Product or component type	HMI
Memory type	2 GB RAM
Communication network type	IEEE 802.11 b/g/n at 2.4 GHz
[In] rated current	1 A
Width	258 mm
Depth	25 mm
Ambient air temperature for operation	0-40 °C
Flame retardance	UL94-V0
Mounting mode	panel-mounted
Colour	white
Relative humidity	0-95 % RH, non-condensing
Product certifications	CE, FCC, UL 60950, RCM
Embedding depth	0.6 in
Operating system	Android 8.1
Net weight	0.933 kg
Current consumption	1.27 A
Enclosure material	ABS/PC
Number of port	1 , connector type: USB type C
[Us] rated supply voltage	24 V AC +/- 10 %, 24 V DC +/- 10 %
Height	195.6 mm
Communication port protocol	USBNet: USB 2.0
Standards	EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, IEC 60950-1:ed. 2:2005+Am1:2009+Am2:2013, UL 60950-1:ed. 2:2014, CSA C22.2 No. 60950-1-07:ed. 2:2014, EN 55024:2010, FCC part 15 Subpart B class B
Processor name	Intel Celeron N3350 dual core at 1.1 GHz
Ambient air temperature for storage	-20-60 °C
Display size	10.1 inch
Display type	TFT LCD touchscreen
Range compatibility	SpaceLogic AS, SpaceLogic AS-P, SpaceLogic AS-B
Complementary
Supply	external power supply
Contractual warranty
Warranty	18
