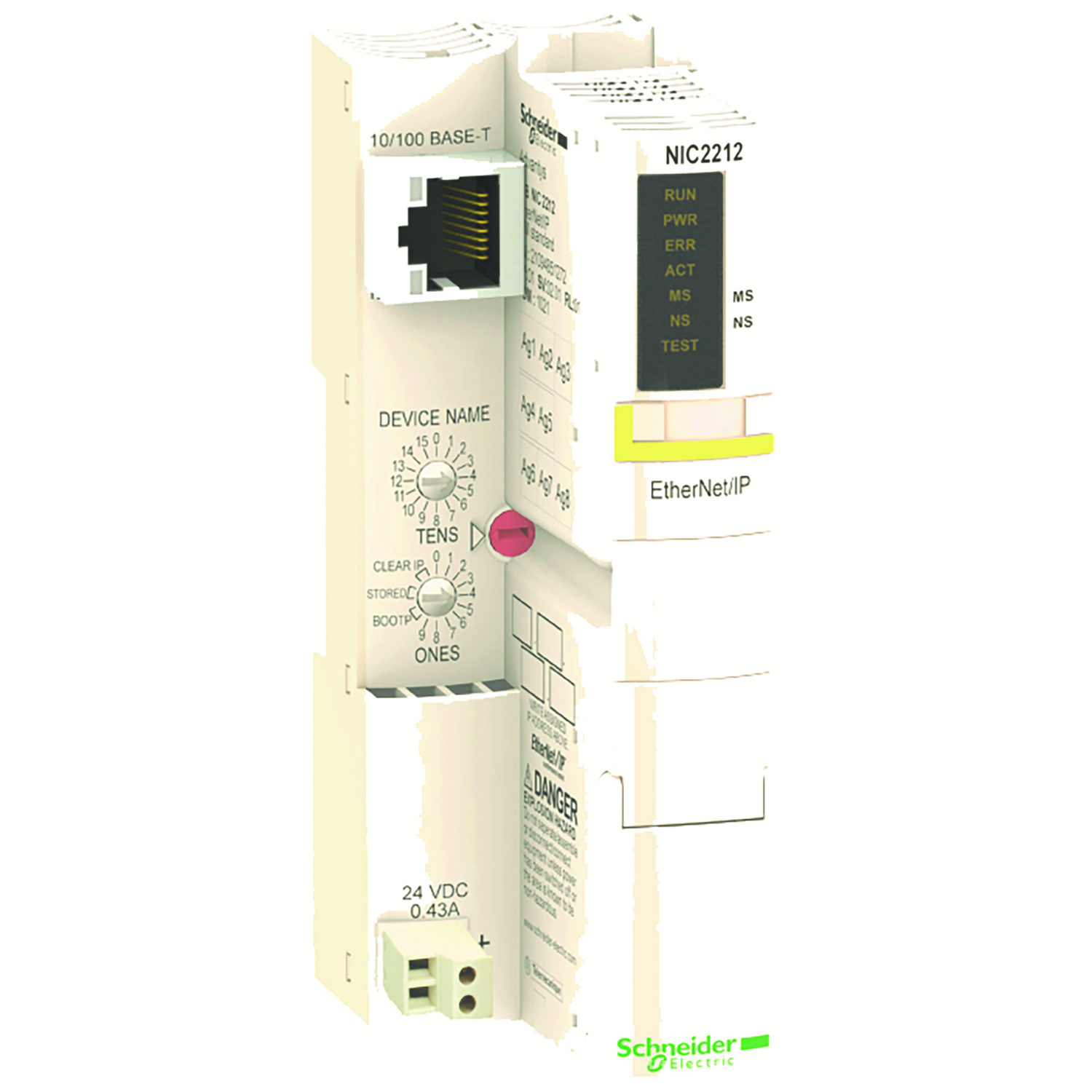

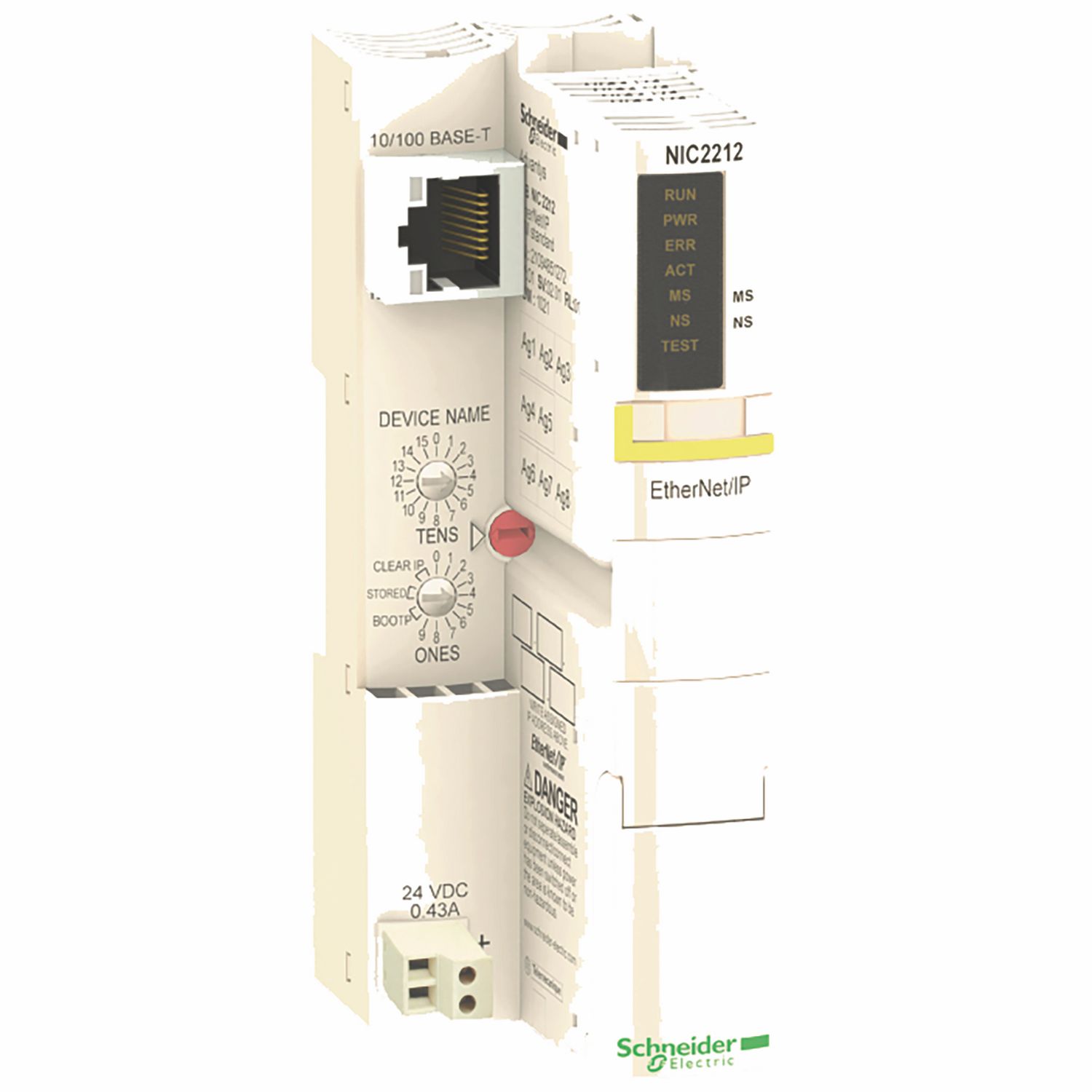

This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are embedded web, BootP/DHCP protocol and SNMP agent. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40mm (height) and weighs 0.145kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, ODVA, C-Tick, UL, it meets IEC 61131-2 2003 and FM Class 1 division 2, groups A, B, C and D T4A standards. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Transmission rate | 10/100 Mbit/s |
| Exchange mode | half or full duplex |
| Range of product | Modicon STB distributed I/O solution |
| Number of devices per segment | 0-256 |
| Port Ethernet | 10BASE-T/100BASE-T |
| Integrated connection type | Ethernet/IP conforming to IEEE 802.3 8-way female (RS232 port), Ethernet/IP conforming to IEEE 802.3 HE-13 (RS232 port), Ethernet/IP conforming to IEEE 802.3 female RJ45 double shielded twisted pair via Ethernet (network) |
| Product or component type | standard Network Interface Module |
| Number of segments | 1 primary, maximum 6 extensions |
| Complementary | |
| Maximum supply current | 700 A |
| Supply voltage limits | 19.2-30 V |
| Input current | 430 mA for supply circuit |
| Marking | CE |
| Communication service | SNMP agent, BootP/DHCP protocol, embedded web (configuration,diagnostics and access to variable) |
| Output voltage | 5.25 V DC (tolerance: +/- 0.21 %) for logic bus |
| Status LED | 1 LED test mode (TEST), 1 LED power supply (PWR), 1 LED NS, 1 LED MS, 1 LED module error (ERR), 1 LED island state (RUN), 1 LED ACT |
| Height | 40 mm |
| Nominal output current | 1.2 A, 0.575 A at 60-70 °C |
| [Us] rated supply voltage | 24 V DC |
| Depth | 70 mm |
| Overvoltage category | II |
| Width | 128.3 mm |
| Net weight | 0.145 kg |
| Power supply type | SELV |
| Number of addressable I/O module | 0-32 per island |
| Environment | |
| Relative humidity | 95-95 % at 60-60 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP20 conforming to IEC 61131-2 class 1 |
| Ambient air temperature for operation | -25-70 °C (with derating factor), 0-60 °C (without derating) |
| Operating altitude | <= 2000 m |
| Vibration resistance | +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Standards | IEC 61131-2 : 2003, FM Class 1 division 2, groups A, B, C and D T4A with 70 °C |
| Product certifications | CSA, C-Tick, ODVA, UL |
