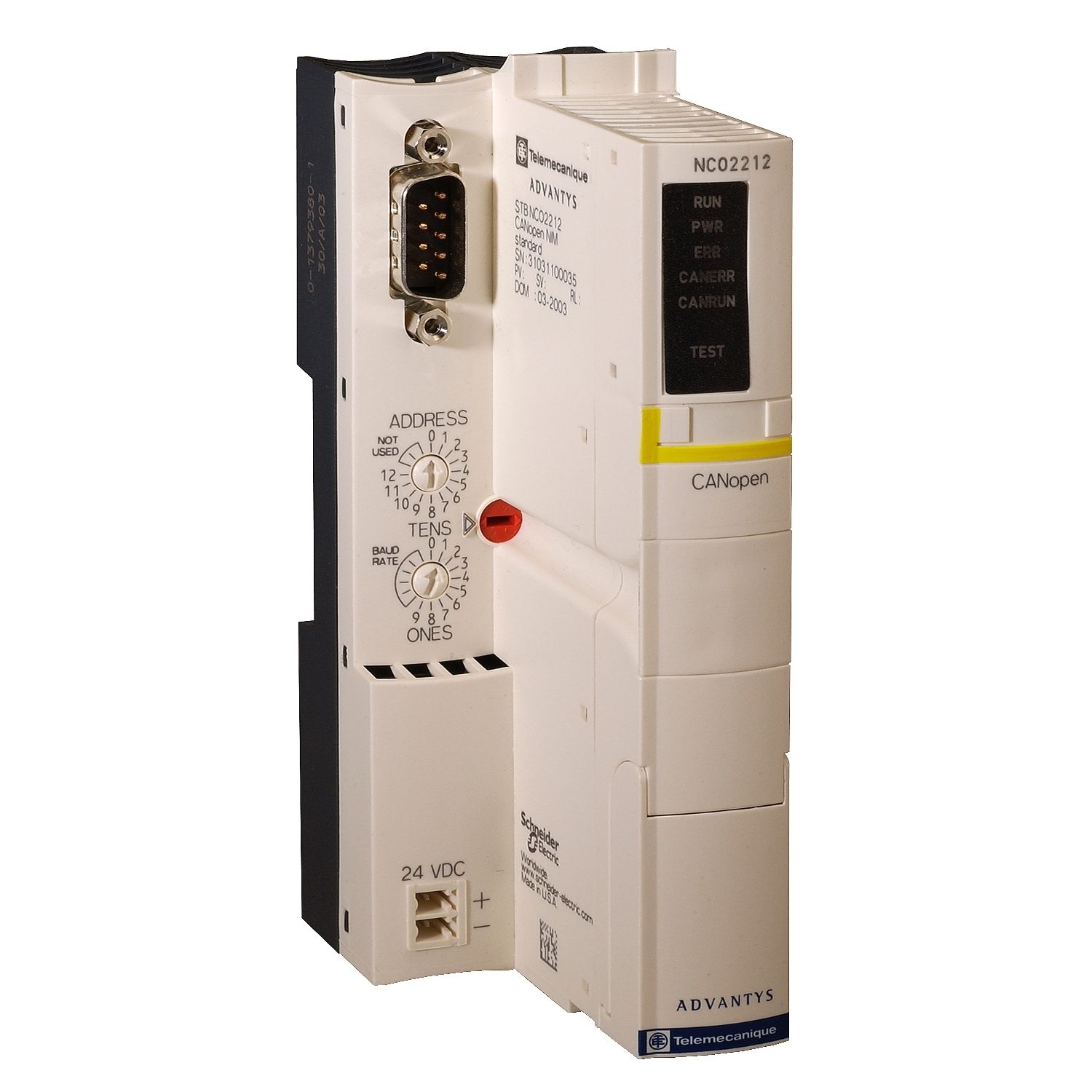

This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments and 127 slaves. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and output current of 1.2A. Communication services are service data object (SDO), network management (NMT) etc. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40mm (height) and weighs 0.135kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, FM Class 1 Division 2, C-Tick and UL. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Number of slave | 127 |
| Structure type | CAN field bus |
| Transmission rate | 10 kbit/s for bus length of 5000-5000 m, 1 Mbit/s for bus length of 30-30 m |
| Range of product | Modicon STB distributed I/O solution |
| Integrated connection type | CANopen bus conforming to CIA DS-301 8-way female (RS232 port), CANopen bus conforming to CIA DS-301 HE-13 (RS232 port), CANopen bus conforming to CIA DS-301 9-way male SUB-D connector double shielded twisted pair (bus) |
| Product or component type | standard Network Interface Module |
| Number of segments | 1 primary, maximum 6 extensions |
| Complementary | |
| Maximum supply current | 700 A |
| Supply voltage limits | 19.2-30 V |
| Input current | 430 mA for supply circuit |
| Marking | CE |
| Communication service | Process Data Object (PDO), Network management (NMT), Service Data Object (SDO) |
| Output voltage | 5.25 V DC (tolerance: +/- 0.21 %) for logic bus |
| Status LED | 1 LED (yellow) test mode, 1 LED (red) module error (ERR), 1 LED (red) CAN ERR, 1 LED (green) power supply (PWR), 1 LED (green) island state (RUN), 1 LED (green) CAN RUN |
| Height | 40 mm |
| Nominal output current | 1.2 A, 0.575 A at 60-70 °C |
| [Us] rated supply voltage | 24 V DC |
| Depth | 70 mm |
| Overvoltage category | II |
| Width | 128.3 mm |
| Net weight | 0.135 kg |
| Power supply type | SELV |
| Number of addressable I/O module | 0-32 per island |
| Environment | |
| Relative humidity | 95-95 % at 60-60 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP20 conforming to IEC 61131-2 class 1 |
| Electromagnetic compatibility | immunity to electromagnetic interference conforming to IEC 61131-2 |
| Ambient air temperature for operation | -25-70 °C (with derating factor), 0-60 °C (without derating) |
| Operating altitude | <= 2000 m |
| Vibration resistance | +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Product certifications | C-Tick, UL, CSA, FM Class 1 Division 2, ATEX Cat 3G |
