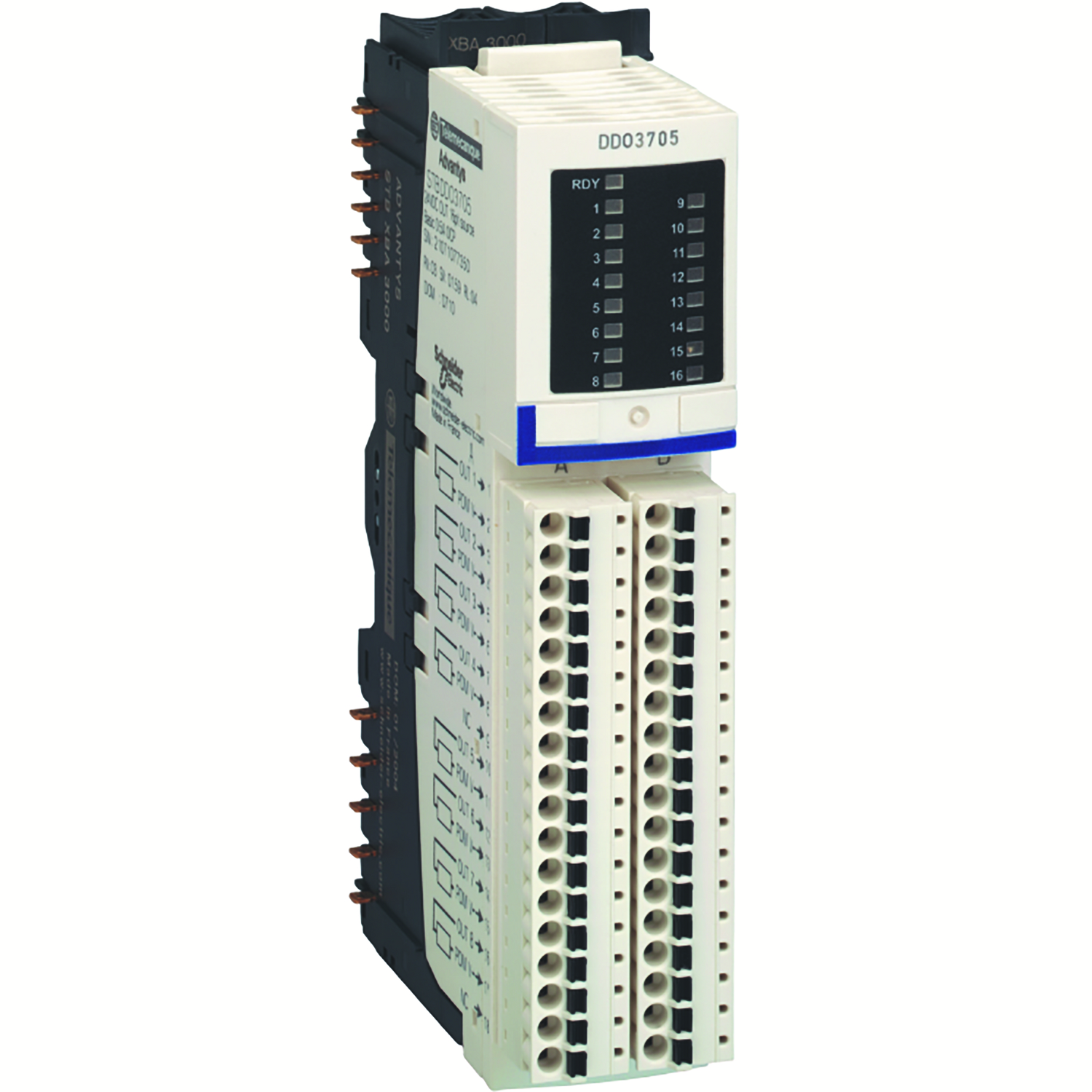

This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic discrete output kit has 16 discrete outputs with solid state output. It is a discrete output kit with a rated supply voltage of 24V DC and a current consumption of 135mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height) and weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with power distribution module STBPDT3100/3105 and I/O base STBXBA3000. The kit includes STBDDO3705 module, STBXBA3000 base and STBXTS1180, 18-terminal screw type connector. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete output voltage type | DC |
| Range of product | Modicon STB distributed I/O solution |
| Discrete output type | solid state |
| Kit composition | STBXTS1180, 18-terminal screw type connector, STBXBA3000 base, STBDDO3705 module |
| Discrete output number | 16 |
| Discrete output voltage | 24 V |
| Product or component type | basic digital output kit |
| Complementary | |
| Maximum load capacitance | 10 µF |
| Product compatibility | I/O base STBXBA3000, power distribution module STBPDT3100/3105 |
| Discrete output current | 500 mA |
| Marking | CE |
| Protection type | thermal overload protection, short-circuit protection, reverse polarity protection, power protection integrated fuse on PDM time lag 5 A |
| Response time | 2 ms on-to-off, 2 ms off-to-on |
| Maximum load inductance | 1000 mH at 4 Hz |
| Hot swapping fallback | no for basic NIMs |
| Output voltage | 19.2...30 V DC |
| Status LED | 1 LED per channel (green) channel status (OUT1 to OUT16), 1 LED (green) module status (RDY) |
| Discrete output logic | positive |
| Height | 13.9 mm |
| Cold swapping | yes |
| Insulation between channels and logic bus | 1500 V for 1 minute |
| [Us] rated supply voltage | 24 V DC |
| Maximum leakage current | 0.4 mA at state 0 30 V |
| Depth | 70 mm |
| Overvoltage category | II |
| Width | 128.3 mm |
| Net weight | 0.086 kg |
| Current consumption | 135 mA at 5 V DC for logic bus |
| Supply | power distribution module |
| Absolute maximum voltage | 35 V 1.3 ms |
| Reset | manual reset COM fault |
| Environment | |
| Ambient air temperature for operation | 32...140 °F without derating, 0-60 °C (without derating) |
| Relative humidity | 95-95 % at 60-60 °C without condensation |
| Ambient air temperature for storage | -40-85 °C without derating, -40...185 °F without derating |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP20 conforming to IEC 61131-2 class 1 |
| Operating altitude | <= 2000 m |
| Vibration resistance | +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Standards | IEC 61131-2 |
| Product certifications | FM Class 1 Division 2, CSA, UL |
