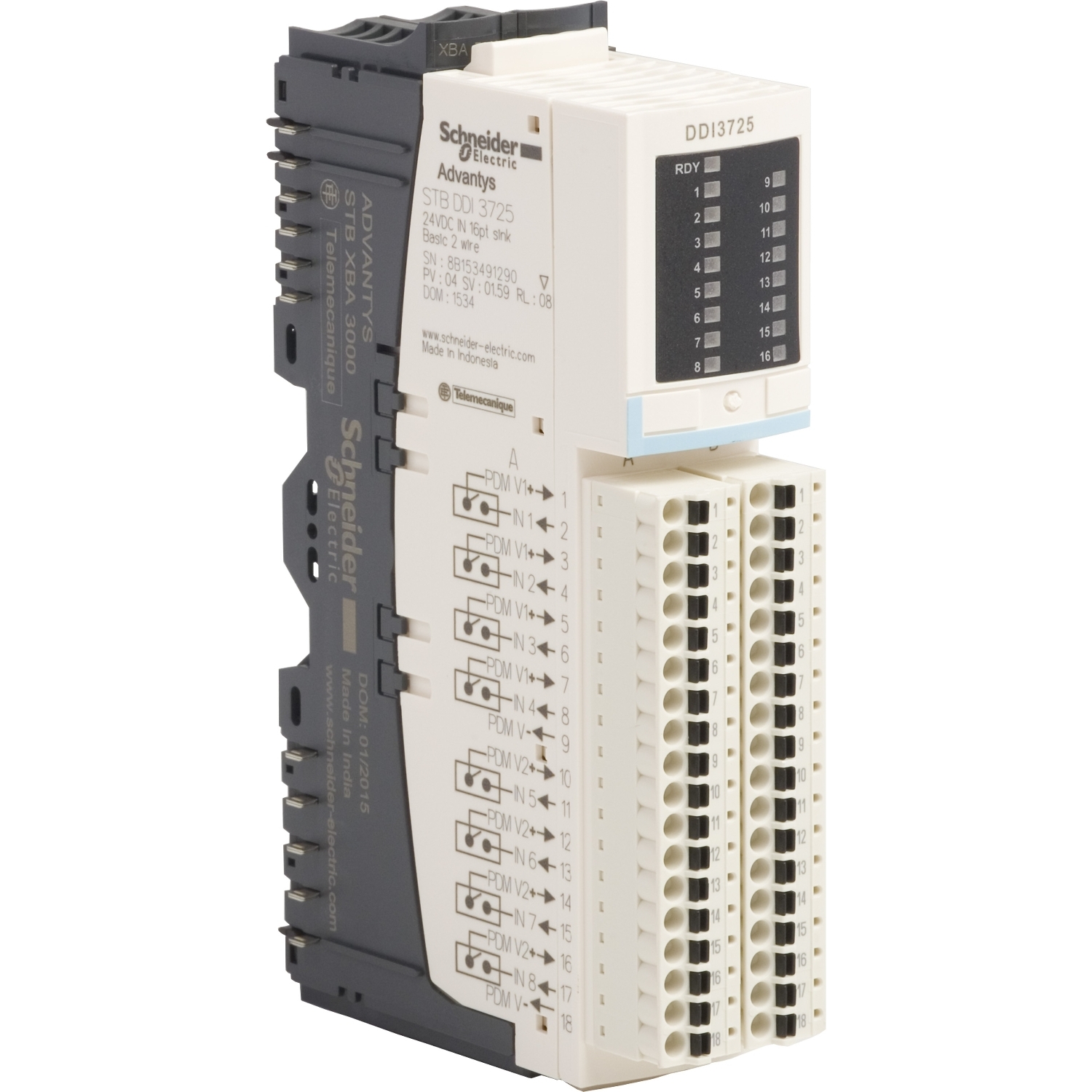

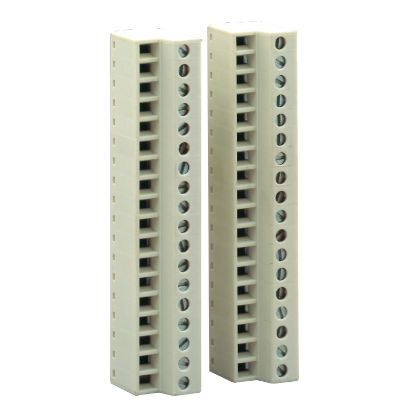

This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic discrete input kit has 16 discrete inputs with positive logic. It is a discrete input kit with a rated supply voltage of 24V DC and a current consumption of 100mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 28.1mm (Length) x 65.1mm (width) x 125mm (depth) and weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. The kit includes STBXTS2180, 18-terminal spring clamp connector, STBDDI3725 module and STBXBA3000 base. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Modicon STB distributed I/O solution |
| Kit composition | STBXBA3000 base, STBDDI3725 module, STBXTS2180, 18-terminal spring clamp connector |
| Discrete input number | 16 |
| Product or component type | basic digital input kit |
| Discrete input voltage type | DC |
| Discrete input voltage | 24 V |
| Complementary | |
| Product compatibility | power distribution module STBPDT3100/3105, I/O base STBXBA3000 |
| Discrete input logic | positive |
| Input voltage limits | -3...5 V at state 0, 11...30 V at state 1 |
| Current state 1 guaranteed | >= 2.5 mA |
| Marking | CE |
| Protection type | reverse polarity protection, input protection resistor-limited, power protection integrated fuse on PDM time lag 5 A |
| Permissible voltage | 30 V |
| Hot swapping fallback | yes for basic NIMs |
| Status LED | 1 LED per channel (green) channel status (IN1 to IN16), 1 LED (green) module status (RDY) |
| Height | 125 mm |
| Cold swapping | yes |
| Insulation between channels and logic bus | 1500 V for 1 minute |
| [Us] rated supply voltage | 24 V DC |
| Depth | 65.1 mm |
| Overvoltage category | II |
| Width | 28.1 mm |
| Response time | 2 ms on-to-off, 2 ms off-to-on |
| Net weight | 0.086 kg |
| Current state 0 guaranteed | <= 1.5 mA |
| Discrete input current | 4.5 mA |
| Current consumption | 100 mA at 5 V DC for logic bus |
| Supply | power distribution module |
| Environment | |
| Ambient air temperature for operation | 32...140 °F without derating, -25-70 °C (without derating) |
| Relative humidity | 95-95 % at 60-60 °C without condensation |
| Ambient air temperature for storage | -40-85 °C without derating, -40...185 °F without derating |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP20 conforming to EN 61131-2 class 1 |
| Operating altitude | <= 2000 m |
| Vibration resistance | +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Standards | EN/IEC 61131-2 type 3 |
| Product certifications | CSA, UL, FM Class 1 Division 2 |
Only registered users can write reviews
Related products

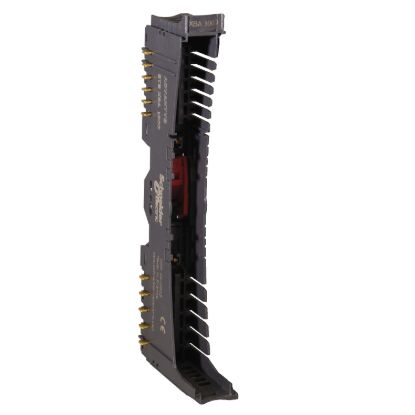

mounting base, Modicon STB, for IO module, 28.1mm
