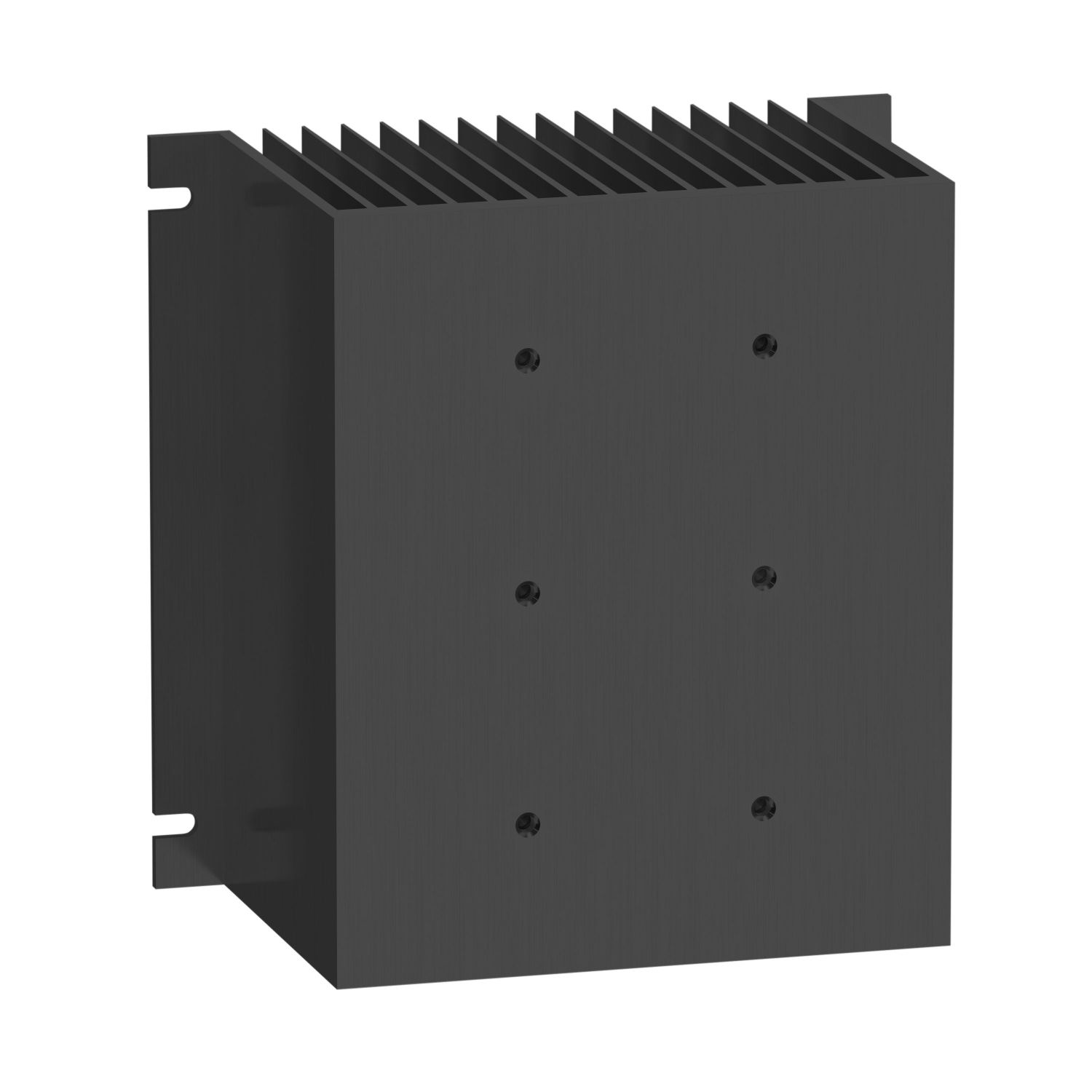

This product is part of the Harmony Solid State Relays, an offer of protection accessories for panel mount solid state relays. This heat sink is suitable for Harmony solid state relays. It features 0.5°C/W thermal resistance, 4406cm² surface and useful surface. It is made of aluminum with black anodized finish. Its dimensions are 152.4mm (width) x 88.9mm (depth) x 152.4mm (height). It weighs 1.44kg. It is suitable for packaging machines, heating control, injection molding, HVAC, textile machines and medical equipment applications. This heat sink is compatible with 1 solid state relay on panel. It supports panel mount. Harmony Solid State Relays are the complete solution for 1 phase and 3 phase, slim, modular DIN rail and panel mount offer. SSR relays offer slim interfaces, modular DIN rail and panel mount relays. A complete, innovative and compact solution for industrial applications.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product or component type | heat sink |
| Range of product | Harmony Solid State Relays |
| Complementary | |
| Tightening torque | 1.7-2.2 N.m |
| Depth | 88.9 mm |
| Width | 152.4 mm |
| Sale per indivisible quantity | 1 |
| Net weight | 1.440 kg |
| Material | aluminium |
| Thermal resitance | 0.5 °C/W |
| Surface and useful surface | 4406 cm² |
| Surface finish | black anodized |
| Mounting support | panel |
| Number of mounting holes | 6 with UNC 8-32 thread |
| Product compatibility | 1 solid state relay SSR on panel |
| Height | 152.4 mm |
Only registered users can write reviews
Related products

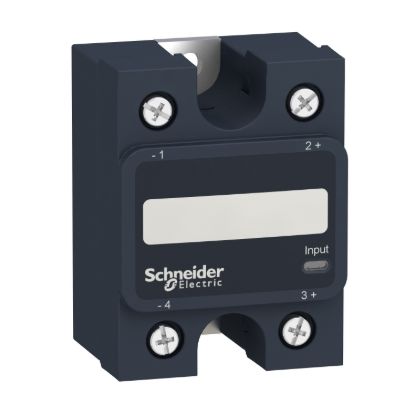

single phase panel, Harmony Solid State Relays, 90A, panel mount, zero voltage switching, thermal pad, input 4...32V DC, output 48...660V AC
SSP1A490BDT
single phase panel, Harmony Solid State Relays, 90A, panel mount, zero voltage switching, thermal pad, input 4...32V DC, output 48...660V AC
$175.89 inc GST
$158.74 inc GST
single phase relay, Harmony Solid State Relays, 125A, panel mount, zero voltage switching, thermal pad, input 4 to 32V DC, output 48 to 660V AC
SSP1A4125BDT
single phase relay, Harmony Solid State Relays, 125A, panel mount, zero voltage switching, thermal pad, input 4 to 32V DC, output 48 to 660V AC
$190.08 inc GST
$171.55 inc GST
single phase relay, Harmony Solid State Relays, 25A, panel mount, zero voltage switching, thermal pad, input 90 to 280V AC, output 24 to 300V AC
SSP1A125M7T
single phase relay, Harmony Solid State Relays, 25A, panel mount, zero voltage switching, thermal pad, input 90 to 280V AC, output 24 to 300V AC
$112.64 inc GST
$101.66 inc GST
single phase relay, Harmony Solid State Relays, 40A, panel mount, DC switching, thermal pad, input 3.5 to 32V DC, output 1 to 150V DC
SSP1D440BDT
single phase relay, Harmony Solid State Relays, 40A, panel mount, DC switching, thermal pad, input 3.5 to 32V DC, output 1 to 150V DC
$137.94 inc GST
$124.49 inc GST
single phase relay, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, thermal pad, input 3 to 32V DC, output 24 to 300V AC
SSP1A150BDT
single phase relay, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, thermal pad, input 3 to 32V DC, output 24 to 300V AC
$112.64 inc GST
$101.66 inc GST

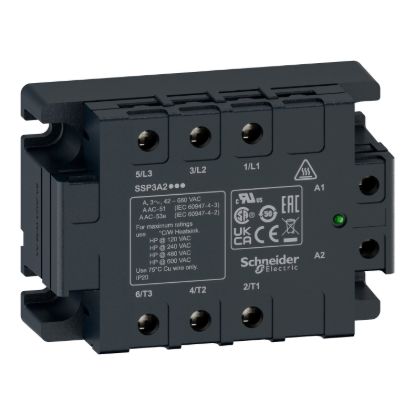

Solid state relay, Harmony Solid State Relays, 25A, panel mount, zero voltage switching, thermal pad, input 4…32V DC, output 48…530V AC
