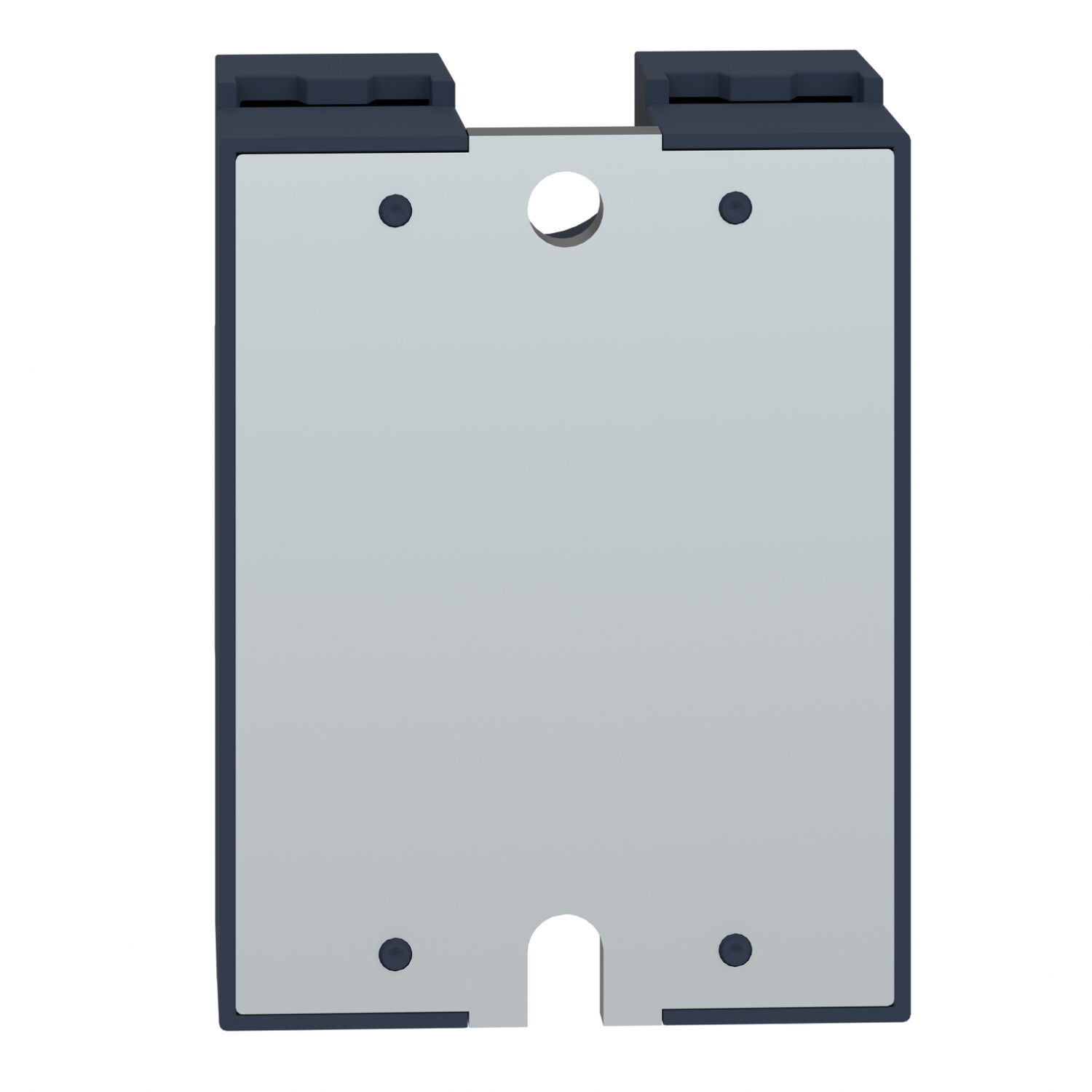

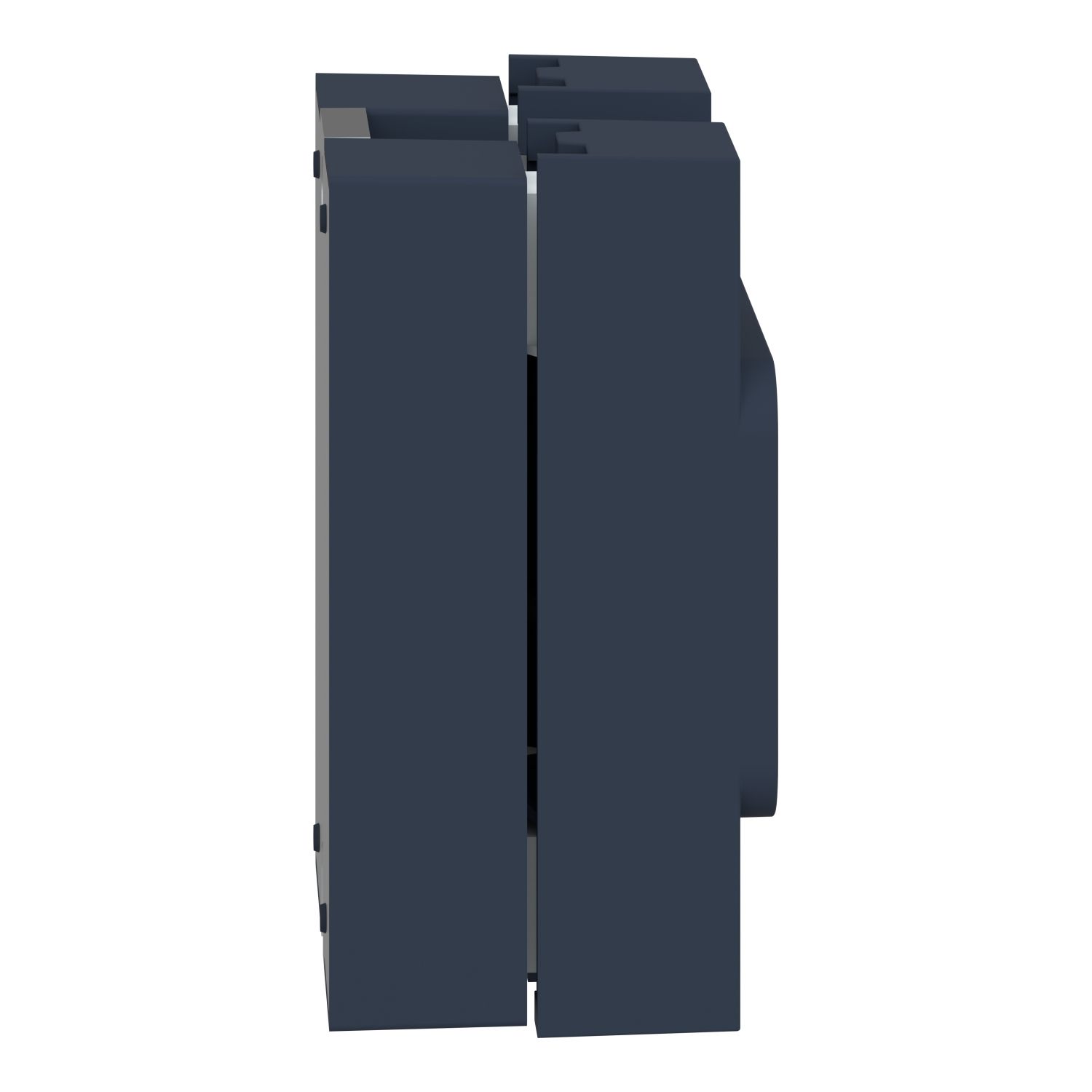

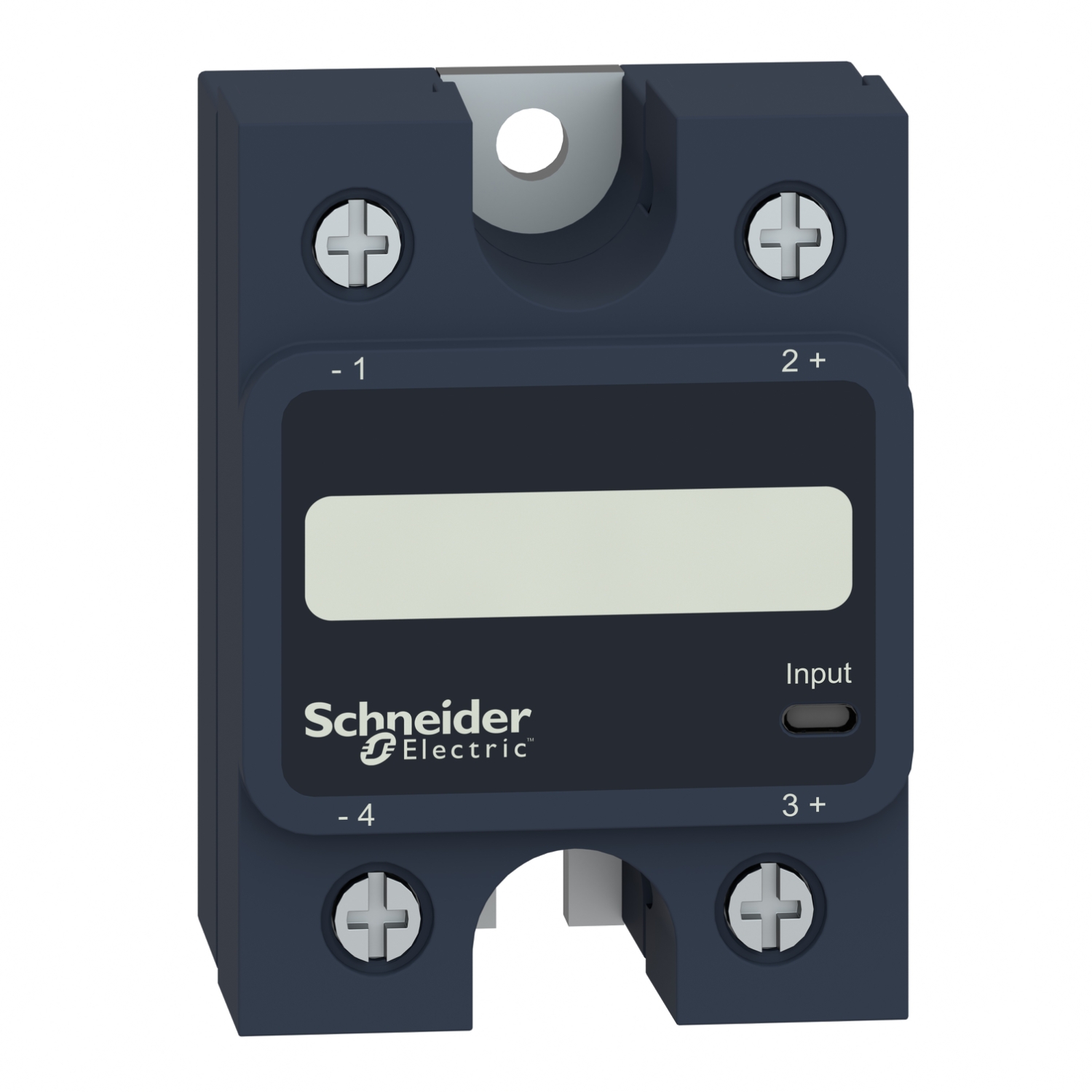

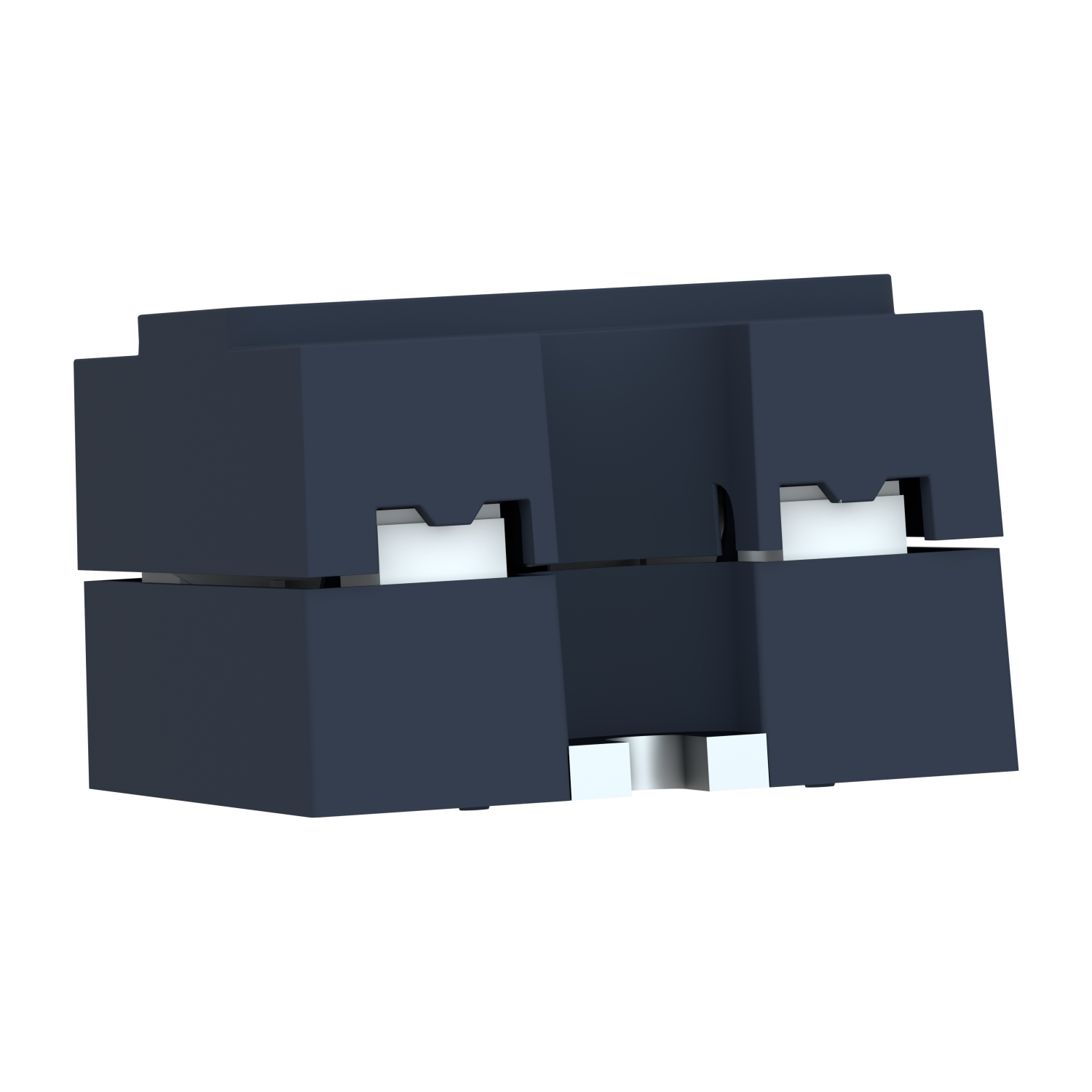

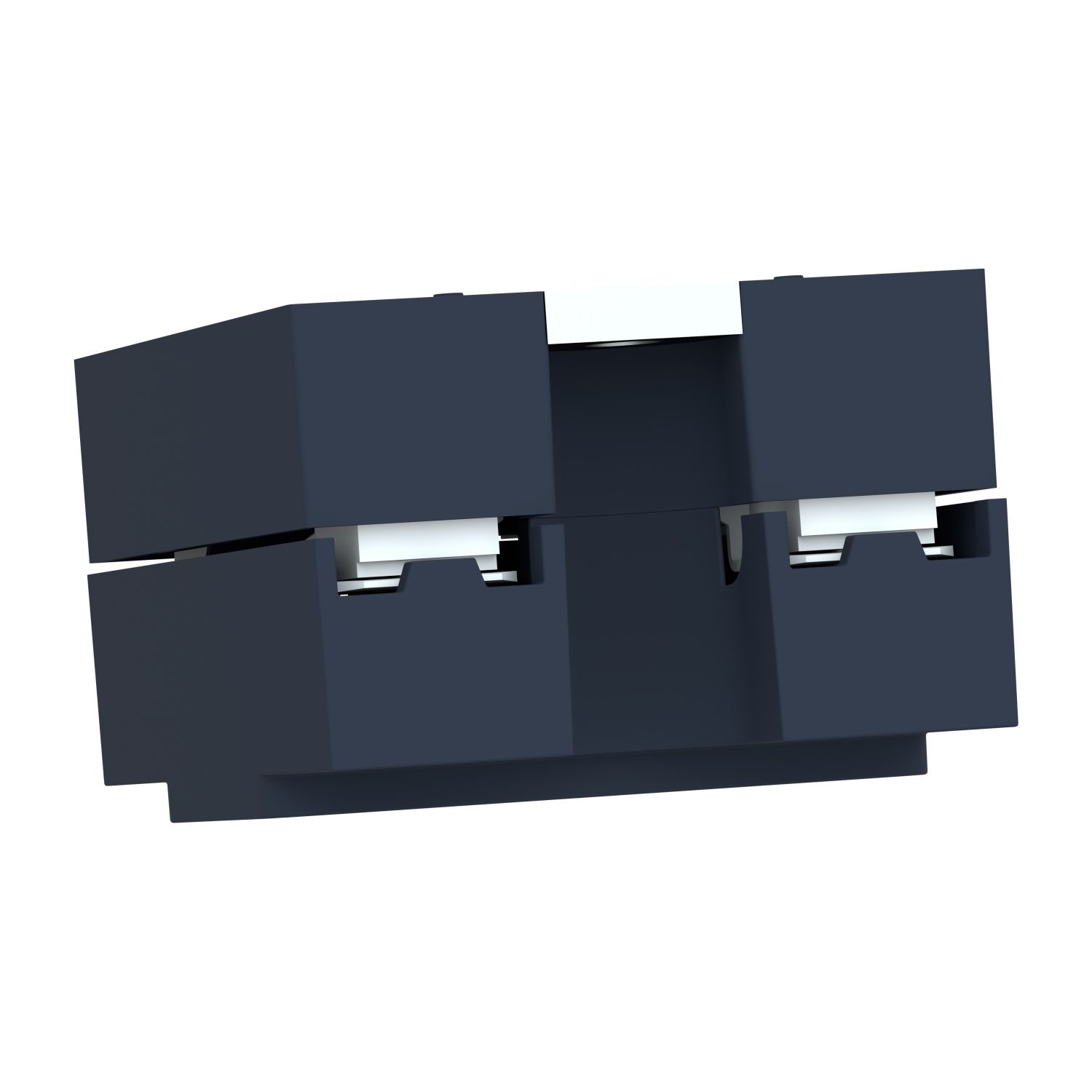

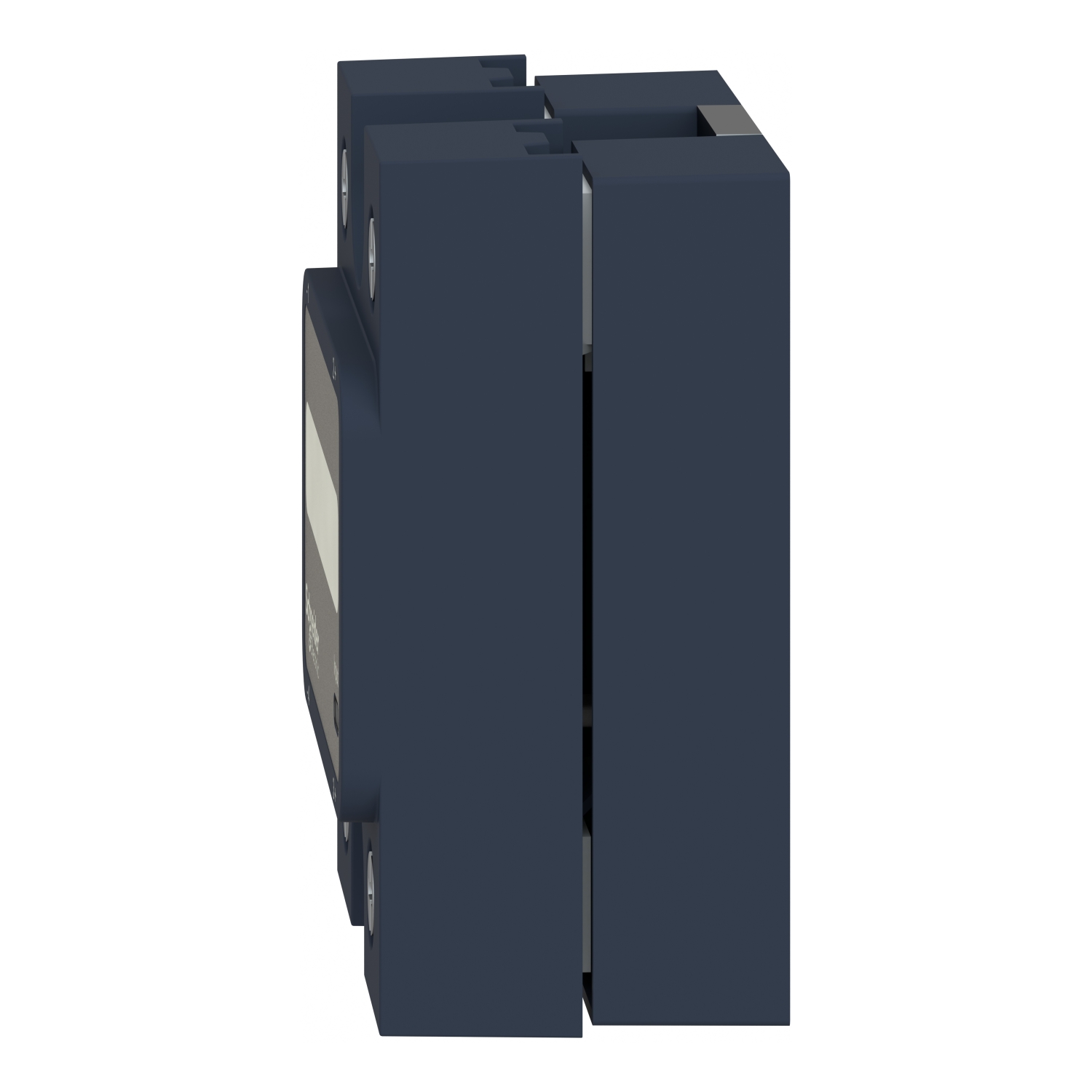

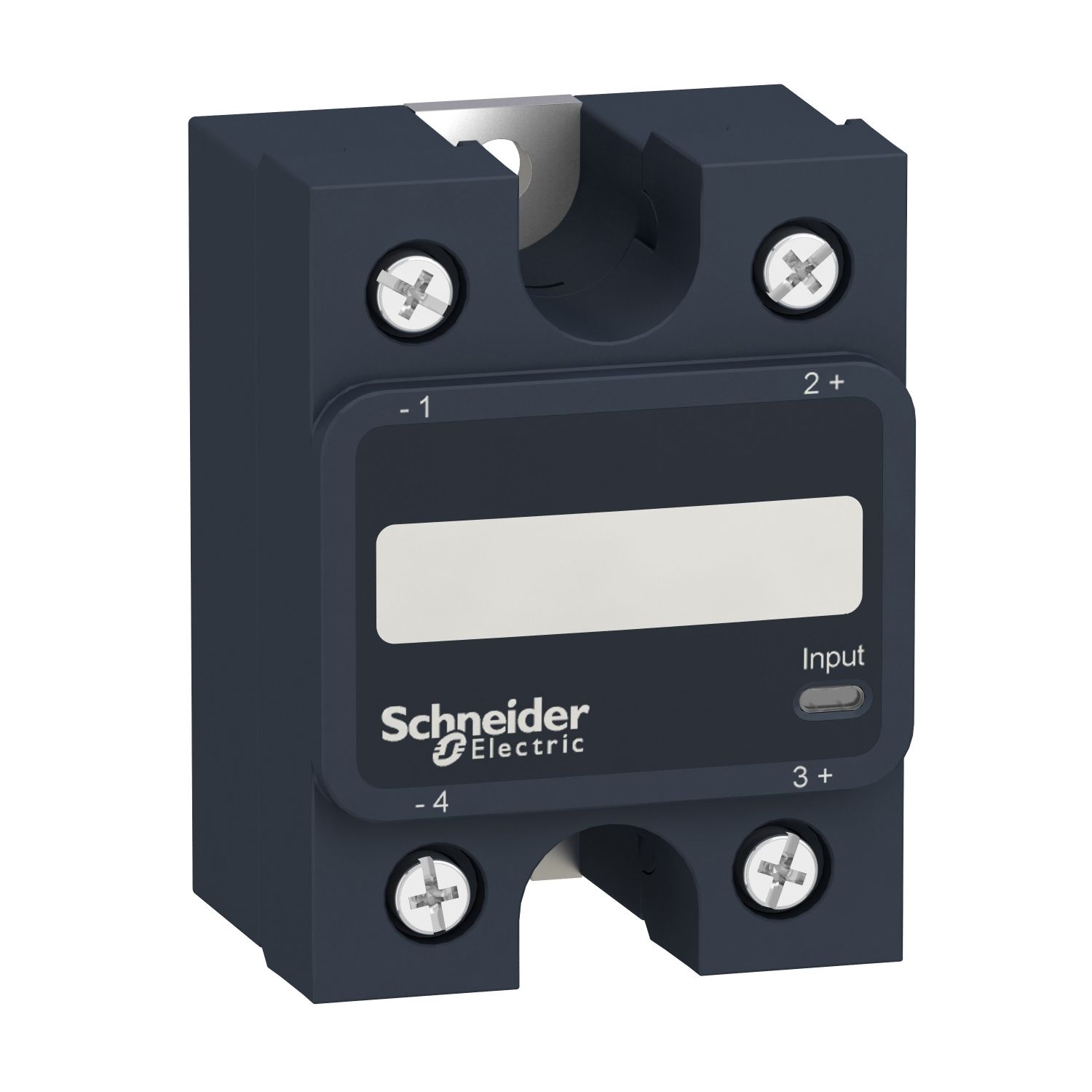

This Harmony SSP solid state panel mount single-phase relay is rated 40A, is controlled with a 3.5V to 32V DC input, has a rated load voltage of 1V to 150V DC with DC switching. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | SSP1 |
| [Uc] control circuit voltage | 3.5...32 V |
| [In] rated current | 40 A |
| Provided equipment | thermal pad |
| Solid state output type | DC switching, Mosfet output |
| Network number of phases | 1 phase |
| Product or component type | solid state relay up to 40 A |
| Output switching mode | DC switching |
| Mounting support | panel |
| Range of product | Harmony Solid State Relays |
| Connections - terminals | screw connectors |
| Complementary | |
| Protection device type | type 1 - 40 A miniature circuit breaker (MCB) - curve B, type 2 - 20 A miniature circuit breaker (MCB) - curve B |
| Input current limits | 10-15 mA |
| Capacitance unbalance | 50 pF for input/output |
| Maximum switching voltage | 1 V DC turn-off |
| Device presentation | complete product |
| Thermal impedance | 0.48 °C-in²/W at 25 psi |
| IP degree of protection | IP20 |
| Maximum leakage current | 0.3 mA off-state |
| Minimum switching voltage | 3.5 V DC turn-on |
| [Uimp] rated impulse withstand voltage | 2.5 kV output to case |
| Net weight | 89.2 g |
| Local signalling | LED, green for input |
| Load current | 0.001-40 A |
| Surge current | 106 A for 10 ms |
| Response time | 0.1 ms (turn-off), 0.1 ms (turn-on) |
| Dielectric strength | 2.5 kV AC for input or output to case, 2.5 kV AC for input/output |
| Connections - terminals | ring lugs: 11.7 x 4.5 mm for output, forked type tag connectors: 11.7 x 4.5 mm for output, ring lugs: 9.2 x 4 mm for input, forked type tag connectors: 9.2 x 4 mm for input, screw terminals: 0.5...8.26 mm², (AWG 20...AWG 8) without cable end for output, screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) without cable end for input, screw terminals: 0.5...5.26 mm², (AWG 20...AWG 10) with cable end for output, screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) with cable end for input |
| Maximum voltage drop | <2.1 V on-state |
| Thermal resitance | 0.22 °C/W junction to case |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Tightening torque | 2...2.2 N.m for output, 1.5...1.7 N.m for input |
| Safety reliability data | MTTFd = 1875.9 years, B10d = 1731395 |
| Environment | |
| Overvoltage category | III |
| Ambient air temperature for storage | -40-125 °C |
| Marking | CE, UL, CSA, EAC |
| Pollution degree | 2 |
| Standards | IEC 60950-1, IEC 62314, UL 508, CSA C22.2 No 14-13 |
| Ambient air temperature for operation | -40-80 °C |
| Product certifications | EAC, CSA, CE, UL |
