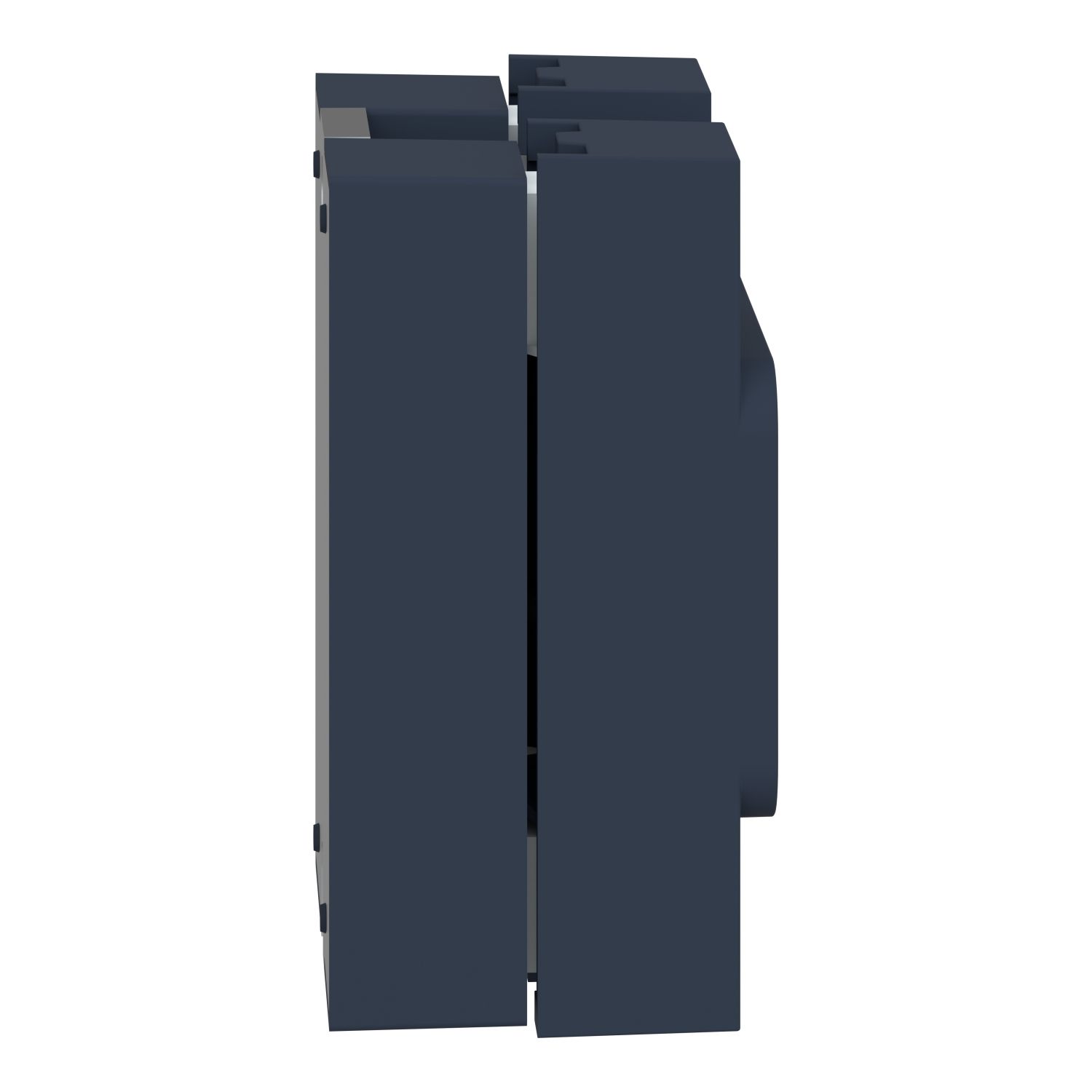

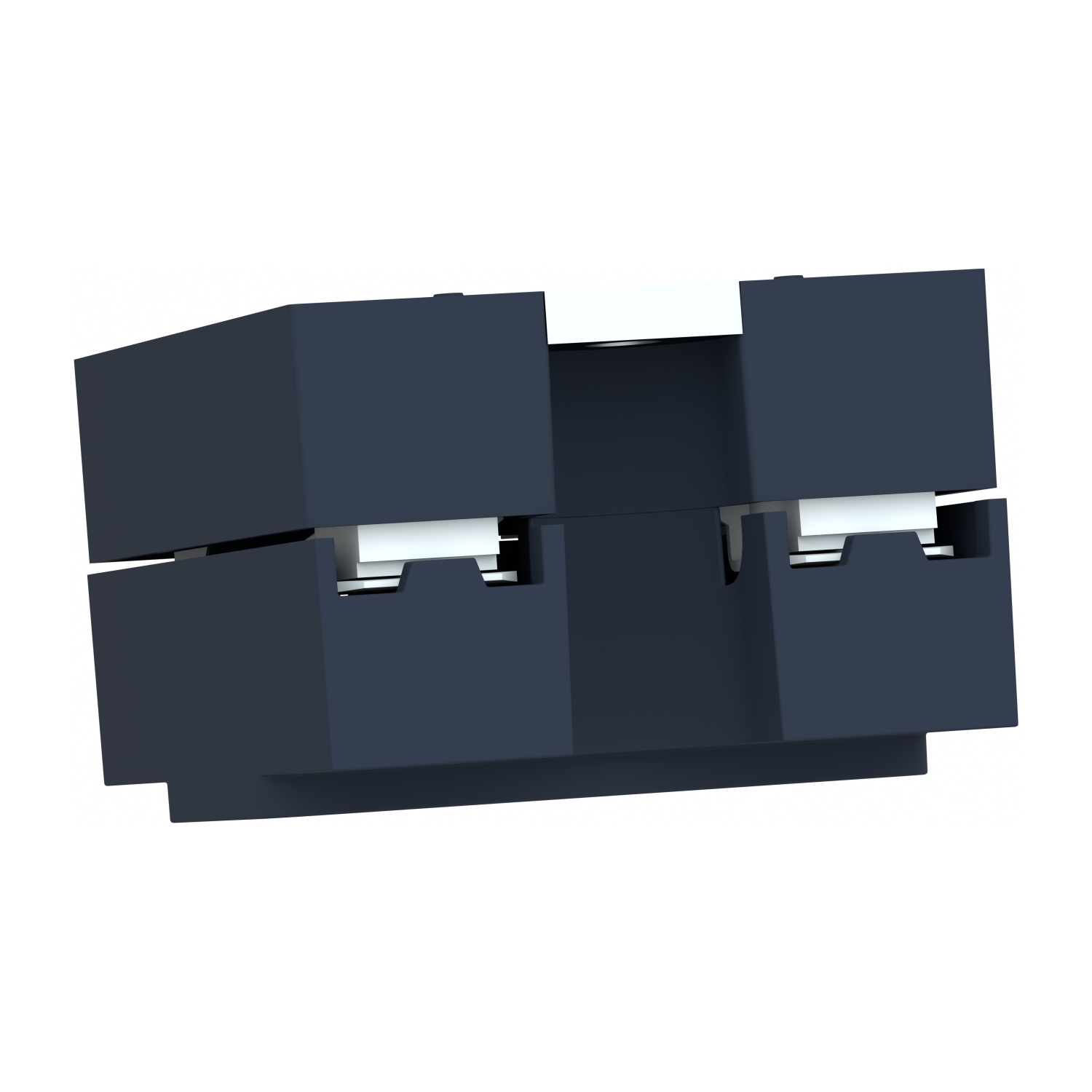

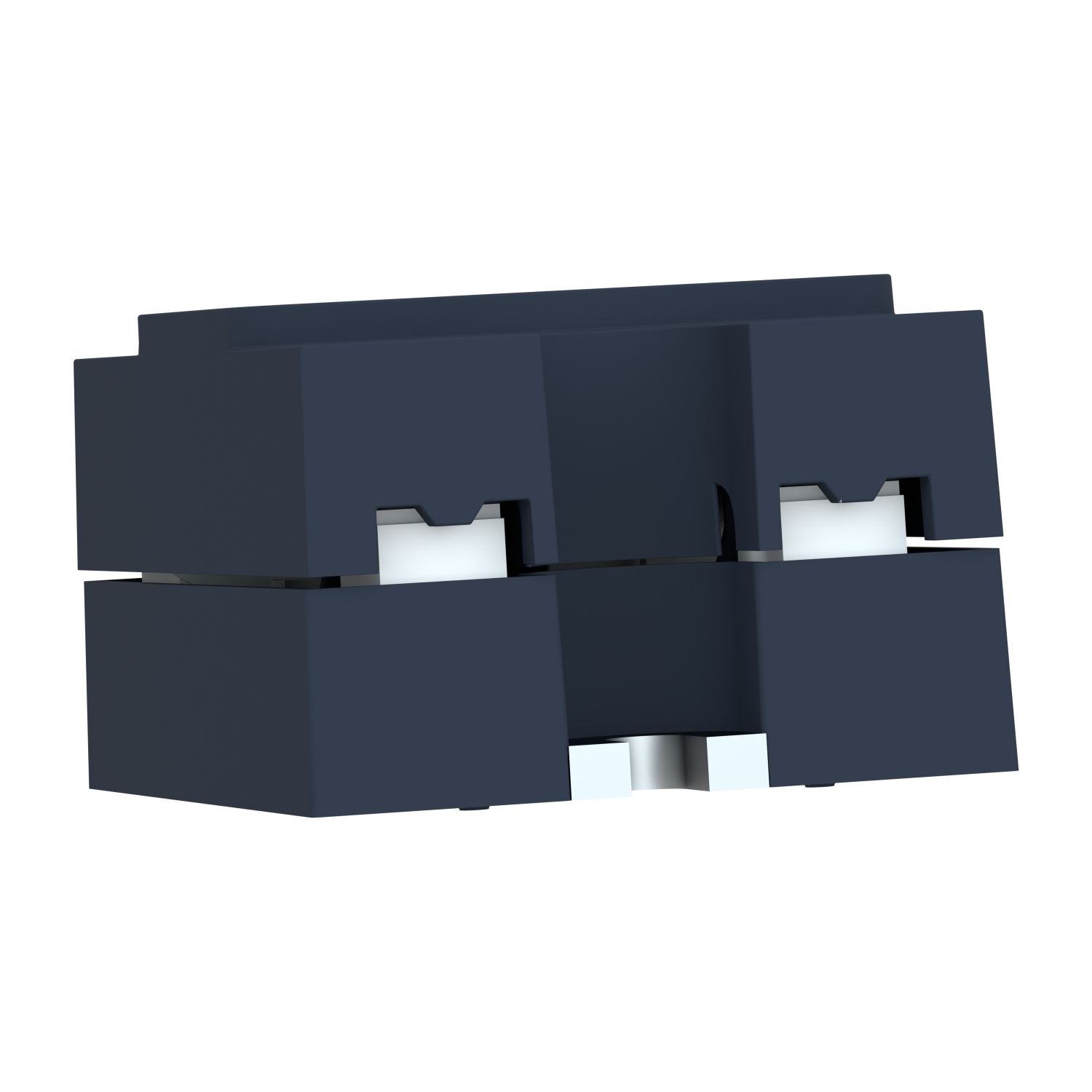

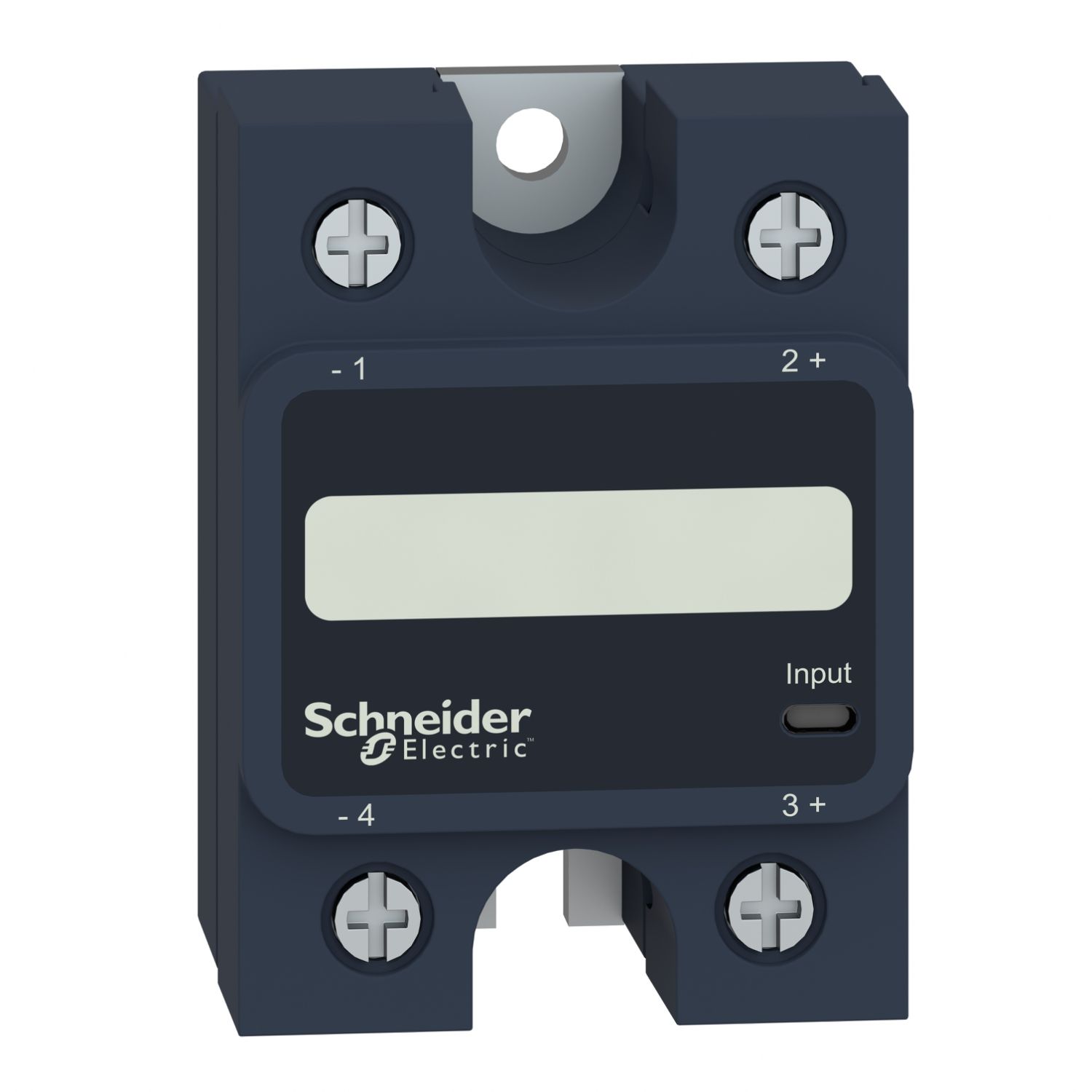

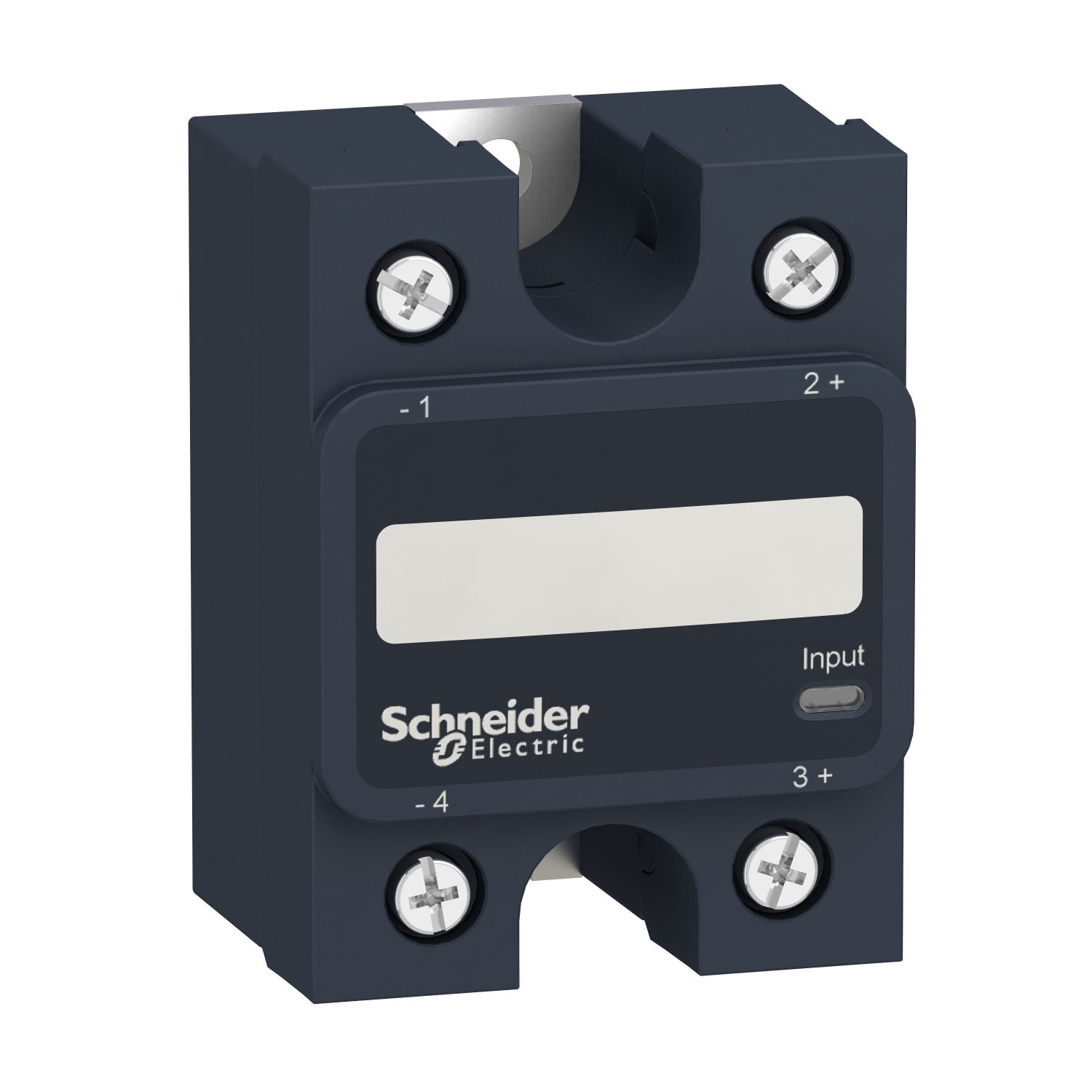

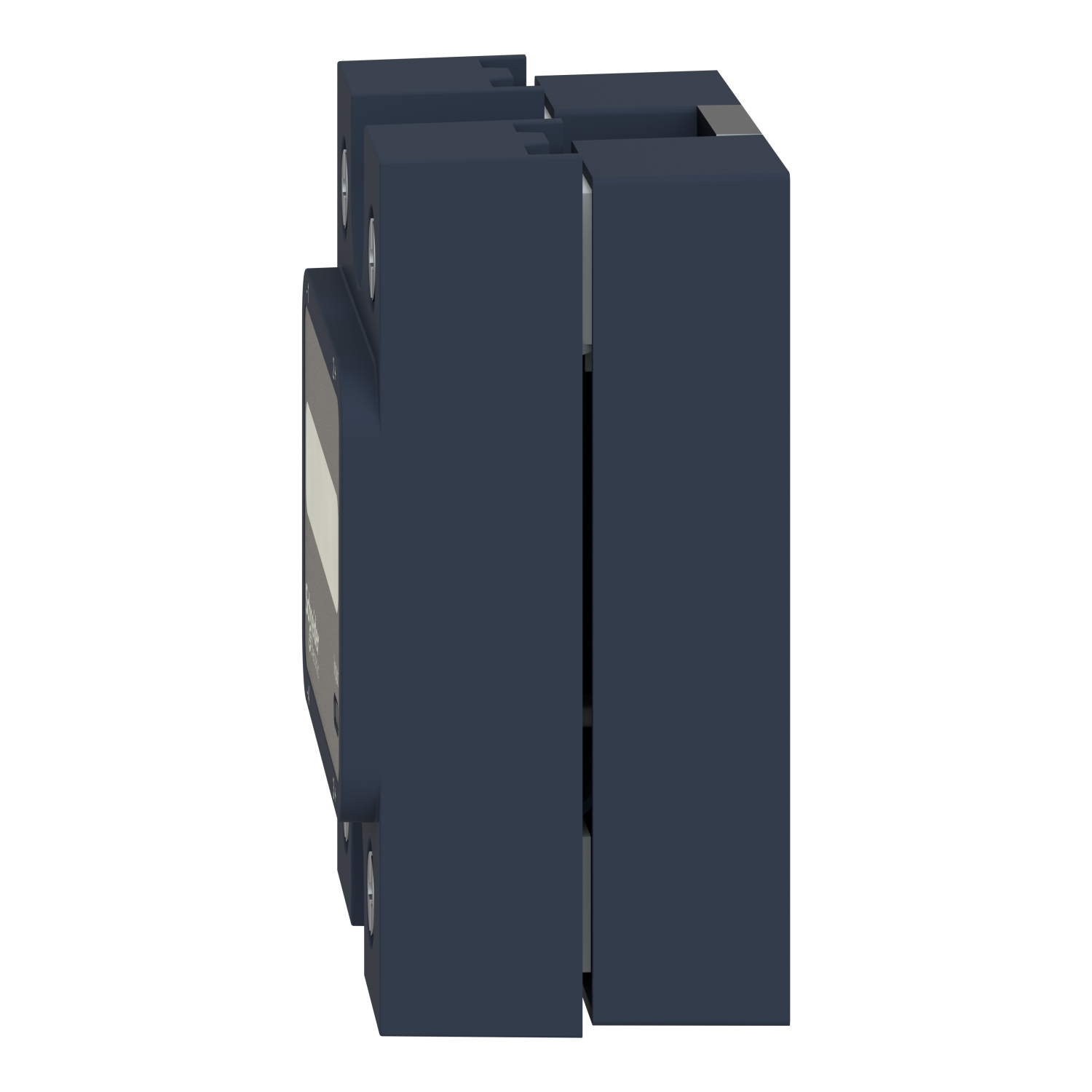

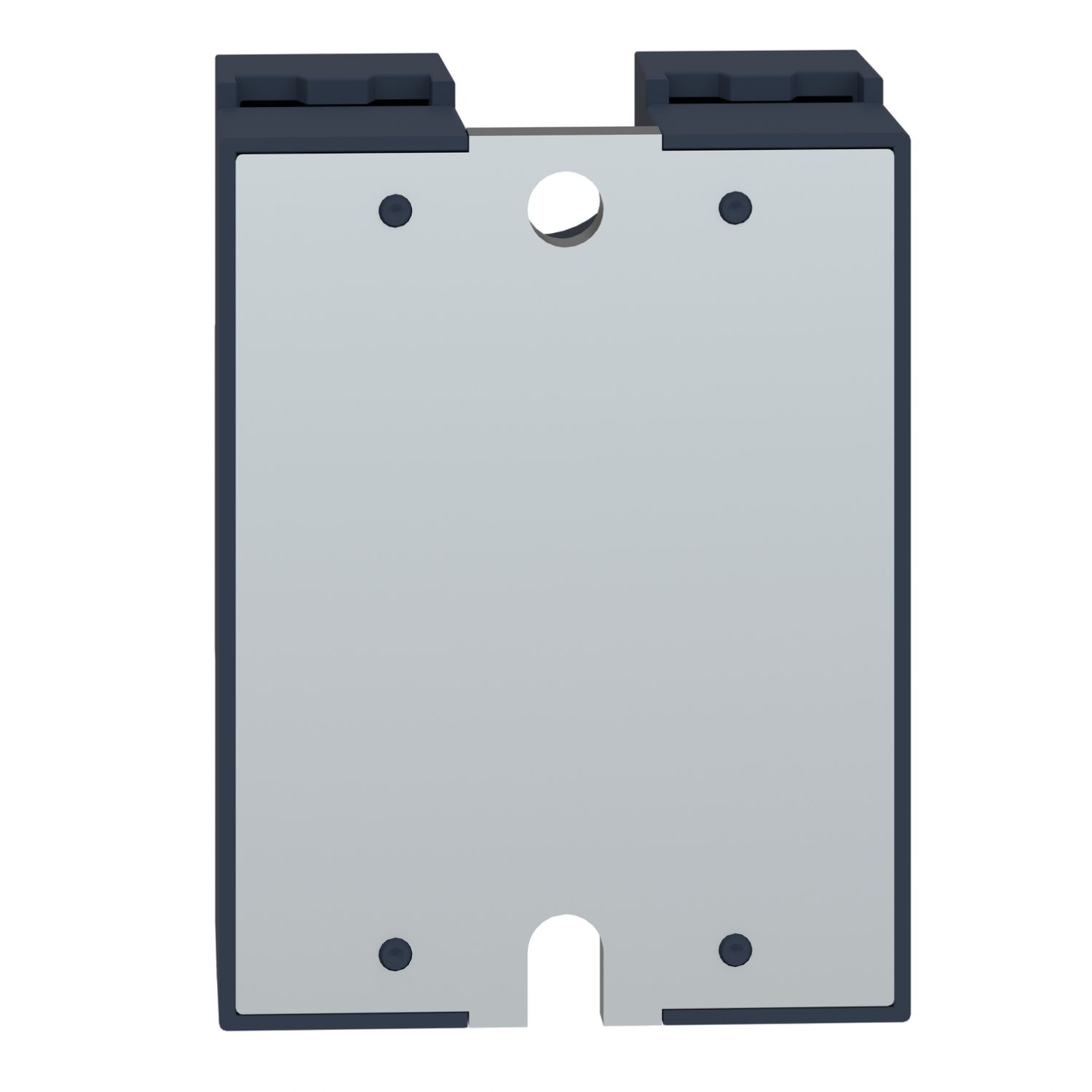

This Harmony SSP solid state panel mount single-phase relay is rated 90A, is controlled with a 90V to 280V AC input, has a rated load voltage of 48V to 660V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | SSP1 |
| [Uc] control circuit voltage | 90...280 V |
| [In] rated current | 90 A |
| Provided equipment | thermal pad |
| Solid state output type | SCR output, zero voltage switching |
| Network number of phases | 1 phase |
| Product or component type | solid state relay up to 125 A |
| Output switching mode | zero voltage switching |
| Range of product | Harmony Solid State Relays |
| Connections - terminals | screw connectors |
| Complementary | |
| Protection device type | type 2 - 50 A miniature circuit breaker (MCB) - curve B, type 1 - 63 A miniature circuit breaker (MCB) - curve B |
| Input current limits | 5-10 mA |
| Capacitance unbalance | 8 pF for input/output |
| Maximum switching voltage | 10 V AC turn-off |
| DV/dt | 500 V/µs off-state at maximum voltage |
| Absolute maximum voltage | 1200 V |
| Device presentation | complete product |
| Thermal impedance | 0.48 °C-in²/W at 25 psi |
| IP degree of protection | IP20 |
| Maximum leakage current | 1 mA off-state |
| Minimum switching voltage | 90 V AC turn-on |
| [Uimp] rated impulse withstand voltage | 6 kV input to output, 6 kV output to case |
| Net weight | 89.2 g |
| Local signalling | LED, green for input |
| Load current | 0.15-90 A |
| Surge current | 1200 A for 16.6 ms |
| Response time | 25 ms (turn-on), 30 ms (turn-off) |
| Dielectric strength | 4 kV AC for input or output to case, 4 kV AC for input/output |
| Connections - terminals | ring lugs: 11.7 x 4.5 mm for output, forked type tag connectors: 11.7 x 4.5 mm for output, ring lugs: 9.2 x 4 mm for input, forked type tag connectors: 9.2 x 4 mm for input, screw terminals: 0.5...8.26 mm², (AWG 20...AWG 8) without cable end for output, screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) without cable end for input, screw terminals: 0.5...5.26 mm², (AWG 20...AWG 10) with cable end for output, screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) with cable end for input |
| Maximum voltage drop | <1.15 V on-state |
| Maximum I²t for fusing | 6560 A².s for 10 ms at 50 Hz, 5976 A².s for 8.33 ms at 60 Hz |
| Thermal resitance | 0.27 °C/W junction to case |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Tightening torque | 2...2.2 N.m for output, 1.5...1.7 N.m for input |
| Motor power hp | 7.5 hp 480 V AC, 3 hp 240 V AC, 1.5 hp 120 V AC |
| Cos phi | 0.5-0.5 (with maximum load) |
| Safety reliability data | MTTFd = 1875.9 years, B10d = 1731395 |
| Environment | |
| Overvoltage category | III |
| Ambient air temperature for storage | -40-125 °C |
| Marking | CE, EAC, CSA, UL |
| Pollution degree | 2 |
| Standards | IEC 60950-1, CSA C22.2 No 14-13, UL 508, IEC 62314 |
| Ambient air temperature for operation | -40-80 °C |
| Product certifications | CE, UL, CSA, EAC |
