Security Expert security purpose output expansion module

Manufacturer: Schneider Electric

SKU: SP-O8

GTIN: 3606481215093

Declaration of conformity

Old price: $1,092.30 inc GST

Price: $1,572.91 inc GST

Qty:

Supported cards

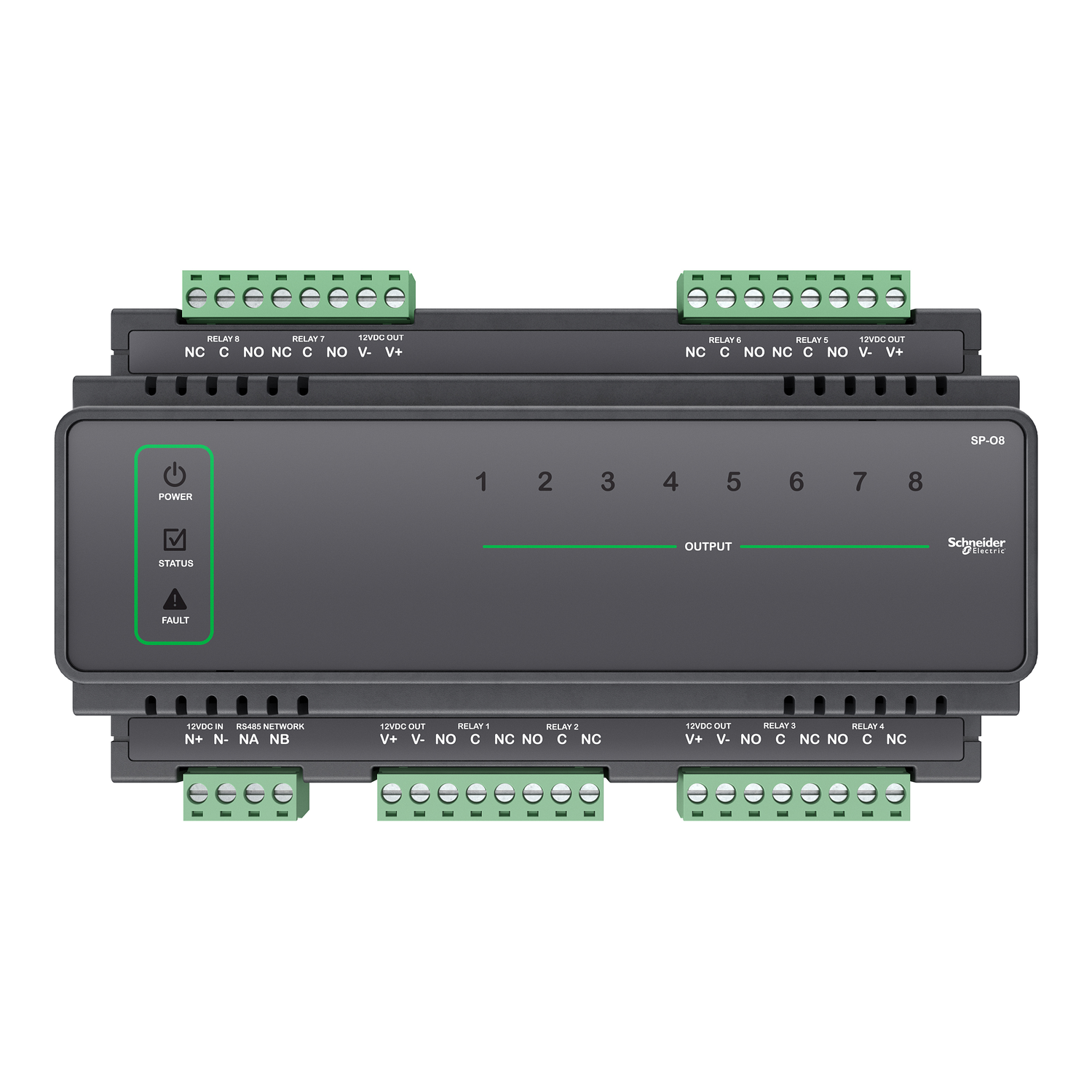

Security Expert security purpose output expansion module

Products specifications

Attribute name	Attribute value
Main
Device application	equipment monitoring and control
Relative humidity	0-93 % non-condensing
Output current	<= 7 A
Ambient air temperature for storage	-10-85 °C
Colour	black
Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Function available	firmware update
Range	EcoStruxure Security Expert
Input/output type	8 form C relay output
Ambient air temperature for operation	0-50 °C
Height	60 mm
Width	90 mm
[In] rated current	80 mA
Net weight	428 g
Product or component type	output module
Product brand	Schneider Electric
Product certifications	ACMA, CE
Complementary
Maximum supply current	3.25 A
Environmental characteristic	indoor use
Standards	CAN/ULC-S319-05, UL 294, ICES-003 class A, FCC CFR 47 part 15: class A, CAN/ULC-S559-04, CAN/ULC-S304-06, UL 1610, EN 50131-6:2008, EN 50131-3:2009, EN 50131-1:2006
Quality labels	RCM
Local signalling	8 LED (red) for output status, 1 LED (red) for fault, 1 LED (green/red) for status, 1 LED (green) for power
Range compatibility	EcoStruxure Security Expert controller
Mounting support	DIN rail
Output current limits	1.1 A

Output voltage	10.83...14 V DC,0.7 A
