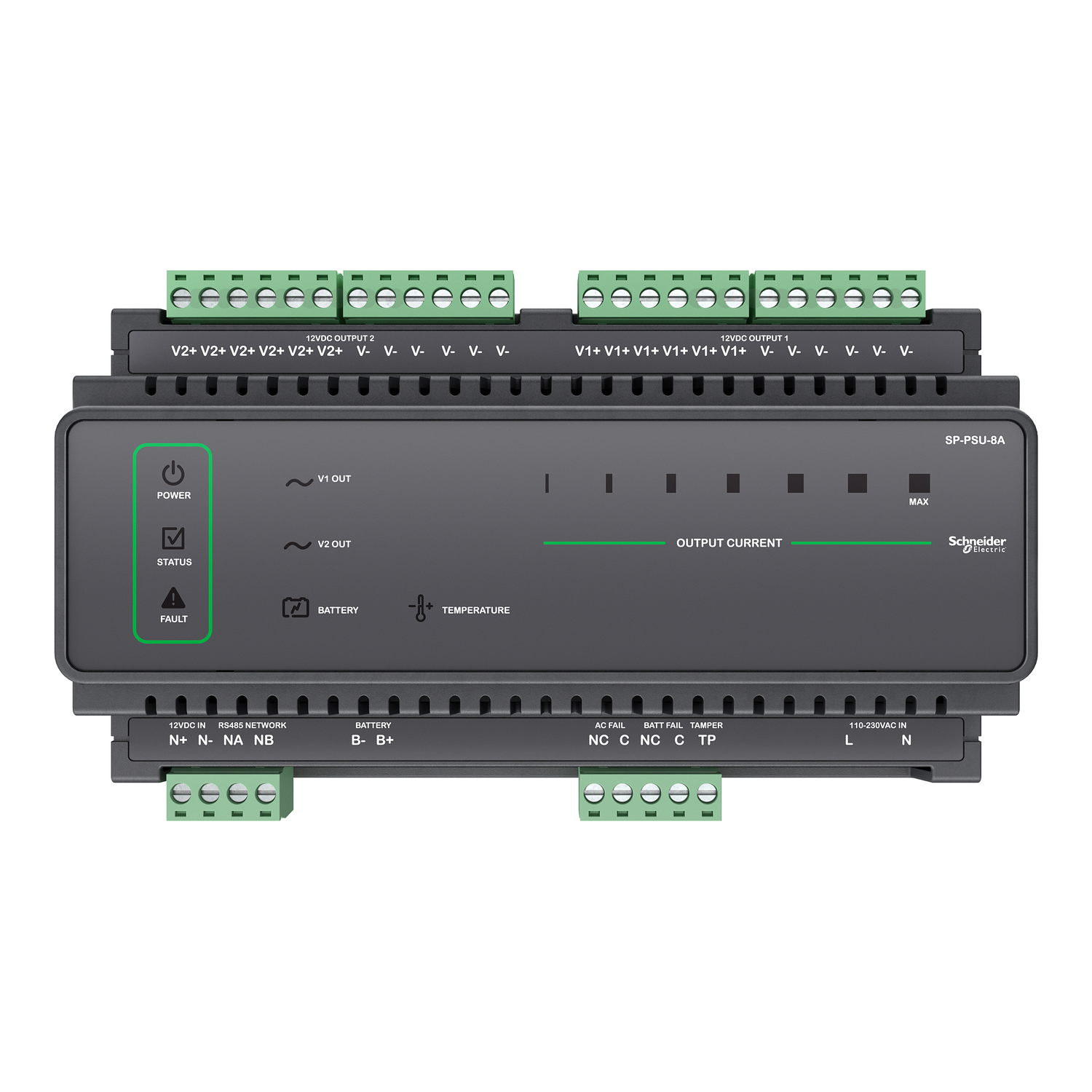

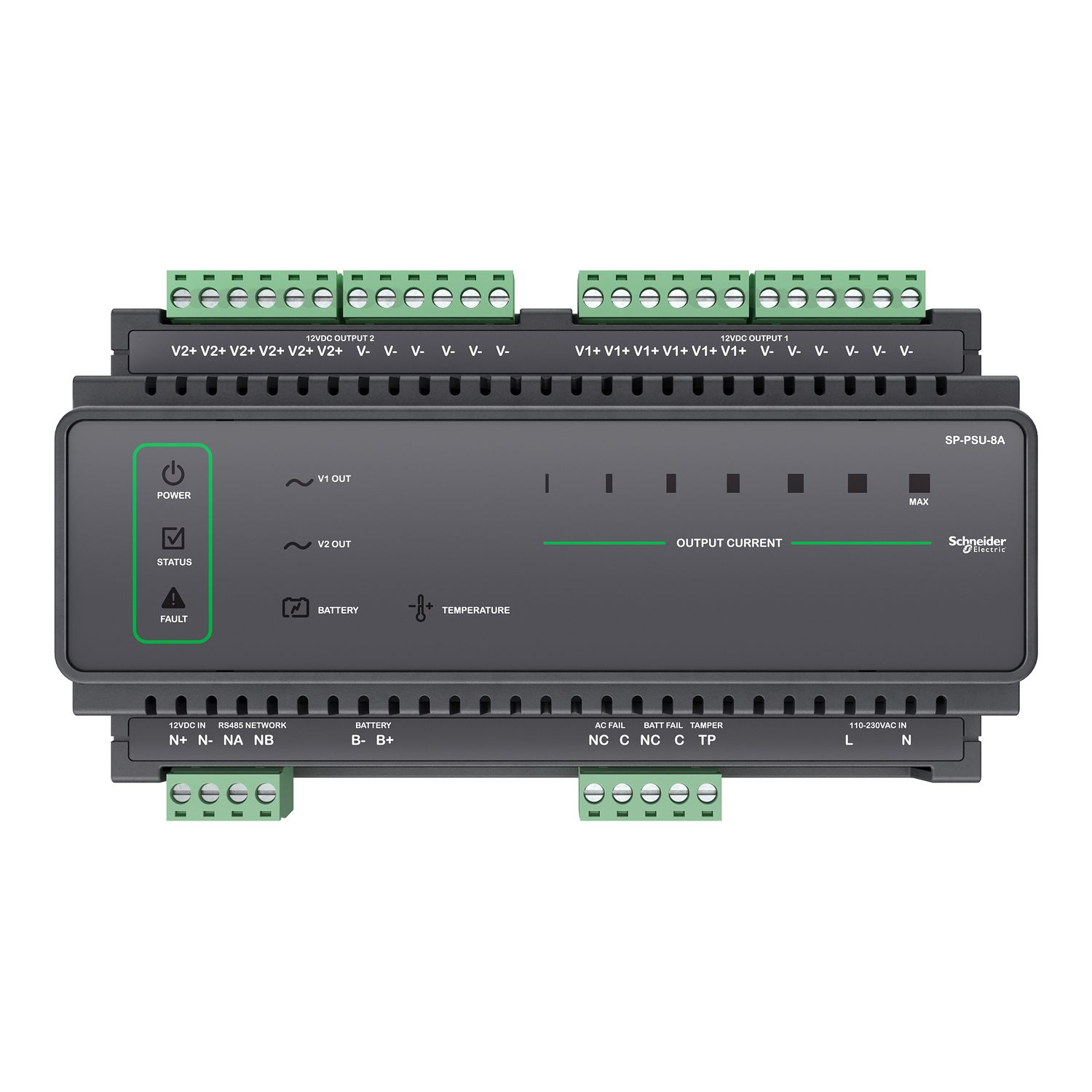

Security Expert security purpose power module, 8 A
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | SP-PSU-8A |
| Device application | power supply |
| Width | 90 mm |
| Charging current | 500 mA |
| Input voltage | 120 V AC 2.5 A |
| Relative humidity | 0-93 % non-condensing |
| Ambient air temperature for storage | -10-85 °C |
| Colour | black |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Mounting mode | DIN rail mount |
| Height | 60 mm |
| Range | EcoStruxure Security Expert |
| Net weight | 440 g |
| Product or component type | power supply module |
| Standards | EN 50133-1:1998, FCC CFR 47 part 15, CSN EN 60950-1:ed. 2, 2006, EN 50131-6:2008, EN 50131-3:2009, EN 50131-1:2006 |
| Number of outputs | 2 form B relay output |
| Ambient air temperature for operation | 0-50 °C |
| Product brand | Schneider Electric |
| Product certifications | ACMA, CE |
| Complementary | |
| Backup type | battery |
| Quality labels | RCM |
| Communication interface | RS485 |
| Function available | processor controlled battery level testing and indication, intelligent charging algorithm monitors battery and AC supply |
| Tamperproof of settings | tamper contact |
| Length | 156.8 mm |
| Supply | mains |
| Environment | |
| Environmental characteristic | indoor use |
| Output voltage | 12.2 V DC,<= 5 A, 12.64 V DC,<= 7.5 A |
