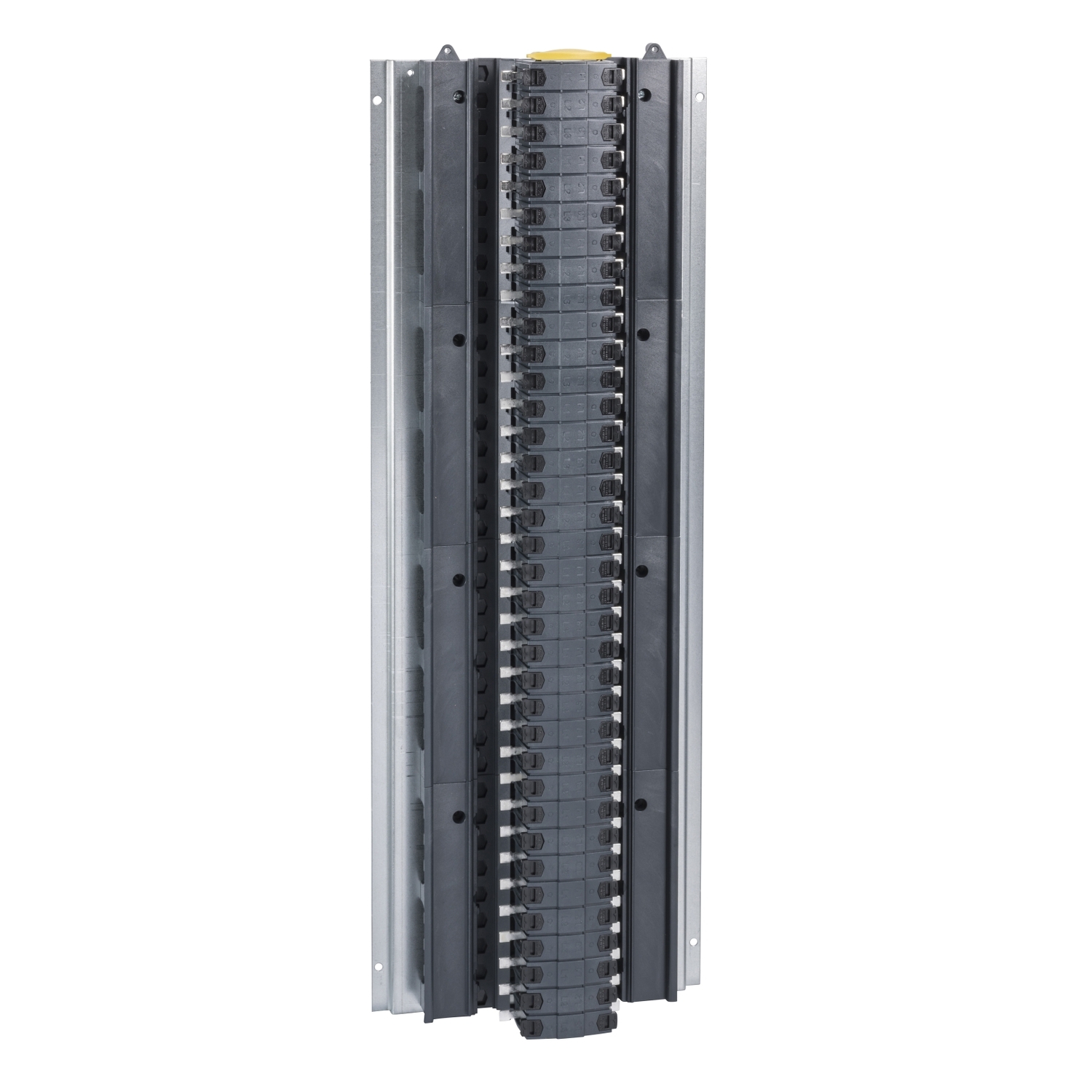

Panel Fixing Pan Assembly, Acti9, 24 ways TP&N

Manufacturer: Schneider Electric

SKU: SEA9BN24TNA

GTIN: 5018934962634

Catalog

Old price: $1,401.40 inc GST

Price: $489.32 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This Acti9 Isobar B is a pan assembly. It has 3P+N with 250A rated current. It is a 1 way incomer of 3 poles and 24 ways outgoer. It is suitable for a residual current circuit breaker with overcurrent protection up to 45A and a miniature circuit breaker up to 63A. The protection device options at outgoer is miniature circuit breaker (MCB) is 63A maximum. The dimensions are (W) 210mm x (H) 722mm x (D) 90mm. The busbar pitch is 18mm, thickness is 2mm.

Products specifications

Attribute name	Attribute value
Main
Device application	distribution
Range	Acti9
Product or component type	pan assembly
Complementary
Protection device type	miniature circuit breaker (MCB) 63 A max , residual current circuit breaker with overcurrent protection (RCBO) 45 A max
Depth	90 mm
Width	210 mm
Incomer device	3P MCCB, 3P terminal block, 3P switch disconnector
[In] rated current	250 A
Provided equipment	mounting plate
Number of poles	72 x 18 mm
Length	722 mm
Range compatibility	Acti 9 Acti9 Isobar B distribution board
Number of ways	24 ways (outgoer), 1 way (incomer) - 3P + N
