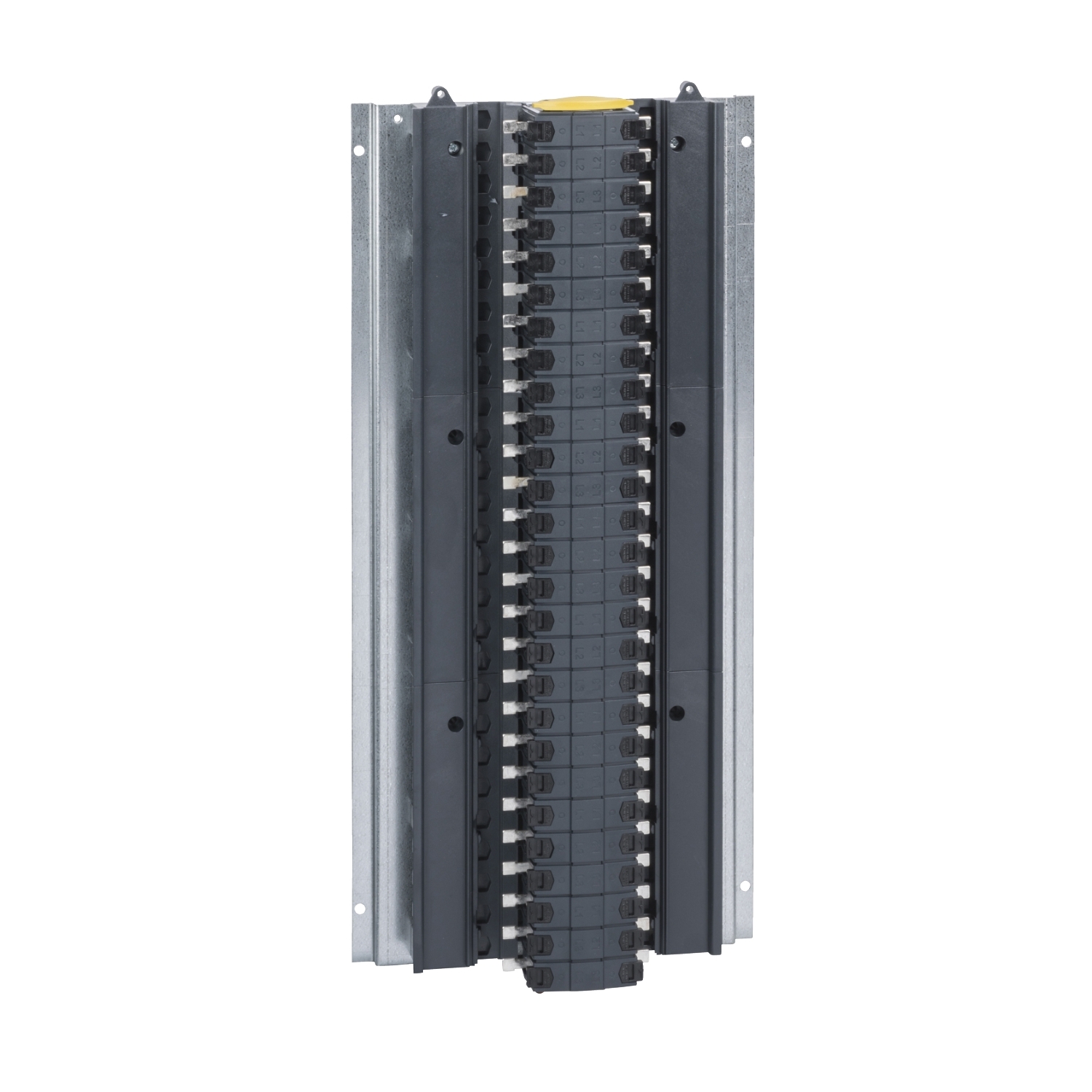

This Acti9 Isobar B product is a pan assembly which can be installed in Acti9 Isobar B distribution board. Distribution board provides 18 outgoing ways. Incomer device options 3P switch disconnector, 3P MCCB and 3P terminal block. Protection device options at outgoer residual current circuit breaker with overcurrent protection (RCBO) up to 45A and miniature circuit breaker up to 63A.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | distribution |
| Range | Acti9 |
| Product or component type | pan assembly |
| Complementary | |
| Protection device type | miniature circuit breaker (MCB) 63 A max , residual current circuit breaker with overcurrent protection (RCBO) 45 A max |
| Depth | 90 mm |
| Width | 210 mm |
| Incomer device | 3P MCCB, 3P terminal block, 3P switch disconnector |
| [In] rated current | 250 A |
| Provided equipment | mounting plate |
| Number of poles | 54 x 18 mm |
| Length | 560 mm |
| Range compatibility | Acti 9 Acti9 Isobar B distribution board |
| Number of ways | 1 way (incomer) - 3P + N, 18 ways (outgoer) |
