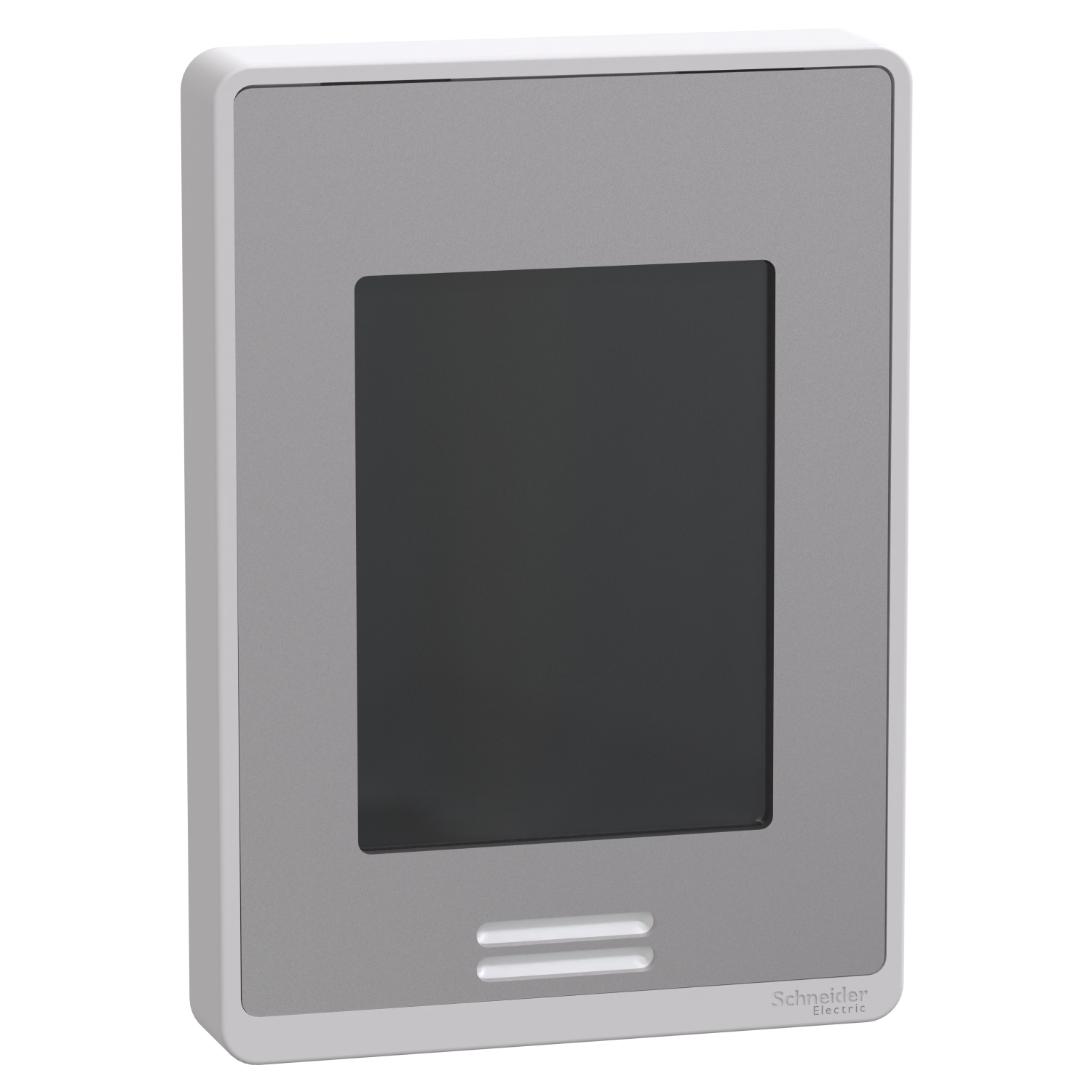

This SE8650 Roof Top Unit, heat pump and Inddor Air Quality room controller. With touch color screen. Silver Fascia & Casing. BACnet communication to connect with BMS.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | SE8600 |
| Device application | staging equipment (RTU/HP) |
| Depth | 25 mm |
| Temperature resolution | 0.1 °C |
| Humidity setting range | 30-95 % |
| Market segment | school, residential, office, non-critical buildings, healthcare, buildings, small commercial, lodging/hotel |
| Width | 86 mm |
| Temperature setting range | 4.5-32 °C heating, 12-37.5 °C cooling |
| Sensor type | bulk polymer humidity, space RH sensor humidity, 10 kOhm T2 NTC thermistor temperature |
| Relative humidity | 0-75 % |
| Input voltage | 0...10 V |
| Output current | 1.5 A universal output (inrush), 0.3 A universal output, 3 A relay output (inrush), 1 A relay output |
| Ambient air temperature for storage | -30-50 °C |
| AWG gauge | AWG 22...AWG 18 |
| Directives | 2014/53/EU - radio equipment directive, 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Communication port protocol | Modbus RTU, BACnet MS/TP |
| Input type | 5 x analog, 2 x dry contact |
| Range | EcoStruxure Building Expert |
| Net weight | 340 g |
| Product name | SE8000 Series |
| Humidity measurement drift | less than 1 % yearly |
| Output type | 4 xuniversal, 5 xrelay output |
| Product or component type | roof top unit |
| Targeted region | North America. |
| Output voltage | 0...10 V AC/DC for voltage output, 24 V AC/DC for relay output |
| Standards | ETSI EN 301 489-17:v2.2.1, 2012, UL 60730-2-9, FCC part 15 Subpart C, ETSI EN 301 489-1:v1.9.2, ETSI EN 300 328, ICES-003, FCC part 15 Subpart B, EN/IEC 60730-1 |
| Calibration certificate | 1 pt |
| Ambient air temperature for operation | 0-50 °C |
| Height | 120 mm |
| Housing colour | silver |
| Complementary | |
| Surface treatment | untreated |
| Surface finish | matt |
| Economizer | No |
| PIR cover | No |
| Humidity control | Yes |
| Scheduling | Yes |
