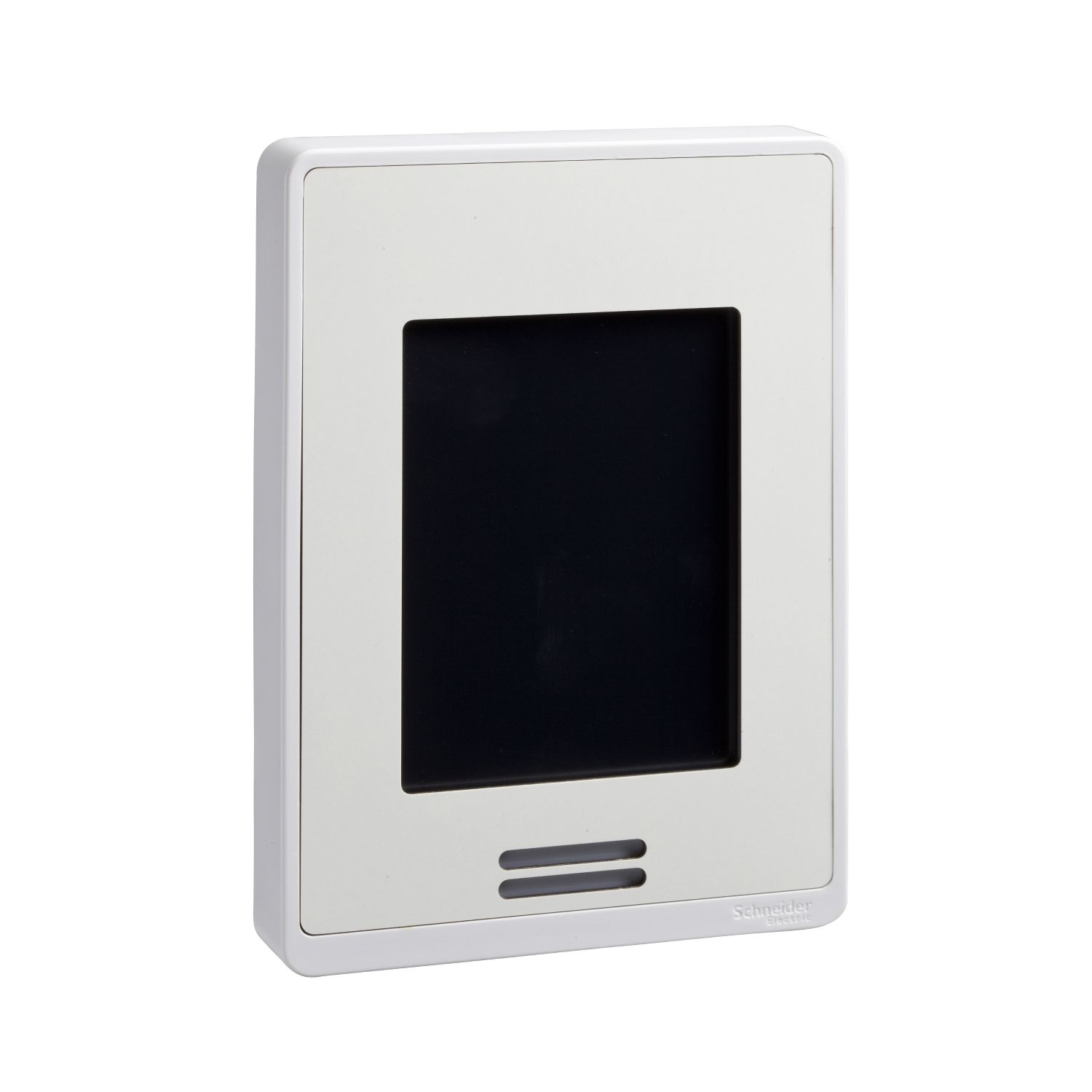

This SE8350 Low Voltage fan coil unit and zone room controller. With touch color screen. White Fascia & Casing. PIR motion sensor. BACnet communication & Zigbee Pro On board
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | SE8300 |
| Device application | low voltage fan coil |
| Depth | 25 mm |
| Humidity setting range | 30-95 % |
| Market segment | school, residential, office, non-critical buildings, healthcare, buildings, hotel, small commercial, lodging |
| Width | 86 mm |
| [In] rated current | 4 A |
| Temperature setting range | 4.5-32 °C heating, 12-37.5 °C cooling |
| Sensor type | space RH sensor humidity, 10 kOhm T2 NTC thermistor temperature |
| Relative humidity | 0-95 % |
| Input voltage | 0...10 V DC |
| Output current | 3 A relay output (inrush), 1 A relay output |
| Ambient air temperature for storage | -30-50 °C |
| AWG gauge | AWG 24...AWG 18 |
| Directives | 2014/53/EU - radio equipment directive, 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Communication port protocol | Zigbee Pro, Modbus RTU, BACnet MS/TP |
| Input type | 5 x analog, 2 x dry contact |
| Range | EcoStruxure Building Expert |
| Net weight | 340 g |
| Product name | SE8000 Series |
| Output type | 4 xuniversal, 5 xrelay output |
| Product or component type | room controller |
| Output voltage | 0...10 V DC for analog output, 24 V AC for relay output |
| Standards | RSS 247, ETSI EN 301 489-17:v2.2.1, 2012, FCC part 15 Subpart C, ETSI EN 301 489-1:v1.9.2, ETSI EN 300 328:v2.1.1, FCC part 15 Subpart B, ICES-003, UL 60730-2-13, UL 60730-2-9, CSA E60730-2-9, EN/IEC 60730-2-13, EN/IEC 60730-2-9, EN/IEC 60730-1 |
| Ambient air temperature for operation | 0-50 °C |
| Height | 120 mm |
| Housing colour | white |
| Complementary | |
| Surface treatment | untreated |
| Surface finish | matt |
| Economizer | No |
| PIR cover | Yes |
| Humidity control | Yes |
| Scheduling | Yes |
Only registered users can write reviews
Related products

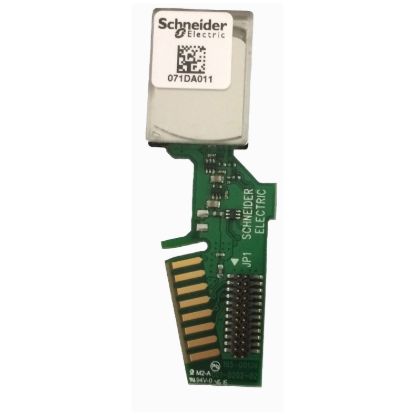

CO2 sensor module for SE8000 Room Controllers
VCM8001V5045
CO2 sensor module for SE8000 Room Controllers
$420.20 inc GST
$555.71 inc GST

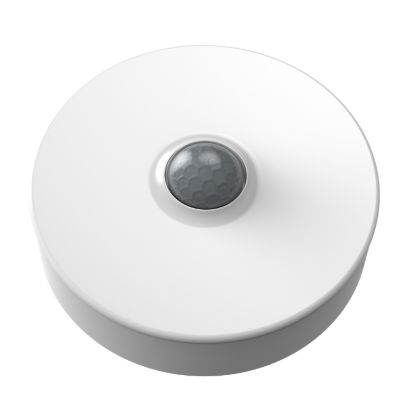

EcoStruxure Building Expert ZigBee 3.0 HA Wireless Motion/Humidity/Temperature Sensor, SE8000 Series Compatible, Reporting Motion In Detection Range
SED-MTH-G-5045
EcoStruxure Building Expert ZigBee 3.0 HA Wireless Motion/Humidity/Temperature Sensor, SE8000 Series Compatible, Reporting Motion In Detection Range
$279.95 inc GST
$370.23 inc GST

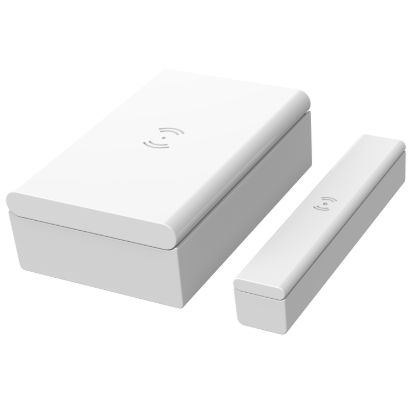

EcoStruxure Building Expert ZigBee 3.0 HA Wireless Window/Door Sensor, Compatible With SE8000 Room Controller, Reporting Open/Close status
SED-WDC-G-5045
EcoStruxure Building Expert ZigBee 3.0 HA Wireless Window/Door Sensor, Compatible With SE8000 Room Controller, Reporting Open/Close status
$210.32 inc GST
$278.15 inc GST
$85.36 inc GST
$112.89 inc GST
$85.36 inc GST
$112.89 inc GST
$85.36 inc GST
$112.89 inc GST
Wireless CO2 sensor with room temperature and humidity for SE8000 Series, zigbee communication protocol
SED-CO2-G-5045
Wireless CO2 sensor with room temperature and humidity for SE8000 Series, zigbee communication protocol
$756.80 inc GST
$1,000.87 inc GST

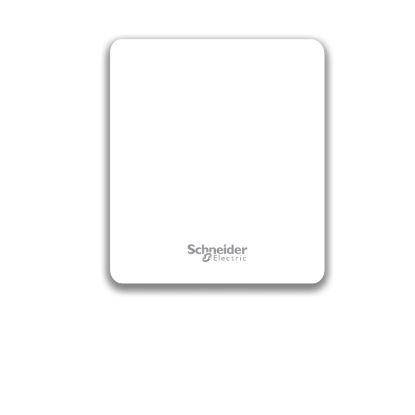

Wireless sensor with room temperature and humidity for SE8000 Series, zigbee communication protocol
