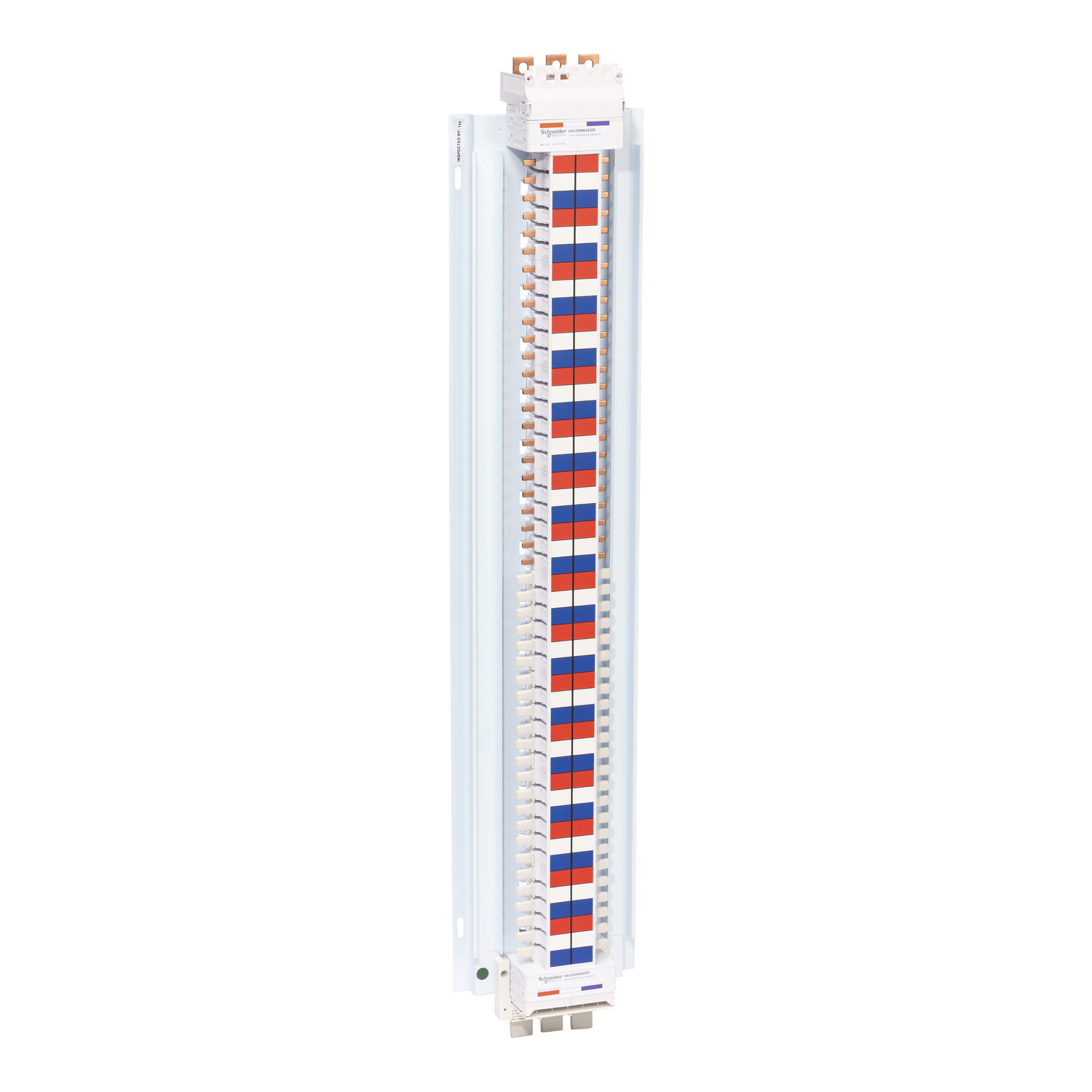

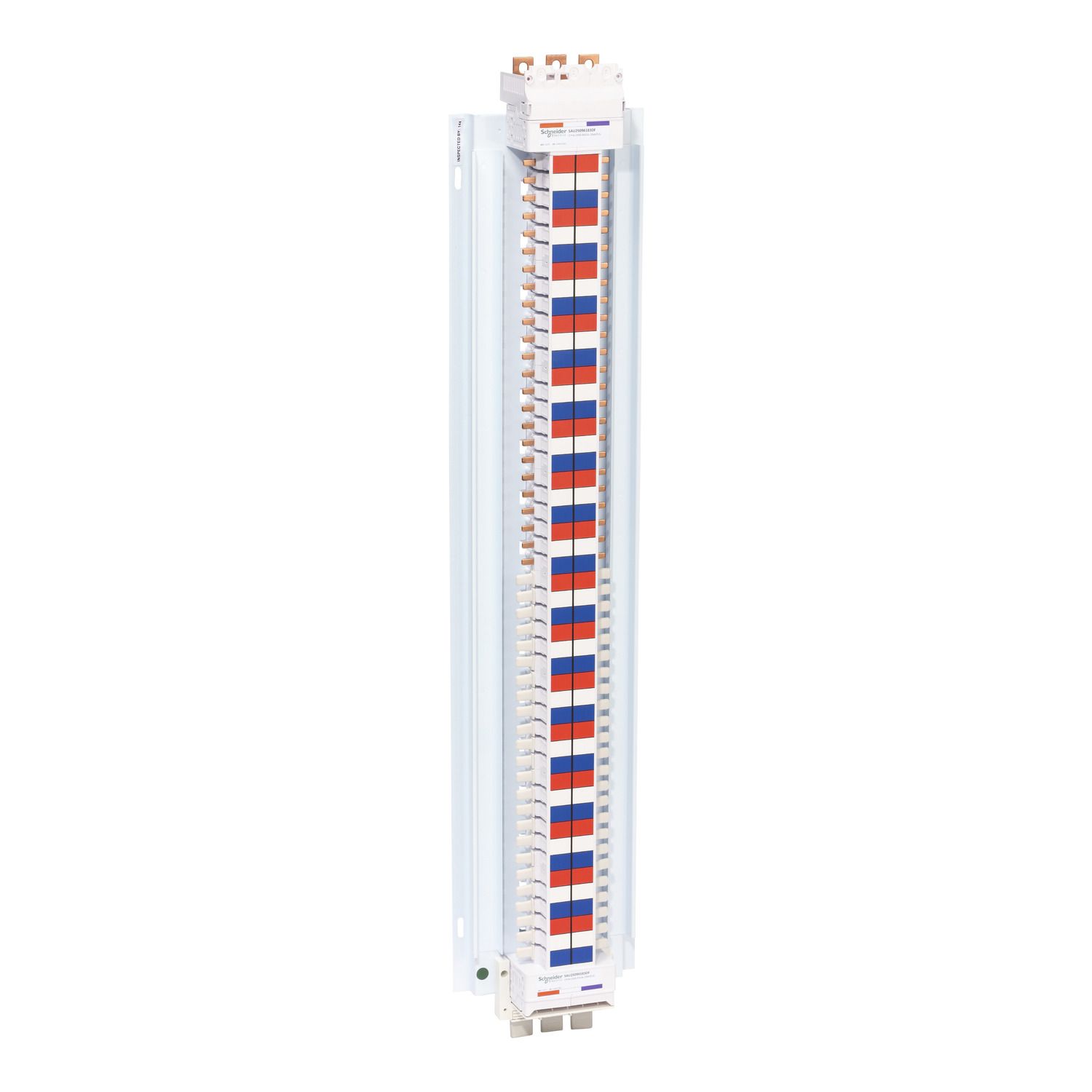

This Acti9 SAU Chassis product can be mounted on Distribution boards. The Ie rated operational current 250A and Ue rated operational voltage of 415V AC at 50 Hz and 500V DC. This chassis can have dual feeding. This Chassis is compatible with 3P device as incomer and 1P, 2P, 3P device as outgoer. The number of outgoing ways is 96 with 18mm pitch. This chassis has IP2X protection when used with relevant accessories. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC with Uimp rated impulse voltage of 6kV. This product complies with AS/NZS 61439.2 standard. The total dimensions are (L) 866mm x (W) 215mm.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range | Acti9 |
| Device application | distribution |
| Product or component type | chassis |
| Complementary | |
| Number of poles | 96, 96 x 18 mm |
| Length | 866 mm |
| Width | 215 mm |
| Location of connection | dual feed |
| [Ui] rated insulation voltage | 500 V |
| [In] rated current | 250 A |
| Range compatibility | Acti 9 distribution board |
| Number of ways | 1 way (incomer) - 3P |
| Network type | AC |
| Short-circuit withstand | 25 kA 0.1 s |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Rated voltage | 415 V 50 Hz |
| Busbar pitch | 18 mm |
| Environment | |
| Standards | AS/NZS 61439 |
