SAU Chassis, Acti9, 250A, 3Ph, 84 poles, 18mm for iC60 MCB and RCBO, top or bottom

    Previous Product
Next Product

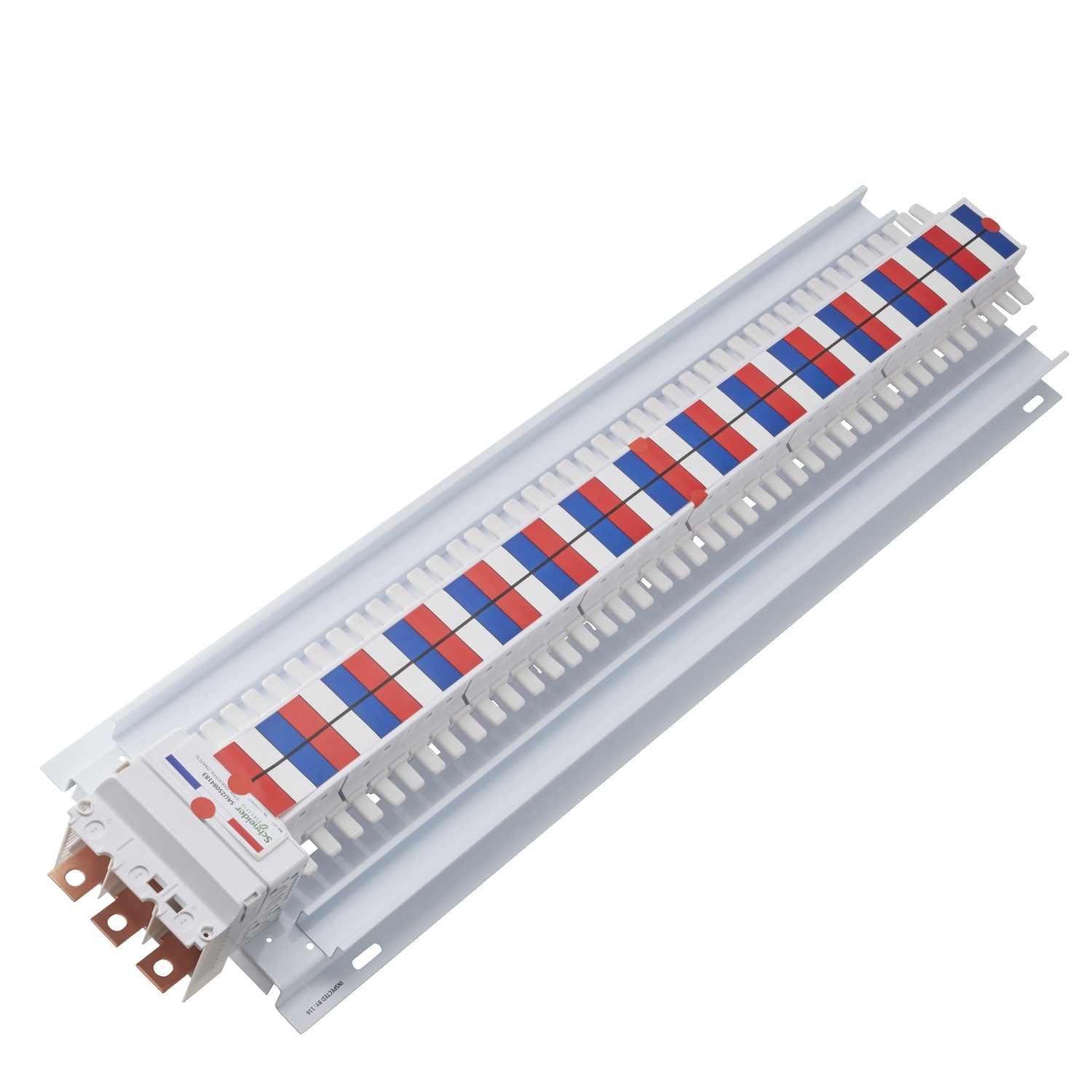

Picture of SAU Chassis, Acti9, 250A, 3Ph, 84 poles, 18mm for iC60 MCB and RCBO, top or bottom
SAU Chassis, Acti9, 250A, 3Ph, 84 poles, 18mm for iC60 MCB and RCBO, top or bottom
  • A three phase chassis assembly compliant to AS/NZS 61439 local standard and wiring regulations
  • Chassis fully compliant with Acti9 Circuit protection devices such as MCB, RCBOs
  • Type tested chassis system with best in class quality and performance
  • Chassis with encapsulation providing high level of protection and compatible for NSX MCCB
  • The chassis can be easily adapted into panel builder distribution boards (top or bottom feed)
Manufacturer: Schneider Electric
SKU: SAU25084183
GTIN: 3606481908865
Environmental Disclosure
This Acti9 SAU Chassis product can be mounted on Distribution boards. The Ie rated operational current 250A and Ue rated operational voltage of 415V AC at 50 Hz and 500V DC. This chassis can have both top or bottom feeding. This Chassis is compatible with 3P device as incomer and 1P, 2P, 3P device as outgoer. The number of outgoing ways is 84 with 18mm pitch. This chassis has IP2X protection when used with relevant accessories. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC with Uimp rated impulse voltage of 6kV. This product complies with AS/NZS 61439.2 standard. The total dimensions are (L) 758mm x (W) 215mm.
Old price: $956.89 inc GST
$334.11 inc GST
