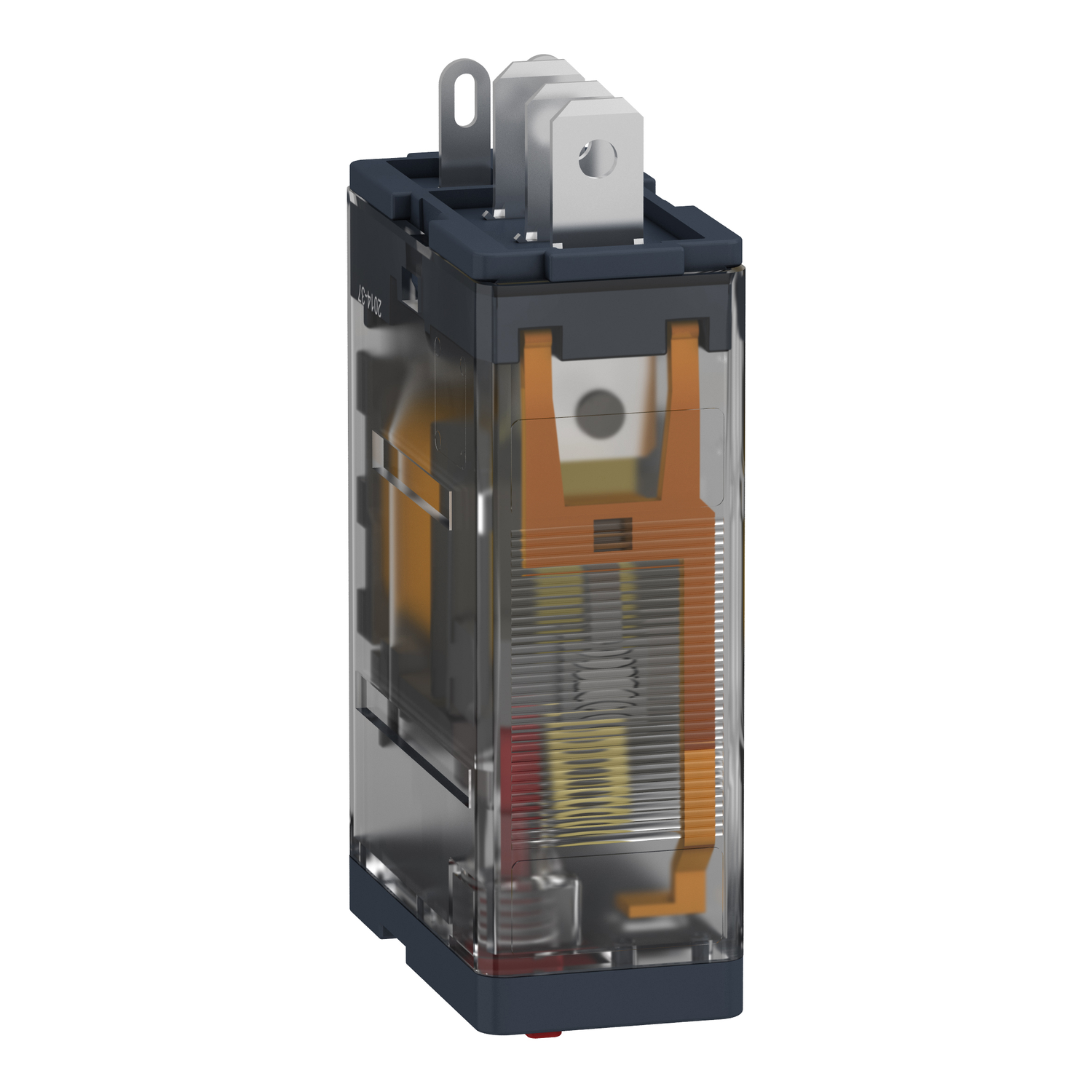

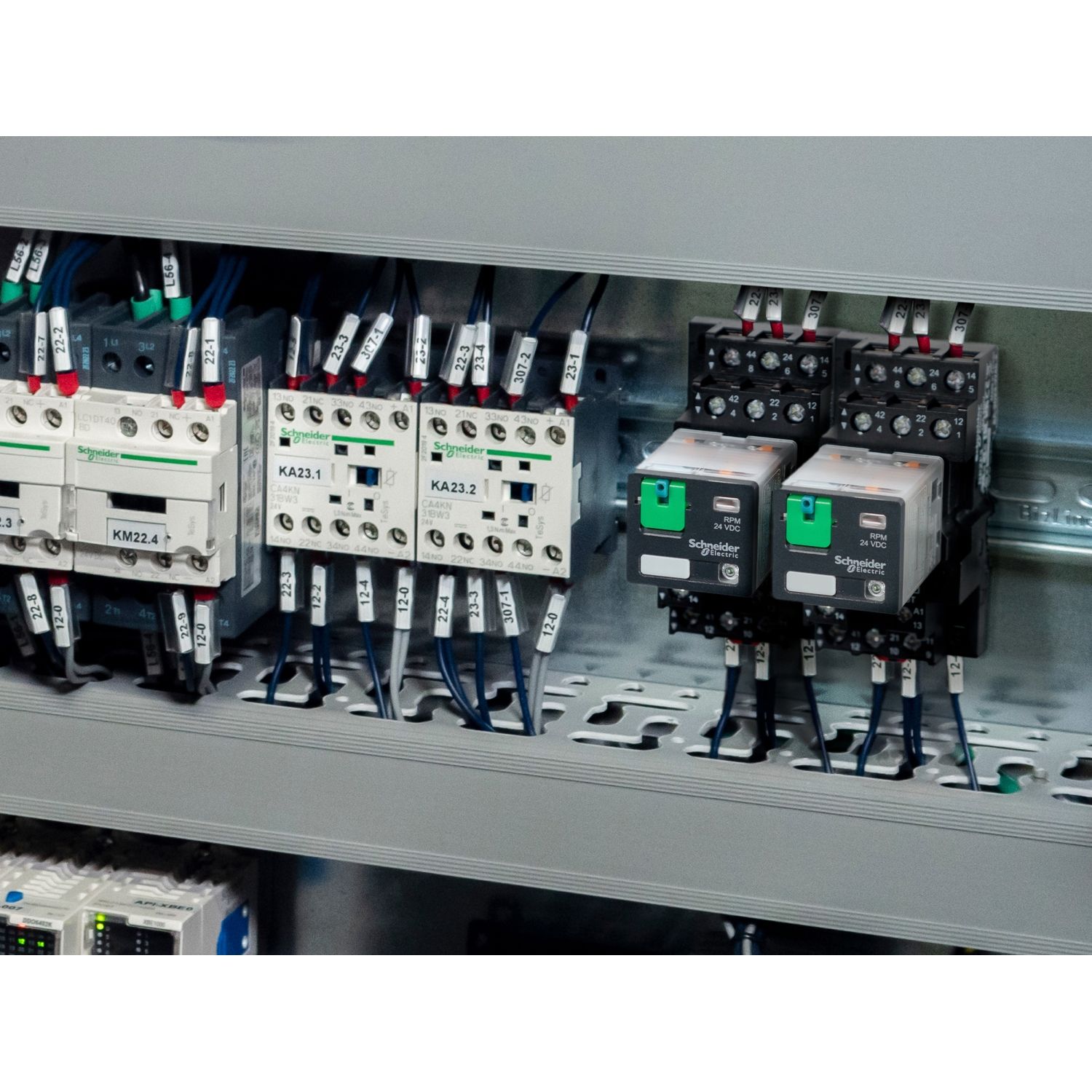

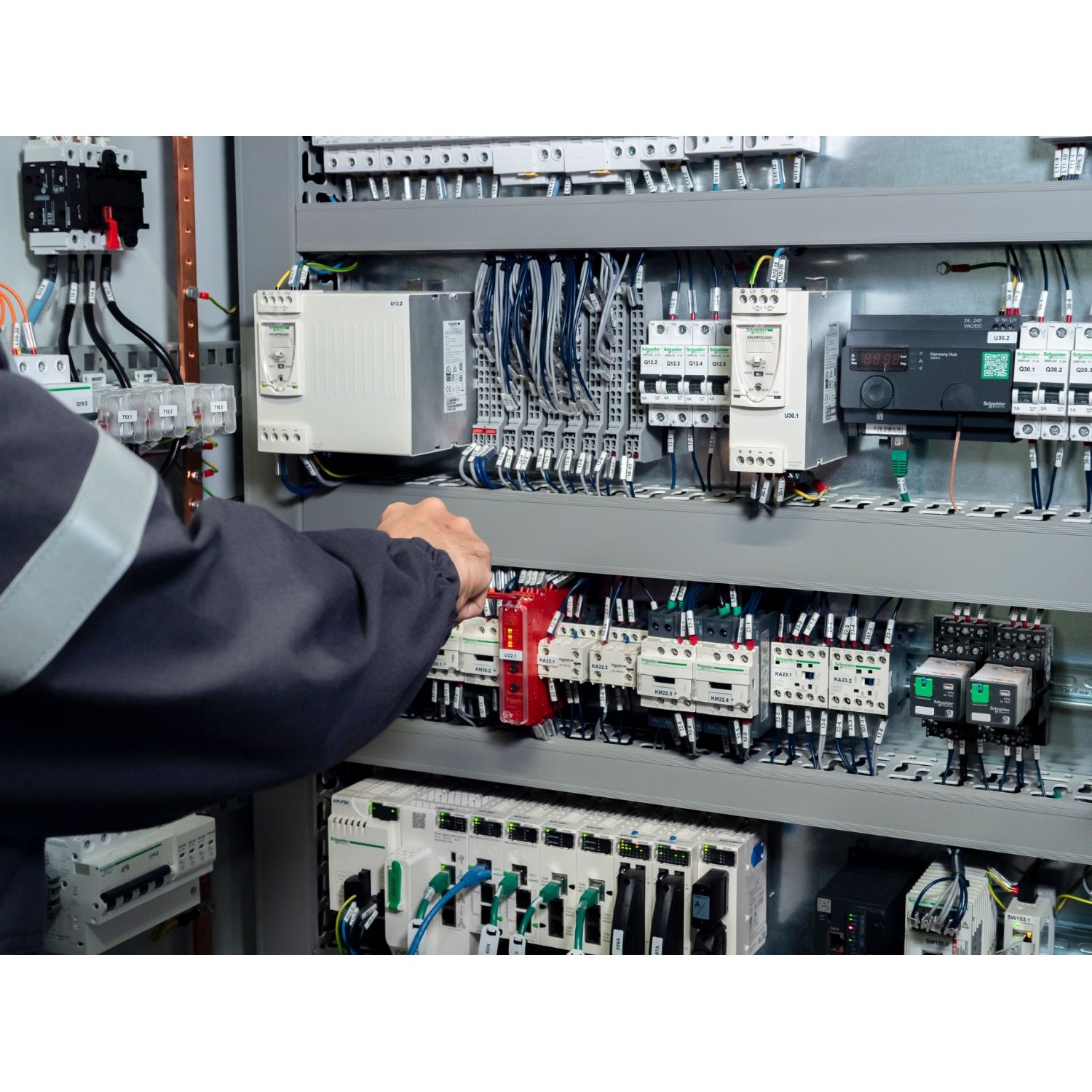

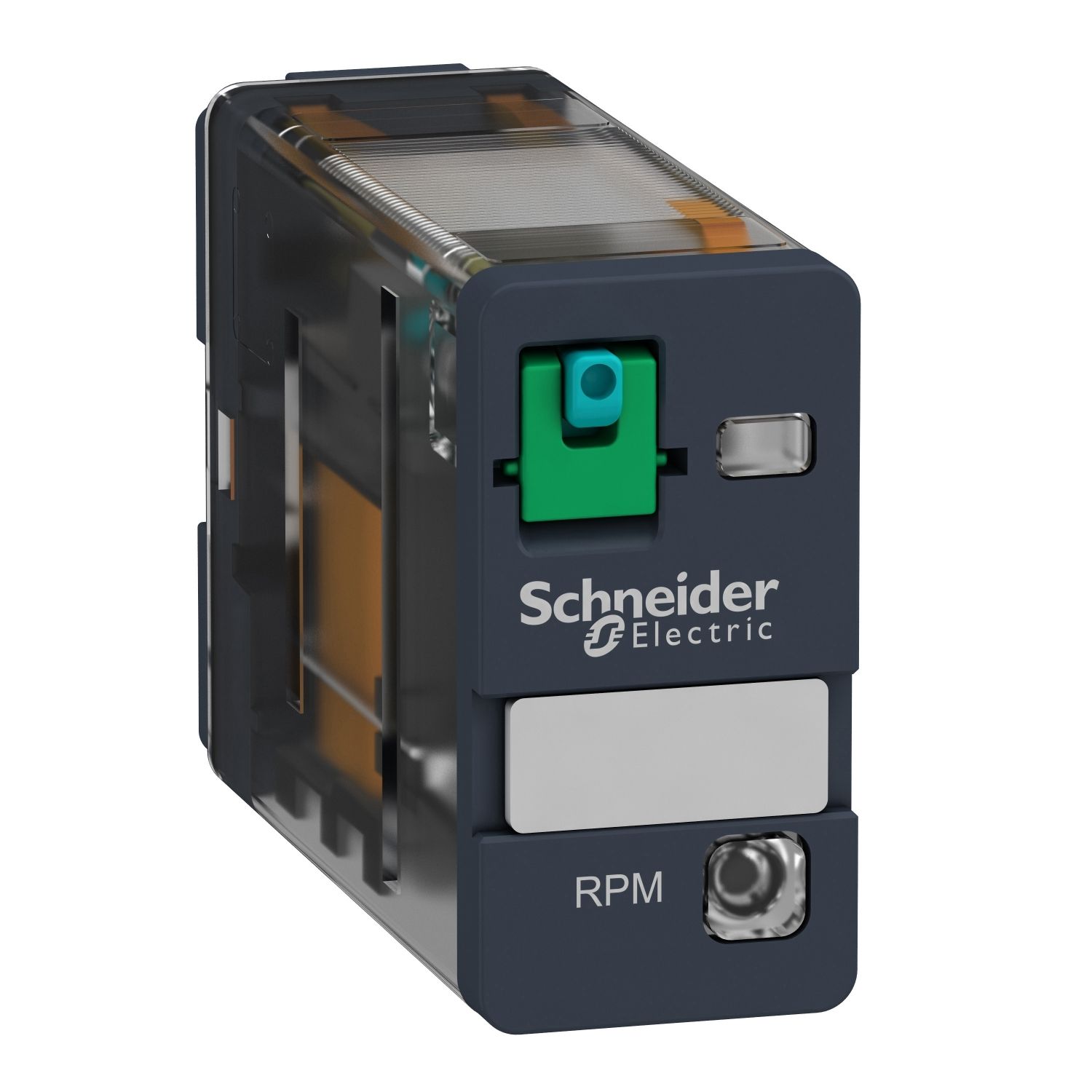

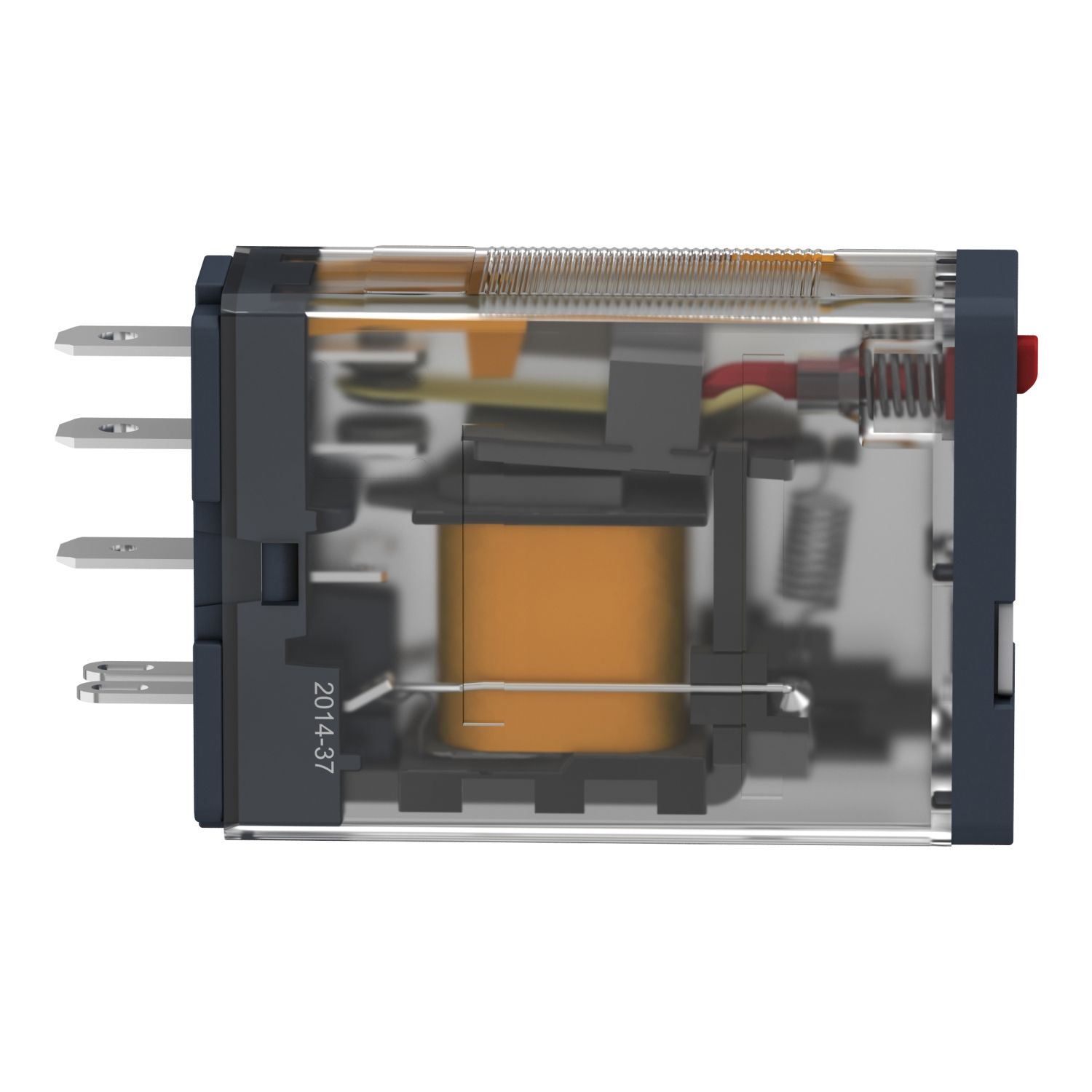

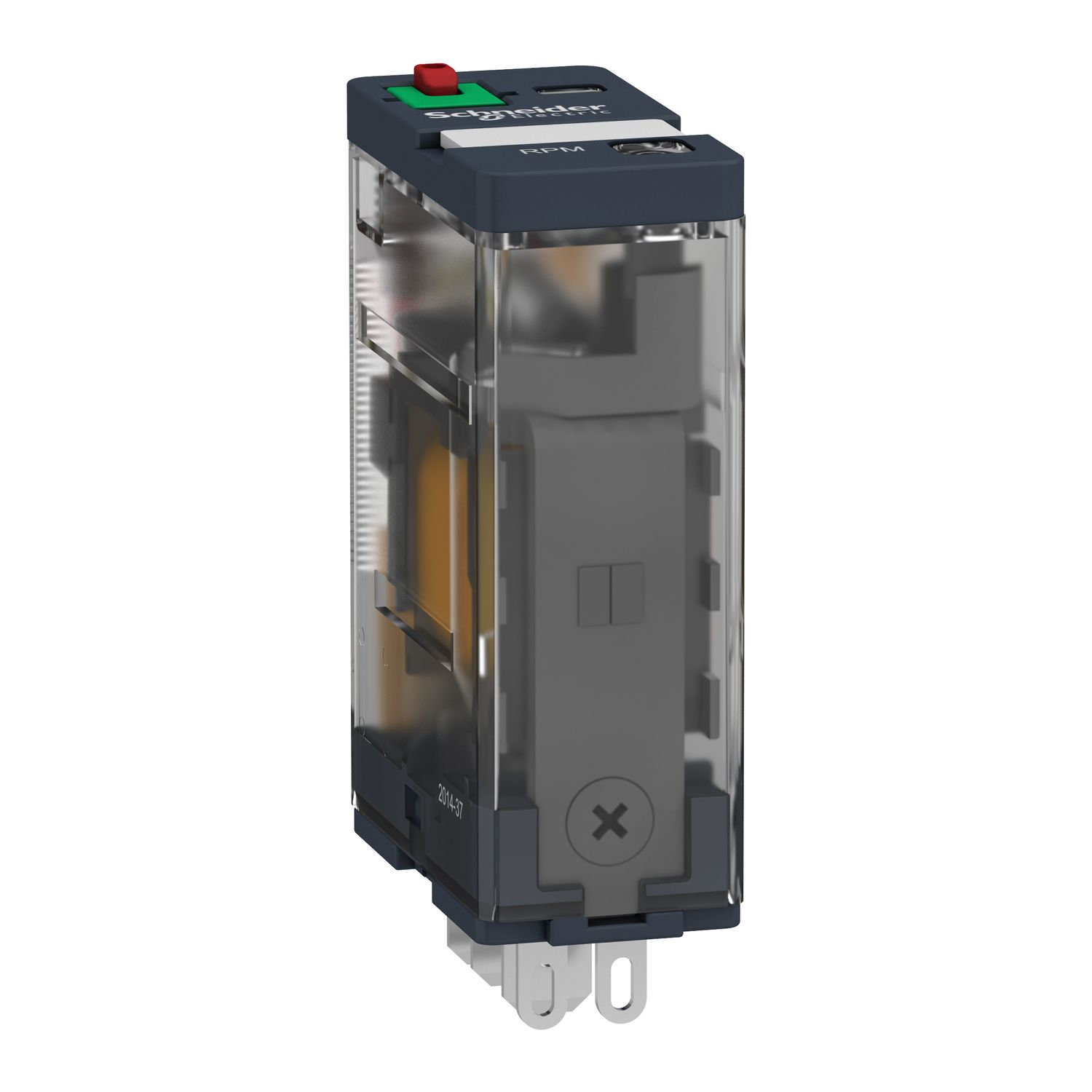

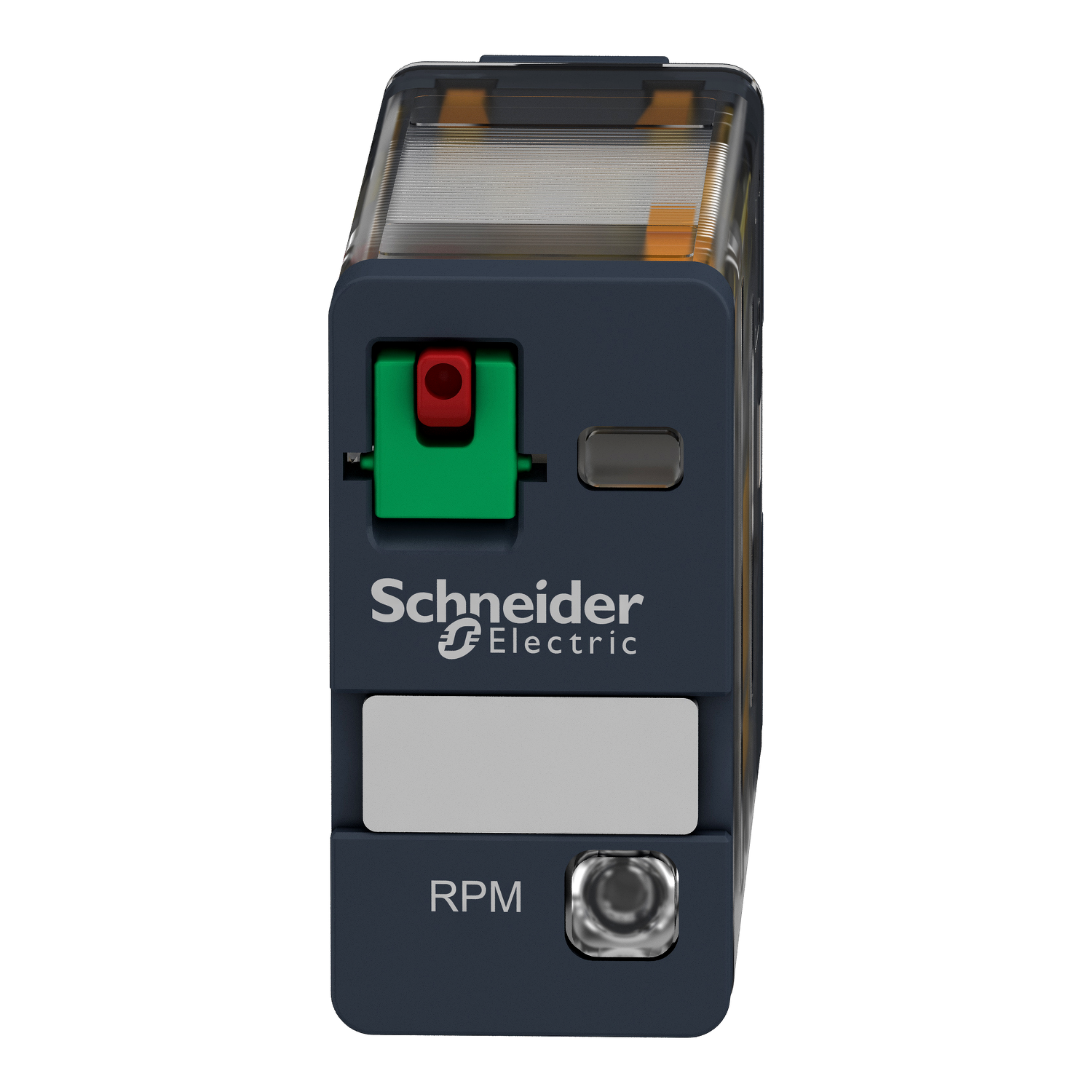

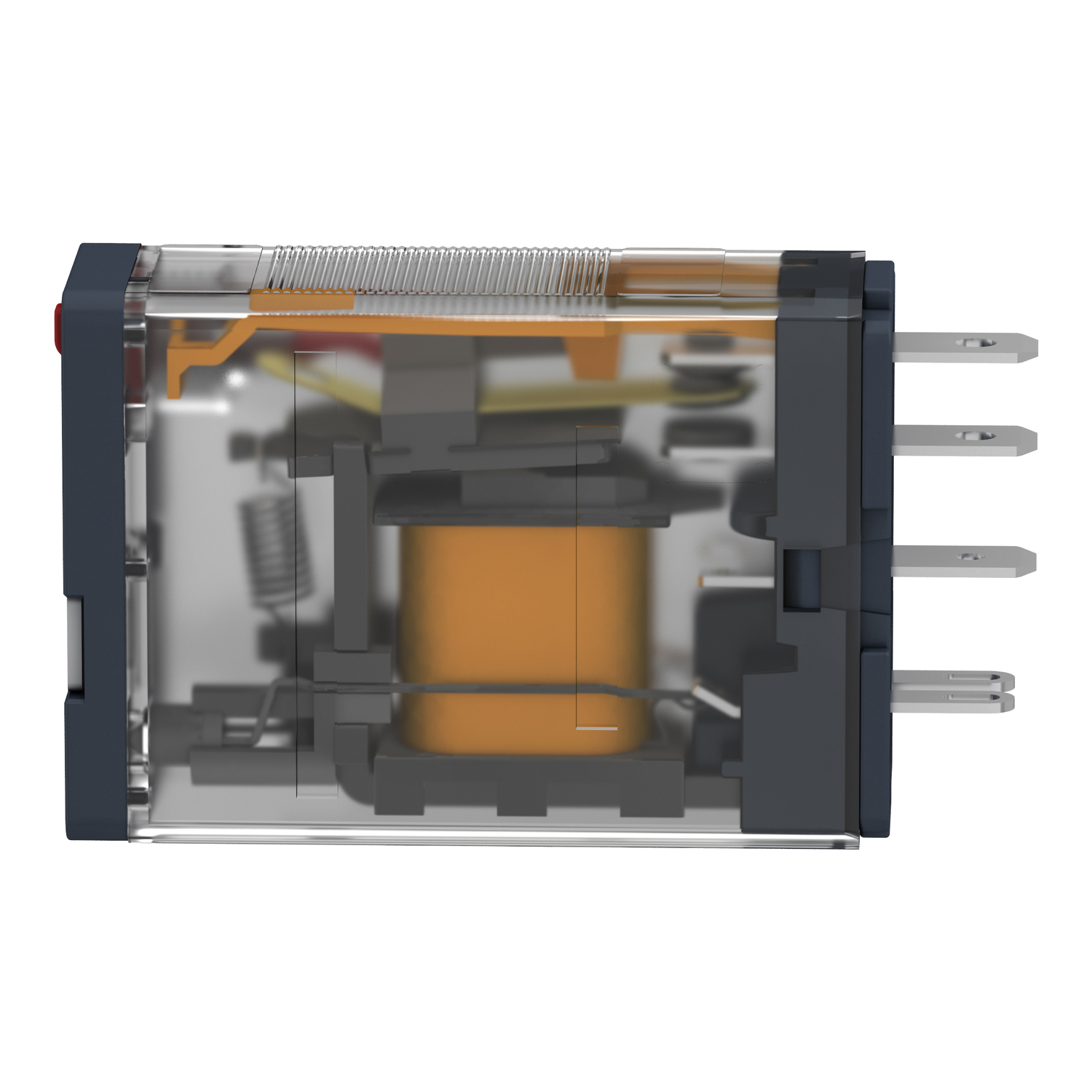

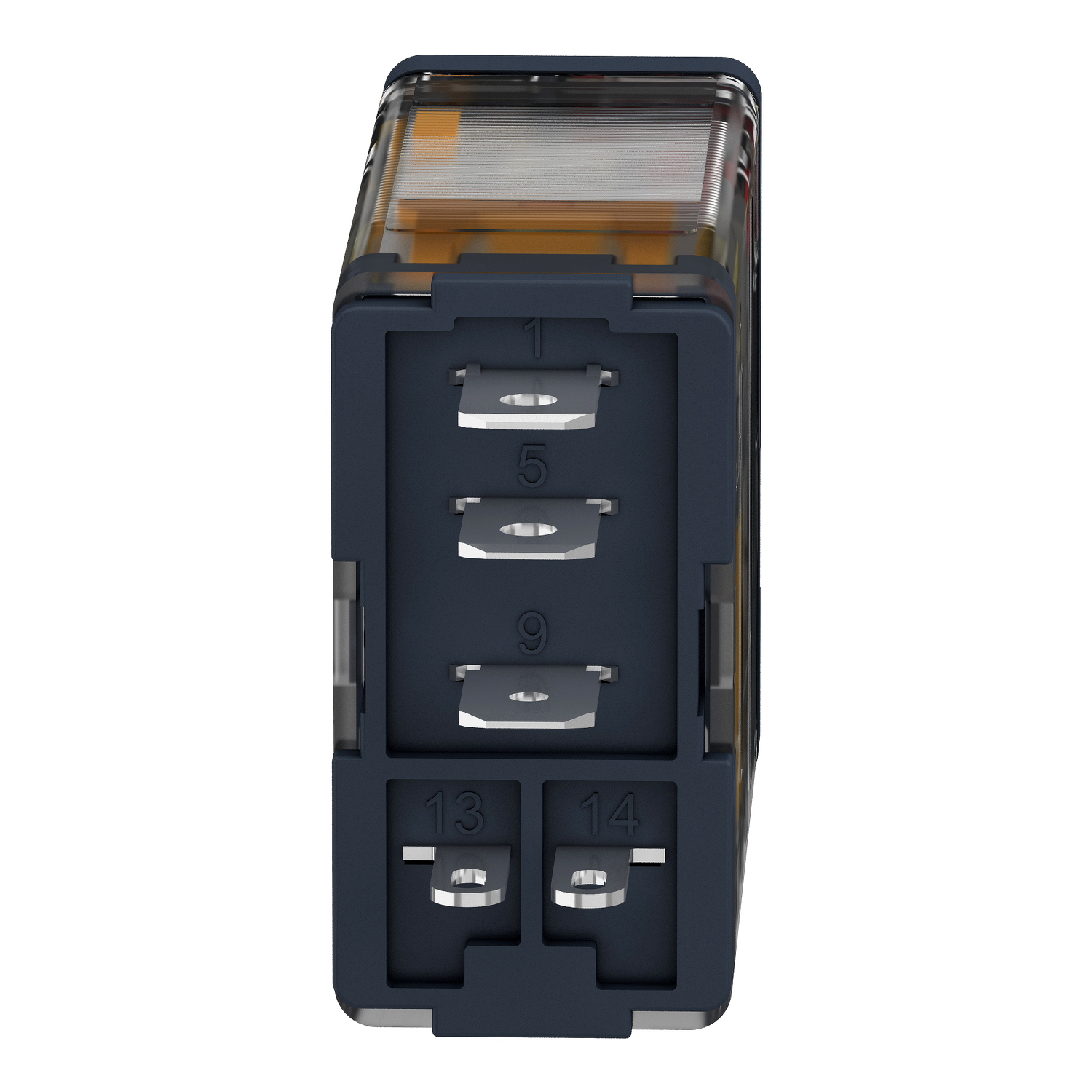

This Harmony RPM power plug-in relay has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | RPM |
| [Uc] control circuit voltage | 24 V, 24 V DC |
| Control type | lockable test button |
| Range of product | Harmony Electromechanical Relays |
| Utilisation coefficient | 20 % |
| [Ithe] conventional enclosed thermal current | 15 A at -40-55 °C |
| [In] rated current | 15 A |
| Contacts type and composition | 1 C/O |
| Series name | Power |
| Status LED | with |
| Product or component type | plug-in relay |
| Complementary | |
| Drop-out voltage threshold | >= 0.1 Uc DC |
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs |
| Load current | 15 A at 28 V DC, 15 A at 250 V AC |
| Operating position | any position |
| Compatibility code | RPM |
| Mechanical durability | 10000000 cycles |
| Pollution degree | 3 |
| Average coil consumption | 1.1 W |
| Device presentation | complete product |
| Average resistance | 450 Ohm at 20 °C +/- 10 % |
| Shape of pin | flat |
| Contacts material | AgNi |
| Electrical durability | 100000 cycles for resistive load |
| Safety reliability data | B10d = 100000 |
| Maximum switching capacity | 420 W, 3750 VA |
| Minimum switching capacity | 170 mW at 10 mA, 17 V |
| Operating time | 20 ms at nominal voltage |
| [Ui] rated insulation voltage | 300 V conforming to UL, 300 V conforming to CSA, 250 V conforming to IEC |
| [Ie] rated operational current | 7.5 A at 28 V (DC) NC conforming to IEC, 7.5 A at 250 V (AC) NC conforming to IEC, 15 A at 28 V (DC) NO conforming to IEC, 15 A at 250 V (AC) NO conforming to IEC, 15 A at 28 V (DC) conforming to UL, 15 A at 277 V (AC) conforming to UL |
| Rated operational voltage limits | 19.2...26.4 V DC |
| Maximum switching voltage | 250 V conforming to IEC |
| Net weight | 0.026 kg |
| Reset time | 20 ms at nominal voltage |
| Test levels | level A group mounting |
| Protection category | RT I |
| Operating rate | <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load |
| Environment | |
| Ambient air temperature for storage | -40-85 °C |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Ambient air temperature for operation | -40-55 °C |
| Shock resistance | 30 gn for not operating, 15 gn for in operation |
| Vibration resistance | 5 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles not operating, 3 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles in operation |
| Dielectric strength | 2000 V AC between coil and contact with reinforced, 1500 V AC between contacts with micro disconnection |
| Standards | CSA C22.2 No 14, UL 508, IEC 61810-1 |
| Product certifications | UL, EAC, CSA |
