| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | RPZ |

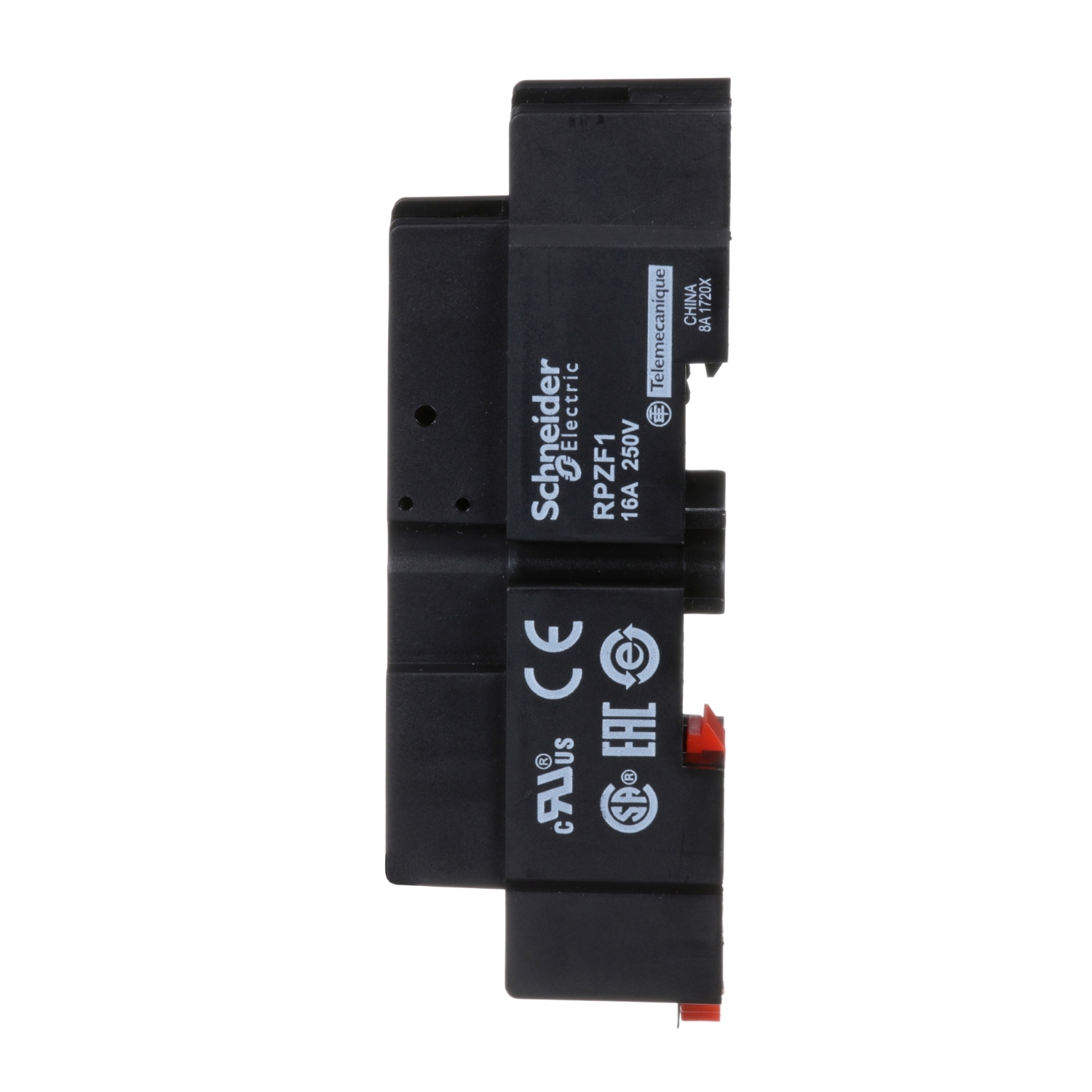

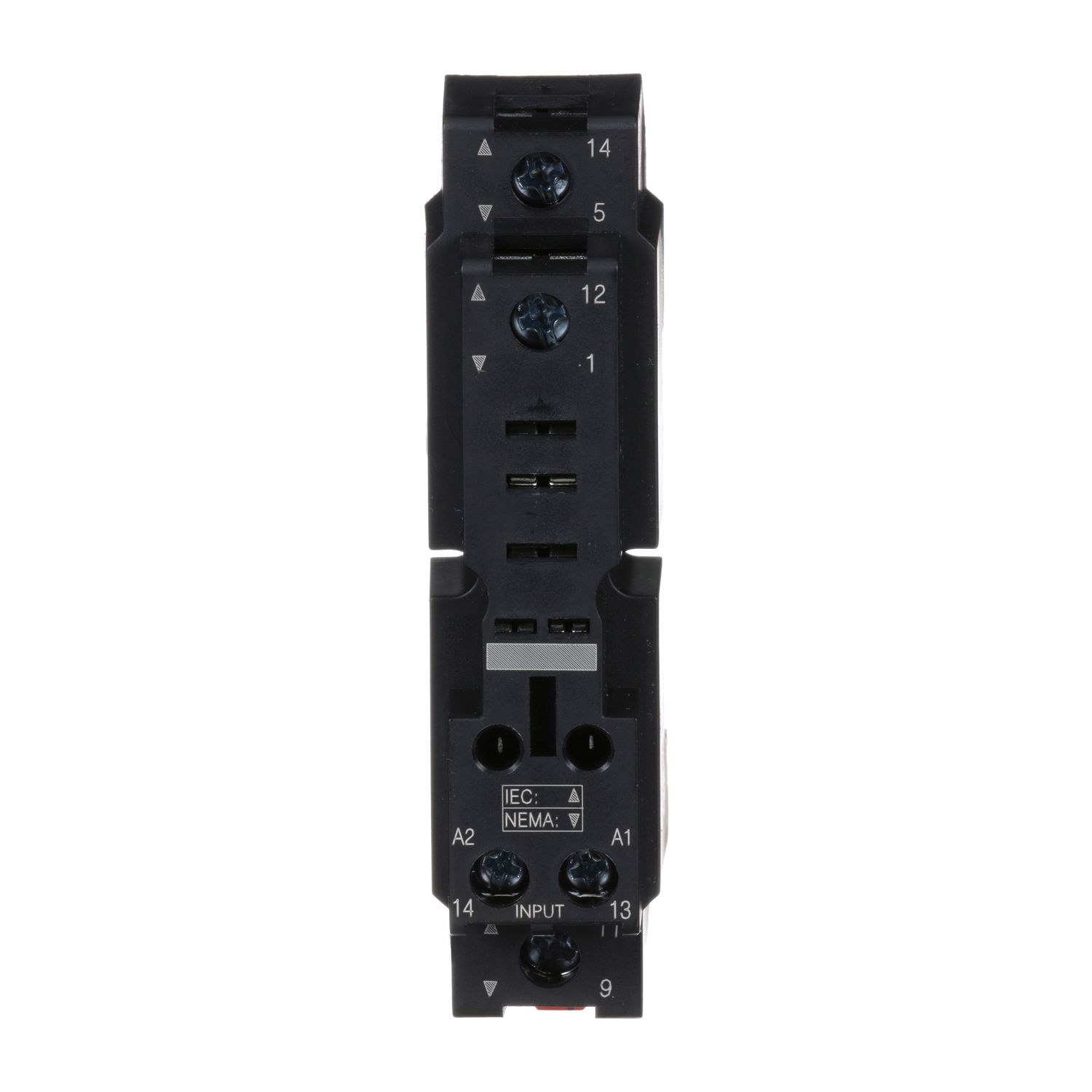

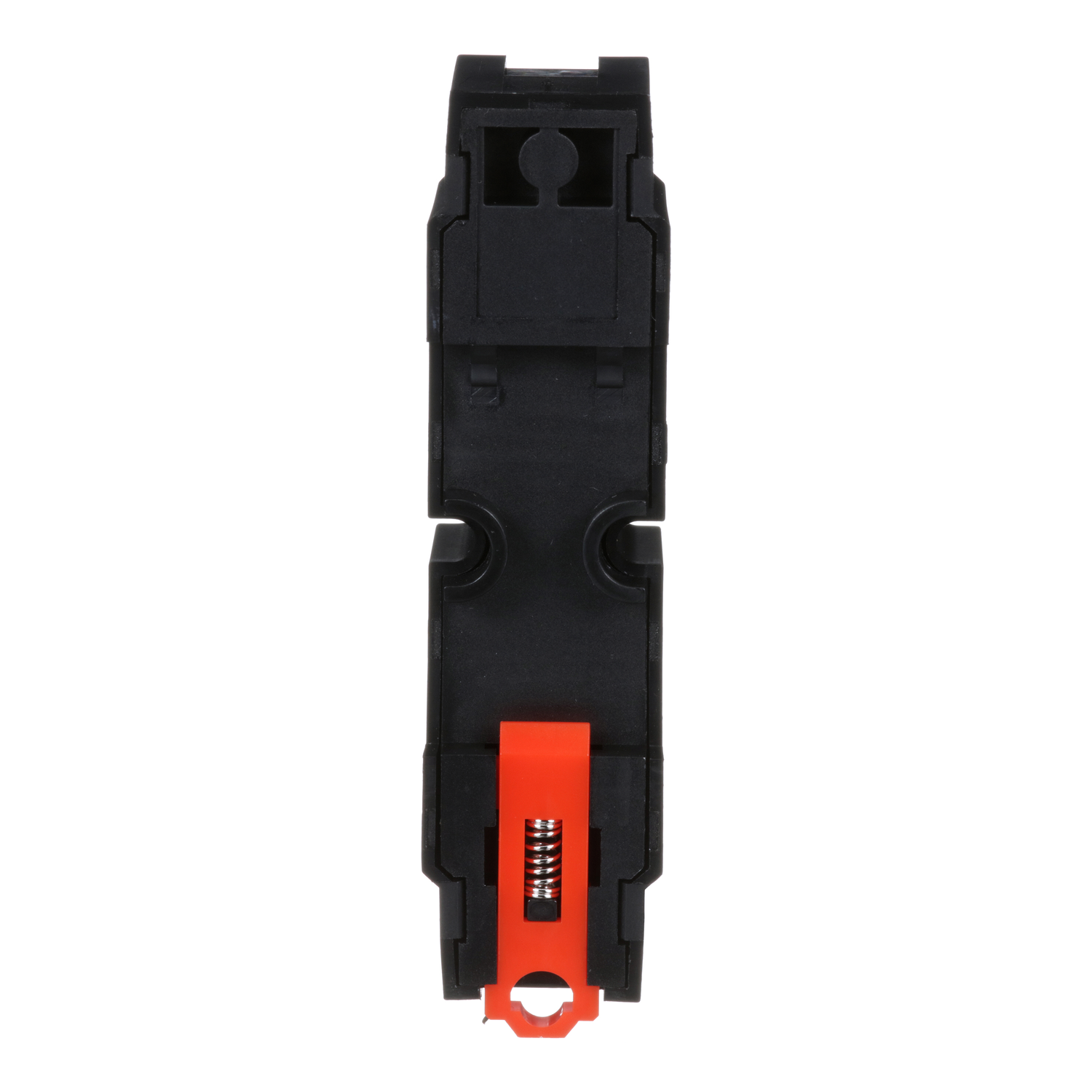

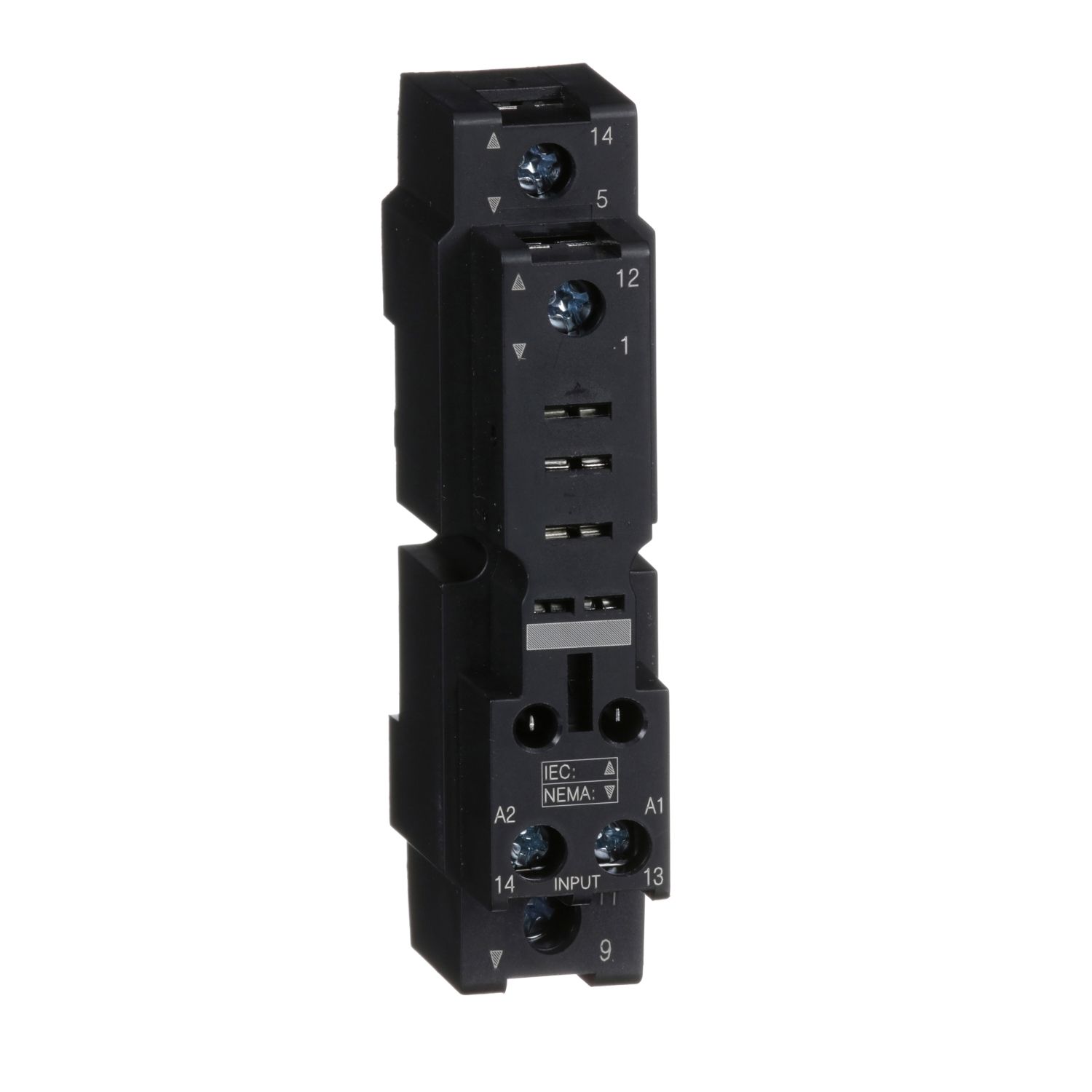

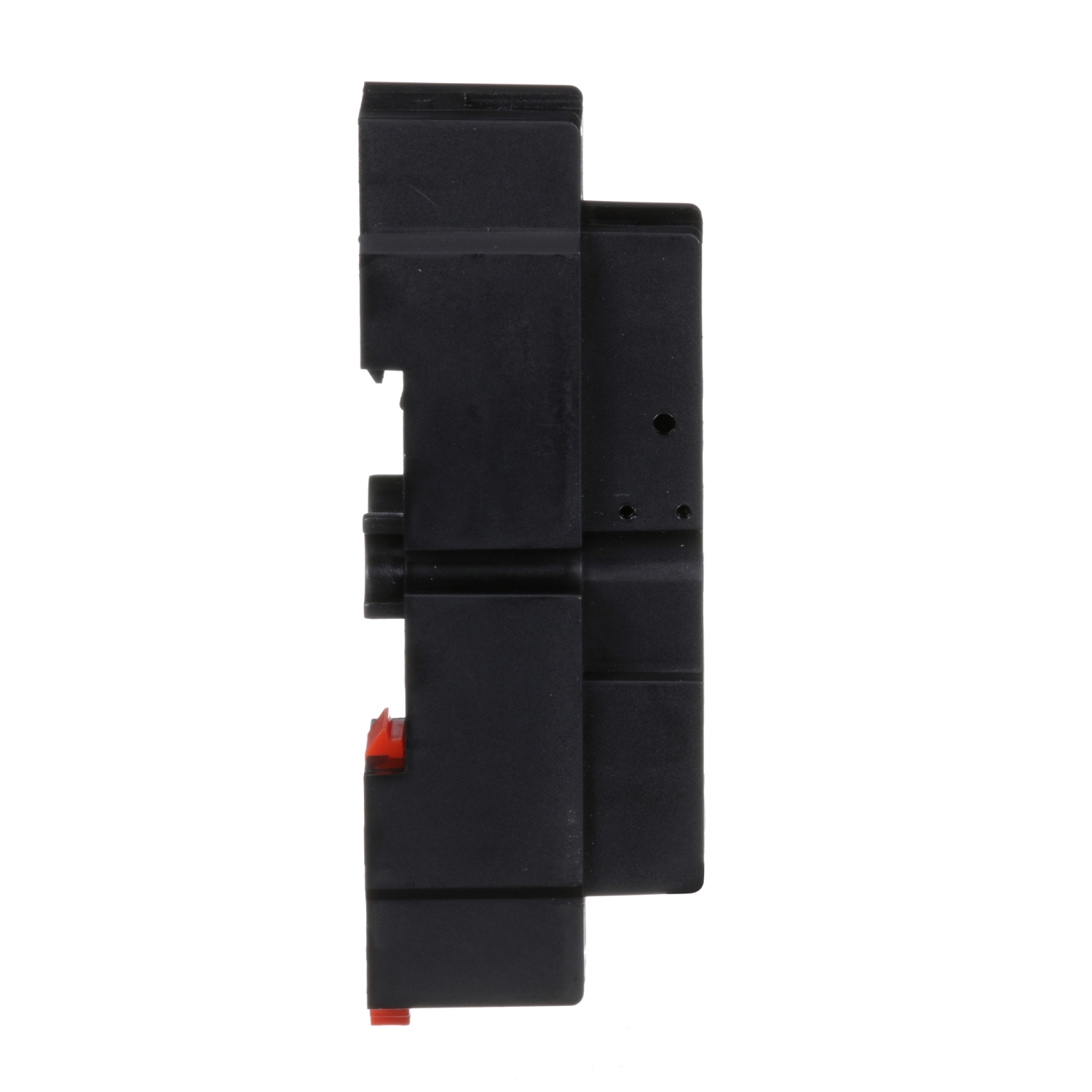

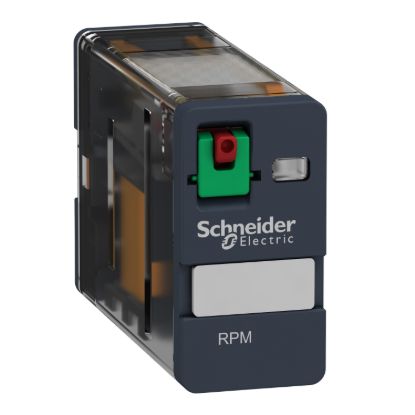

| Product compatibility | plug-in relay RPM with 1 C/O contact |
| Range of product | Harmony Electromechanical Relays |
| [Ith] conventional free air thermal current | 16 A |
| [Ue] rated operational voltage | 250 V |
| [In] rated current | 16 A |
| Contacts type and composition | 1 C/O |
| Product or component type | socket |
| Complementary | |
| Group of product | RPM_1_C/O_SC_TER_MIX_FLAT |
| Compatibility code | RPZ |
| Fixing mode | clip-on (35 mm symmetrical DIN rail), by screw (panel) |
| Contact terminal arrangement | mixed |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Net weight | 0.031 kg |
| Tightening torque | < 0.8 N.m for M3 screw(s), < 1 N.m for M3.5 screw(s) |
| Connections - terminals | screw clamp terminals |
| Environment | |
| Ambient air temperature for storage | -40-85 °C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Connections - terminals | coil terminal - screw clamp terminals, 1 wire flexible cable with cable end 0.5...1.5 mm² / AWG 20...AWG 16, coil terminal - screw clamp terminals, 2 wires flexible cable with cable end 0.5...1.5 mm² / AWG 20...AWG 16, coil terminal - screw clamp terminals, 1 wire solid cable without cable end 0.5...2.5 mm² / AWG 20...AWG 14, coil terminal - screw clamp terminals, 2 wires solid cable without cable end 0.5...2.5 mm² / AWG 20...AWG 14, contact terminal - screw clamp terminals, 1 wire flexible cable with cable end 0.5...2.5 mm² / AWG 20...AWG 14, contact terminal - screw clamp terminals, 2 wires flexible cable with cable end 0.5...2.5 mm² / AWG 20...AWG 14, contact terminal - screw clamp terminals, 1 wire solid cable without cable end 0.5...4 mm² / AWG 20...AWG 12, contact terminal - screw clamp terminals, 2 wires solid cable without cable end 0.5...4 mm² / AWG 20...AWG 12 |
| Ambient air temperature for operation | -40-55 °C |
| Dielectric strength | 2500 V |
| Standards | UL 508, CSA C22.2 No 14, IEC 61984 |
| Product certifications | CE, EAC, UL, CSA |
