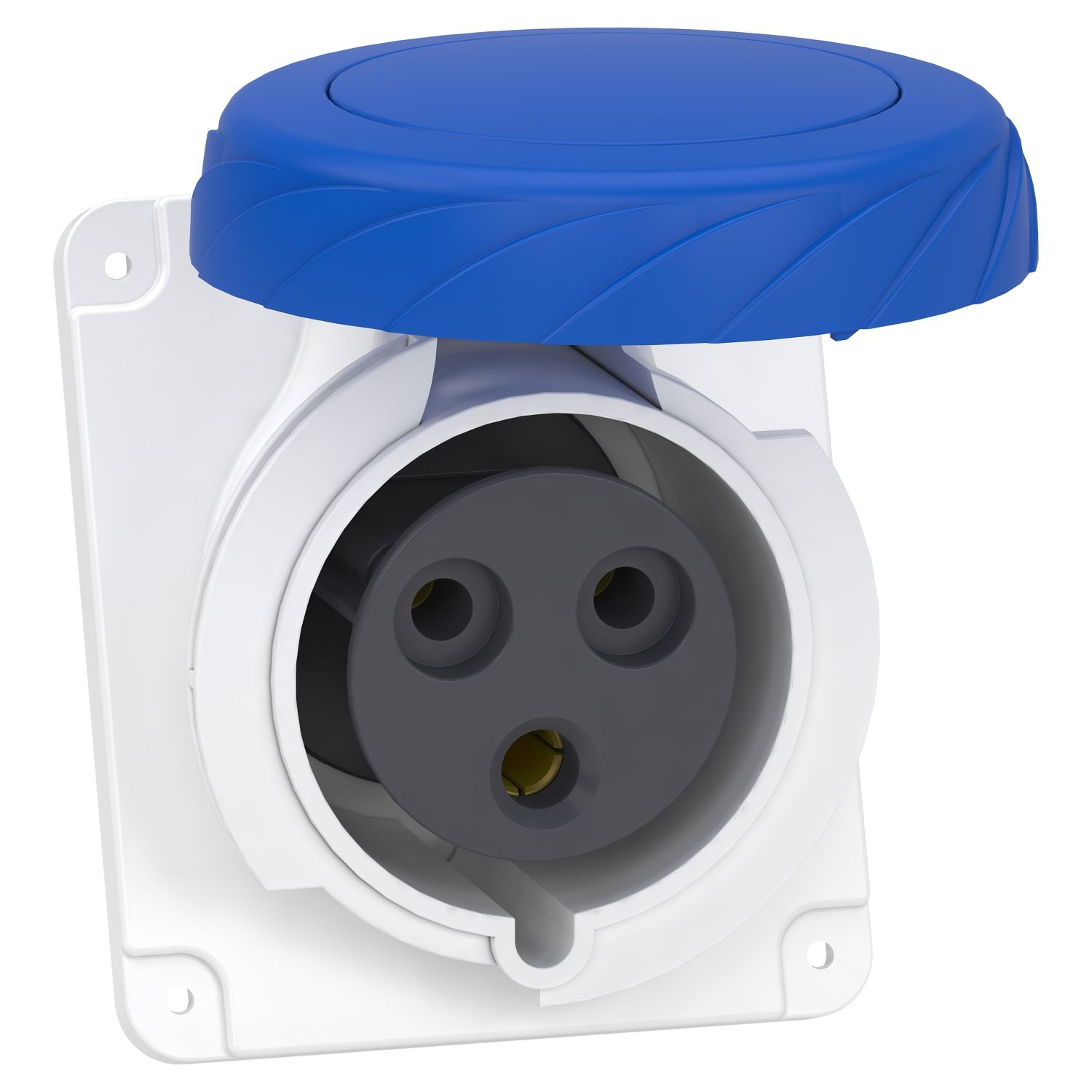

This Pratika industrial socket with fast connection connection is angled panel mounted. It has 2P+E poles, rated current is 32A and the operating voltage is 230VAC. The dimensions of the base plate are (W) 95mm x (H) 100mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A is 2.5mm² to 6mm². The color of the socket is light grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | Mureva socket |
| Plug, socket category | low voltage |
| Outlet standard | industrial |
| Range | Mureva |
| Poles description | 2P + E |
| Product name | Mureva Industrial Socket |
| Product or component type | socket |
| Network type | AC |
| Complementary | |
| Colour | grey (RAL 7035) |
| Compatibility code | Mureva socket |
| Cable cross section | 2.5-6 mm² |
| Mounting mode | panel-mounted |
| Plug, socket material | housing: self-extinguishing engineering polymer |
| Base dimension | 90 x 100 mm |
| Plug, socket, control station shape | angled |
| Contacts material | sleeves: brass |
| Height | 100 mm |
| [Ue] rated operational voltage | 200...250 V |
| Depth | 118 mm |
| Market segment | small commercial |
| Width | 95 mm |
| [In] rated current | 32 A |
| Voltage colour | blue |
| Net weight | 0.24 kg |
| Ground lug clockwise position | 6 h |
| Connections - terminals | fast connection |
| Network frequency | 50/60 Hz |
| Environment | |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative humidity | 90-90 % at 20-20 °C, 70-70 % at 30-30 °C, 50-50 % at 40-40 °C |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Ambient air temperature for operation | 35-35 °C ( 86400 s ) |
| IK degree of protection | IK08 conforming to EN 62262 |
| Standards | IEC 60309-2, IEC 60309-1 |
