Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Processor name | ARM Cortex-A8 at 800 MHz |
| Software package | GP-Pro EX |
| Range of product | Pro-face STM6000 |
| Product or component type | modular HMI box |
| [Us] rated supply voltage | 24 V DC (+/- 20 %) |
| Complementary | |
| Memory description | 320 kB backup memory, 64 MB application memory |
| Type of cooling | natural convection |

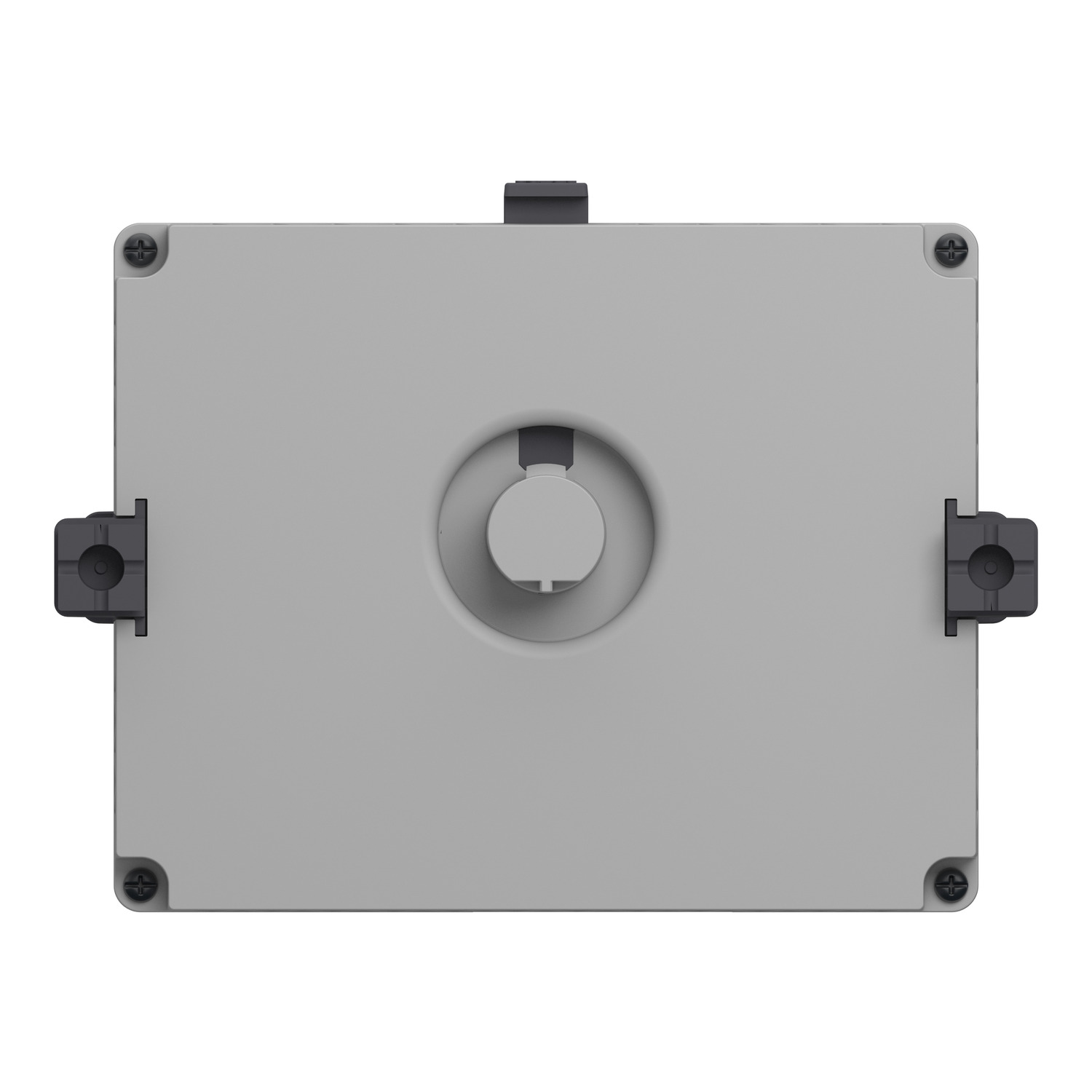

| Fixing mode | Ø 22 mm hole, mounting on 1.5 to 6 mm thick panel conforming to IEC 61000-6-2, Ø 22 mm hole conforming to IEC 61000-6-2, Ø 22 mm hole, mounting on 1.5 to 6 mm thick panel conforming to EN 61131-2, Ø 22 mm hole conforming to EN 61131-2, Ø 22 mm hole, mounting on 1.5 to 6 mm thick panel conforming to UL 61010-2-201 |
| Marking | CE |
| Power consumption in W | 6.8 W |
| Height | 101 mm |
| Depth | 41.4 mm |
| Realtime clock | built-in 10...90 % RH, built-in 0...50 °C |
| Width | 145.6 mm |
| Enclosure material | PC |

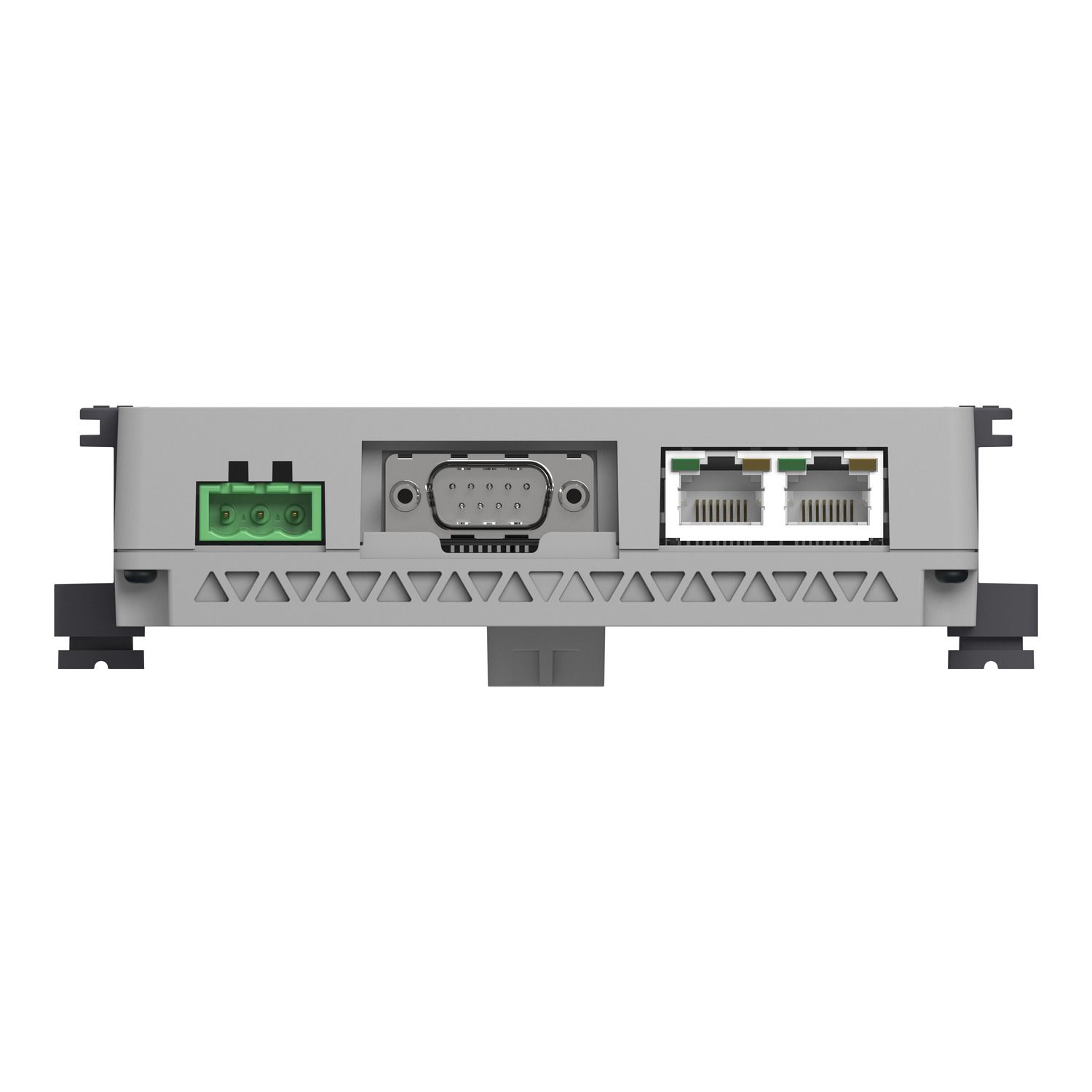

| Integrated connection type | 2 Ethernet - RJ45 - 10/100BASE-Tbottom, 1 USB 2.0 type micro Bback, 1 USB 2.0 type Aback, 1 COM1 serial link - SUB-D 9 - RS232C/RS422/RS485 (rate: 2400...115200 bps)bottom |
| Net weight | 0.27 kg |
| Inrush current | 30 A |
| Environment | |
| Relative humidity | 10-90 % non-condensing |
| Ambient air temperature for storage | -20-60 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Pollution degree | 2 conforming to EN 61131-2 Ed.3 |
| IP degree of protection | IP20 (rear panel) conforming to IEC 61131-2 |
| Electromagnetic compatibility | electrostatic discharge immunity test (contact discharge) conforming to EN/IEC 61000-4-2 level 3, electrical fast transient/burst immunity test (signal ports), electrostatic discharge immunity test (power ports) conforming to IEC 61000-4-4 |
| Immunity to microbreaks | 5 ms |
| Ambient air temperature for operation | 0-50 °C |
| Operating altitude | 2000 m |
| Shock resistance | 147 m/s² for 11 ms (X, Y, Z directions for 10 cycles (approx. 100 min)) conforming to EN/IEC 61131-2 |
| Vibration resistance | 9.8 m/s² (f = 9-150 Hz) conforming to EN/IEC 61131-2, 3.5 mm constant amplitude (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2 |
| Standards | CSA C22.2 No 213, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN 61131-2, EN 61000-6-2, EN 61000-6-4 |
| Product certifications | DNV, BV, RINA, ABS, cULus Class 1 Division 2, EAC, KC, RCM, cULus, UKCA, CE |
