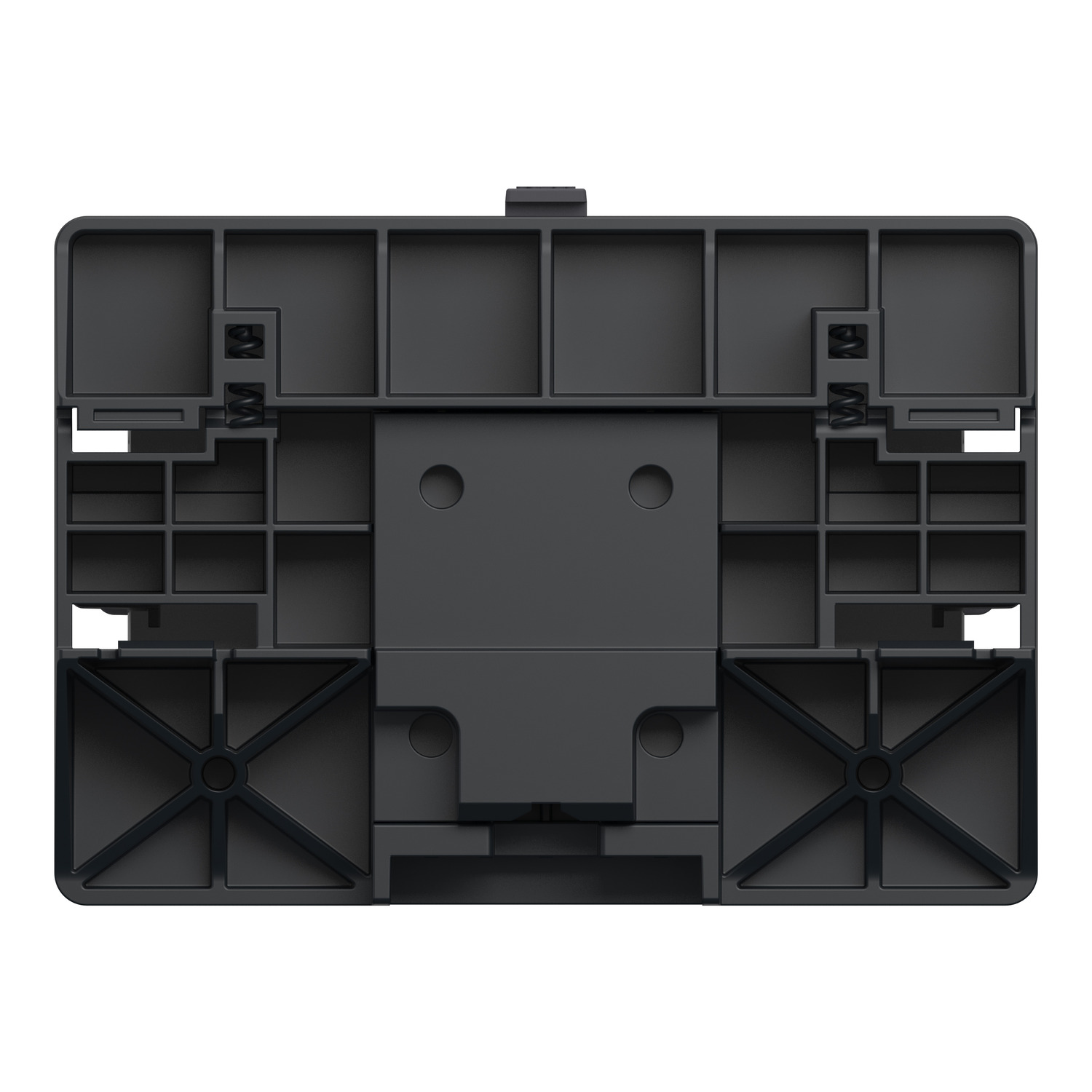

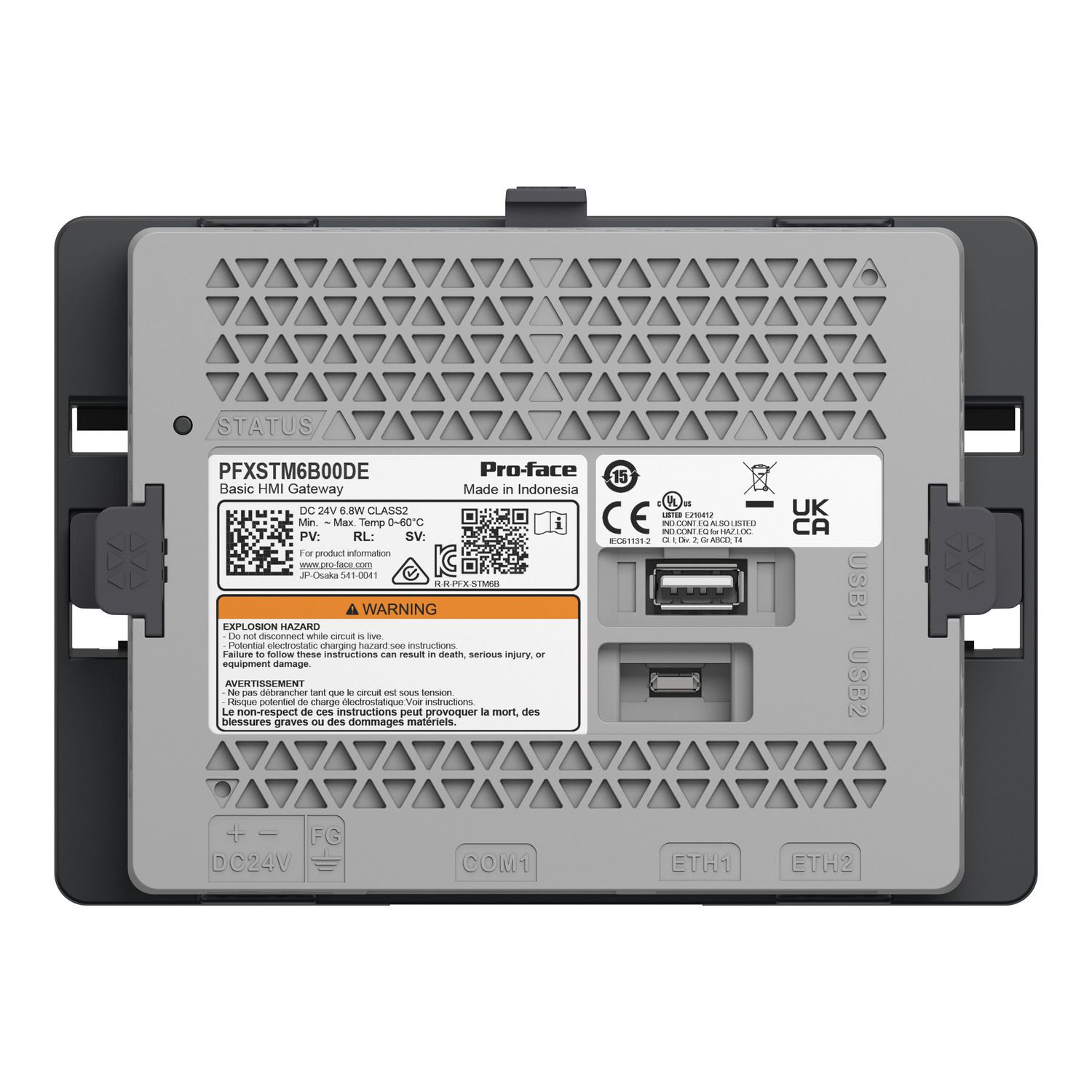

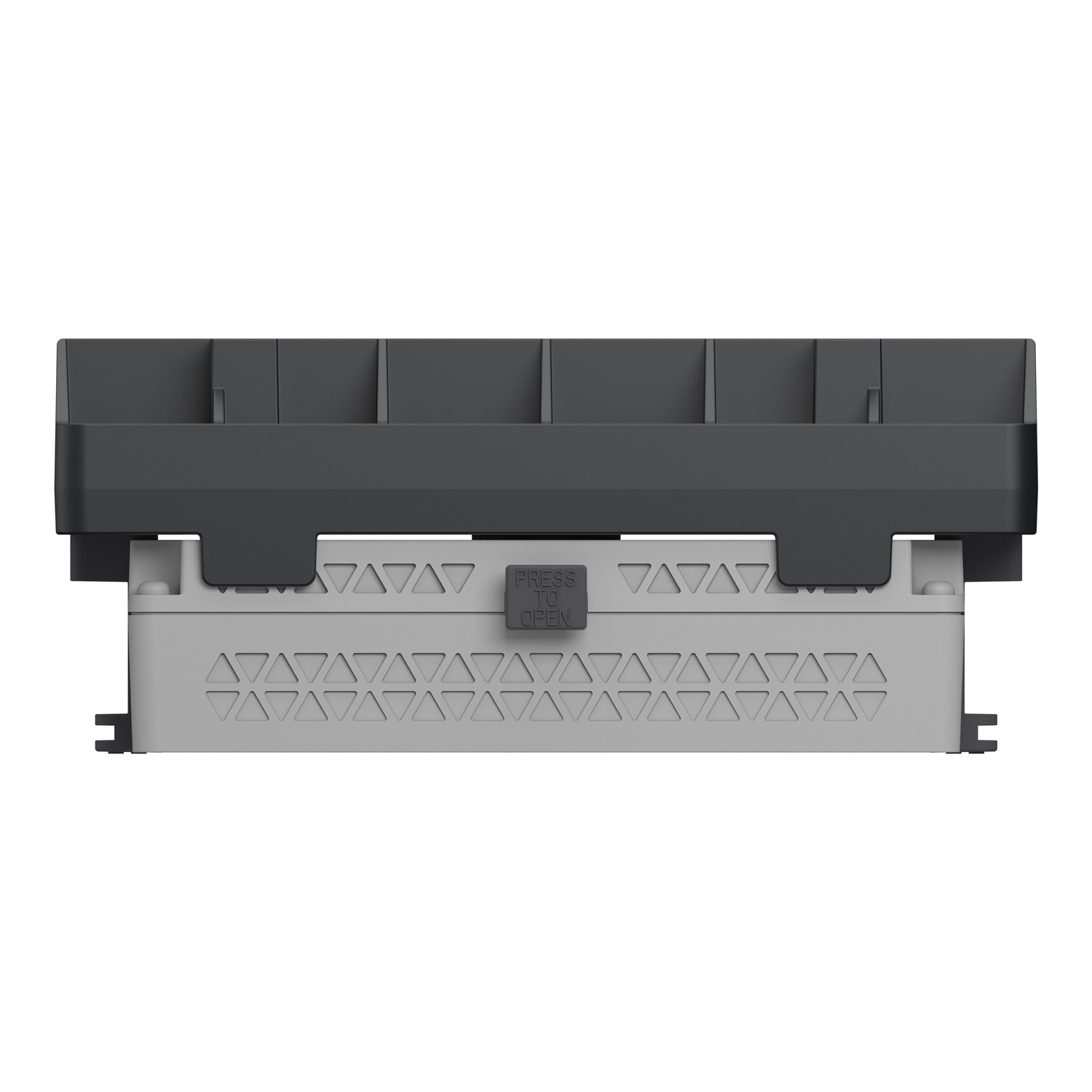

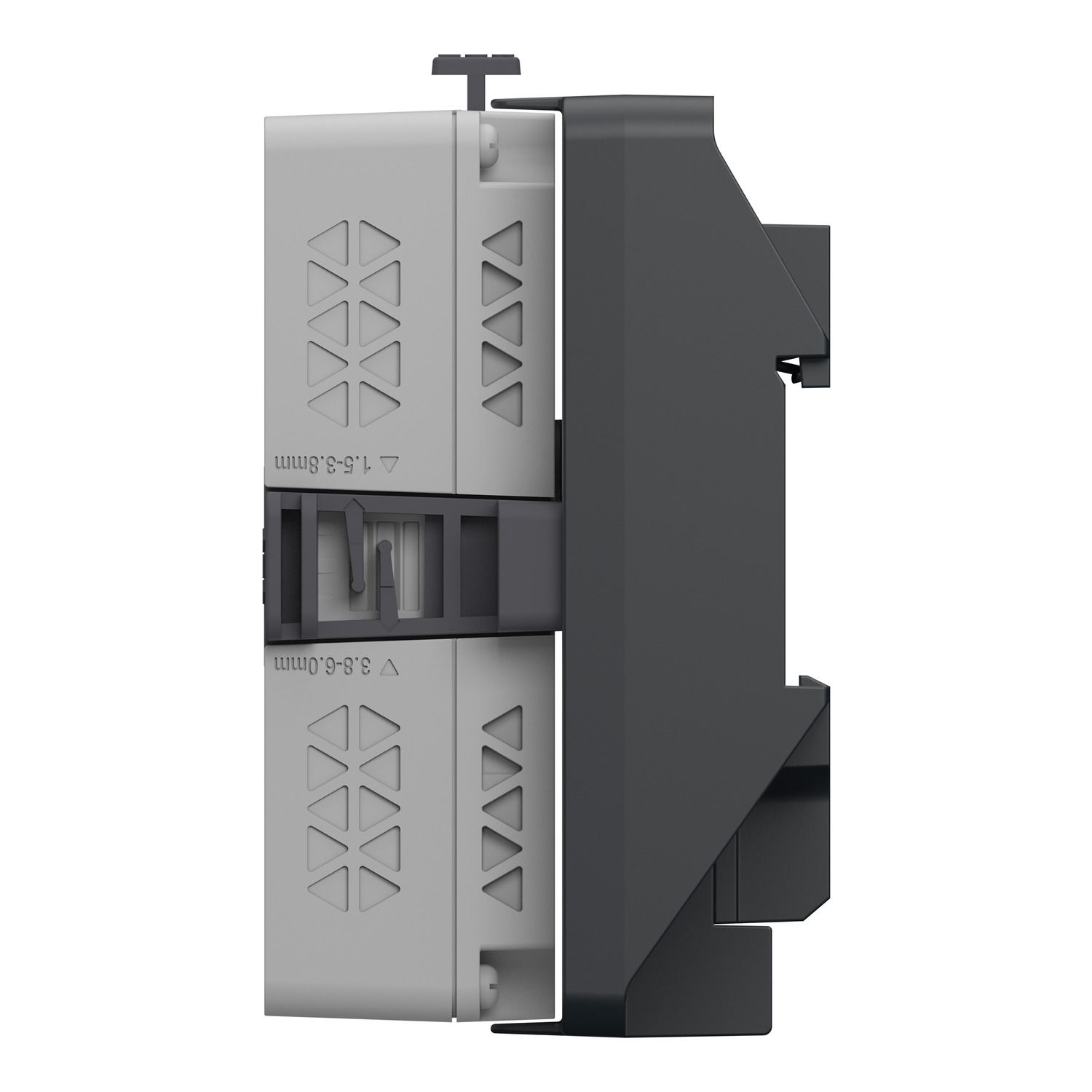

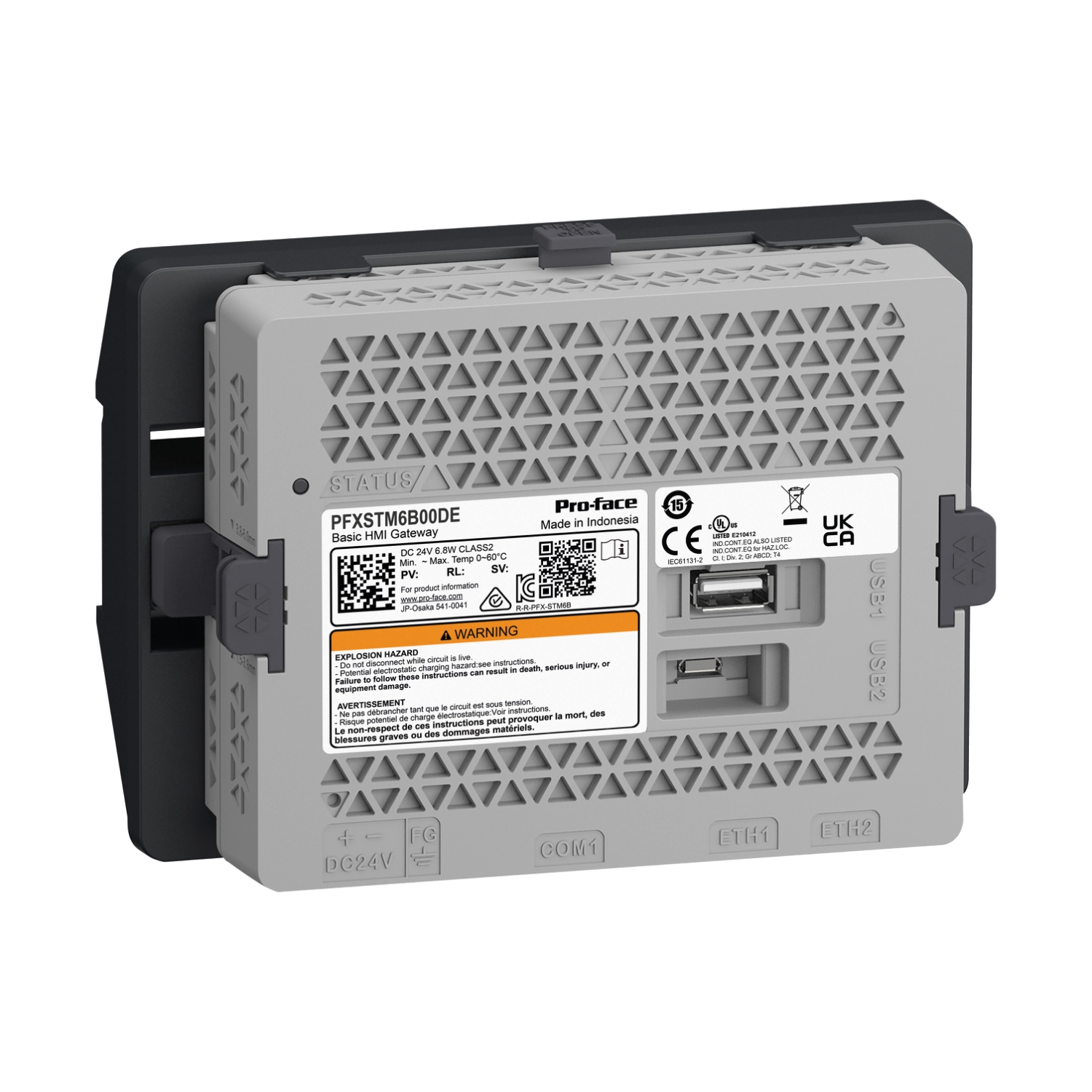

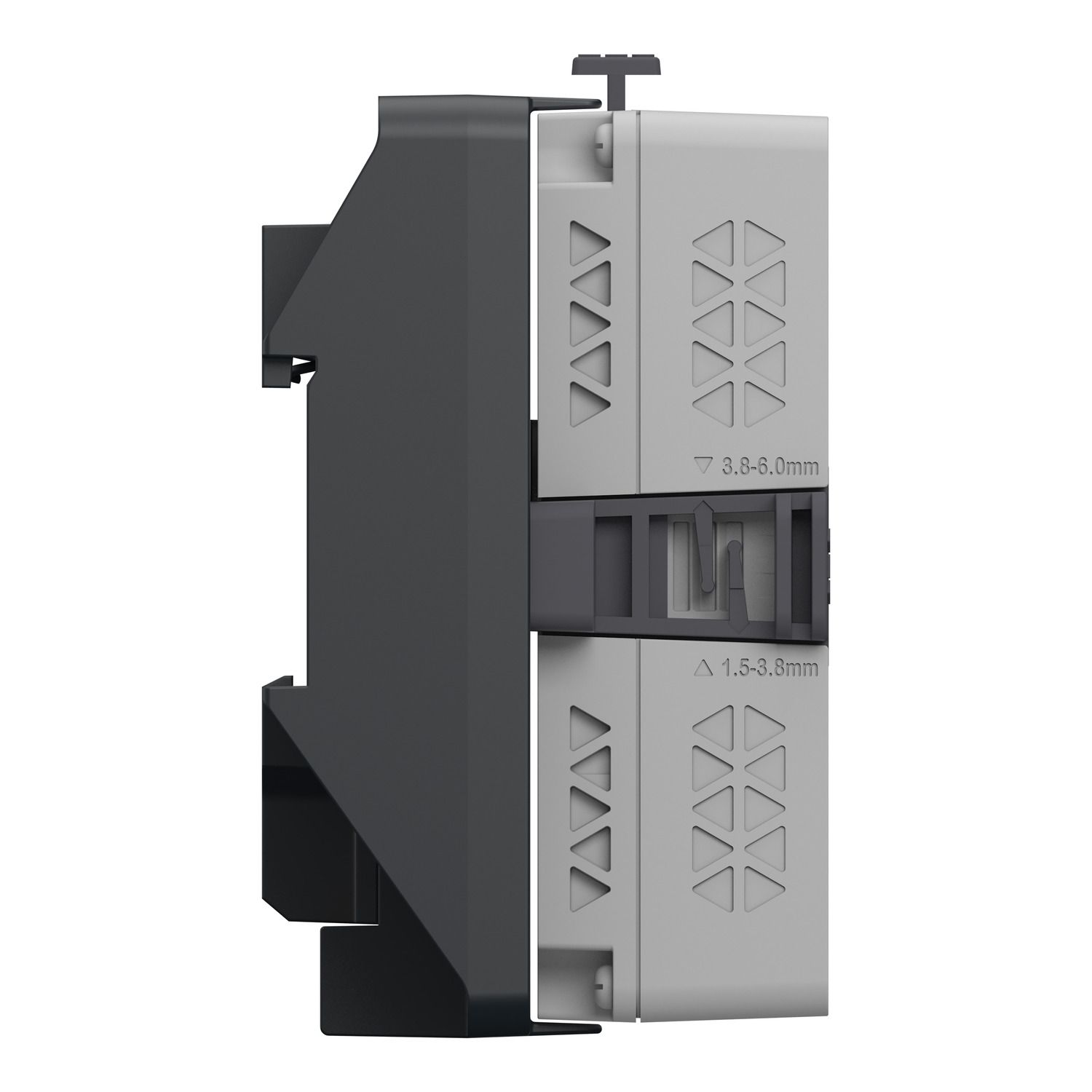

This Basic modular HMI Gateway Box belongs to the Pro-face STM6000 range. This STM6000 Modular BOX is a rear module which runs on 800MHz ARM Cortex-A8 CPU, HMI dediicated operating system with an input supply voltage of 24Vdc. It has 64MB as application memory, 320KB for screen area and 64KB for variable area as backup memory. With Pro-face Remote HMI, the Gateway Modular Box becomes a Faceless HMI. This STM6000 Modular BOX supports 2x Ethernet port, 1x COM1 (RS-232C or RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 150.49mm (width) x 109.97mm (height) x 63.3mm (depth) and weighs 0.456Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, compressors and Marine, also GP4000M Series user looking for modernization of their machine with the same application. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH, ATEX Zone2/22, Marine. This STM6000 Modular BOX when mounted on a DIN Rail adapter provides IP20 protection. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with Pro-face Connect, and cost effective equipment. This STM6000 Faceless HMI can be used for applications that doesn't need an operator screen full time.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Processor name | ARM Cortex-A8 at 800 MHz |
| Software package | GP-Pro EX |
| Range of product | Pro-face STM6000 |
| Product or component type | modular HMI box |
| [Us] rated supply voltage | 24 V DC (+/- 20 %) |
| Complementary | |
| Memory description | 320 kB backup memory, 64 MB application memory |
| Type of cooling | natural convection |
| Marking | CE |
| Power consumption in W | 6.8 W |
| Height | 101 mm |
| Depth | 63.3 mm |
| Realtime clock | built-in 10...90 % RH, built-in 0...50 °C |
| Width | 150.5 mm |

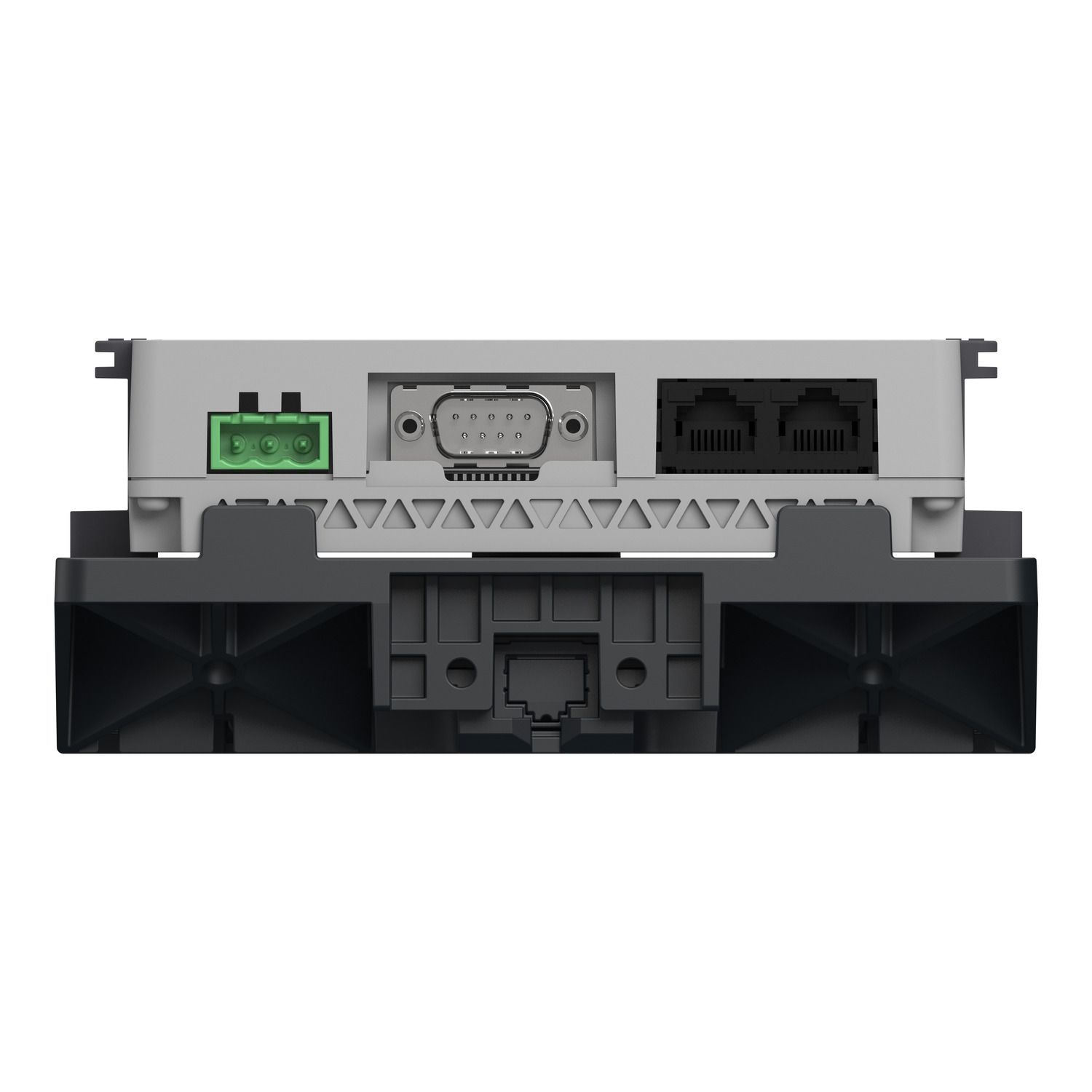

| Integrated connection type | 2 Ethernet - RJ45 - 10/100BASE-Tbottom, 1 USB 2.0 type micro Bback, 1 USB 2.0 type Aback, 1 COM1 serial link - SUB-D 9 - RS232C/RS422/RS485 (rate: 2400...115200 bps)bottom |
| Net weight | 0.456 kg |
| Inrush current | 30 A |
| Environment | |
| Relative humidity | 10-90 % non-condensing |
| Ambient air temperature for storage | -20-60 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Pollution degree | 2 conforming to EN 61131-2 Ed.3 |
| IP degree of protection | IP20 (rear panel) conforming to IEC 61131-2 |
| Electromagnetic compatibility | electrostatic discharge immunity test (air discharge), electrostatic discharge immunity test (contact discharge) conforming to EN/IEC 61000-4-2 level 3, electrical fast transient/burst immunity test (signal ports), electrostatic discharge immunity test (power ports) conforming to EN/IEC 61000-4-2 level 3 |
| Immunity to microbreaks | 5 ms |
| Ambient air temperature for operation | 0-60 °C |
| Operating altitude | 2000 m |
| Shock resistance | 147 m/s² for 11 ms (X, Y, Z directions for 10 cycles (approx. 100 min)) conforming to EN/IEC 61131-2 |
| Vibration resistance | 9.8 m/s² (f = 9-150 Hz) conforming to EN/IEC 61131-2, 3.5 mm constant amplitude (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2 |
| Standards | IEC 61132-2, CSA C22.2 No 213, UL 508, ANSI/ISA 12-12-01, CSA C22.2 No 142 |
| Product certifications | DNV, BV, RINA, ABS, cULus Class 1 Division 2, EAC, KC, RCM, cULus, UKCA, CE |
