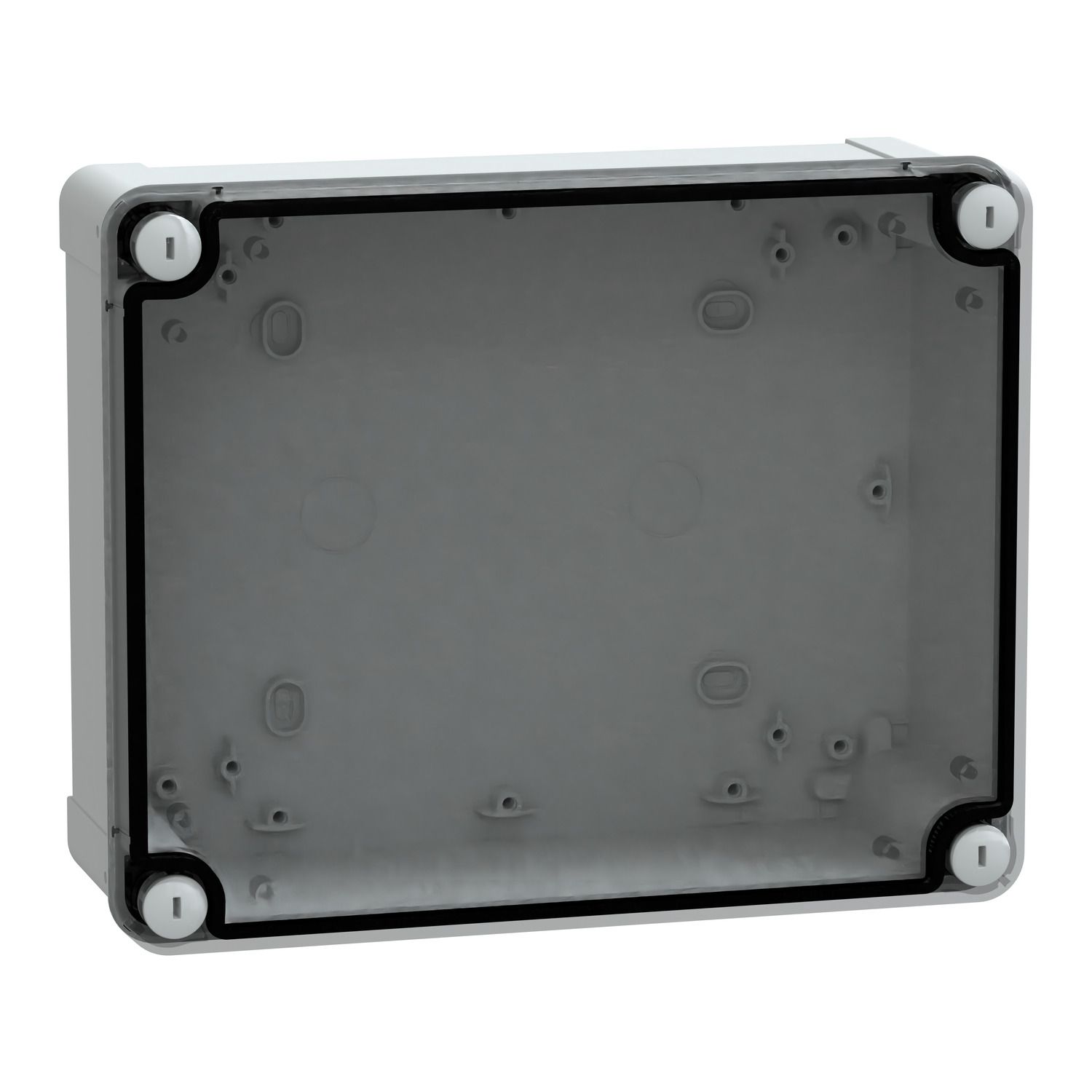

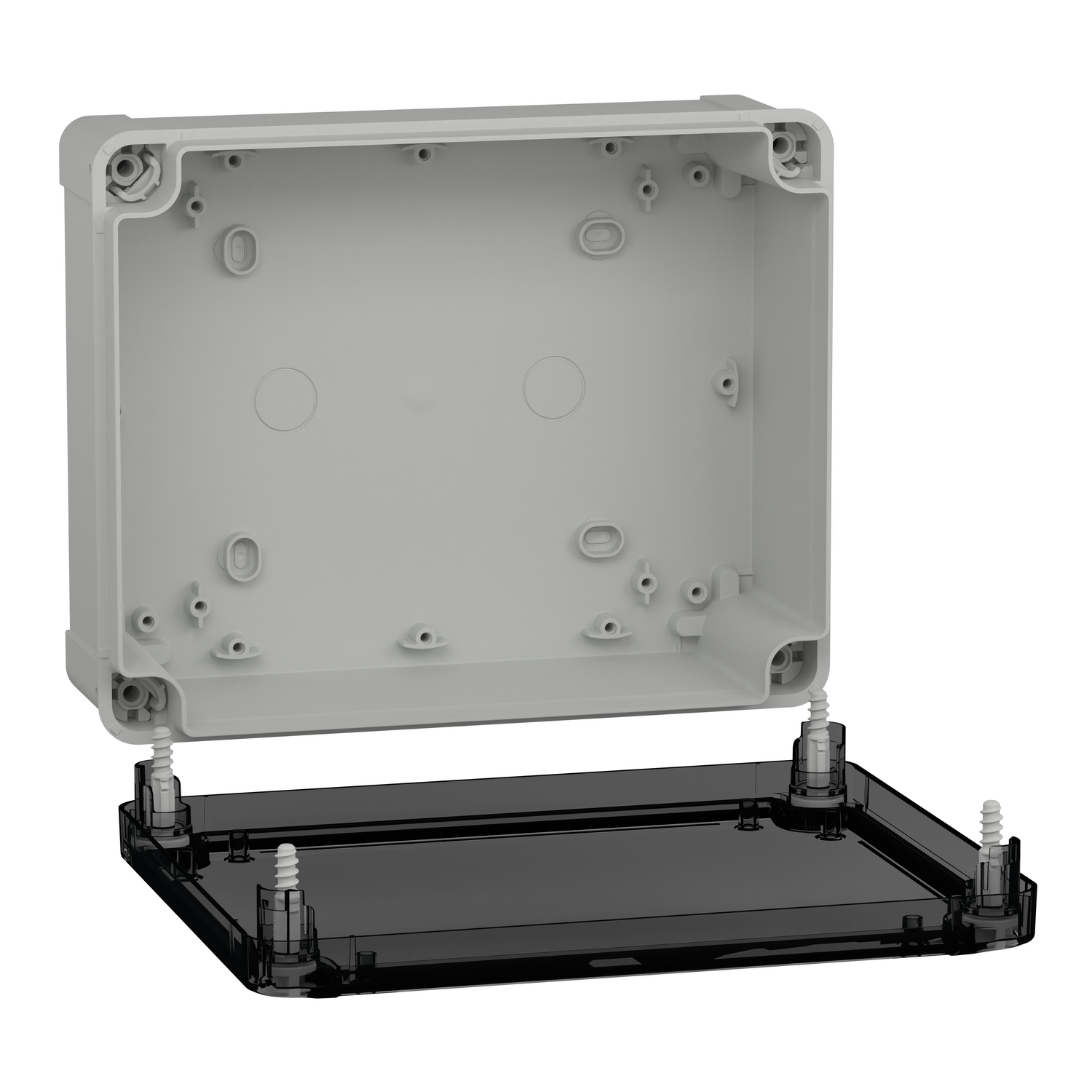

Thalassa TBS industrial ABS box with transparent cover H20. Int is 225 x 175 x 80 mm. Ext is 241 x 194 x 87 mm. Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | multi-purpose |
| Enclosure mounting | wall mounted |
| Cover fixing | plastic screws |
| Range | Thalassa |
| Type of front cover | low transparent cover |
| Lock type | captive screw flat outside sealed area |
| Internal depth | 80 mm |
| Internal height | 225 mm |
| Height | 241 mm |
| Removable parts | cover by captive screws |
| Depth | 87 mm |
| Width | 194 mm |
| Body type | one piece moulded |
| Device composition | 4 cover screw, 1 cover, 1 body |
| Product name | Thalassa TBS |
| Internal width | 175 mm |
| Product or component type | industrial box |
| Complementary | |
| Colour | transparent, grey (RAL 7035) |
| Fire resistance | 650 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for storage | -15-40 °C |
| Electrical insulation class | class II |
| IP degree of protection | IP66 conforming to NEMA 4.4X |
| Ambient air temperature for operation | -25-60 °C |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Net weight | 0.64 kg |
| Standards | IEC 62208 |
| Product certifications | TÜV |
